Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LW1B-A1C2M-YRND PB DPDT GOLD |
0 |
|
- |
LW | Bulk | Active | Panel Mount, Front | Standard | DPDT | On-On | 100mA (AC/DC) | 125 V | 30 V | Round, Button, Flush | - | Yellow | - | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 60°C |
|
|
LW2B-A1C2M-G22MM PUSHBUTTON GREEN |
0 |
|
Datasheet |
LW | Bulk | Active | Panel Mount, Front | Standard | DPDT | On-On | 100mA (AC/DC) | 125 V | 30 V | Square, Button, Flush | - | Green | - | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 60°C |
|
|
LW1B-A1C2M-GRND PB DPDT GOLD |
0 |
|
- |
LW | Bulk | Active | Panel Mount, Front | Standard | DPDT | On-On | 100mA (AC/DC) | 125 V | 30 V | Round, Button, Flush | - | Green | - | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 60°C |
|
|
LW1B-A1C2M-S22MM PUSHBUTTON BLUE |
0 |
|
- |
LW | Bulk | Active | Panel Mount, Front | Standard | DPDT | On-On | 100mA (AC/DC) | 125 V | 30 V | Round, Button, Flush | - | Blue | - | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 60°C |
|
|
EUS-14-271.025-1396A(14-271.025-1396A) PUSHBUTTON/ M |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
31-714.029SWITCH PB DPST-NO/NC 5A 250V |
0 |
|
Datasheet |
31 | Bulk | Active | Panel Mount, Front | Standard | DPST-NO/NC | On-Off, Off-On | 5A (AC) | 250 V | - | Rectangular, Button (Not Included) | No Marking | - | - | - | Solder Lug | IP40 | - | Circular - 16.00mm Dia | -25°C ~ 55°C |
|
|
NX321005B-LTACTICAL PUSHBUTTON SWITCH |
0 |
|
- |
NX | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 10A (AC/DC) | 115 V | 28 V | Round, Plunger | No Marking | Black | - | - | Solder Lug | Dust Proof | - | - | - |
|
|
EUS-14-272.025-1194I.1(14-272.025-1194I.1) LPB RND / W |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
ABN122-BPUSHBUTTON ROUND FLUSH MOMEN. |
0 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
ATN2202S-R3POS MOM PUSH-PULL SW RED CAP |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PBAR9AF0000A2APUSHBUTTON SWITCH PBA PIEZO |
0 |
|
- |
PBA | Bulk | Active | Panel Mount, Front | Piezo | SPST-NO | Off-Mom | 200mA (DC) | 24 V | 24 V | Round, Button, Flush | - | Natural | LED, Green/Red | 5 VDC | Wire Leads | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 19.00mm Dia | -40°C ~ 75°C |
|

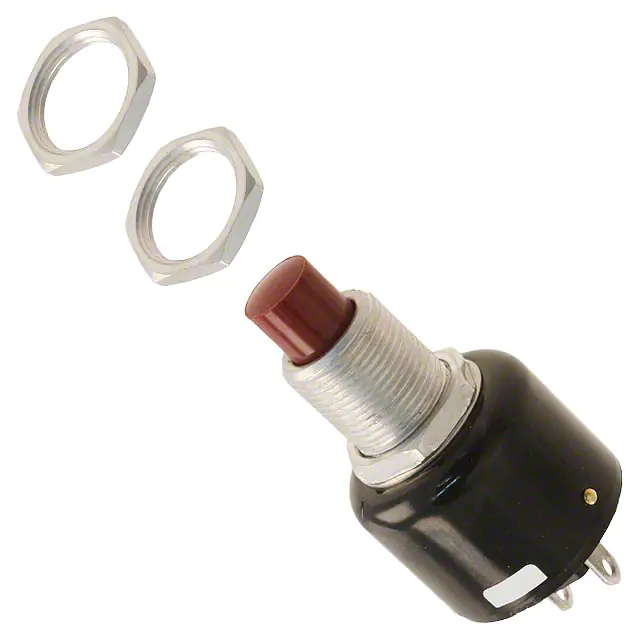

07-8SWITCH PUSH SPST-NC 10A 115V |
0 |
|
Datasheet |
7 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NC | On-Mom | 10A (AC) | 115 V | - | Round, Plunger | No Marking | Red | - | - | Solder Lug | - | - | - | -40°C ~ 85°C |
|
|
11-471.836SWITCH PB DPST-NO 0.1A 42V |
0 |
|
- |
11 | Bulk | Obsolete | Panel Mount, Rear | Standard | DPST-NO | Off-On | 100mA (AC/DC) | 42 V | 42 V | Round, Button (Not Included) | No Marking | - | - | - | Solder Lug | - | - | Circular - 16.00mm Dia | - |
|
|
AML22CBR8ACSWITCH PUSHBUTTON DPDT 3A 125V |
0 |
|
Datasheet |
AML22 | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-Mom | 3A (AC), 2A (DC) | 125 V | 24 V | Square, Button (Not Included) | No Marking | - | LED, Green | 2.4 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | Epoxy Sealed Terminals | Square - 19.05mm x 19.05mm | - |
|
|
LBW7L-A1T21VRLBW FLUSH ILLD PB MAIN. RED |
0 |
|
- |
LBW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-On | 100mA (AC/DC) | 125 V | 30 V | Square, Button | - | Red | LED, Red | 5 VDC | PC Pin | IP65 - Dust Tight, Water Resistant | - | Square - 22.50mm x 22.50mm | -25°C ~ 55°C |
|
|
LBW7L-A1T21VYLBW FLUSH ILLD PB MAIN. YELLOW |
0 |
|
- |
LBW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-On | 100mA (AC/DC) | 125 V | 30 V | Square, Button | - | Yellow | LED, Yellow | 5 VDC | PC Pin | IP65 - Dust Tight, Water Resistant | - | Square - 22.50mm x 22.50mm | -25°C ~ 55°C |
|
|
LBW7L-A1T23VGLBW FLUSH ILLD PB MAIN. GREEN |
0 |
|
- |
LBW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-On | 100mA (AC/DC) | 125 V | 30 V | Square, Button | - | Green | LED, Green | 12 VAC/DC | PC Pin | IP65 - Dust Tight, Water Resistant | - | Square - 22.50mm x 22.50mm | -25°C ~ 55°C |
|
|
LBW7L-A1T23VALBW FLUSH ILLD PB MAIN. AMBER |
0 |
|
- |
LBW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-On | 100mA (AC/DC) | 125 V | 30 V | Square, Button | - | Amber | LED, Amber | 12 VAC/DC | PC Pin | IP65 - Dust Tight, Water Resistant | - | Square - 22.50mm x 22.50mm | -25°C ~ 55°C |
|
|
LBW7L-A1T23VRLBW FLUSH ILLD PB MAIN. RED |
0 |
|
- |
LBW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-On | 100mA (AC/DC) | 125 V | 30 V | Square, Button | - | Red | LED, Red | 12 VAC/DC | PC Pin | IP65 - Dust Tight, Water Resistant | - | Square - 22.50mm x 22.50mm | -25°C ~ 55°C |
|
|
LBW7L-A1T21VALBW FLUSH ILLD PB MAIN. AMBER |
0 |
|
- |
LBW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-On | 100mA (AC/DC) | 125 V | 30 V | Square, Button | - | Amber | LED, Amber | 5 VDC | PC Pin | IP65 - Dust Tight, Water Resistant | - | Square - 22.50mm x 22.50mm | -25°C ~ 55°C |
