Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LW6MB-A2C1LW25MM PUSHBUTTON WHITE |
0 |
|
- |
LW | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-On | 100mA (AC/DC) | 125 V | 30 V | Round, Button | - | White | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 25.20mm Dia | -25°C ~ 60°C |
|
|
LW6MB-A2C1LY25MM PUSHBUTTON YELLOW |
0 |
|
- |
LW | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-On | 100mA (AC/DC) | 125 V | 30 V | Round, Button | - | Yellow | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 25.20mm Dia | -25°C ~ 60°C |
|
|
LW6MB-A2C1LB25MM PUSHBUTTON BLACK |
0 |
|
- |
LW | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-On | 100mA (AC/DC) | 125 V | 30 V | Round, Button | - | Black | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 25.20mm Dia | -25°C ~ 60°C |
|
|
LW6MB-A2C1LR25MM PUSHBUTTON RED |
0 |
|
- |
LW | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-On | 100mA (AC/DC) | 125 V | 30 V | Round, Button | - | Red | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 25.20mm Dia | -25°C ~ 60°C |
|
|
LW6MB-M2C2LG25MM PUSHBUTTON GREEN |
0 |
|
- |
LW | Bulk | Active | Panel Mount, Front | Standard | DPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Round, Button | - | Green | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 25.20mm Dia | -25°C ~ 60°C |
|
|
LW6MB-M2C2LR25MM PUSHBUTTON RED |
0 |
|
- |
LW | Bulk | Active | Panel Mount, Front | Standard | DPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Round, Button | - | Red | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 25.20mm Dia | -25°C ~ 60°C |
|
|
LW6MB-M2C2LA25MM PUSHBUTTON AMBER |
0 |
|
- |
LW | Bulk | Active | Panel Mount, Front | Standard | DPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Round, Button | - | Amber | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 25.20mm Dia | -25°C ~ 60°C |
|
|
LW6MB-M2C2LW25MM PUSHBUTTON WHITE |
0 |
|
- |
LW | Bulk | Active | Panel Mount, Front | Standard | DPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Round, Button | - | White | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 25.20mm Dia | -25°C ~ 60°C |
|
|
LW6MB-M2C2LB25MM PUSHBUTTON BLACK |
0 |
|
- |
LW | Bulk | Active | Panel Mount, Front | Standard | DPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Round, Button | - | Black | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 25.20mm Dia | -25°C ~ 60°C |
|
|
LW6MB-M2C2LY25MM PUSHBUTTON YELLOW |
0 |
|
- |
LW | Bulk | Active | Panel Mount, Front | Standard | DPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Round, Button | - | Yellow | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 25.20mm Dia | -25°C ~ 60°C |
|
|
LW7B-A1C2LA25MM PUSHBUTTON AMBER |
0 |
|
- |
LW | Bulk | Active | Panel Mount, Front | Standard | DPDT | On-On | 100mA (AC/DC) | 125 V | 30 V | Square, Button, Flush | - | Amber | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Oil and Water Resistant | - | Square - 24.50mm x 24.50mm | -25°C ~ 60°C |
|
|
LW7B-A1C2LW25MM PUSHBUTTON WHITE |
0 |
|
- |
LW | Bulk | Active | Panel Mount, Front | Standard | DPDT | On-On | 100mA (AC/DC) | 125 V | 30 V | Square, Button, Flush | - | White | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Oil and Water Resistant | - | Square - 24.50mm x 24.50mm | -25°C ~ 60°C |
|
|
LW6MB-M2C2LS25MM PUSHBUTTON BLUE |
0 |
|
- |
LW | Bulk | Active | Panel Mount, Front | Standard | DPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Round, Button | - | Blue | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 25.20mm Dia | -25°C ~ 60°C |
|
|
LW7B-A1C2LY25MM PUSHBUTTON YELLOW |
0 |
|
- |
LW | Bulk | Active | Panel Mount, Front | Standard | DPDT | On-On | 100mA (AC/DC) | 125 V | 30 V | Square, Button, Flush | - | Yellow | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Oil and Water Resistant | - | Square - 24.50mm x 24.50mm | -25°C ~ 60°C |
|
|
LW7B-A1C2LR25MM PUSHBUTTON RED |
0 |
|
- |
LW | Bulk | Active | Panel Mount, Front | Standard | DPDT | On-On | 100mA (AC/DC) | 125 V | 30 V | Square, Button, Flush | - | Red | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Oil and Water Resistant | - | Square - 24.50mm x 24.50mm | -25°C ~ 60°C |
|
|
LW7B-A1C2LB25MM PUSHBUTTON BLACK |
0 |
|
- |
LW | Bulk | Active | Panel Mount, Front | Standard | DPDT | On-On | 100mA (AC/DC) | 125 V | 30 V | Square, Button, Flush | - | Black | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Oil and Water Resistant | - | Square - 24.50mm x 24.50mm | -25°C ~ 60°C |
|
|
LW7B-A1C2LG25MM PUSHBUTTON GREEN |
0 |
|
- |
LW | Bulk | Active | Panel Mount, Front | Standard | DPDT | On-On | 100mA (AC/DC) | 125 V | 30 V | Square, Button, Flush | - | Green | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Oil and Water Resistant | - | Square - 24.50mm x 24.50mm | -25°C ~ 60°C |
|
|
LW7B-A1C2LS25MM PUSHBUTTON BLUE |
0 |
|
- |
LW | Bulk | Active | Panel Mount, Front | Standard | DPDT | On-On | 100mA (AC/DC) | 125 V | 30 V | Square, Button, Flush | - | Blue | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Oil and Water Resistant | - | Square - 24.50mm x 24.50mm | -25°C ~ 60°C |
|

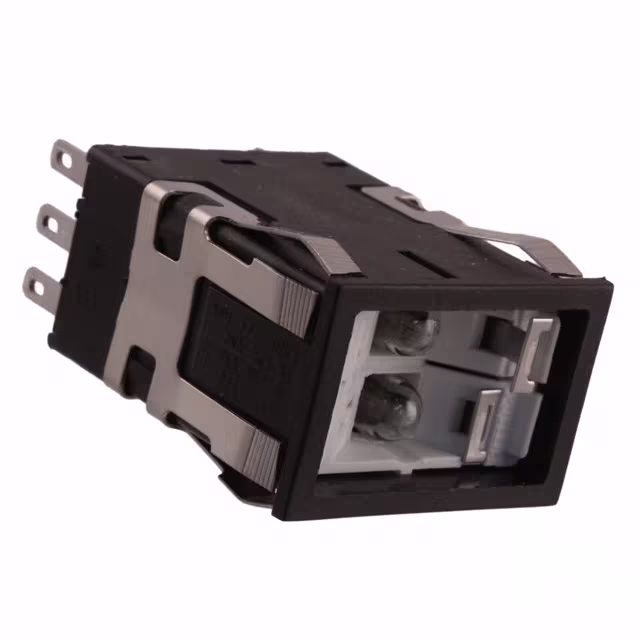

AML21GBE2ACSWITCH PUSHBUTTON DPDT 3A 125V |
0 |
|
Datasheet |
AML21 | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-Mom | 3A (AC), 2A (DC) | 125 V | 24 V | Rectangular, Button (Not Included) | No Marking | - | Incandescent | 28 VAC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Rectangular - 28.98mm x 19.05mm | - |
|
|
LW6L-A2C13VW25MM PUSHBUTTON ILLUMINATED |
0 |
|
- |
LW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 100mA (AC/DC) | 125 V | 30 V | Round, Button | - | White | LED, White | 12 VAC/DC | PC Pin | IP65 - Dust Tight, Water Resistant | - | Circular - 25.20mm Dia | -25°C ~ 50°C |
