Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CW1L-A2E01Q2SCW ILLD PB BLUE |
0 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
CW1L-A2E01Q3SCW ILLD PB BLUE |
0 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
CW1L-A2E10Q3SCW ILLD PB BLUE |
0 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
CW1L-A2E10Q2SCW ILLD PB BLUE |
0 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
CW1L-A2E01Q4SCW ILLD PB BLUE |
0 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
CW1L-A2E10Q4SCW ILLD PB BLUE |
0 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
CW1L-A1E10Q2SCW ILLD PB BLUE |
0 |
|
- |
CW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-On | 5A (AC), 4A (DC) | 120 V | 24 V | Round, Button, Flush | - | Blue | LED, Blue | 6 VAC/DC | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 55°C |
|
|
CW1L-A1E01Q2SCW ILLD PB BLUE |
0 |
|
- |
CW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NC | On-Off | 5A (AC), 4A (DC) | 120 V | 24 V | Round, Button, Flush | - | Blue | LED, Blue | 6 VAC/DC | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 55°C |
|
|
CW1L-A1E10Q3SCW ILLD PB BLUE |
0 |
|
- |
CW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-On | 5A (AC), 4A (DC) | 120 V | 24 V | Round, Button, Flush | - | Blue | LED, Blue | 12 VAC/DC | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 55°C |
|
|
CW1L-A1E01Q4SCW ILLD PB BLUE |
0 |
|
- |
CW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NC | On-Off | 5A (AC), 4A (DC) | 120 V | 24 V | Round, Button, Flush | - | Blue | LED, Blue | 24 VAC/DC | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 55°C |
|
|
CW1L-A1E01Q3SCW ILLD PB BLUE |
0 |
|
- |
CW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NC | On-Off | 5A (AC), 4A (DC) | 120 V | 24 V | Round, Button, Flush | - | Blue | LED, Blue | 12 VAC/DC | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 55°C |
|
|
CW1L-A1E10Q4SCW ILLD PB BLUE |
0 |
|
- |
CW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-On | 5A (AC), 4A (DC) | 120 V | 24 V | Round, Button, Flush | - | Blue | LED, Blue | 24 VAC/DC | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 55°C |
|
|
NX302HB1BTACTICAL PUSHBUTTON SWITCH |
0 |
|
- |
NX | Bag | Active | Panel Mount, Front | Standard | SPST-NC | On-Mom | 10A (AC/DC) | 115 V | 28 V | Round, Plunger | No Marking | Black | - | - | Solder Lug | Dust Proof | - | - | - |
|

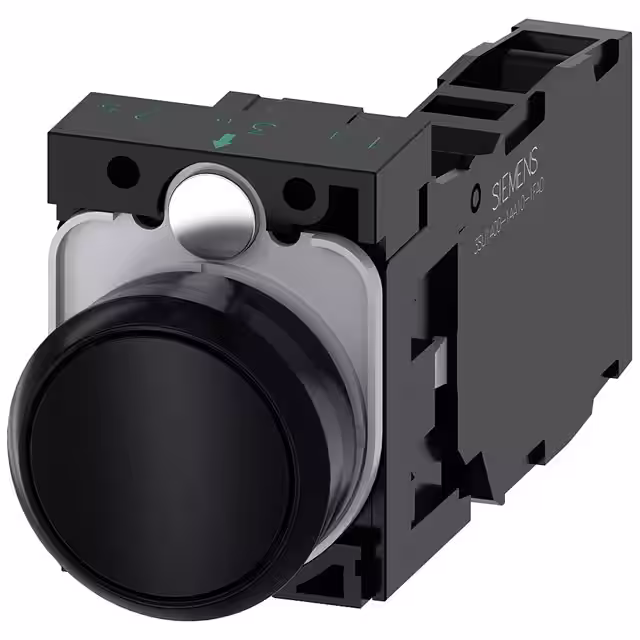

A6X30141445PUSHBUTTON. BLACK |
0 |
|
Datasheet |
3SU1 | Box | Active | Panel Mount, Front | Standard | DPST-NO/NC | On-Mom, Off-Mom | 10A (AC/DC) | 500 V | 500 V | Round, Button | - | Black | - | - | Screw Terminal | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|

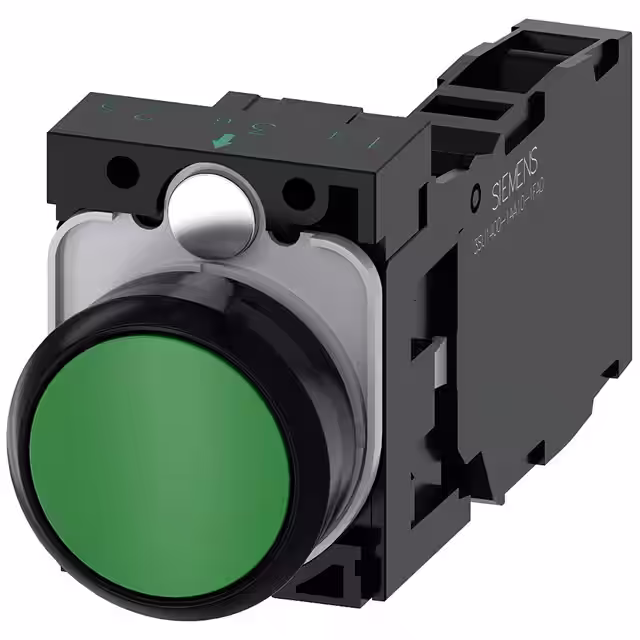

A6X30141461PUSHBUTTON. GREEN |
0 |
|
Datasheet |
3SU1 | Box | Active | Panel Mount, Front | Standard | DPST-NO/NC | On-Mom, Off-Mom | 10A (AC/DC) | 500 V | 500 V | Round, Button | - | Green | - | - | Screw Terminal | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|

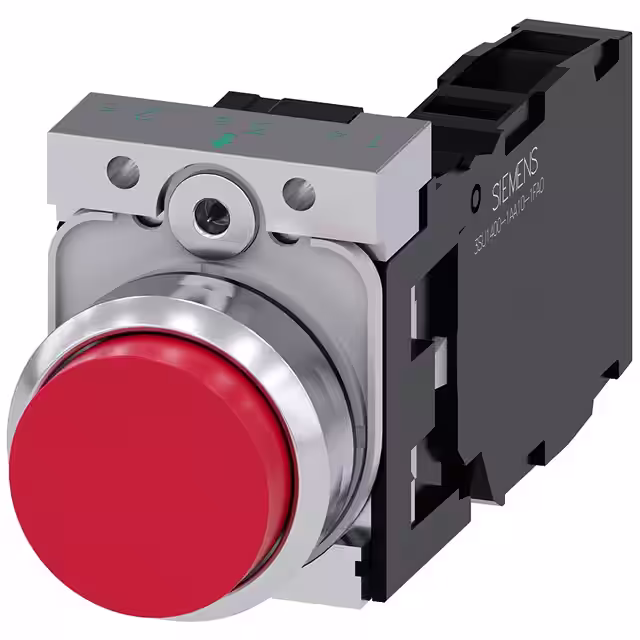

A6X30143087PUSHBUTTON. RED |
0 |
|
Datasheet |
3SU1 | Box | Active | Panel Mount, Front | Standard | DPST-NO/NC | On-Mom, Off-Mom | 10A (AC/DC) | 500 V | 500 V | Round, Button | - | Red | - | - | Screw Terminal | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|

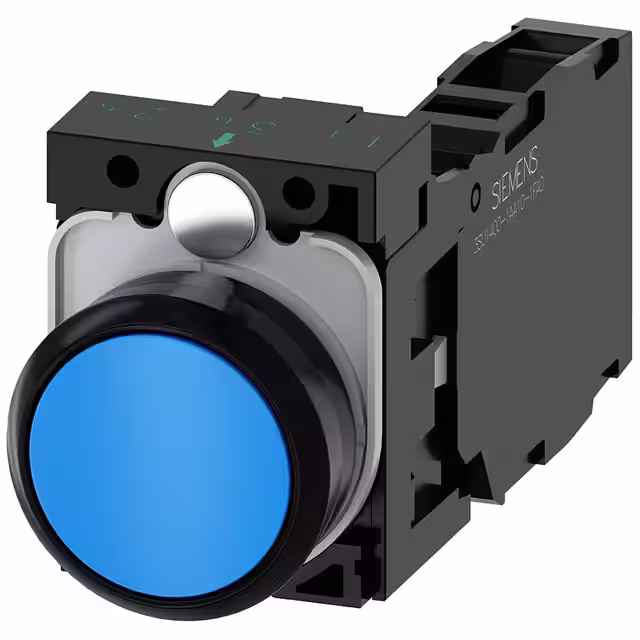

A6X30141695PUSHBUTTON. BLUE |
0 |
|
Datasheet |
3SU1 | Box | Active | Panel Mount, Front | Standard | DPST-NO/NC | On-Mom, Off-Mom | 10A (AC/DC) | 500 V | 500 V | Round, Button | - | Blue | - | - | Screw Terminal | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|
|
PBAR9AF0000A0SPUSHBUTTON SWITCH PBA PIEZO |
0 |
|
- |
PBA | Bulk | Active | Panel Mount, Front | Piezo | SPST-NO | Off-Mom | 200mA (DC) | 24 V | 24 V | Round, Button, Flush | - | Natural | LED, Red | 5 VDC | Wire Leads | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 19.00mm Dia | -40°C ~ 75°C |
|
|
AOLQW2B9911D-C-120VTW LD SQ P |
0 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
A1PCA1Y214L103SWITCH PUSHBUTTON DPDT 6A 250V |
0 |
|
Datasheet |
A1 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-Mom | 6A (AC) | 250 V | - | Round, Button, Flush | No Marking | Silver | LED, Red | 48 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Epoxy Sealed Terminals | Circular - 22.00mm Dia | -20°C ~ 55°C |
