Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LBW6ML-M1T24VPWLBW FLUSH ILLD PB MOME. PW |
0 |
|
Datasheet |
LBW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Round, Button, Flush | No Marking | White | LED, White | 24 VAC/DC | PC Pin | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 55°C |
|
|
LBW6ML-M1T24VSLBW FLUSH ILLD PB MOME. BLUE |
0 |
|
Datasheet |
LBW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Round, Button, Flush | No Marking | Clear | LED, Blue | 24 VAC/DC | PC Pin | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 55°C |
|
|
LBW6ML-M1T64SLBW FLUSH ILLD PB MOME. BLUE |
0 |
|
Datasheet |
LBW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Round, Button, Flush | No Marking | Clear | LED, Blue | 24 VAC/DC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 55°C |
|
|
LBW7ML-M1T24PWLBW FLUSH ILLD PB MOME. PW |
0 |
|
Datasheet |
LBW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Square, Button, Flush | No Marking | White | LED, White | 24 VAC/DC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Square - 22.50mm x 22.50mm | -25°C ~ 55°C |
|
|
LBW7ML-M1T24SLBW FLUSH ILLD PB MOME. BLUE |
0 |
|
Datasheet |
LBW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Square, Button, Flush | No Marking | Clear | LED, Blue | 24 VAC/DC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Square - 22.50mm x 22.50mm | -25°C ~ 55°C |
|
|
LBW7ML-M1T24VPWLBW FLUSH ILLD PB MOME. PW |
0 |
|
Datasheet |
LBW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Square, Button, Flush | No Marking | White | LED, White | 24 VAC/DC | PC Pin | IP65 - Dust Tight, Water Resistant | - | Square - 22.50mm x 22.50mm | -25°C ~ 55°C |
|
|
LBW7ML-M1T24VSLBW FLUSH ILLD PB MOME. BLUE |
0 |
|
Datasheet |
LBW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Square, Button, Flush | No Marking | Clear | LED, Blue | 24 VAC/DC | PC Pin | IP65 - Dust Tight, Water Resistant | - | Square - 22.50mm x 22.50mm | -25°C ~ 55°C |
|
|
LBW7ML-M1T64SLBW FLUSH ILLD PB MOME. BLUE |
0 |
|
Datasheet |
LBW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Square, Button, Flush | No Marking | Clear | LED, Blue | 24 VAC/DC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Square - 22.50mm x 22.50mm | -25°C ~ 55°C |
|

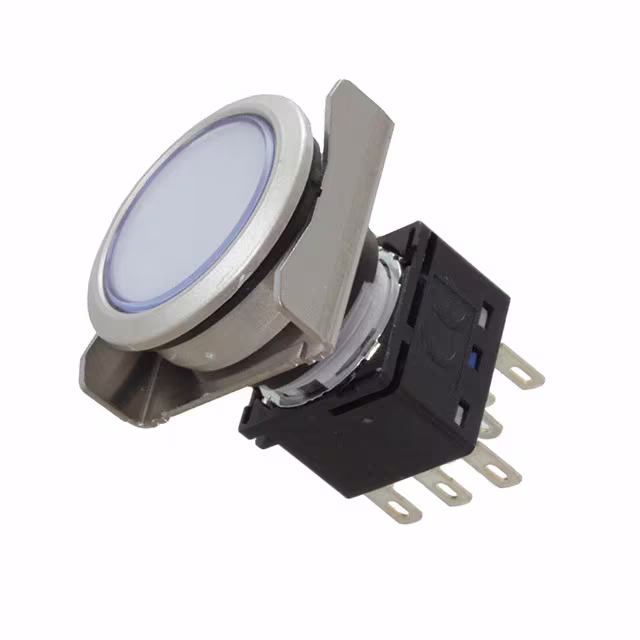

LBW6ML-M1T64PWLBW FLUSH ILLD PB MOME. PW |
0 |
|
Datasheet |
LBW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Round, Button, Flush | No Marking | White | LED, White | 24 VAC/DC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 55°C |
|
|
AML21MBE2AAUNSEALED OI-PB SWITCH |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
A22NL-BGA-TGA-P002-GDPSHIN FG BM BZL GREN 1 NC |
0 |
|
Datasheet |
A22NL | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NC | On-Off | 10A (AC/DC) | 120 V | 24 V | Round, Button, Full Guard | No Marking | Clear (Green Filter/Diffuser) | LED, Green | 100 ~ 120 VAC | Spring Terminal | IP66 - Dust Tight, Water Resistant | Full Guard Bezel | Circular - 22.30mm Dia | -25°C ~ 55°C |
|
|
A22NL-BGA-TRA-P002-RDPSHIN FG BM BZL RED 1 NC |
0 |
|
Datasheet |
A22NL | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NC | On-Off | 10A (AC/DC) | 120 V | 24 V | Round, Button, Full Guard | No Marking | Clear (Red Filter/Diffuser) | LED, Red | 100 ~ 120 VAC | Spring Terminal | IP66 - Dust Tight, Water Resistant | Full Guard Bezel | Circular - 22.30mm Dia | -25°C ~ 55°C |
|
|
A22NL-BGA-TGA-P100-GDPSHIN FG BM BZL GREN 1 NO |
0 |
|
Datasheet |
A22NL | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-On | 10A (AC/DC) | 120 V | 24 V | Round, Button, Full Guard | No Marking | Clear (Green Filter/Diffuser) | LED, Green | 100 ~ 120 VAC | Spring Terminal | IP66 - Dust Tight, Water Resistant | Full Guard Bezel | Circular - 22.30mm Dia | -25°C ~ 55°C |
|
|
A22NL-BGA-TRA-P100-RDPSHIN FG BM BZL RED 1 NO |
0 |
|
Datasheet |
A22NL | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-On | 10A (AC/DC) | 120 V | 24 V | Round, Button, Full Guard | No Marking | Clear (Red Filter/Diffuser) | LED, Red | 100 ~ 120 VAC | Spring Terminal | IP66 - Dust Tight, Water Resistant | Full Guard Bezel | Circular - 22.30mm Dia | -25°C ~ 55°C |
|
|
A22NL-BGA-TYA-P100-YDPSHIN FG BM BZL YLLW 1 NO |
0 |
|
Datasheet |
A22NL | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-On | 10A (AC/DC) | 120 V | 24 V | Round, Button, Full Guard | No Marking | Clear (Yellow Filter/Diffuser) | LED, Yellow | 100 ~ 120 VAC | Spring Terminal | IP66 - Dust Tight, Water Resistant | Full Guard Bezel | Circular - 22.30mm Dia | -25°C ~ 55°C |
|
|
A22NL-BGM-TAA-P002-ADPSHIN FG BM BZL BLUE 1 NC |
0 |
|
Datasheet |
A22NL | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NC | On-Mom | 10A (AC/DC) | 120 V | 24 V | Round, Button, Full Guard | No Marking | Clear (Blue Filter/Diffuser) | LED, Blue | 100 ~ 120 VAC | Spring Terminal | IP66 - Dust Tight, Water Resistant | Full Guard Bezel | Circular - 22.30mm Dia | -25°C ~ 55°C |
|
|
A22NL-BGM-TGA-P100-GDPSHIN FG BM BZL GREEN 1NO |
0 |
|
Datasheet |
A22NL | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 10A (AC/DC) | 120 V | 24 V | Round, Button, Full Guard | No Marking | Clear (Green Filter/Diffuser) | LED, Green | 100 ~ 120 VAC | Spring Terminal | IP66 - Dust Tight, Water Resistant | Full Guard Bezel | Circular - 22.30mm Dia | -25°C ~ 55°C |
|
|
A22NL-BGM-TRA-P002-RDPSHIN FG BM BZL RED 1NC |
0 |
|
Datasheet |
A22NL | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NC | On-Mom | 10A (AC/DC) | 120 V | 24 V | Round, Button, Full Guard | No Marking | Clear (Red Filter/Diffuser) | LED, Red | 100 ~ 120 VAC | Spring Terminal | IP66 - Dust Tight, Water Resistant | Full Guard Bezel | Circular - 22.30mm Dia | -25°C ~ 55°C |
|
|
A22NL-BGM-TYA-P002-YDPSHIN FG BM BZL YLLW 1 NC |
0 |
|
Datasheet |
A22NL | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NC | On-Mom | 10A (AC/DC) | 120 V | 24 V | Round, Button, Full Guard | No Marking | Clear (Yellow Filter/Diffuser) | LED, Yellow | 100 ~ 120 VAC | Spring Terminal | IP66 - Dust Tight, Water Resistant | Full Guard Bezel | Circular - 22.30mm Dia | -25°C ~ 55°C |
|
|
A22NL-BGM-TWA-P002-WDPSHIN FG BM BZL WHTE 1 NC |
0 |
|
Datasheet |
A22NL | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NC | On-Mom | 10A (AC/DC) | 120 V | 24 V | Round, Button, Full Guard | No Marking | Clear (White Filter/Diffuser) | LED, White | 100 ~ 120 VAC | Spring Terminal | IP66 - Dust Tight, Water Resistant | Full Guard Bezel | Circular - 22.30mm Dia | -25°C ~ 55°C |
