Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
3SU11030AB403BA0ILLUMINATED PUSHBUTTON, MOM, GRN |
0 |
|
Datasheet |
3SU1 | Box | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 10A (AC/DC) | 500 V | 500 V | Round, Button | - | Green | LED, Green | 110 VAC | Spring Terminal | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|
3SU11030AB603BA0ILLUMINATED PUSHBUTTON, MOM, WHT |
0 |
|
Datasheet |
3SU1 | Box | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 10A (AC/DC) | 500 V | 500 V | Round, Button | - | White | LED, White | 110 VAC | Spring Terminal | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|

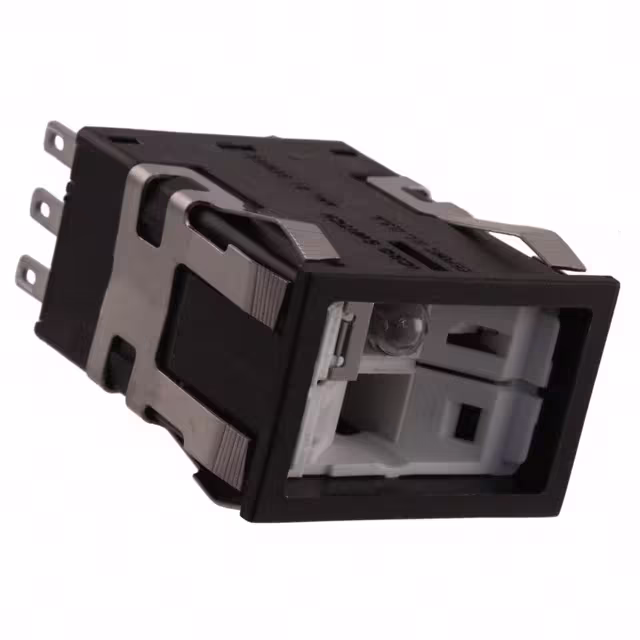

AML21FBE2ADSWITCH PUSHBUTTON DPDT 3A 125V |
0 |
|
Datasheet |
AML21 | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-On | 3A (AC), 2A (DC) | 125 V | 24 V | Rectangular, Button (Not Included) | No Marking | - | Incandescent | 28 VAC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Rectangular - 28.98mm x 19.05mm | - |
|

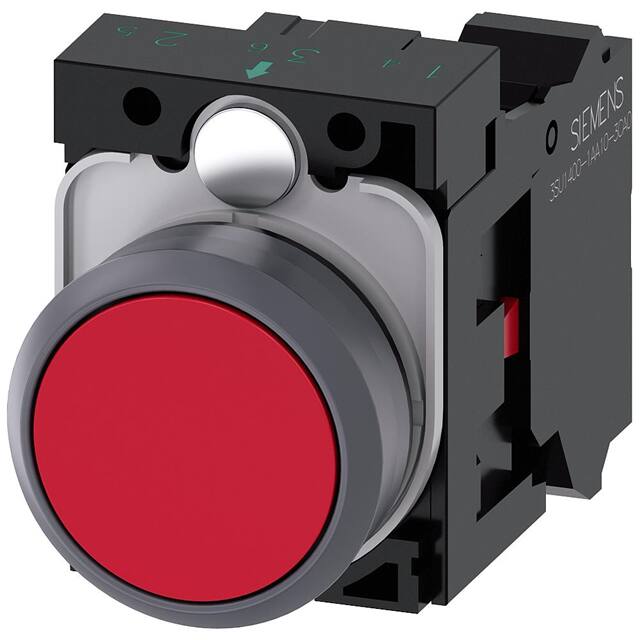

A6X30142410PUSHBUTTON. RED |
0 |
|
Datasheet |
3SU1 | Box | Active | Panel Mount, Front | Standard | SPST-NC | On-Mom | 10A (AC/DC) | 500 V | 500 V | Round, Button | - | Red | - | - | Spring Terminal | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|
ABD422NUG30MM PUSHBUTTON 2NO2NC GREEN |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
ABD422NUB30MM PUSHBUTTON 2NO2NC BLACK |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
ABD422NUR30MM PUSHBUTTON 2NO2NC RED |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
Y73A00034FPLinear IC's |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
AV199035D240KSWITCH PUSHBUTTON SPDT 1A 30V |
0 |
|
- |
AV | Bulk | Active | Panel Mount, Front | Anti-Vandal | SPDT | On-Mom | 1A (DC) | - | 30 V | Round, Button, Domed | No Marking | Silver | - | - | Solder Lug | IP65 - Dust Tight, Water Resistant | Sealed - Fully | Circular - 19.20mm Dia | -20°C ~ 55°C |
|
|
LPI5424G2K247XXPUSHBUTTON SWITCH LPI |
0 |
|
- |
LPI | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Mom, Off-Mom | 5A (DC) | - | 12 V | Round, Button, Flush | - | White | LED, Green | 24 VDC | Screw Terminal | IP53 - Dust Protected, Water Resistant | - | Circular - 38.10mm Dia | -20°C ~ 65°C |
|
|
A1PCA0X110J403INDUSTRIAL CONTROL A01 16MM |
0 |
|
- |
A1 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 6A (AC/DC) | 250 V | 12 V | Round, Button, Flush | - | Silver | LED, Blue | 12 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP40 | - | Circular - 22.00mm Dia | -20°C ~ 55°C |
|
|
CPB2120000K0BSCAPACITIVE SWITCH CG |
0 |
|
- |
CP | Bulk | Active | Panel Mount, Front | Capacitive, Illuminated | SPST | Off-Mom | 200mA (DC) | - | 24 V | Round, Button, Full Guard (Clear) | - | Natural | LED, Blue | 24 VDC | Cable Leads | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 19.20mm Dia | -20°C ~ 65°C |
|
|
CPB2120000K0SSCAPACITIVE SWITCH CG |
0 |
|
- |
CP | Bulk | Active | Panel Mount, Front | Capacitive, Illuminated | SPST | Off-Mom | 200mA (DC) | - | 24 V | Round, Button, Full Guard (Clear) | - | Natural | LED, Red | 24 VDC | Cable Leads | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 19.20mm Dia | -20°C ~ 65°C |
|
|
CPB2120000K0YSCAPACITIVE SWITCH CG |
0 |
|
- |
CP | Bulk | Active | Panel Mount, Front | Capacitive, Illuminated | SPST | Off-Mom | 200mA (DC) | - | 24 V | Round, Button, Full Guard (Clear) | - | Natural | LED, Amber | 24 VDC | Cable Leads | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 19.20mm Dia | -20°C ~ 65°C |
|
|
EB3P-LBLA2W1C2-W22MM ILL PB INTRINSICALLY-SAFE |
0 |
|
- |
EB3P | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-Mom | - | - | - | Square, Button | - | White | LED, White | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -20°C ~ 60°C |
|
|
EB3P-LBLA2W1C2-G22MM ILL PB INTRINSICALLY-SAFE |
0 |
|
- |
EB3P | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-Mom | - | - | - | Square, Button | - | Green | LED, Green | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -20°C ~ 60°C |
|
|
EB3P-LBLA2W1C2-Y22MM ILL PB INTRINSICALLY-SAFE |
0 |
|
- |
EB3P | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-Mom | - | - | - | Square, Button | - | Yellow | LED, Yellow | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -20°C ~ 60°C |
|
|
EB3P-LBLA2W1C2-S22MM ILL PB INTRINSICALLY-SAFE |
0 |
|
- |
EB3P | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-Mom | - | - | - | Square, Button | - | Blue | LED, Blue | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -20°C ~ 60°C |
|
|
EB3P-LBLA2W1C2-A22MM ILL PB INTRINSICALLY-SAFE |
0 |
|
- |
EB3P | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-Mom | - | - | - | Square, Button | - | Amber | LED, Amber | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -20°C ~ 60°C |
|
|
EB3P-LBLA2W1C2-R22MM ILL PB INTRINSICALLY-SAFE |
0 |
|
- |
EB3P | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-Mom | - | - | - | Square, Button | - | Red | LED, Red | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -20°C ~ 60°C |
