Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MB2065SB1W01-BGSWITCH PUSHBUTTON SPDT 6A 125V |
0 |
|
Datasheet |
MB2000 | Bulk | Obsolete | Panel Mount, Rear | Standard | SPDT | On-On | 6A (AC), 3A (DC) | 125 V | 30 V | Round, Button | No Marking | Blue | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 12.50mm Dia | -30°C ~ 85°C |
|
|
MB2065SB1W01-EASWITCH PUSHBUTTON SPDT 6A 125V |
0 |
|
Datasheet |
MB2000 | Bulk | Obsolete | Panel Mount, Rear | Standard | SPDT | On-On | 6A (AC), 3A (DC) | 125 V | 30 V | Round, Button | No Marking | Black | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 12.50mm Dia | -30°C ~ 85°C |
|

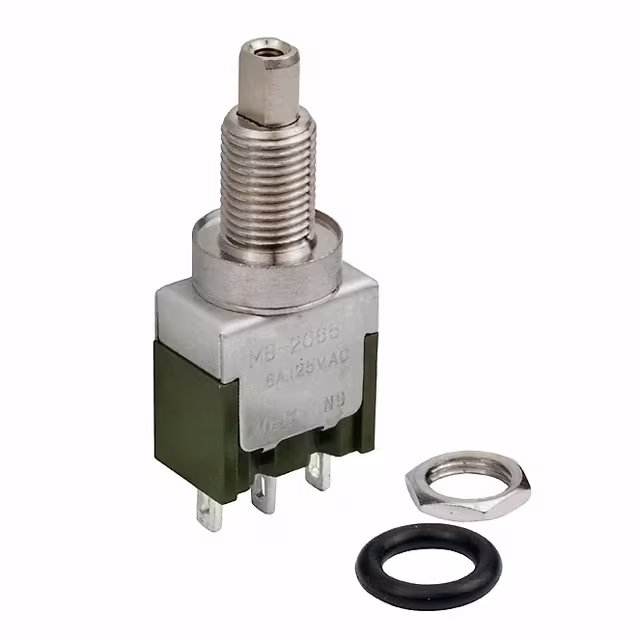

MB2065SD3W01/328SWITCH PUSHBUTTON SPDT 6A 125V |
0 |
|
Datasheet |
MB2000 | Bulk | Obsolete | Panel Mount, Rear | Standard | SPDT | On-On | 6A (AC), 3A (DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | Low Temperature Lubricant | Circular - 6.50mm Dia | -30°C ~ 85°C |
|
|
MB2065SD3W01-BGSWITCH PUSHBUTTON SPDT 6A 125V |
0 |
|
Datasheet |
MB2000 | Bulk | Obsolete | Panel Mount, Rear | Standard | SPDT | On-On | 6A (AC), 3A (DC) | 125 V | 30 V | Round, Button | No Marking | Blue | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Circular - 6.50mm Dia | -30°C ~ 85°C |
|
|
MB2065SS1G01-CCSWITCH PUSH SPDT 0.4VA 28V |
0 |
|
Datasheet |
MB2000 | Bulk | Obsolete | Panel Mount, Rear | Standard | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Red | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 6.50mm Dia | -30°C ~ 85°C |
|
MB2065SS1G01SWITCH PUSH SPDT 0.4VA 28V |
0 |
|
Datasheet |
MB2000 | Bulk | Obsolete | Panel Mount, Rear | Standard | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 6.50mm Dia | -30°C ~ 85°C |
|
MB2065SS2W30SWITCH PUSHBUTTON SPDT 6A 125V |
0 |
|
Datasheet |
MB2000 | Bulk | Obsolete | Through Hole, Right Angle | Standard | SPDT | On-On | 6A (AC), 3A (DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
|
MB2065SS2W40SWITCH PUSHBUTTON SPDT 6A 125V |
0 |
|
Datasheet |
MB2000 | Bulk | Obsolete | Through Hole, Right Angle, Vertical | Standard | SPDT | On-On | 6A (AC), 3A (DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
|
MB2085LD1G03SWITCH PUSH DPDT 0.4VA 28V |
0 |
|
Datasheet |
MB2000 | Bulk | Obsolete | Panel Mount, Rear | Standard | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | Epoxy Sealed Terminals | Circular - 6.50mm Dia | -30°C ~ 85°C |
|
|
MB2085LS1W01-CBSWITCH PUSHBUTTON DPDT 6A 125V |
0 |
|
Datasheet |
MB2000 | Bulk | Obsolete | Panel Mount, Rear | Standard | DPDT | On-On | 6A (AC), 3A (DC) | 125 V | 30 V | Round, Button | No Marking | White | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 6.50mm Dia | -30°C ~ 85°C |
|

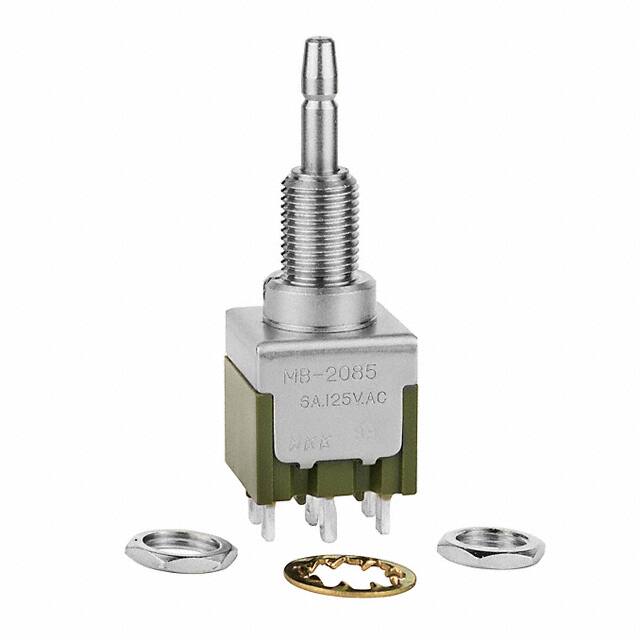

MB2085LS1W01SWITCH PUSHBUTTON DPDT 6A 125V |
0 |
|
Datasheet |
MB2000 | Bulk | Obsolete | Panel Mount, Rear | Standard | DPDT | On-On | 6A (AC), 3A (DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 6.50mm Dia | -30°C ~ 85°C |
|

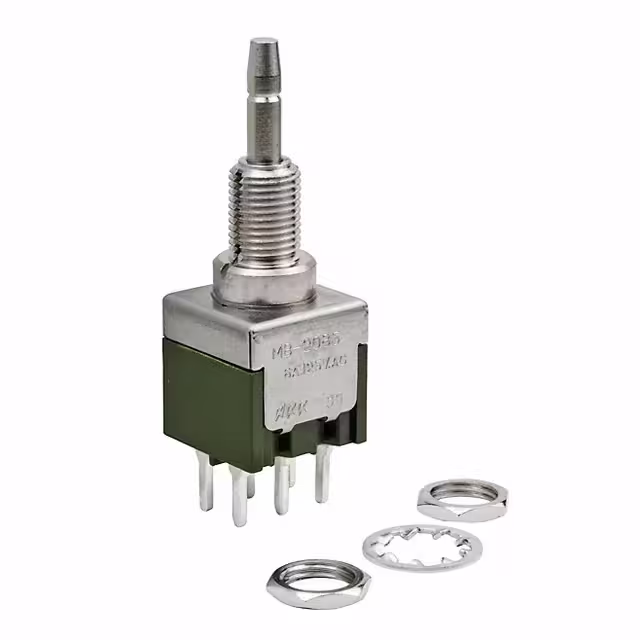

MB2085LS1W03-CCSWITCH PUSHBUTTON DPDT 6A 125V |
0 |
|
Datasheet |
MB2000 | Bulk | Obsolete | Panel Mount, Rear | Standard | DPDT | On-On | 6A (AC), 3A (DC) | 125 V | 30 V | Round, Button | No Marking | Red | - | - | PC Pin | - | Epoxy Sealed Terminals | Circular - 6.50mm Dia | -30°C ~ 85°C |
|
|
MB2085SB1W01-CCSWITCH PUSHBUTTON DPDT 6A 125V |
0 |
|
Datasheet |
MB2000 | Bulk | Obsolete | Panel Mount, Rear | Standard | DPDT | On-On | 6A (AC), 3A (DC) | 125 V | 30 V | Round, Button | No Marking | Red | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 12.50mm Dia | -30°C ~ 85°C |
|
MB2085SD3W01SWITCH PUSHBUTTON DPDT 6A 125V |
0 |
|
Datasheet |
MB2000 | Bulk | Obsolete | Panel Mount, Rear | Standard | DPDT | On-On | 6A (AC), 3A (DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Circular - 6.50mm Dia | -30°C ~ 85°C |
|
|
MB2085SS1G01-BASWITCH PUSH DPDT 0.4VA 28V |
0 |
|
Datasheet |
MB2000 | Bulk | Obsolete | Panel Mount, Rear | Standard | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Black | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 6.50mm Dia | -30°C ~ 85°C |
|
|
MB2085SS1G01-CASWITCH PUSH DPDT 0.4VA 28V |
0 |
|
Datasheet |
MB2000 | Bulk | Obsolete | Panel Mount, Rear | Standard | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Black | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 6.50mm Dia | -30°C ~ 85°C |
|
MB2085SS1G01SWITCH PUSH DPDT 0.4VA 28V |
0 |
|
Datasheet |
MB2000 | Bulk | Obsolete | Panel Mount, Rear | Standard | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 6.50mm Dia | -30°C ~ 85°C |
|

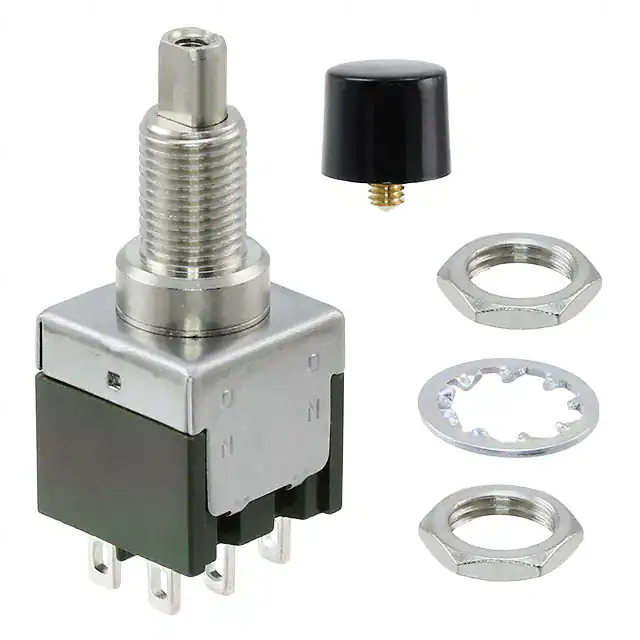

MB2085SS1W01-BASWITCH PUSHBUTTON DPDT 6A 125V |
0 |
|
Datasheet |
MB2000 | Bulk | Obsolete | Panel Mount, Rear | Standard | DPDT | On-On | 6A (AC), 3A (DC) | 125 V | 30 V | Round, Button | No Marking | Black | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 6.50mm Dia | -30°C ~ 85°C |
|
|
MB2085SS1W03-CCSWITCH PUSHBUTTON DPDT 6A 125V |
0 |
|
Datasheet |
MB2000 | Bulk | Obsolete | Panel Mount, Rear | Standard | DPDT | On-On | 6A (AC), 3A (DC) | 125 V | 30 V | Round, Button | No Marking | Red | - | - | PC Pin | - | Epoxy Sealed Terminals | Circular - 6.50mm Dia | -30°C ~ 85°C |
|

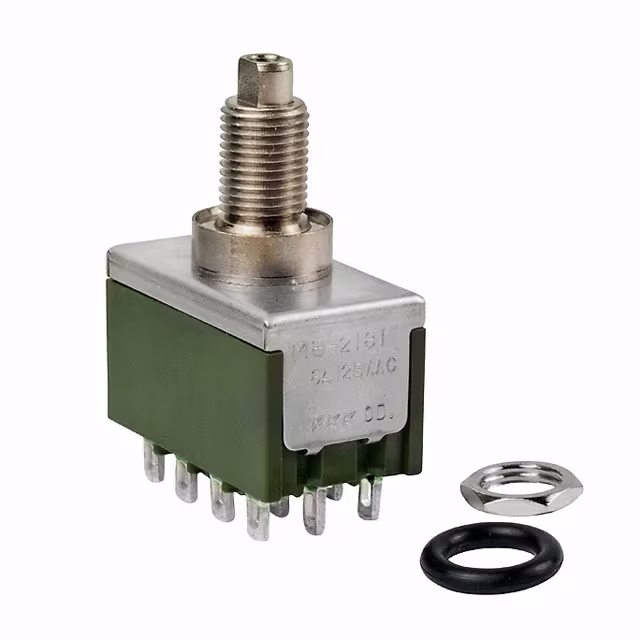

MB2181SD3W01SWITCH PUSHBUTTON 4PDT 6A 125V |
0 |
|
Datasheet |
MB2000 | Bulk | Obsolete | Panel Mount, Rear | Standard | 4PDT | On-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Circular - 6.50mm Dia | -30°C ~ 85°C |
