RF Antennas
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

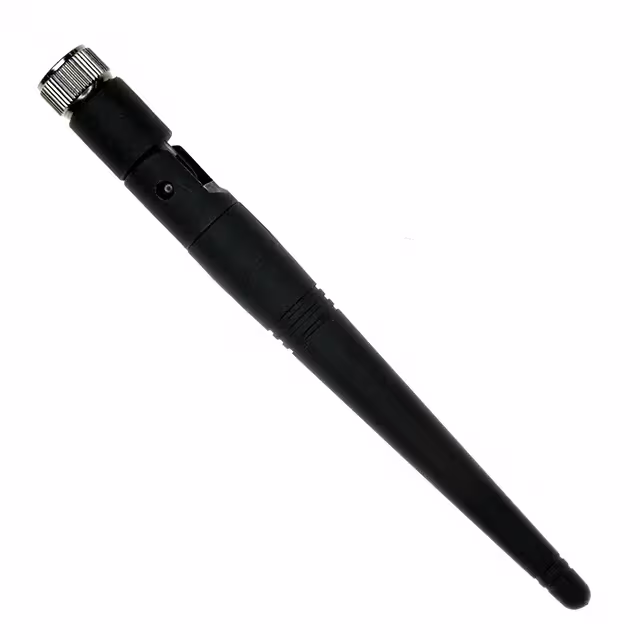

ANT-24G-WPJ-SMARF ANT 2.4GHZ WHIP TILT SMA MALE |
21 |
|
Datasheet |
- | Bulk | Active | - | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Whip, Tilt | 1 | 2 | - | 2.15dBi | - | - | SMA Male | - | - | - | Connector Mount | 4.173" (106.00mm) | - |
|

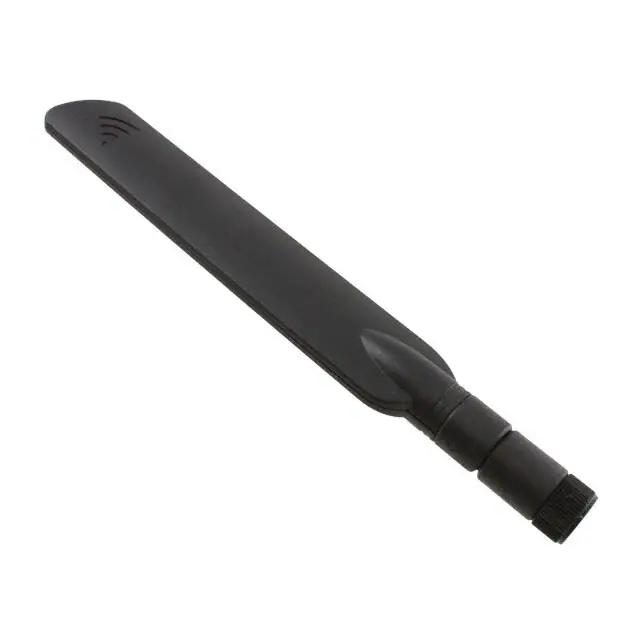

MAF94301RF ANT 850/900MHZ BLADE RP-SMA |
50 |
|
Datasheet |
Heptaband™ | Bulk | Active | Cellular, Navigation, WiFi | Wide Band | 850MHz, 900MHz, 1.47GHz, 1.575GHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.4GHz | 815MHz ~ 960MHz, 1.427GHz ~ 1.511GHz, 1.71GHz ~ 2.17GHz, 2.4GHz ~ 2.5GHz | Blade, Tilt | 7 | 2.5 | - | 3dBi | 10 W | - | RP-SMA Male | - | - | - | Connector Mount | 6.339" (161.00mm) | AWS, GPS, GSM, Wi-Fi, WLAN |
|

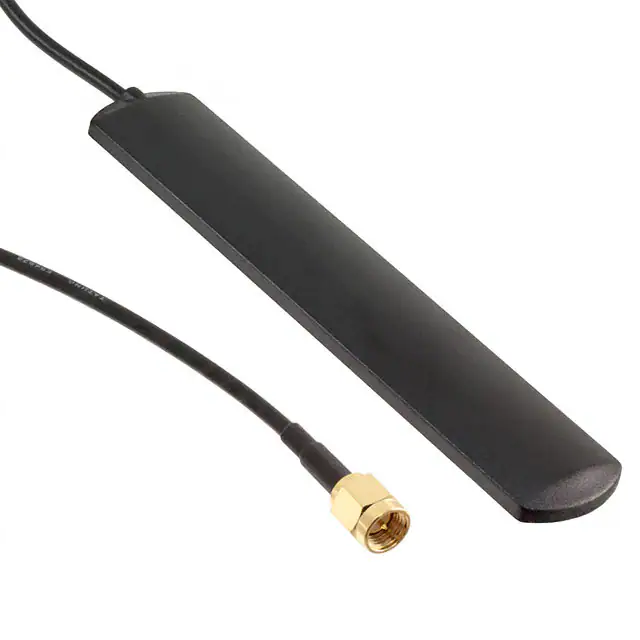

ALPHA11/1M/SMAM/S/S/20RF ANT 850MHZ/900MHZ BLADE SMA |
11 |
|
Datasheet |
ALPHA 11 | Bulk | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 850MHz, 900MHz, 1.8GHz, 1.9GHz | - | Blade | 4 | 1.5 | - | 2.5dBi | - | - | SMA Male | - | - | - | Adhesive | 0.157" (4.00mm) | GPRS, GSM, UMTS |
|
FW.86.B.NTY.MRF ANT 868MHZ WHIP STR N MALE |
36 |
|
Datasheet |
Meteor | Bag | Active | - | UHF (300MHz ~ 1GHz) | 868MHz | - | Whip, Straight | 1 | - | - | 3.5dBi | 2 W | - | N Type Male | IP67 | - | - | Connector Mount | 9.567" (243.00mm) | - |
|

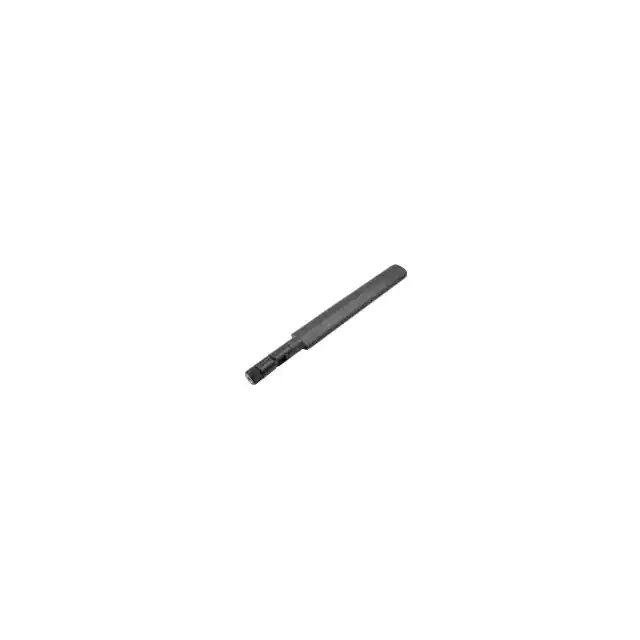

ANT-LTE5G-0255G NR / 4G LTE / 3G / 2G TERMINA |
9 |
|
Datasheet |
- | Box | Active | Cellular | UHF (2GHz ~ 3GHz), UHF (3GHz ~ 4GHz) | 829MHz, 3.355GHz | 698MHz ~ 960MHz, 1.71GHz ~ 5GHz | Whip, Tilt | 2 | 3 | - | 4.7dBi | - | - | SMA Male | IP55 | - | - | Connector Mount | 7.835" (199.00mm) | 2G, 3G, 4G, 5G, LTE |
|

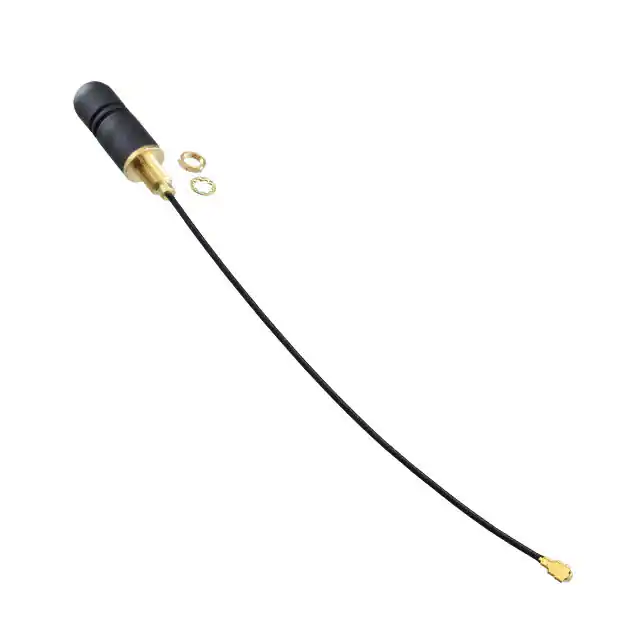

TANGO30/0.1M/IPEX/S/S/352.4GHZ 10.5MM HEIGHT X 19MM DIA |
24 |
|
Datasheet |
TANGO 30 | Bulk | Active | Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Whip, Straight | 1 | 2 | - | 0dBi | 1 W | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Panel Mount | 0.846" (21.50mm) | Bluetooth, Wi-Fi |
|
H2P13ABB110100PB25D8 (25X25X4.5MM); GPS(L1+L5) |
100 |
|
Datasheet |
PB25D8 | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.176GHz, 1.575GHz | - | Flat Patch | 2 | - | -10dB | 3dBi, 5dBi | - | LNA | Solder | - | - | - | Adhesive | 0.183" (4.66mm) | Beidou, Galileo, GNSS, GPS, QZSS |
|
|
W540WHIP, 5/8 OR 1/4 WAVE, 27 - 174 |
68 |
|
Datasheet |
- | Bag | Active | - | VHF (f < 300MHz) | 100.5MHz | 27MHz ~ 174MHz | Whip, Straight | 1 | - | - | - | - | - | - | - | - | - | - | - | - |
|

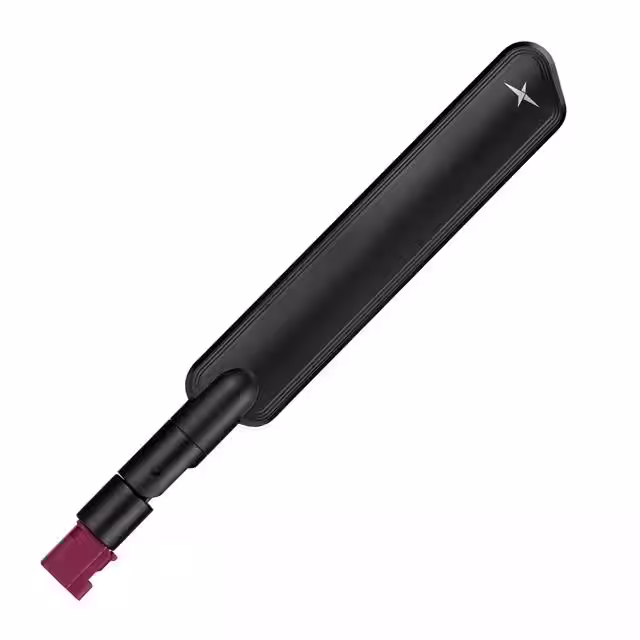

TG.55.8723TG.55 WITH FAKRA CODE D |
65 |
|
Datasheet |
- | Bag | Active | Cellular, Navigation | Wide Band | 657.5MHz, 761MHz, 892MHz, 1.4725GHz, 1.575GHz, 1.795GHz, 2.045GHz, 2.495GHz, 4.15GHz, 5.5375GHz | 617MHz ~ 698MHz, 698MHz ~ 824MHz, 824MHz ~ 960MHz, 1.427GHz ~ 1.518GHz, 1.563GHz ~ 1.587GHz, 1.71GHz ~ 1.88GHz, 1.92GHz ~ 2.17GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 5GHz, 5.15GHz ~ 5.925GHz | Blade, Tilt | 10 | - | - | -0.68dBi, 0.14dBi, -2.14dBi, -1.88dBi, 0.15dBi, 0.58dBi, -0.74dBi, 0.87dBi, -0.59dBi, 1.98dBi, 1.37dBi, 3.09dBi, 0.93dBi, 2.45dBi, 0.73dBi, 1.69dBi, 1.51dBi, 1.5dBi, 1.73dBi, 0.7dBi | 2 W | - | SMA Male | - | - | - | Connector Mount | 6.772" (172.00mm) | 5G, DCS, GPS, GSM, LTE, UMTS |
|

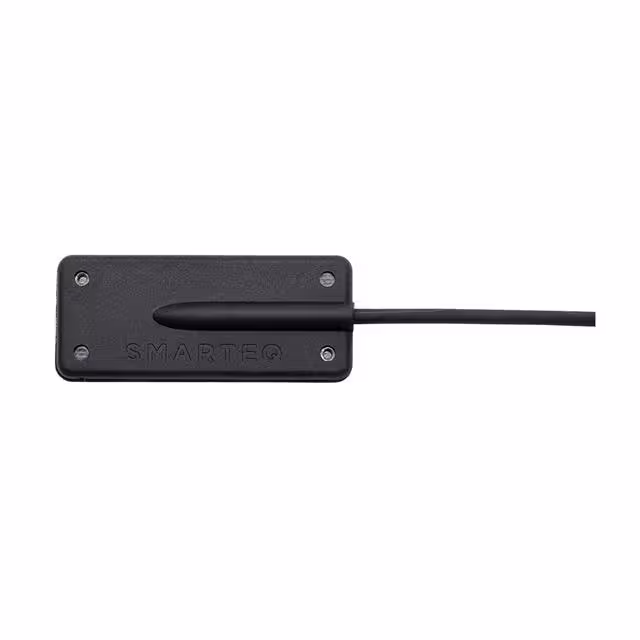

710599RF ANT 2.4425GHZ BLADE SMA ADH |
45 |
|
Datasheet |
MiniBlade | Box | Active | Cellular, WiFi | Wide Band | 2.4425GHz, 3.6GHz, 5.425GHz, 6.525GHz | 2.4GHz ~ 2.485GHz, 3.4GHz ~ 3.8GHz, 4.9GHz ~ 5.95GHz, 5.925GHz ~ 7.125GHz | Blade | 4 | 2, 3 | - | 3.8dBi, 5dBi, 7dBi, 5dBi | - | Cable - 1.5m | SMA | - | - | - | Adhesive | 0.260" (6.60mm) | 5G, CBRS, Wi-Fi 6E |
|

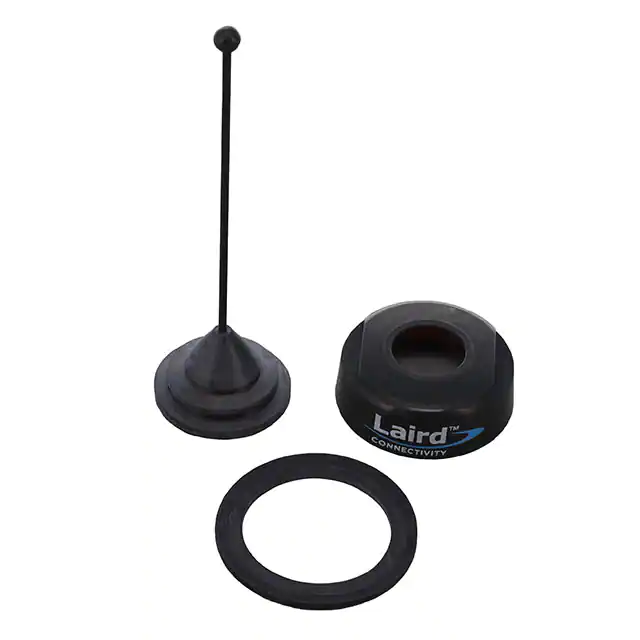

QWB760RF ANT 815MHZ WHIP STR NMO BASE |
8 |
|
Datasheet |
- | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 815MHz | 760MHz ~ 870MHz | Whip, Straight | 1 | 2 | - | 0dB | - | - | NMO | - | - | - | Base Mount | 3.500" (88.90mm) | - |
|

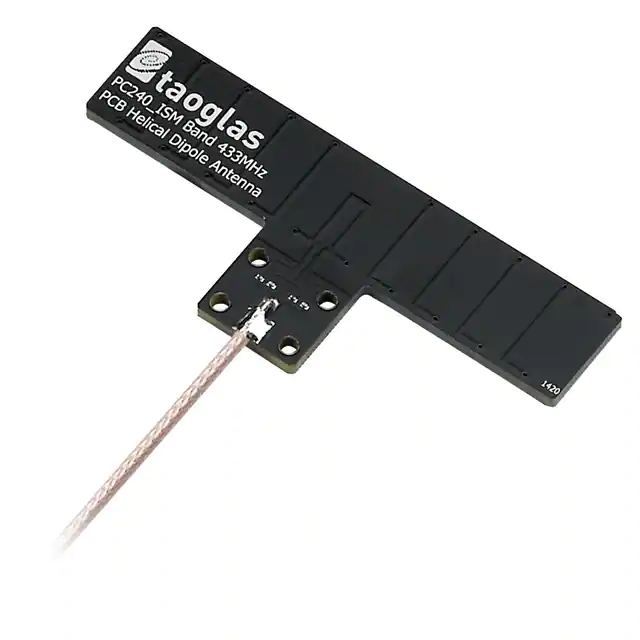

PC240.09.0300KRF ANT 433MHZ FLT PATCH MMCX ADH |
50 |
|
Datasheet |
- | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 433MHz | - | Flat Patch | 1 | 2 | -10dB | -0.97dB | - | Cable - 300mm | MMCX Male | - | - | - | Adhesive, Chassis Mount | 0.118" (3.00mm) | ISM |
|

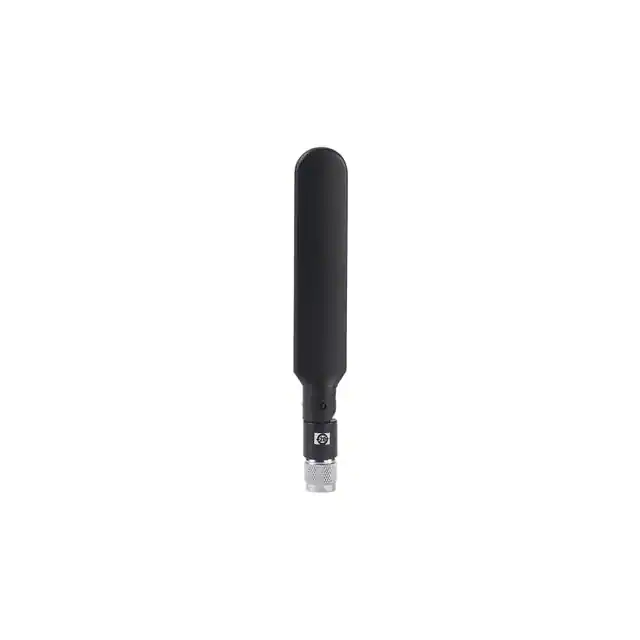

MPAMB24495804RF ANT 2.45GHZ WHIP RP-TNC M CON |
6 |
|
Datasheet |
MPAMB | Bag | Active | Bluetooth, Cellular, WiFi | Wide Band | 2.45GHz, 5.395GHz | 2.4GHz ~ 2.5GHz, 4.94GHz ~ 5.85GHz | Whip, Straight | 2 | 2.5 | - | 2.14dBi, 4dBi | 10 W | - | RP-TNC Male | IP64 | - | - | Connector Mount | 5.984" (152.00mm) | 2G, 3G, 5G, Bluetooth, Cellular, LTE, Wi-Fi |
|

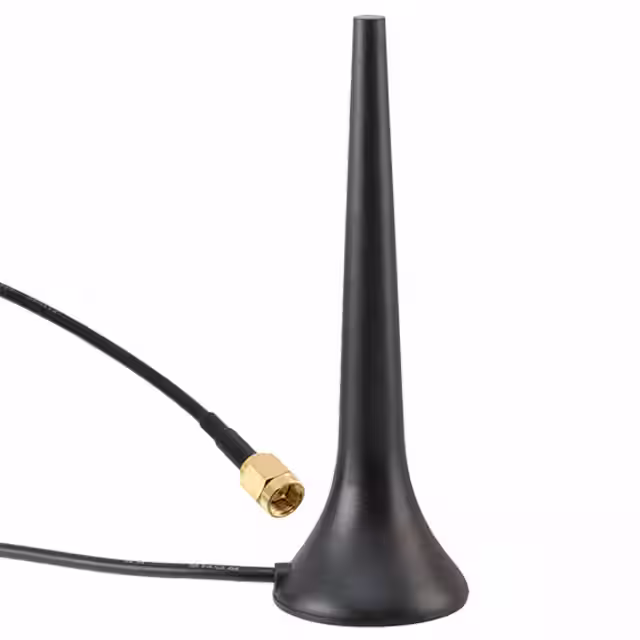

MIKE1A/1.2M/SMAM/S/S/20RF ANT 850/900MHZ WHIP STR SMA |
10 |
|
Datasheet |
MIKE 1A | Bulk | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz | - | Whip, Straight | 5 | 1.5 | - | 3dBi | - | - | SMA Male | - | - | - | Magnetic | 1.339" (34.00mm) | GPRS, GSM, UMTS |
|

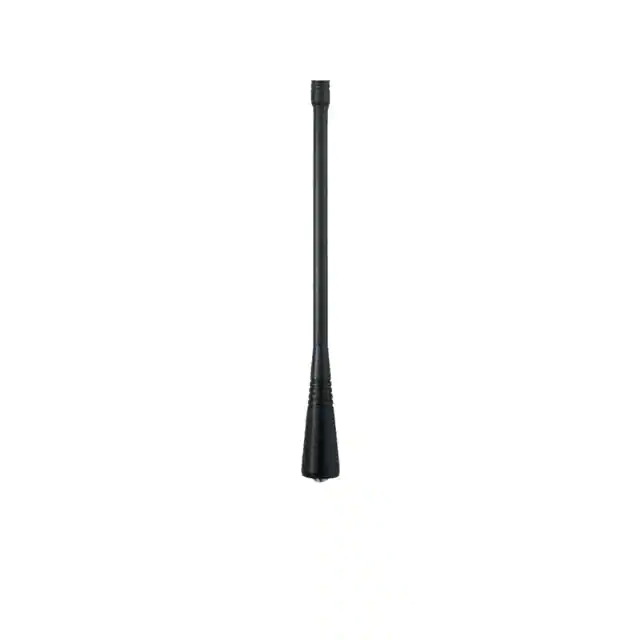

EXC902SMRF ANT 931MHZ WHIP STR SMA MALE |
41 |
|
Datasheet |
EXC | Bulk | Active | Bluetooth, WiFi | UHF (300MHz ~ 1GHz) | 931MHz | 902MHz ~ 960MHz | Whip, Straight | 1 | 1.5 | - | - | 50 W | - | SMA Male | - | - | - | Connector Mount | 3.650" (92.71mm) | Bluetooth, Wi-Fi |
|
|
MPAMB24495804-RPSMAPORTABLE OMNIDIRECTION ANTENNA |
33 |
|
Datasheet |
MPAMB | Bag | Active | Cellular, WiFi | Wide Band | 2.45GHz, 5.395GHz | 2.4GHz ~ 2.5GHz, 4.94GHz ~ 5.85GHz | Whip, Tilt | 2 | 2.5 | - | 2.14dBi, 4dBi | 10 W | - | RP-TNC Male | IP64 | - | - | Stud | 5.984" (152.00mm) | Bluetooth, Wi-Fi |
|
QWB144RF ANT 144MHZ WHIP STR NMO 19" |
18 |
|
Datasheet |
- | Bulk | Active | - | VHF (f < 300MHz) | 144MHz | 144MHz ~ 152MHz | Whip, Straight | 1 | 2 | - | 0dB | - | - | NMO | - | - | - | Base Mount | 19.000" (482.60mm) | - |
|

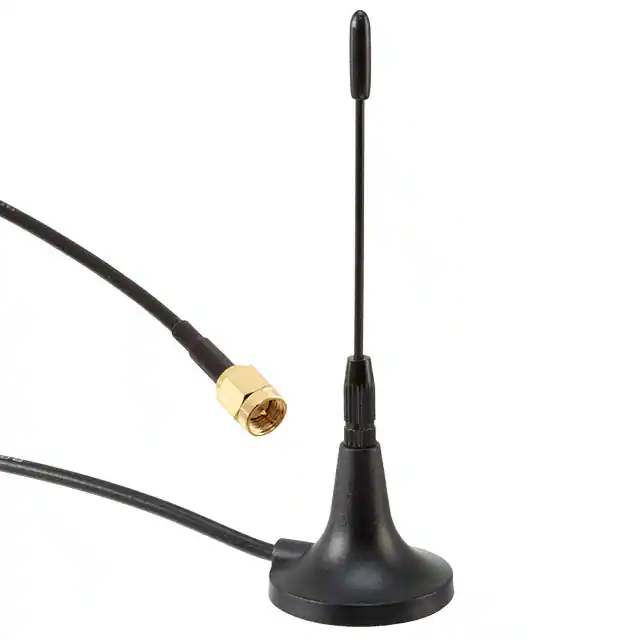

MIKE1B/3M/SMAM/S/S/20RF ANT 850/868MHZ WHIP STR SMA |
44 |
|
Datasheet |
MIKE 1B | Bulk | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 850MHz, 868MHz, 900MHz, 1.8GHz, 1.9GHz | - | Whip, Straight | 5 | 1.5 | - | 3.5dBi | - | - | SMA Male | - | - | - | Magnetic | 1.181" (30.00mm) | GPRS, GSM |
|
AP-DIPOLE-NEXT-C-IW-S2-BLANTENNA PLUS NEXT 5G DIPOLE ANTE |
10 |
|
Datasheet |
- | Box | Active | Cellular | Wide Band | 617MHz, 850MHz, 1.45GHz, 1.75GHz, 1.95GHz, 2.25GHz, 2.45GHz, 3.7GHz, 5.5GHz | 617MHz ~ 6GHz | Blade, Tilt | 9 | - | - | 1.1dBi, 0.7dBi, 2.3dBi, 1.6dBi, 2.5dBi, 2.2dBi, 2.6dBi, 2.7dBi, 3.5dBi | - | - | SMA Male | - | - | - | Connector Mount | 9.921" (252.00mm) | 2G, 3G, 4G, 5G, LTE |
|

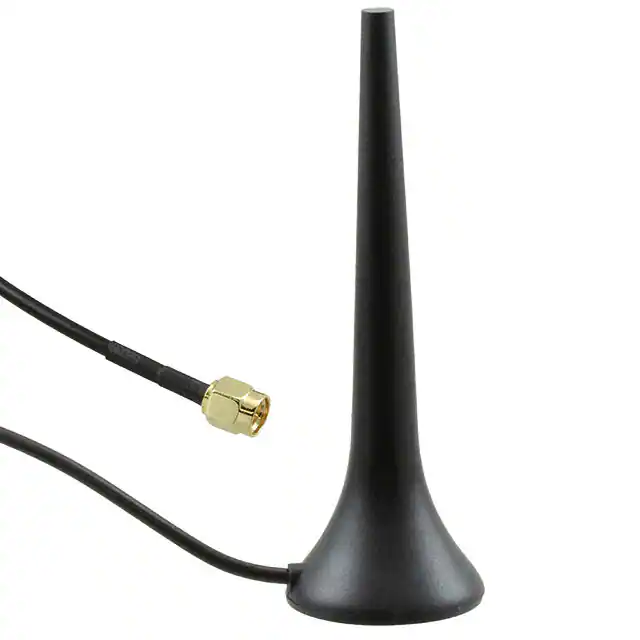

MIKE1A/2.5M/SMAM/S/S/20RF ANT 850/900MHZ WHIP STR SMA |
30 |
|
Datasheet |
MIKE 1A | Bulk | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz | - | Whip, Straight | 5 | 1.5 | - | 3dBi | - | - | SMA Male | - | - | - | Magnetic | 1.339" (34.00mm) | GPRS, GSM, UMTS |
