RF Antennas
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FXP050.07.0100CGNSS AND WI-FI FLEXIBLE PCB ANTE |
47 |
|
Datasheet |
- | Bulk | Active | Navigation, WiFi | Wide Band | 1.562GHz, 1.575GHz, 1.603GHz, 2.45GHz, 5.5GHz, 6.525GHz | 1.559GHz ~ 1.565GHz, 1.565GHz ~ 1.586GHz, 1.596GHz ~ 1.61GHz, 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Flat Patch | 6 | - | - | 2.11dBi, 2.14dBi, 1.65dBi, 3.62dBi, 5.8dBi, 6.57dBi | 2 W | Cable - 100mm | I-PEX | - | - | - | Surface Mount | 0.009" (0.24mm) | GNSS, Wi-Fi |
|
|
W6108B0100ANT MIMO WIFI 6E FPC 100MM 4X4 |
94 |
|
Datasheet |
- | Bag | Active | WiFi | Wide Band | 2.44GHz, 6.15GHz | 2.4GHz ~ 2.48GHz, 5.15GHz ~ 7.15GHz | Flat Patch | 2 | - | 7dB | 3.7dBi, 7.4dBi | 1 W | Cable - 100mm | U.FL | - | - | - | Adhesive | - | Wi-Fi |
|
|
FXP055.A.07.C.001GNSS AND WI-FI FLEXIBLE PCB ANTE |
78 |
|
Datasheet |
- | Bulk | Active | Navigation, WiFi | Wide Band | 1.562GHz, 1.575GHz, 1.603GHz, 2.45GHz, 5.5GHz, 6.525GHz | 1.559GHz ~ 1.565GHz, 1.565GHz ~ 1.585GHz, 1.596GHz ~ 1.61GHz, 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | PCB Trace | 6 | - | - | -1.25dBi, -1.26dBi, -1.44dBi, -2.46dBi, -2.35dBi, -1.8dBi | 2 W | Cable - 100mm | I-PEX MHF1 (U.FL) | - | - | - | Surface Mount | 0.009" (0.24mm) | BeiDou, Galileo, GLONASS, GNSS, GPS, IRNSS, QZSS, SBAS, Wi-Fi |
|
|
9003160GPS 18X18X2MM CERAMIC PATCH ANTE |
100 |
|
Datasheet |
- | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.58GHz | 1.57GHz ~ 1.58GHz | Ceramic Patch | 1 | - | -6dB | 1dBi | - | - | - | - | - | - | Adhesive | 0.079" (2.00mm) | GPS |
|
|
PC45.07.0150AQWIDEBAND CELLULAR 120X20MM PCB A |
100 |
|
Datasheet |
- | Bag | Active | Cellular, WiFi | Wide Band | 657.5MHz, 761MHz, 892MHz, 1.472GHz, 1.955GHz, 2.495GHz, 4.15GHz, 5.537GHz | 617MHz ~ 698MHz, 698MHz ~ 824MHz, 824MHz ~ 960MHz, 1.427GHz ~ 1.518GHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 5GHz, 5.15GHz ~ 5.925GHz | Module | 8 | - | - | 0.19dBi, 2.3dBi, 2.06dBi, 2.54dBi, 3.95dBi, 3.86dBi, 5.66dBi, 3.79dBi | 2 W | Cable - 150mm | I-PEX MHFI | - | - | - | Adhesive | 0.042" (1.06mm) | 2G, 3G, 4G, 5G, Cat-M, IoT, LTE, NB-IoT, NR, Wi-Fi |
|
|
66089-8930RF ANT 898MHZ WIRE ELEMENT U.FL |
85 |
|
Datasheet |
66089 | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 898MHz | - | Wire Element | 1 | 1.7 | - | 3dBi | - | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Connector Mount | 4.488" (114.00mm) | - |
|
|
9001999SDARS 25X25X4MM CERAMIC PATCH AN |
100 |
|
Datasheet |
- | Box | Active | General ISM | UHF (2GHz ~ 3GHz) | 2.33GHz | 2.32GHz ~ 2.35GHz | Ceramic Patch | 1 | - | -11dB | 6.5dBi | - | - | - | - | - | - | Adhesive | 0.157" (4.00mm) | IoT, SDARS |
|
|
X9001558-3GDSMBISM/CELLULAR/LORA EXTERNAL WHIP |
99 |
|
Datasheet |
- | Bag | Active | Cellular, General ISM | Wide Band | 892MHz, 1.94GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Whip, Right Angle | 2 | 4.9, 7.2 | - | 0.5dBi, 1.2dBi | - | - | SMA Male | - | - | - | Connector Mount | 1.850" (47.00mm) | 2G, 3G, ISM, LoRa |
|
|
X9001558-3GDRMBISM/CELLULAR/LORA EXTERNAL WHIP |
96 |
|
Datasheet |
- | Bag | Active | Cellular | Wide Band | 892MHz, 1.94GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Whip, Tilt | 2 | 4.9, 7.2 | - | 0.5dBi, 1.2dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 1.850" (47.00mm) | 2G, 3G, IoT, ISM, LoRa, M2M |
|
|
X9003088-3GDSMBISM/CELLULAR/LORA EXTERNAL WHIP |
94 |
|
Datasheet |
- | Bag | Active | Cellular, General ISM | Wide Band | 892MHz, 1.94GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Whip, Straight | 2 | 5.3, 7.3 | - | -1dBi, 0dBi | - | - | SMA Male | - | - | - | Connector Mount | 1.949" (49.50mm) | 2G, 3G, ISM, LoRa |
|
|
CGGBP254.07.0100AGPS/GLONASS/GALILEO/BEIDOU PASSI |
40 |
|
Datasheet |
- | Tray | Active | Navigation | Wide Band | 1.561GHz, 1.575GHz, 1.603GHz | - | Flat Patch | 3 | 2 | - | 1.12dBi, 1.74dBi, 0.89dBi | - | Cable - 100mm | I-PEX MHFHT | - | - | - | Chassis Mount | 0.157" (4.00mm) | BeiDou, Galileo, GLONASS, GNSS, GPS, IRNSS, QZSS, SBAS |
|
|
2108823-1STAMPED ANTENNA, SMD, 617-7125 M |
665 |
|
Datasheet |
* | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SRFI079-150RF ANT 421MHZ FLAT BAR |
99 |
|
Datasheet |
FlexiiANT® | Bulk | Active | Cellular | UHF (300MHz ~ 1GHz) | 421MHz, 433MHz, 452MHz | 410MHz ~ 470MHz | Flat Bar | 3 | 3, 2.2 | -9dB, -6dB | 2.8dBi, 1.7dBi, 1.1dBi | - | Cable - 150mm | I-PEX, MHF | - | - | - | Adhesive | 0.006" (0.15mm) | LTE |
|
|
ST0129-30-401-ARF ANTENNA STICK AMC PLUG DUAL B |
90 |
|
Datasheet |
- | Bag | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.487GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.825GHz | Whip, Right Angle | 2 | - | -10dB, -8dB | 2.6dBi, 2.2dBi | 1 W | - | I-PEX MHF1 | - | - | - | Connector Mount | 4.134" (105.00mm) | Wi-Fi |
|

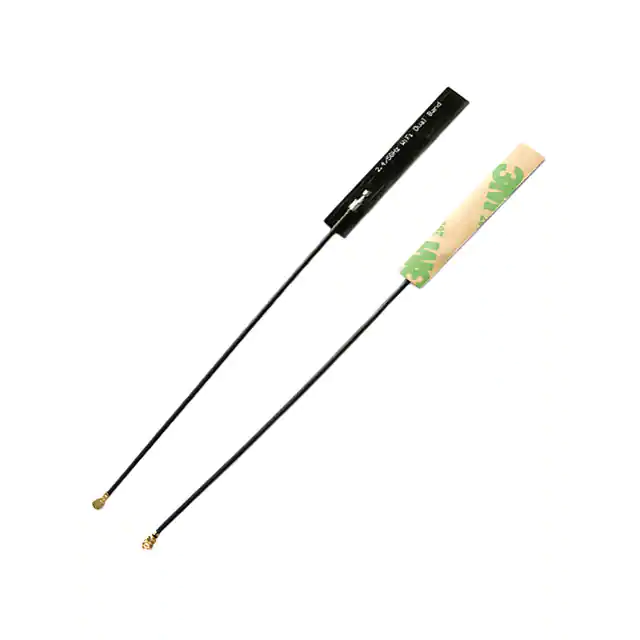

RPC-W2A8-W5B1-4507-O-X-001RF ANT 2.4GHZ PCB TRACE IPEX SMD |
39 |
|
Datasheet |
RPC | Bulk | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.44GHz, 5.36GHz | 2.4GHz ~ 2.4835GHz, 4.9GHz ~ 5.825GHz | PCB Trace | 2 | 2 | - | 3dBi | - | Cable - 100mm | I-PEX | IP60 | - | - | Adhesive | 0.012" (0.30mm) | Wi-Fi |
|
|
X1005619-4GDSMB4G/CELLULAR EXTERNAL BLADE ANTEN |
79 |
|
Datasheet |
- | Bag | Active | Cellular | Wide Band | 749MHz, 880MHz, 2.205GHz | 698MHz ~ 800MHz, 800MHz ~ 960MHz, 1.71GHz ~ 2.7GHz | Whip, Straight | 3 | - | 2.5dB, 3dB, 13.5dB | 1.8dBi, 1.8dBi, 5.2dBi | 5 W | - | SMA Male | - | - | - | Connector Mount | 7.008" (178.00mm) | 4G, LTE |
|
|
GW55.A.07.B.0012.4/5.8/7.125GHZ OMNI-DIRECTIONA |
97 |
|
Datasheet |
- | Bag | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Flat Bar | 3 | - | - | 2.2dBi, 4.2dBi, 3.5dBi | 10 W | Cable - 150mm | I-PEX MHF1 (U.FL) | - | - | - | - | 0.291" (7.40mm) | Wi-Fi |
|
|
ST0226-30-002-ARF ANTENNA STICK SMA PLUG DUAL B |
31 |
|
Datasheet |
- | Bag | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz | Whip, Straight | 2 | - | -10dB | 3dBi, 3.4dBi | 1 W | - | SMA | - | - | - | Connector Mount | 4.291" (109.00mm) | Wi-Fi |
|
|
HP2258.AGNSS L1/L2 PATCH 25*25*8MM |
74 |
|
Datasheet |
- | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.227GHz, 1.249GHz, 1.561GHz, 1.575GHz, 1.589GHz | 1.217GHz ~ 1.237GHz, 1.241GHz ~ 1.258GHz, 1.559GHz ~ 1.563GHz, 1.563GHz ~ 1.587GHz, 1.569GHz ~ 1.61GHz | Ceramic Patch | 5 | - | - | 3.08dBi, 3.08dBi, 1.4dBi, 2.56dBi, 3.44dBi | - | - | Pin | - | - | - | Adhesive | 0.339" (8.60mm) | BeiDou, Galileo, GLONASS, GNSS, GPS |
|
|
GPSFB356.AGPS/GLONASS/BEIDOU SINGLE FEED S |
72 |
|
Datasheet |
- | Tray | Active | Navigation | Wide Band | 1.227GHz, 1.561GHz, 1.575GHz, 1.603GHz | - | Ceramic Patch | 4 | 2, 4 | - | 3.54dBi, 3.02dBi, 3.19dBi, 3.19dBi | - | - | Pin | - | - | - | Surface Mount | 0.241" (6.12mm) | BeiDou, Galileo, GLONASS, GNSS, GPS, IRNSS, QZSS, SBAS |
