RF Antennas
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VG2450FXNFG6MK2450 MHZ OMNI ANT MOUNT KIT |
15 |
|
Datasheet |
- | Box | Active | - | - | 2.45GHz | 2.4GHz ~ 2.5GHz | - | 1 | 1.2 | - | 6dBd | 30 W | Cable - 300mm | N Type Female | - | - | - | - | - | - |
|
NP925GIL1RPSM50F925 MHZ GROUND IND SLOT OMNI |
20 |
|
Datasheet |
- | Box | Active | - | - | 925MHz | 890MHz ~ 960MHz | - | 1 | 1.5 | - | 2.5dBi | 50 W | - | SMA | - | - | - | Adhesive | - | - |
|
33-5386-7-10-05-PCOGNSS PPP-RTK ANT/RCVR-IPNET/IMU |
6 |
|
- |
- | Box | Active | Navigation | - | - | - | Dome | - | - | - | - | - | Cable - 5m | TNC Female | IP69K | - | - | Panel Mount | 0.827" (21.00mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|
|
AN.HORN.WF.MMWAVE.50.77.WR15MASWELL MMWAVE HORN ANTENNA WIFI |
8 |
|
Datasheet |
- | Bulk | Active | WiFi | - | 63.5GHz | 50GHz ~ 77GHz | Horn | - | 1.5 | - | 15dBi | - | - | Connector | - | - | - | Screw | - | - |
|
H4700RCCBSESF3I4700 MHZ HEMI PATCH ANTENNA |
10 |
|
Datasheet |
- | Box | Active | - | - | 4.7GHz | 4.4GHz ~ 5GHz | - | 1 | 2 | - | 9dBi | 10 W | - | SMA Female | - | - | - | Panel Mount | 0.382" (9.70mm) | - |
|
V915RPTM915 MHZ OMNI ANTENNA |
20 |
|
Datasheet |
- | Box | Active | - | - | 915MHz | 902MHz ~ 928MHz | - | 1 | 1.2 | - | - | 50 W | Cable - 300mm | TNC Male | - | - | - | Pole Mount | - | - |
|

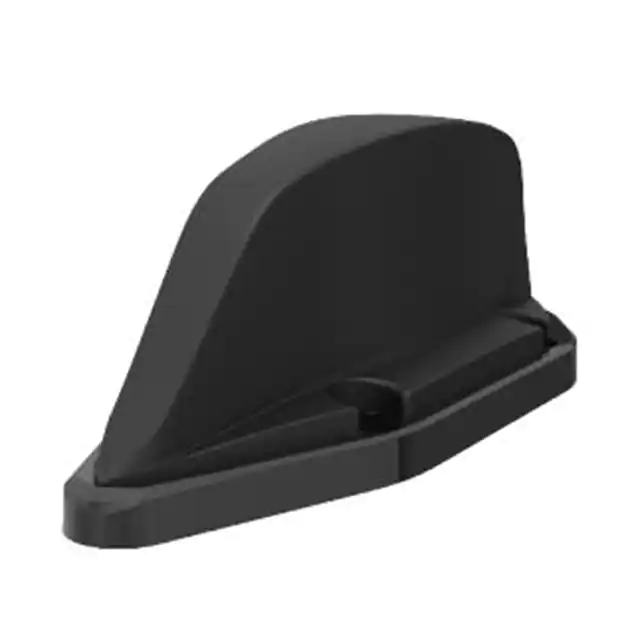

1-2823592-1RF ANT 829MHZ MOD N FEM TH |
2 |
|
Datasheet |
- | Bulk | Obsolete | Cellular, Navigation, WiFi | UHF (300MHz ~ 1GHz) | 829MHz | 698MHz ~ 960MHz, 1.56GHz ~ 1.61GHz, 1.71GHz ~ 2.7GHz, 4.9GHz ~ 6GHz | Module | 1 | - | - | - | - | - | N Type Female, TNC Female | - | - | - | Through Hole | 4.055" (103.00mm) | GPS, GSM, WiMax™, WLAN |
|
ADP24D51SBFRTM2400/5100 MHZ DUALBAND SPNG BASE |
11 |
|
Datasheet |
- | Box | Active | - | - | 2.4GHz, 5.1GHz | 2.2GHz ~ 2.7GHz, 4.1GHz ~ 6GHz | - | 2 | 2 | - | 2.5dBi | - | - | TNC Male | - | - | - | Connector Mount | - | - |
|
|
33-5390-09-10-05-PC0RF ANT DOME CONNECTOR |
7 |
|
Datasheet |
TW5390 | Box | Active | Navigation | - | - | - | Dome | 2 | - | - | - | - | Cable - 5m, LNA | Connector | IP69K | - | - | Through Hole | 0.827" (21.00mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|
|
V460460 MHZ OMNI ANTENNA (VG4600) |
20 |
|
Datasheet |
- | Box | Active | - | - | 460MHz | 450MHz ~ 470MHz | - | 1 | 1.2 | - | - | 100 W | Cable - 300mm | N Type Female | - | - | - | Pole Mount | - | - |
|
|
VG1370BM15F-MK1370-MHZ OMNI ANT MOUNT KIT |
15 |
|
Datasheet |
- | Box | Active | - | - | 1.37GHz | 1.35GHz ~ 1.39GHz | - | 1 | 1.2 | - | - | 50 W | Cable - 4.57m | BNC Male | - | - | - | - | - | - |
|
|
V915RPTM-MK915 MHZ OMNI ANT MOUNT KIT |
20 |
|
Datasheet |
- | Box | Active | - | - | 915MHz | 902MHz ~ 928MHz | - | 1 | 1.2 | - | - | 50 W | Cable - 300mm | TNC Male | - | - | - | - | - | - |
|
|
PEANED10011 Folded Dipole antenna, 138 MHz |
5 |
|
Datasheet |
- | Retail Package | Active | General ISM | VHF (f < 300MHz) | 156MHz | 138MHz ~ 174MHz | Module | 1 | 1.8 | - | 4.6dBi | 100 W | - | N Type Female | - | - | - | - | 55.400" (140.72cm) | General Purpose |
|
|
V460MK460 MHZ OMNI ANT MOUNT KIT |
20 |
|
Datasheet |
- | Box | Active | - | - | 460MHz | 450MHz ~ 470MHz | - | 1 | 1.2 | - | - | 100 W | Cable - 300mm | N Type Female | - | - | - | - | - | - |
|
PA3400TSESF4I3400 MHZ DIR PATCH ANTENNA |
9 |
|
Datasheet |
- | Box | Active | - | - | 3.4GHz | 3.3GHz ~ 3.5GHz | - | 1 | 2 | - | 4dBi | 10 W | Cable - 101.6mm | SMA Female | - | - | - | Adhesive | - | - |
|
|
V161WB161 MHZ WIDE BAND OMNI ANTENNA |
20 |
|
Datasheet |
- | Box | Active | - | - | 161MHz | 148MHz ~ 174MHz | - | 1 | 1.2 | - | - | 150 W | Cable - 300mm | UHF Female | - | - | - | Pole Mount | - | - |
|
NMO925W925 MHZ EDGESLOT OMNI |
20 |
|
Datasheet |
- | Box | Active | - | - | 925MHz | 890MHz ~ 960MHz | - | 1 | 2 | - | 2.5dBi | 50 W | - | - | - | - | - | Adhesive | - | - |
|
|
V161WB-MK161 MHZ OMNI ANT MOUNT KIT |
20 |
|
Datasheet |
- | Box | Active | - | - | 161MHz | 148MHz ~ 174MHz | - | 1 | 1.2 | - | - | 150 W | Cable - 300mm | UHF Female | - | - | - | - | - | - |
|

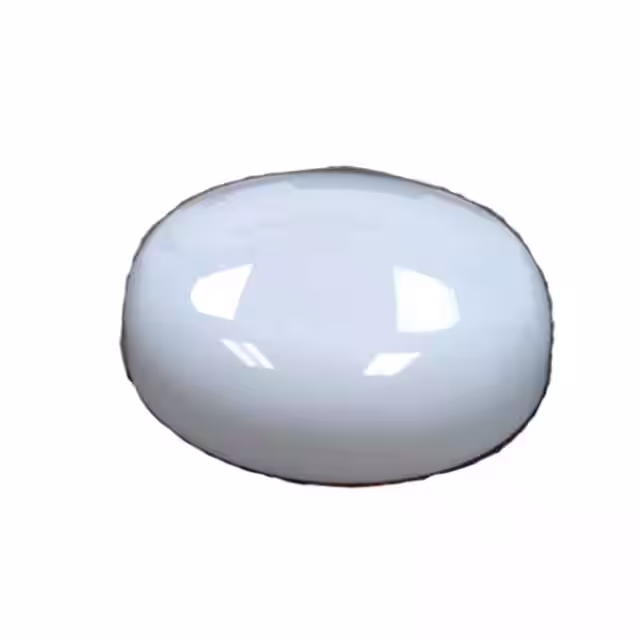

LTEWBSEMTM12FWIDE BAND MM OMNI ANTENNA |
6 |
|
Datasheet |
- | Box | Active | - | - | 1.697GHz | 694MHz ~ 2.7GHz | - | 1 | 2 | - | 5dBi | - | - | TNC Male | - | - | - | Magnetic | 1.600" (40.64mm) | - |
|
|
33-AJ977XF-01ANTENNA |
3 |
|
Datasheet |
AJ977XF | Box | Active | General ISM, Navigation | UHF (1GHz ~ 2GHz) | 1.542GHz | 1.525GHz ~ 1.559GHz | Dome | 1 | - | - | 3.7dBic | - | LNA, Filter | TNC Female | IP67 | - | - | Through Hole | 6.102" (155.00mm) | Beidou, Galileo, Globalstar, GLONASS, GNSS, GPS, Iridium, QZSS |
