RF Antennas
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FMANOM1160WIFI 6E, 2400-2500/4900-7250 MHZ |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FMANKIT1026ANTENNA KIT 3 DBI 10 FT LOW LOSS |
0 |
|
Datasheet |
- | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 850MHz | 824MHz ~ 876MHz | Whip, Straight | 1 | 1.5 | - | 3dBi | 100 W | Cable - 3.05m | N Type Female | - | - | - | Bracket Mount | 12.300" (312.42mm) | IoT, ISM, LoRa, LoRaWAN, LPWAN, M2M |
|

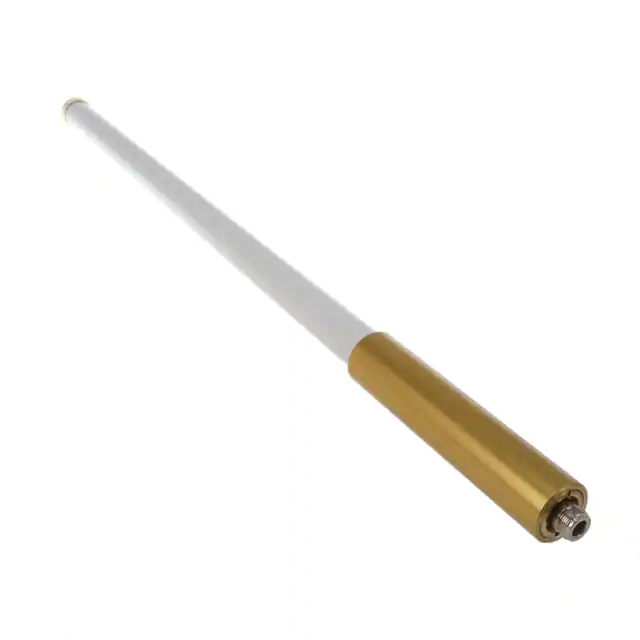

FG8066RF ANT 813.5MHZ WHIP STR N FEM |
0 |
|
Datasheet |
- | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 813.5MHz | 806MHz ~ 866MHz | Whip, Straight | 1 | 2 | - | 6dBd | 100 W | - | N Type Female | - | - | - | Bracket Mount | 65.000" (165.10cm) | - |
|

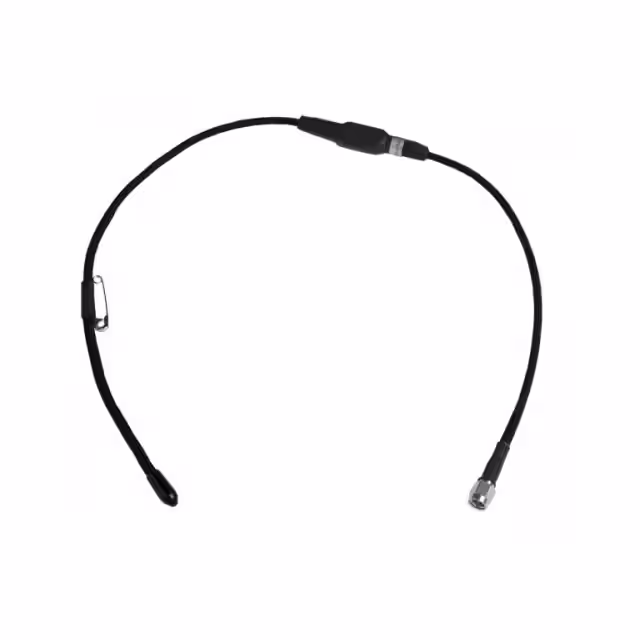

140000608BA 450/GPS/380-430 MHZ |
0 |
|
Datasheet |
- | Box | Active | Navigation | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 435MHz, 1.575GHz | 380MHz ~ 490MHz | Module | 2 | 2.5 | - | 0dBi | 25 W | - | SMA Male | - | - | - | Connector Mount | 21.654" (550.00mm) | GPS |
|

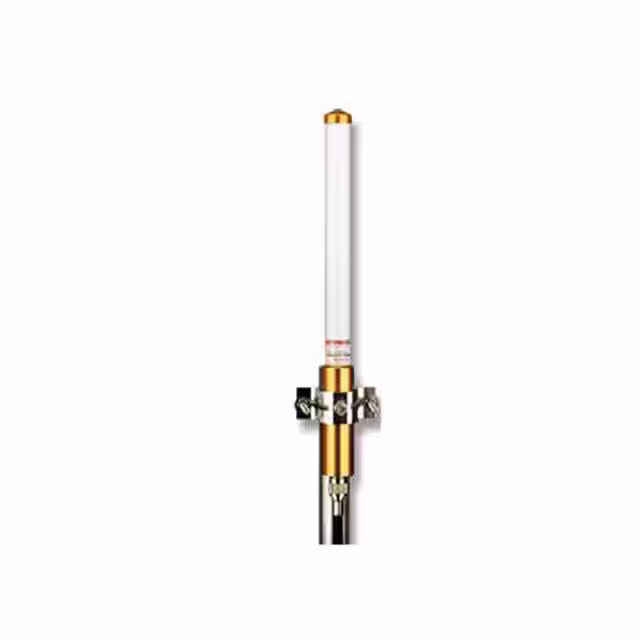

FG7466RF ANT 771MHZ WHIP STR N FEM |
0 |
|
Datasheet |
- | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 771MHz | 746MHz ~ 796MHz | Whip, Straight | 1 | 2 | - | 6dBd | 100 W | - | N Type Female | - | - | - | Bracket Mount | 61.000" (154.94cm) | - |
|

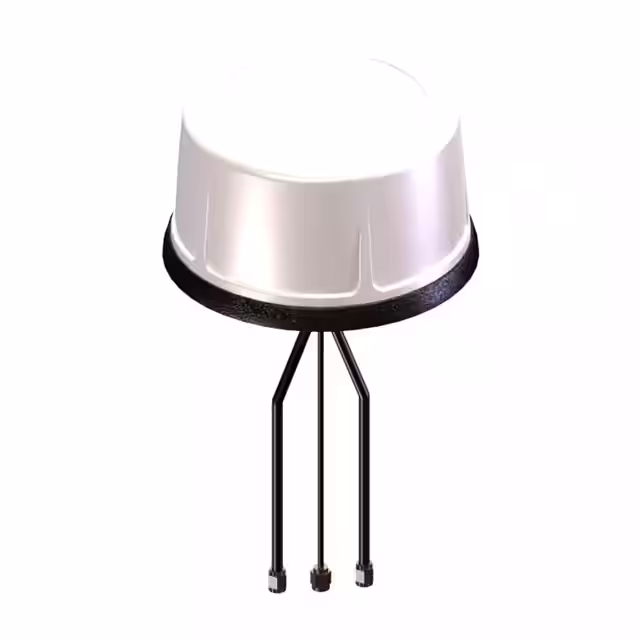

VLT69273W2NJ-518AANT 3-PORT 2X-4G, 1X-GNSS, WHT |
0 |
|
Datasheet |
- | Case | Active | Cellular, Navigation | Wide Band | 752MHz, 859MHz, 920MHz, 1.561GHz, 1.575GHz, 1.602GHz, 1.795GHz, 1.92GHz, 2.04GHz, 2.4GHz, 2.6GHz | 698MHz ~ 806MHz, 824MHz ~ 894MHz, 880MHz ~ 960MHz, 1.559GHz ~ 1.563GHz, 1.574GHz ~ 1.576GHz, 1.597GHz ~ 1.607GHz, 1.71GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.91GHz ~ 2.17GHz, 2.3GHz ~ 2.5GHz, 2.5GHz ~ 2.7 | Dome | 11 | 2 | - | 1.8dBi, 2dBi, 2.4dBi, 28dB, 4dBi, 4dBi, 4.5dBi, 4.5dBi, 5.1dBi | 50 W | Cable - 5.18m | SMA Male (2) | IP67 | - | - | Panel Mount | 2.953" (75.00mm) | BEIDOU, GLONASS, GPS, LTE |
|
|
HG2409MGU-NFANTMAGMNT 2.4GHZ 8.5DBI |
0 |
|
- |
HG | Bag | Active | Bluetooth, Cellular, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.43GHz | 2.36GHz ~ 2.5GHz | Whip, Straight | 1 | 2 | - | 8.5dBi | 100 W | Cable - 3.05m | N Type Male | - | - | - | Magnetic | 21.000" (533.40mm) | 802.11b/g, Bluetooth, CDMA, ISM, Wi-Fi, WLAN |
|
|
HG5809U-PROANTOMNI 5.8GHZ 9DBI |
0 |
|
- |
HG | Bag | Active | General ISM, WiFi | SHF (f > 4GHz) | 5.787GHz | 5.725GHz ~ 5.85GHz | Whip, Straight | 1 | 1.5 | - | 9dBi | 100 W | - | N Type Female | - | - | - | Mast Mount | 22.000" (558.80mm) | 802.11a, ISM, Wi-Fi |
|
|
1399.19.01861399.19.0186 |
0 |
|
Datasheet |
SENCITY® | Bulk | Active | Cellular, WiFi | Wide Band | 2.4GHz, 2.595GHz, 3.8GHz, 5.4375GHz, 6.55GHz | 2.3GHz ~ 2.5GHz, 2.5GHz ~ 2.69GHz, 3.4GHz ~ 4.2GHz, 4.9GHz ~ 5.975GHz, 5.975GHz ~ 7.125GHz | Dome | 5 | 1.7, 1.8, 2 | - | 5dBi, 5dBi, 6dBi, 7dBi, 7dBi | 40 W | - | SMA Male | IP68, IP69 | - | - | Panel Mount | 1.307" (33.20mm) | Cellular, Wi-Fi |
|
|
FMANFP1051ANTENNA SMA PLUG 902 MHZ-928 MHZ |
0 |
|
Datasheet |
- | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 928MHz | Flat Panel | 1 | 1.3 | - | 9dBi | 20 W | Cable - 2m | SMA Male | IP67 | - | - | Connector Mount | 1.220" (31.00mm) | General Purpose |
|
|
FMANFP1048ANTENNA SMA PLUG 902 MHZ-928 MHZ |
0 |
|
Datasheet |
- | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 928MHz | Flat Panel | 1 | 1.5 | - | 3dBi | 20 W | Cable - 2m | SMA Male | - | - | - | Connector Mount | 0.160" (4.06mm) | General Purpose |
|
|
FMANFP1050ANTENNA SMA PLUG 902 MHZ-928 MHZ |
0 |
|
Datasheet |
- | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 928MHz | Flat Panel | 1 | 1.3 | - | 5dBi | 20 W | Cable - 2m | SMA Male | IP67 | - | - | Connector Mount | 0.840" (21.33mm) | General Purpose |
|
|
FMANFP1057ANTENNA SMA PLUG 902 MHZ-928 MHZ |
0 |
|
Datasheet |
- | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 928MHz | Flat Panel | 1 | 1.5 | - | 3dBi | 20 W | Cable - 2m | RP-SMA Male | - | - | - | Connector Mount | 0.160" (4.06mm) | General Purpose |
|
|
FMANFP1059ANTENNA SMA PLUG 902 MHZ-928 MHZ |
0 |
|
- |
- | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 928MHz | Flat Panel | 1 | 1.3 | - | 5dBi | 20 W | Cable - 2m | RP-SMA Male | IP67 | - | - | Connector Mount | 0.840" (21.33mm) | General Purpose |
|
|
LCANKIT1027HGV-903U ANTOMNI 800MHZ 3DBI, RP |
0 |
|
- |
LCAN | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 850MHz | 824MHz ~ 876MHz | Whip, Straight | 1 | 1.5 | - | 3dBi | 100 W | Cable - 6.096m | N Type Female | - | - | - | Bracket Mount | 12.300" (312.42mm) | IoT, ISM, LoRa, LoRaWAN, LPWAN, M2M |
|

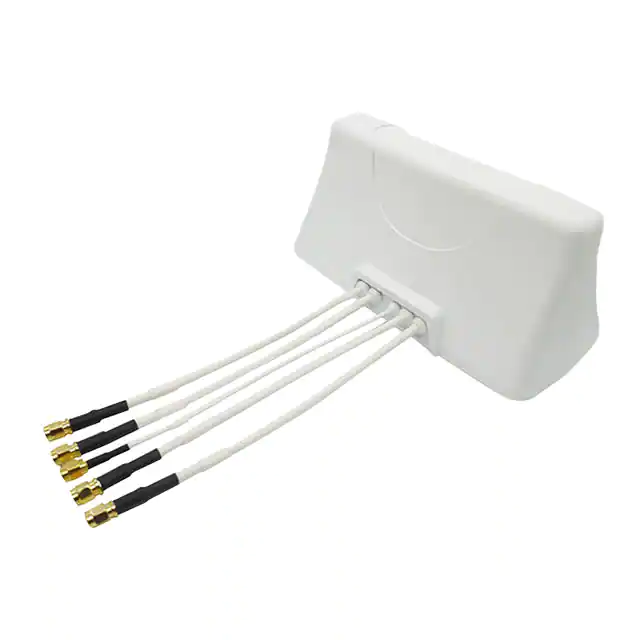

RAZ52212DMRF ANT 802MHZ/1.582GHZ MOD PANEL |
0 |
|
Datasheet |
RAZORBACK | Bulk | Active | Cellular, Navigation, WiFi | Wide Band | 802MHz, 1.582GHz, 2.2GHz, 2.45GHz, 5.537GHz | 644MHz ~ 960MHz, 1.559GHz ~ 1.606GHz, 1.71GHz ~ 2.69GHz, 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.925GHz | Module | 5 | 2 | - | 4.6dBi, 4.9dBi, 6dBi, 6.6dBi | 45 W | Cable - 5.18m, LNA | SMA Male (3), RP-SMA Male (2) | IP67 | - | - | Panel Mount | 3.644" (92.55mm) | GPS, LTE, Wi-Fi |
|
|
6720005200WI-ANT-24GHZ-4DB OMNI NF |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
GPS-TMG-26NRF ANT 1.575GHZ DOME N TYP F POL |
0 |
|
Datasheet |
- | Bulk | Obsolete | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.565GHz ~ 1.585GHz | Dome | 1 | 1.5 | - | 3.5dBic | - | - | N Type Female | - | - | - | Pole Mount | 4.961" (126.00mm) | GNSS, GPS |
|
|
1356.17.00241356.17.0024 |
0 |
|
Datasheet |
- | Bulk | Active | WiFi | Wide Band | 5.2GHz, 5.3GHz, 5.537GHz, 5.8GHz, 5.912GHz | 5.15GHz ~ 5.25GHz, 5.25GHz ~ 5.35GHz, 5.35GHz ~ 5.725GHz, 5.725GHz ~ 5.875GHz, 5.875GHz ~ 5.95GHz | Module | 5 | 1.9, 2 | - | 18dBi, 19dBi, 18.5dBi, 18dBi, 17.5dBi | - | - | N Type Female | IP67 | - | - | Chassis Mount | 7.480" (190.00mm) | Wi-Fi |
|

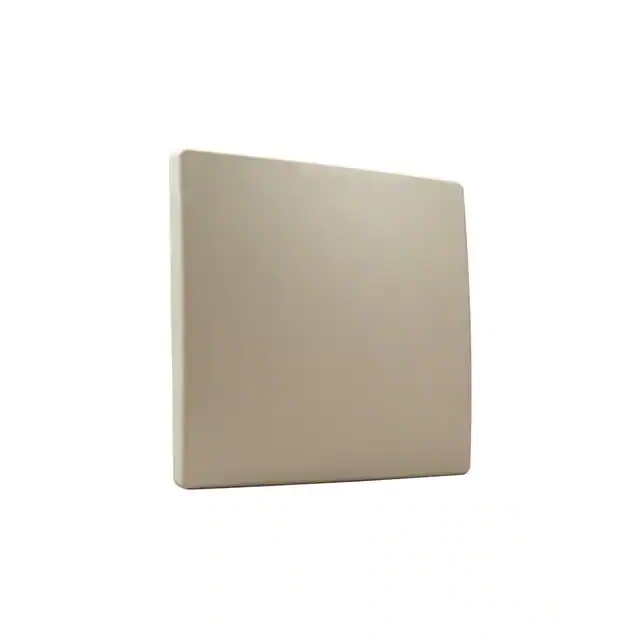

FP1800-15DPRF ANT 1.815GHZ PANEL N TYPE FEM |
0 |
|
Datasheet |
VenU® FP | Box | Active | Cellular | UHF (1GHz ~ 2GHz) | 1.815GHz | 1.8GHz ~ 1.83GHz | Panel | 1 | - | - | 15dBi | 20 W | - | N Type Female (2) | - | - | - | Pole Mount, Wall Mount | 1.575" (40.00mm) | 2G, 3G, 5G, Cellular, LTE |
