Headers, Plugs and Sockets
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Number of Positions | Positions Per Level | Number of Levels | Pitch | Header Orientation | Plug Wire Entry | Termination Style | Mounting Type | Current - IEC | Voltage - IEC | Current - UL | Voltage - UL | Wire Gauge or Range - AWG | Wire Gauge or Range - mm² | Color | Operating Temperature | Contact Mating Finish | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0395156513TERM BLOCK HDR 13POS VERT 3.81MM |
0 |
|
Datasheet |
Eurostyle ESE 39515 | Bulk | Active | Header, Male Pins, Shrouded (4 Side) | 13 | 13 | 1 | 0.150" (3.81mm) | Vertical | - | Solder | Through Hole | - | - | 8 A | 300 V | - | - | Green | -40°C ~ 105°C | Gold | |
|
|
0395161513TERM BLOCK HDR 13POS 3.81MM |
0 |
|
Datasheet |
Eurostyle ESE 39516 | Bulk | Active | Header, Male Pins, Shrouded (4 Side) | 13 | 13 | 1 | 0.150" (3.81mm) | 90°, Right Angle | - | Solder | Through Hole | - | - | 8 A | 300 V | - | - | Black | -40°C ~ 105°C | Gold | |
|
|
SVF07-3,81PLUG PCB 7P 381MM VERT 11A 300V |
0 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
EDSTLZ990/18TERM BLOCK HDR 18POS 5.08MM |
0 |
|
Datasheet |
EDSTLZ990 | Bulk | Active | Header, Male Pins, Shrouded (4 Side) | 18 | 18 | 1 | 0.200" (5.08mm) | 45° | 45° | - | Solder | - | - | - | 300 V | - | - | - | -30°C ~ 105°C | - | |
|
1729150000TERM BLOCK HDR 14POS VERT 3.5MM |
0 |
|
- |

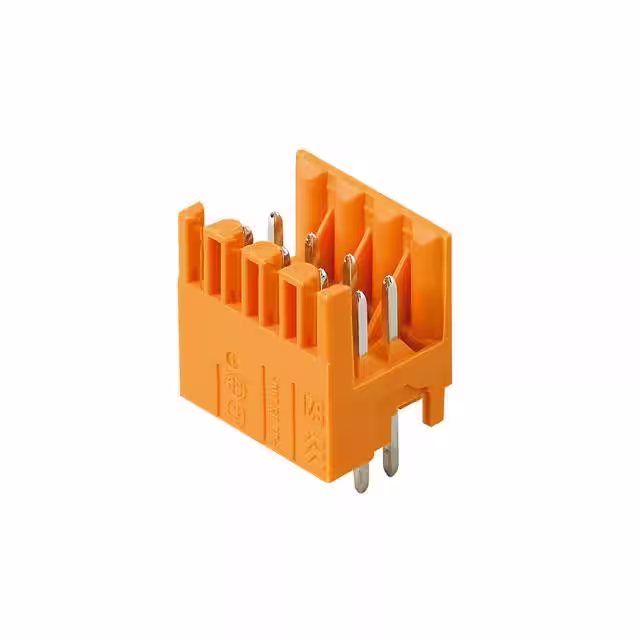

Omnimate S2L | Bulk | Active | Header, Male Pins, Shrouded (2 Side) | 14 | 7 | 2 | 0.138" (3.50mm) | Vertical | - | Solder | Through Hole | 9A | 80 V | 8 A | 150 V | - | - | Orange | - | Tin | |
|
1728190000TERM BLOCK HDR 14POS 90DEG 3.5MM |
0 |
|
- |
Omnimate S2L | Bulk | Active | Header, Male Pins, Shrouded (2 Side) | 14 | 7 | 2 | 0.138" (3.50mm) | 90°, Right Angle | - | Solder | Through Hole | 9A | 80 V | 8 A | 150 V | - | - | Orange | - | Tin | |
|
|
OSTVK175050TERM BLOCK HDR 17POS 5.08MM |
0 |
|
Datasheet |
OSTVK | Bulk | Active | Header, Male Pins, Shrouded (2 Side) | 17 | 17 | 1 | 0.200" (5.08mm) | 45° | - | Solder | Through Hole | - | - | 15 A | 300 V | - | - | Green | -30°C ~ 105°C | - | |
|
|
OSTVK177150TERM BLOCK HDR 17POS 45DEG 5MM |
0 |
|
Datasheet |
OSTVK | Bulk | Active | Header, Male Pins, Shrouded (4 Side) | 17 | 17 | 1 | 0.197" (5.00mm) | 45° | - | Solder | Through Hole | - | - | 15 A | 300 V | - | - | Green | -30°C ~ 105°C | - | |
|
|
31020117SHROUDED HEADER, VERTICAL, PCB, |
0 |
|
Datasheet |
- | Bulk | Active | Header, Male Pins, Shrouded (4 Side) | 17 | 17 | 1 | 0.197" (5.00mm) | Vertical | - | Solder | Through Hole | - | - | 15 A | 300 V | - | - | Black | -40°C ~ 105°C | Silver | |
|
|
OSTEO070102TERM BLOCK PLUG 7POS 90DEG 5MM |
0 |
|
Datasheet |
OSTEO | Bulk | Active | Plug for Unshrouded Header | 7 | 7 | 1 | 0.197" (5.00mm) | - | - | Screw | Free Hanging (In-Line) | - | - | - | 300 V | 12-28 AWG | - | - | -30°C ~ 105°C | Nickel | |
|
|
PF11-5,08-HPCB HEADER, INVERTED, HORIZONTAL |
0 |
|
- |
PF | Bulk | Active | Header, Female Sockets | 11 | 11 | 1 | 0.200" (5.08mm) | 90°, Right Angle | - | Solder | Through Hole | 12A | 250 V | - | - | - | - | Green | -40°C ~ 105°C | - | |
|
|
PF11-5,08-H-MPCB HEADER, INVERTED, HORIZONTAL |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
PDSV09-5,08-PPCB HEADER, DUAL ROW, 5.08MM, 18 |
0 |
|
Datasheet |
PDSV | Bulk | Active | Header, Male Pins, Shrouded (4 Side) | 18 | 9 | 2 | 0.200" (5.08mm) | Vertical | - | Solder | Through Hole | 12A | 250 V | 12 A | 300 V | - | - | Green | -30°C ~ 105°C | Tin | |
|
|
HW2210020000GTERM BLOCK PLUG 22POS STR 3.5MM |
0 |
|
Datasheet |
HW | Bulk | Active | Plug, Female Sockets | 22 | 22 | 1 | 0.138" (3.50mm) | - | 180° | Screwless - Leg Spring, Push-In Spring | Free Hanging (In-Line) | - | - | 8 A | 300 V | 16-28 AWG | - | Black | -40°C ~ 115°C | Tin | |
|
|
HW2210820000GTERM BLOCK PLUG 22POS STR 3.5MM |
0 |
|
Datasheet |
HW | Bulk | Active | Plug, Female Sockets | 22 | 22 | 1 | 0.138" (3.50mm) | - | 180° | Screwless - Leg Spring, Push-In Spring | Free Hanging (In-Line) | - | - | 8 A | 300 V | 16-28 AWG | - | Gray | -40°C ~ 115°C | Tin | |
|
|
TS21110D0000GTERM BLOCK PLUG 21POS 3.5MM |
0 |
|
Datasheet |
TS | Bulk | Active | Plug, Female Sockets | 21 | 21 | 1 | 0.138" (3.50mm) | - | 270° | Screw - Leaf Spring, Wire Guard | Free Hanging (In-Line) | - | - | 8 A | 300 V | 16-28 AWG | 1.5mm² | Black | -40°C ~ 115°C | Tin | |
|
|
TS21118D0000GTERM BLOCK PLUG 21POS 3.5MM |
0 |
|
Datasheet |
TS | Bulk | Active | Plug, Female Sockets | 21 | 21 | 1 | 0.138" (3.50mm) | - | 270° | Screw - Leaf Spring, Wire Guard | Free Hanging (In-Line) | - | - | 8 A | 300 V | 16-28 AWG | 1.5mm² | Gray | -40°C ~ 115°C | Tin | |
|
|
TJ1671040000GTERM BLOCK PLUG 16POS STR 5MM |
0 |
|
Datasheet |
TJ | Bulk | Active | Plug, Female Sockets | 16 | 16 | 1 | 0.197" (5.00mm) | - | 180° | Screw | Free Hanging (In-Line) | 20A | 300 V | 20 A | 300 V | 12-24 AWG | 0.34-2.5mm² | Black | -40°C ~ 115°C | Tin | |
|
|
TS19718A0000GTERM BLOCK PLUG 19POS 90DEG 5MM |
0 |
|
Datasheet |
TS | Bulk | Active | Plug, Female Sockets | 19 | 19 | 1 | 0.197" (5.00mm) | - | 90° | Screw - Leaf Spring, Wire Guard | Free Hanging (In-Line) | - | - | 15 A | 300 V | 12-24 AWG | 0.34-2.5mm² | Gray | -40°C ~ 115°C | Tin | |
|
|
TS19718B0000GTERM BLOCK PLUG 19POS 270DEG 5MM |
0 |
|
Datasheet |
TS | Bulk | Active | Plug, Female Sockets | 19 | 19 | 1 | 0.197" (5.00mm) | - | 270° | Screw - Leaf Spring, Wire Guard | Free Hanging (In-Line) | - | - | 15 A | 300 V | 12-24 AWG | 0.34-2.5mm² | Gray | -40°C ~ 115°C | Tin |
