TVS Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SMF90A-HFDIODE TVS 200W 90V UNI-DIRECTION |
8,758 |
|
Datasheet |
SOD-123F | SMF-HF | Tape & Reel (TR) | Active | Zener | 1 | - | 90V | 100V | 146V | 1.37A | 200W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-123FL |
|
|
SMF30CA-HFDIODE TVS 200W 30V BI-DIRECTIONA |
2,447 |
|
Datasheet |
SOD-123F | SMF-HF | Tape & Reel (TR) | Active | Zener | - | 1 | 30V | 33.3V | 48.4V | 4.13A | 200W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-123FL |
|
|
SMF15A-HFDIODE TVS 200W 15V UNI-DIRECTION |
7,960 |
|
Datasheet |
SOD-123F | SMF-HF | Tape & Reel (TR) | Active | Zener | 1 | - | 15V | 16.7V | 24.4V | 8.2A | 200W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-123FL |
|
|
SMF40CA-HFDIODE TVS 200W 40V BI-DIRECTIONA |
6,459 |
|
Datasheet |
SOD-123F | SMF-HF | Tape & Reel (TR) | Active | Zener | - | 1 | 40V | 44.4V | 64.5V | 3.1A | 200W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-123FL |
|
|
SMF24A-HFDIODE TVS 200W 24V UNI-DIRECTION |
6,417 |
|
Datasheet |
SOD-123F | SMF-HF | Tape & Reel (TR) | Active | Zener | 1 | - | 24V | 26.7V | 38.9V | 5.14A | 200W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-123FL |
|
|
SMF19CA-HFDIODE TVS 200W 19V BI-DIRECTIONA |
2,709 |
|
Datasheet |
SOD-123F | SMF-HF | Tape & Reel (TR) | Active | Zener | - | 1 | 19V | 21.1V | 30.6V | 6.54A | 200W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-123FL |
|
|
PESD5V0U1UB-QXPESD5V0U1UB-Q/SOD523/SC-79 |
8,293 |
|
Datasheet |
SC-79, SOD-523 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 5V (Max) | 5.8V | - | - | - | No | Ethernet, Telecom, USB | 2pF @ 1MHz | -55°C ~ 150°C (TA) | Automotive | AEC-Q101 | Surface Mount | SOD-523 |
|
|
PESD5V0U1BA-QXPESD5V0U1BA-Q/SOD323/SOD2 |
7,340 |
|
Datasheet |
SC-76, SOD-323 | - | Tape & Reel (TR) | Active | Zener | - | 1 | 5V (Max) | 5.5V | - | - | - | No | Ethernet, Telecom | 2.9pF @ 1MHz | -55°C ~ 150°C (TA) | Automotive | AEC-Q101 | Surface Mount | SOD-323 |
|
|
PESD5V0U1UA-QXPESD5V0U1UA-Q/SOD323/SOD2 |
9,820 |
|
Datasheet |
SC-76, SOD-323 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 5V (Max) | 5.8V | 11V | 13A (8/20µs) | - | No | Ethernet, Telecom, USB | 2pF @ 1MHz | -55°C ~ 150°C (TA) | Automotive | AEC-Q101 | Surface Mount | SOD-323 |
|
DESD1P0RFWQ-7TVS DIODE 70VWM 8VC SOT323 |
9,082 |
|
Datasheet |
SC-70, SOT-323 | - | Tape & Reel (TR) | Obsolete | Steering (Rail to Rail) | 1 | - | 70V (Max) | - | 8V | 15A (8/20µs) | - | No | - | 1pF @ 1MHz | -65°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-323 |
|
|
AOZ8S202UD4-034CH 3.3V 0.2PF UNIDIRECTIONAL TV |
5,952 |
|
- |
10-UFDFN | - | Tape & Reel (TR) | Not For New Designs | Steering (Rail to Rail) | 4 | - | 3.3V (Max) | 6V | 11V | 15A | - | No | HDMI, USB | 0.2pF @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 10-DFN (2.5x1) |
|
AOZ8205DITVS DIODE 5VWM 7.5VC 6DFN |
8,513 |
|
Datasheet |
6-UFDFN | - | Tape & Reel (TR) | Obsolete | Zener | 5 | - | 5V (Max) | 6V | 7.5V | 5A (8/20µs) | - | No | General Purpose | 15pF @ 1MHz | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 6-DFN (1.6x1.6) |
|
SA100ATVS DIODE 100VWM 162VC DO15 |
6,710 |
|
Datasheet |
DO-204AC, DO-15, Axial | - | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 100V | 111V | 162V | 3.1A | 500W | No | General Purpose | - | - | - | - | Through Hole | DO-15 |
|
|
SA54ATVS DIODE 54VWM 87.1VC DO15 |
6,010 |
|
Datasheet |
DO-204AC, DO-15, Axial | - | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 54V | 60V | 87.1V | 5.7A | 500W | No | General Purpose | - | - | - | - | Through Hole | DO-15 |
|
SA58ATVS DIODE 58VWM 93.6VC DO15 |
7,923 |
|
Datasheet |
DO-204AC, DO-15, Axial | - | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 58V | 64.4V | 93.6V | 5.3A | 500W | No | General Purpose | - | - | - | - | Through Hole | DO-15 |
|
|
SA90ATVS DIODE 90VWM 146VC DO15 |
3,582 |
|
Datasheet |
DO-204AC, DO-15, Axial | - | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 90V | 100V | 146V | 3.4A | 500W | No | General Purpose | - | - | - | - | Through Hole | DO-15 |
|
TV04A101JB-GTVS DIODE 100VWM 162VC SMA |
8,144 |
|
Datasheet |
DO-214AC, SMA | - | Tape & Reel (TR) | Active | Zener | - | 1 | 100V | 111V | 162V | 2.47A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
CPDQ03C5V0USP-HFTVS DIODE 5VWM 16VC 0402C-03 |
3,974 |
|
- |
SC-101, SOT-883 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 5V (Max) | 6V | 16V | 3A (8/20µs) | 48W | No | General Purpose | 0.6pF @ 1MHz (Max) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 0402C-03/SOT-883 |
|
|
SMAJ15CAV-TPTVS |
9,438 |
|
Datasheet |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

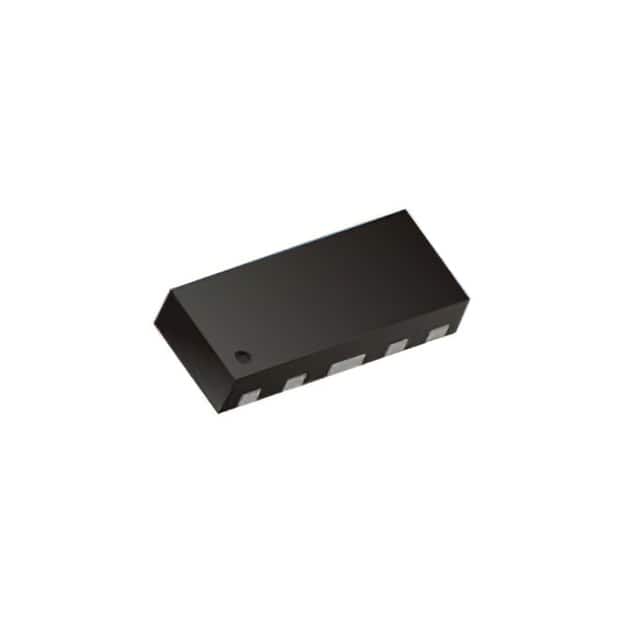

CPDVR103V3UA-HFDIODE ESD 3.3VWM 10VC DFN2510 |
9,267 |
|
Datasheet |
10-UFDFN | - | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 4 | - | 3.3V (Max) | 4.2V | 14V | 4A (8/20µs) | 56W | Yes | General Purpose | 0.4pF @ 1MHz | -55°C ~ 125°C (TA) | - | - | Surface Mount | DFN2510 |
