TVS Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
6DFN33A-M3/H600W,33V 5%, DFN3820A TVS |
2,390 |
|
Datasheet |
2-VDFN | TRANSZORB® | Tape & Reel (TR) | Active | Zener | 1 | - | 28.2V | 31.4V | 45.7V | 13.1A | 600W | No | Telecom | - | -65°C ~ 175°C (TJ) | - | - | Surface Mount, Wettable Flank | DFN3820A |
|
|
6DFN18A-M3/H600W,18V 5%, DFN3820A TVS |
2,479 |
|
Datasheet |
2-VDFN | TRANSZORB® | Tape & Reel (TR) | Active | Zener | 1 | - | 15.3V | 17.1V | 25.5V | 23.5A | 600W | No | Telecom | - | -65°C ~ 175°C (TJ) | - | - | Surface Mount, Wettable Flank | DFN3820A |
|
|
6DFN22A-M3/H600W,22V 5%, DFN3820A TVS |
3,226 |
|
Datasheet |
2-VDFN | TRANSZORB® | Tape & Reel (TR) | Active | Zener | 1 | - | 18.8V | 20.9V | 30.6V | 19.6A | 600W | No | Telecom | - | -65°C ~ 175°C (TJ) | - | - | Surface Mount, Wettable Flank | DFN3820A |
|
|
6DFN15A-M3/H600W,15V 5%, DFN3820A TVS |
6,694 |
|
Datasheet |
2-VDFN | TRANSZORB® | Tape & Reel (TR) | Active | Zener | 1 | - | 12.8V | 14.3V | 21.2V | 28.3A | 600W | No | Telecom | - | -65°C ~ 175°C (TJ) | - | - | Surface Mount, Wettable Flank | DFN3820A |
|
|
6DFN13A-M3/H600W,13V 5%, DFN3820A TVS |
5,792 |
|
Datasheet |
2-VDFN | TRANSZORB® | Tape & Reel (TR) | Active | Zener | 1 | - | 11.1V | 12.4V | 18.2V | 33A | 600W | No | Telecom | - | -65°C ~ 175°C (TJ) | - | - | Surface Mount, Wettable Flank | DFN3820A |
|
|
6DFN30A-M3/H600W,30V 5%, DFN3820A TVS |
6,879 |
|
Datasheet |
2-VDFN | TRANSZORB® | Tape & Reel (TR) | Active | Zener | 1 | - | 25.6V | 28.5V | 41.4V | 14.5A | 600W | No | Telecom | - | -65°C ~ 175°C (TJ) | - | - | Surface Mount, Wettable Flank | DFN3820A |
|
|
6DFN27A-M3/H600W,27V 5%, DFN3820A TVS |
7,021 |
|
Datasheet |
2-VDFN | TRANSZORB® | Tape & Reel (TR) | Active | Zener | 1 | - | 23.1V | 25.7V | 37.5V | 16A | 600W | No | Telecom | - | -65°C ~ 175°C (TJ) | - | - | Surface Mount, Wettable Flank | DFN3820A |
|
|
6DFN24A-M3/H600W,24V 5%, DFN3820A TVS |
4,467 |
|
Datasheet |
2-VDFN | TRANSZORB® | Tape & Reel (TR) | Active | Zener | 1 | - | 20.5V | 22.8V | 33.2V | 18.1A | 600W | No | Telecom | - | -65°C ~ 175°C (TJ) | - | - | Surface Mount, Wettable Flank | DFN3820A |
|
|
6DFN36A-M3/H600W,36V 5%, DFN3820A TVS |
7,271 |
|
Datasheet |
2-VDFN | TRANSZORB® | Tape & Reel (TR) | Active | Zener | 1 | - | 30.8V | 34.2V | 49.9V | 12A | 600W | No | Telecom | - | -65°C ~ 175°C (TJ) | - | - | Surface Mount, Wettable Flank | DFN3820A |
|
|
6DFN12A-M3/H600W,12V 5%, DFN3820A TVS |
4,954 |
|
Datasheet |
2-VDFN | TRANSZORB® | Tape & Reel (TR) | Active | Zener | 1 | - | 10.2V | 11.4V | 16.7V | 35.9A | 600W | No | Telecom | - | -65°C ~ 175°C (TJ) | - | - | Surface Mount, Wettable Flank | DFN3820A |
|
|
6DFN43A-M3/H600W,43V 5%, DFN3820A TVS |
8,959 |
|
Datasheet |
2-VDFN | TRANSZORB® | Tape & Reel (TR) | Active | Zener | 1 | - | 36.8V | 40.9V | 59.3V | 10.1A | 600W | No | Telecom | - | -65°C ~ 175°C (TJ) | - | - | Surface Mount, Wettable Flank | DFN3820A |
|
|
6DFN39A-M3/H600W,39V 5%, DFN3820A TVS |
3,935 |
|
Datasheet |
2-VDFN | TRANSZORB® | Tape & Reel (TR) | Active | Zener | 1 | - | 33.3V | 37.1V | 53.9V | 11.1A | 600W | No | Telecom | - | -65°C ~ 175°C (TJ) | - | - | Surface Mount, Wettable Flank | DFN3820A |
|
|
6DFN51A-M3/H600W,51V 5%, DFN3820A TVS |
6,798 |
|
Datasheet |
2-VDFN | TRANSZORB® | Tape & Reel (TR) | Active | Zener | 1 | - | 43.6V | 48.5V | 70.1V | 8.6A | 600W | No | Telecom | - | -65°C ~ 175°C (TJ) | - | - | Surface Mount, Wettable Flank | DFN3820A |
|

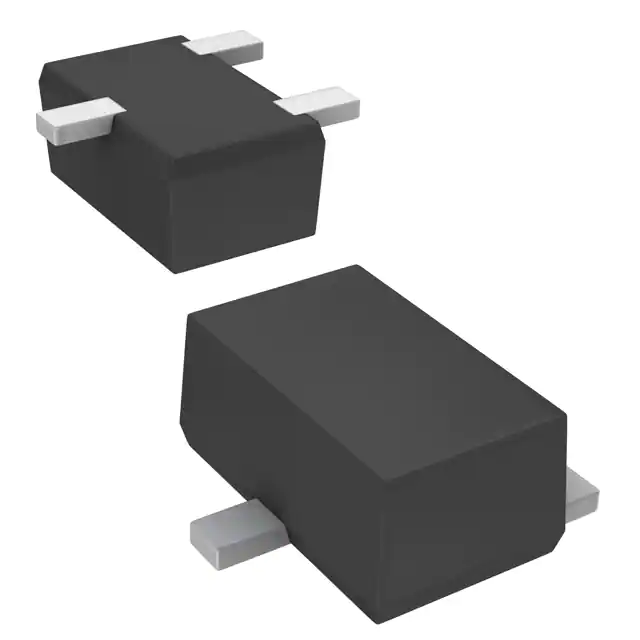

MAZT082H0LTVS DIODE 5VWM SSMINI3-F2 |
4,186 |
|
Datasheet |
SC-89, SOT-490 | - | Tape & Reel (TR) | Obsolete | Zener | 2 | - | 5V | 7.7V | - | - | - | No | General Purpose | - | - | - | - | Surface Mount | SSMini3-F2 |
|
|
ESDHSBLC5V0LB-TPTVS DIODES |
6,536 |
|
Datasheet |
0402 (1006 Metric) | - | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 2 | - | 5V (Max) | 6V | 14V | 15A (8/20µs) | 210W | Yes | General Purpose | 1.35pF @ 1MHz | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 2-DFN1006 |
|
SMF4L48A-7TRANSIENT VOLTAGE SUPPRESSOR PP |
2,120 |
|
Datasheet |
DO-219AA | SMF4L | Tape & Reel (TR) | Active | Zener | 1 | - | 48V | 53.3V | 77.4V | 5.2A | 400W | No | - | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | DO-219AA |
|
|
SMF4L43A-7TRANSIENT VOLTAGE SUPPRESSOR PP |
4,995 |
|
Datasheet |
DO-219AA | SMF4L | Tape & Reel (TR) | Active | Zener | 1 | - | 43V | 47.8V | 69.4V | 5.7A | 400W | No | - | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | DO-219AA |
|
|
SMF4L90A-7TRANSIENT VOLTAGE SUPPRESSOR PP |
8,616 |
|
Datasheet |
DO-219AA | SMF4L | Tape & Reel (TR) | Active | Zener | 1 | - | 90V | 100V | 146V | 2.7A | 400W | No | - | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | DO-219AA |
|
|
SMF4L64A-7TRANSIENT VOLTAGE SUPPRESSOR PP |
2,095 |
|
Datasheet |
DO-219AA | SMF4L | Tape & Reel (TR) | Active | Zener | 1 | - | 64V | 71.1V | 103V | 3.9A | 400W | No | - | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | DO-219AA |
|
|
SMF4L45A-7TRANSIENT VOLTAGE SUPPRESSOR PP |
6,628 |
|
Datasheet |
DO-219AA | SMF4L | Tape & Reel (TR) | Active | Zener | 1 | - | 45V | 50V | 72.7V | 5.5A | 400W | No | - | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | DO-219AA |
