TVS Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SMF43A-HM3_A08ESD PROTECTION DIODE SMF DO219AB |
3,977 |
|
Datasheet |
DO-219AB | eSMP® | Tape & Reel (TR) | Active | Zener | 1 | - | 43V | 47.8V | 69.4V | 2.9A | 200W | No | - | 165pF @ 1MHz | -65°C ~ 175°C (TA) | Automotive | AEC-Q101 | Surface Mount | DO-219AB (SMF) |
|
|
SMF7V0A-HM3_A08ESD PROTECTION DIODE SMF DO219AB |
2,687 |
|
Datasheet |
DO-219AB | eSMP® | Tape & Reel (TR) | Active | Zener | 1 | - | 7V | 7.78V | 12V | 16.7A | 200W | No | - | 843pF @ 1MHz | -65°C ~ 175°C (TA) | Automotive | AEC-Q101 | Surface Mount | DO-219AB (SMF) |
|
|
SMF7V5A-HM3_A08ESD PROTECTION DIODE SMF DO219AB |
7,504 |
|
Datasheet |
DO-219AB | eSMP® | Tape & Reel (TR) | Active | Zener | 1 | - | 7.5V | 8.33V | 12.9V | 15.5A | 200W | No | - | 773pF @ 1MHz | -65°C ~ 175°C (TA) | Automotive | AEC-Q101 | Surface Mount | DO-219AB (SMF) |
|
SMAJE180AHTVS DIODE 180VWM UNI |
3,459 |
|
Datasheet |
DO-214AC, SMA | SMAJExxH | Tape & Reel (TR) | Active | Zener | 1 | - | 180V | 201V | 292V | 1.4A | 400W | No | Telecom | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SMA |
|
|
SMAJE220AHTVS DIODE 220VWM UNI |
8,786 |
|
Datasheet |
DO-214AC, SMA | SMAJExxH | Tape & Reel (TR) | Active | Zener | 1 | - | 220V | 246V | 356V | 1.1A | 400W | No | Telecom | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SMA |
|
|
SMAJE200AHTVS DIODE 200VWM UNI |
7,553 |
|
Datasheet |
DO-214AC, SMA | SMAJExxH | Tape & Reel (TR) | Active | Zener | 1 | - | 200V | 224V | 324V | 1.3A | 400W | No | Telecom | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SMA |
|
|
SMAJE220CAHTVS DIODE 220VWM BI |
9,407 |
|
Datasheet |
DO-214AC, SMA | SMAJExxH | Tape & Reel (TR) | Active | Zener | - | 1 | 220V | 246V | 356V | 1.1A | 400W | No | Telecom | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SMA |
|
|
SMAJE180CAHTVS DIODE 180VWM BI |
6,375 |
|
Datasheet |
DO-214AC, SMA | SMAJExxH | Tape & Reel (TR) | Active | Zener | - | 1 | 180V | 201V | 292V | 1.4A | 400W | No | Telecom | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SMA |
|
|
P4SMAJ11ADF-13TVS DIODE 11VWM 18.2VC D-FLAT |
9,657 |
|
Datasheet |
2-SMD, Flat Leads | - | Tape & Reel (TR) | Active | Zener | 1 | - | 11V | 12.2V | 18.2V | 22A | 400W | No | - | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | D-Flat |
|
|
P4SMAJ14ADF-13TVS DIODE 14VWM 23.2VC D-FLAT |
3,160 |
|
Datasheet |
2-SMD, Flat Leads | - | Tape & Reel (TR) | Active | Zener | 1 | - | 14V | 15.6V | 23.2V | 17.2A | 400W | No | - | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | D-Flat |
|
|
P4SMAJ17ADF-13TVS DIODE 17VWM 27.6VC D-FLAT |
8,830 |
|
Datasheet |
2-SMD, Flat Leads | - | Tape & Reel (TR) | Active | Zener | 1 | - | 17V | 18.9V | 27.6V | 14.5A | 400W | No | - | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | D-Flat |
|
|
P4SMAJ64ADF-13TVS DIODE 64VWM 103VC D-FLAT |
8,670 |
|
Datasheet |
2-SMD, Flat Leads | - | Tape & Reel (TR) | Active | Zener | 1 | - | 64V | 71.1V | 103V | 3.9A | 400W | No | - | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | D-Flat |
|
|
P4SMAJ7.0ADF-13TVS DIODE 7VWM 12VC D-FLAT |
6,858 |
|
Datasheet |
2-SMD, Flat Leads | - | Tape & Reel (TR) | Active | Zener | 1 | - | 7V | 7.78V | 12V | 33.3A | 400W | No | - | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | D-Flat |
|
|
P4SMAJ8.0ADF-13TVS DIODE 8VWM 13.6VC D-FLAT |
6,284 |
|
Datasheet |
2-SMD, Flat Leads | - | Tape & Reel (TR) | Active | Zener | 1 | - | 8V | 8.89V | 13.6V | 29.4A | 400W | No | - | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | D-Flat |
|
|
P4SMAJ8.5ADF-13TVS DIODE 8.5VWM 14.4VC D-FLAT |
8,845 |
|
Datasheet |
2-SMD, Flat Leads | - | Tape & Reel (TR) | Active | Zener | 1 | - | 8.5V | 9.44V | 14.4V | 27.7A | 400W | No | - | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | D-Flat |
|
|
P4SMAJ85ADF-13TVS DIODE 85VWM 137VC D-FLAT |
7,373 |
|
Datasheet |
2-SMD, Flat Leads | - | Tape & Reel (TR) | Active | Zener | 1 | - | 85V | 94.4V | 137V | 2.9A | 400W | No | - | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | D-Flat |
|

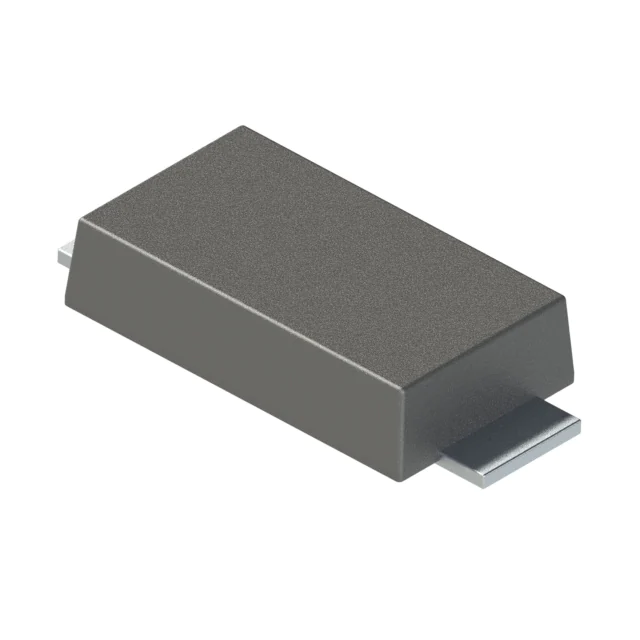

P4SMAJ58ADF-13TRANSIENT VOLTAGE SUPPRESSOR D-F |
8,330 |
|
Datasheet |
2-SMD, Flat Leads | P4SMAJ | Tape & Reel (TR) | Active | Zener | 1 | - | 58V | 64.4V | 93.6V | 4.3A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | D-Flat |
|
|
P4SMAJ54ADF-13TRANSIENT VOLTAGE SUPPRESSOR D-F |
9,533 |
|
Datasheet |
2-SMD, Flat Leads | P4SMAJ | Tape & Reel (TR) | Active | Zener | 1 | - | 54V | 60V | 87.1V | 4.6A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | D-Flat |
|
|
P4SMAJ48ADF-13TRANSIENT VOLTAGE SUPPRESSOR D-F |
4,674 |
|
Datasheet |
2-SMD, Flat Leads | P4SMAJ | Tape & Reel (TR) | Active | Zener | 1 | - | 48V | 53.3V | 77.4V | 5.2A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | D-Flat |
|
|
P4SMAJ78ADF-13TRANSIENT VOLTAGE SUPPRESSOR D-F |
8,772 |
|
Datasheet |
2-SMD, Flat Leads | P4SMAJ | Tape & Reel (TR) | Active | Zener | 1 | - | 78V | 86.7V | 126V | 3.2A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | D-Flat |
