TVS Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

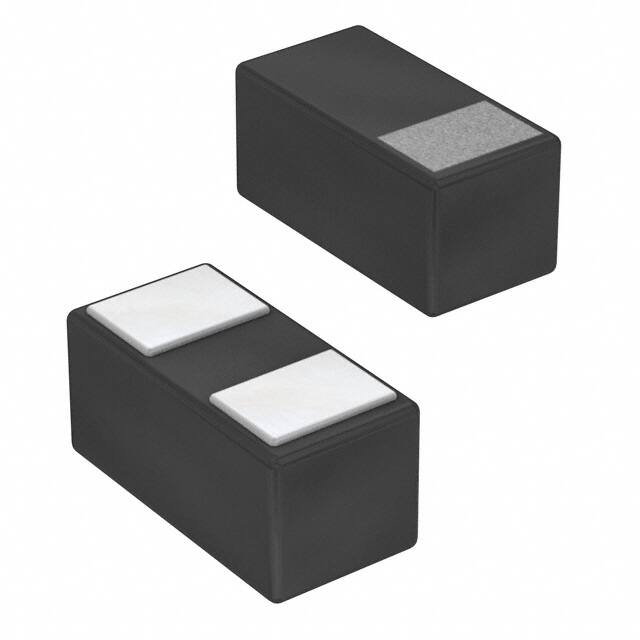

LAQ02A05L01TVS ESD, 0201, 5V, 15V, REEL |
2,444 |
|
Datasheet |
0201 (0603 Metric) | LAQ02AXXL01 | Tape & Reel (TR) | Active | Zener | 1 | - | 5V (Max) | 6V | 15V | 3A (8/20µs) | - | No | General Purpose | 30pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 0201 |
|
SMA6F51AH600W, 60V, 5%, UNIDIRECTIONAL, T |
3,733 |
|
Datasheet |
DO-221AC, SMA Flat Leads | SMA6F | Tape & Reel (TR) | Active | Zener | 1 | - | 51V | 57V | 82.8V | 7.2A | 600W | No | - | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | Thin SMA |
|
|
SMA6F22AH600W, 25.9V, 5%, UNIDIRECTIONAL, |
9,333 |
|
Datasheet |
DO-221AC, SMA Flat Leads | SMA6F | Tape & Reel (TR) | Active | Zener | 1 | - | 22V | 24.6V | 35.7V | 16.8A | 600W | No | - | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | Thin SMA |
|
|
SMA6F36AH600W, 42.4V, 5%, UNIDIRECTIONAL, |
9,467 |
|
Datasheet |
DO-221AC, SMA Flat Leads | SMA6F | Tape & Reel (TR) | Active | Zener | 1 | - | 36V | 40.2V | 58.4V | 10.3A | 600W | No | - | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | Thin SMA |
|
|
SMA6F56AH600W, 65.9V, 5%, UNIDIRECTIONAL, |
9,335 |
|
Datasheet |
DO-221AC, SMA Flat Leads | SMA6F | Tape & Reel (TR) | Active | Zener | 1 | - | 56V | 62.6V | 90.9V | 6.6A | 600W | No | - | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | Thin SMA |
|
|
SMA6F39AH600W, 45.9V, 5%, UNIDIRECTIONAL, |
8,277 |
|
Datasheet |
DO-221AC, SMA Flat Leads | SMA6F | Tape & Reel (TR) | Active | Zener | 1 | - | 39V | 43.6V | 63.3V | 9.5A | 600W | No | - | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | Thin SMA |
|
|
SMA6F40AH600W, 47.1V, 5%, UNIDIRECTIONAL, |
3,380 |
|
Datasheet |
DO-221AC, SMA Flat Leads | SMA6F | Tape & Reel (TR) | Active | Zener | 1 | - | 40V | 44.7V | 64.9V | 9.2A | 600W | No | - | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | Thin SMA |
|
|
SMA6F60AH600W, 70.6V, 5%, UNIDIRECTIONAL, |
6,068 |
|
Datasheet |
DO-221AC, SMA Flat Leads | SMA6F | Tape & Reel (TR) | Active | Zener | 1 | - | 60V | 67.1V | 97.4V | 6.2A | 600W | No | - | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | Thin SMA |
|
|
SMA6F24AH600W, 28.2V, 5%, UNIDIRECTIONAL, |
2,201 |
|
Datasheet |
DO-221AC, SMA Flat Leads | SMA6F | Tape & Reel (TR) | Active | Zener | 1 | - | 24V | 26.8V | 39V | 15.4A | 600W | No | - | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | Thin SMA |
|
|
SMA6F33AH600W, 38.9V, 5%, UNIDIRECTIONAL, |
6,801 |
|
Datasheet |
DO-221AC, SMA Flat Leads | SMA6F | Tape & Reel (TR) | Active | Zener | 1 | - | 33V | 36.9V | 53.6V | 11.2A | 600W | No | - | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | Thin SMA |
|
|
SMA6F26AH600W, 30.6V, 5%, UNIDIRECTIONAL, |
9,402 |
|
Datasheet |
DO-221AC, SMA Flat Leads | SMA6F | Tape & Reel (TR) | Active | Zener | 1 | - | 26V | 29.1V | 42.2V | 14.2A | 600W | No | - | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | Thin SMA |
|
|
SMA6F25AH600W, 29.4V, 5%, UNIDIRECTIONAL, |
8,608 |
|
Datasheet |
DO-221AC, SMA Flat Leads | SMA6F | Tape & Reel (TR) | Active | Zener | 1 | - | 25V | 27.9V | 40.6V | 14.8A | 600W | No | - | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | Thin SMA |
|
|
SMA6F47AH600W, 55.3V, 5%, UNIDIRECTIONAL, |
4,836 |
|
Datasheet |
DO-221AC, SMA Flat Leads | SMA6F | Tape & Reel (TR) | Active | Zener | 1 | - | 47V | 52.5V | 76.3V | 7.9A | 600W | No | - | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | Thin SMA |
|
|
SMA6F12AH600W, 14.1V, 5%, UNIDIRECTIONAL, |
4,356 |
|
Datasheet |
DO-221AC, SMA Flat Leads | SMA6F | Tape & Reel (TR) | Active | Zener | 1 | - | 12V | 13.4V | 19.5V | 30.8A | 600W | No | - | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | Thin SMA |
|
|
SMA6F21AH600W, 24.7V, 5%, UNIDIRECTIONAL, |
5,272 |
|
Datasheet |
DO-221AC, SMA Flat Leads | SMA6F | Tape & Reel (TR) | Active | Zener | 1 | - | 21V | 23.5V | 34.1V | 17.6A | 600W | No | - | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | Thin SMA |
|
SMF33ATVS DIODE 33VWM SOD123FL |
3,294 |
|
Datasheet |
SOD-123F | SMF | Active | Zener | 1 | - | 33V | 36.7V | 53.3V | 3.8A | 200W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-123FL | |
|
P4SMA400ATVS DIODE 342VWM 548VC DO-214AC |
6,653 |
|
Datasheet |
DO-214AC, SMA | - | Bulk | Active | Zener | 1 | - | 342V | 380V | 548V | 730mA | 400W | No | General Purpose | - | -50°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
|
P4SMA350ATVS DIODE 300VWM 482VC DO-214AC |
5,385 |
|
Datasheet |
DO-214AC, SMA | - | Bulk | Active | Zener | 1 | - | 300V | 332V | 482V | 830mA | 400W | No | General Purpose | - | -50°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
P4KE170CATVS DIODE 145VWM 234VC DO-204AC |
4,964 |
|
Datasheet |
DO-204AC, DO-15, Axial | - | Bulk | Active | Zener | - | 1 | 145V | 162V | 234V | 1.8A | 400W | No | General Purpose | - | -50°C ~ 175°C (TJ) | - | - | Through Hole | DO-204AC (DO-15) |
|
|
P4KE160CATVS DIODE 136VWM 219VC DO-204AC |
6,667 |
|
Datasheet |
DO-204AC, DO-15, Axial | - | Bulk | Active | Zener | - | 1 | 136V | 152V | 219V | 1.9A | 400W | No | General Purpose | - | -50°C ~ 175°C (TJ) | - | - | Through Hole | DO-204AC (DO-15) |
