TVS Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
P4SMA62CA-M3/61TVS DIODE 53VWM 85VC DO214AC |
4,570 |
|
Datasheet |
DO-214AC, SMA | P4SMA, TransZorb® | Tape & Reel (TR) | Active | Zener | - | 1 | 53V | 58.9V | 85V | 4.7A | 400W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|

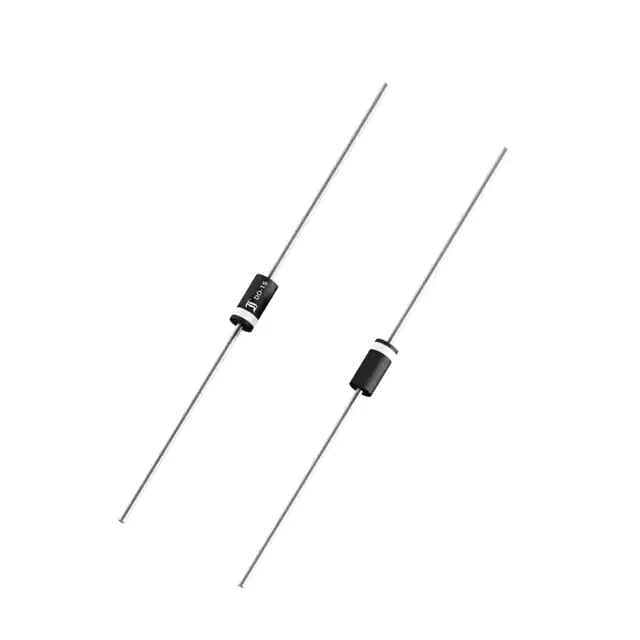

P4KE33CA-AQTVS DIODE 28.2VWM 45.7VC DO204AC |
2,421 |
|
Datasheet |
DO-204AC, DO-15, Axial | - | Bulk | Active | Zener | - | 1 | 28.2V | 31.4V | 45.7V | 9A | 400W | No | - | - | -50°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Through Hole | DO-204AC (DO-15) |
|
DRTR5V0U2SRQ-7Dataline Protection PP SOT143 T& |
4,398 |
|
Datasheet |
TO-253-4, TO-253AA | - | Bulk | Active | Steering (Rail to Rail) | 2 | - | 5.5V (Max) | 6V | 7V | 5A (8/20µs) | - | Yes | DVI, HDMI, USB | 1pF @ 1MHz | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-143 |
|
AOZ8005CILTVS DIODE 5VWM 16VC SOT23-6 |
4,725 |
|
Datasheet |
SOT-23-6 | - | Tape & Reel (TR) | Obsolete | Steering (Rail to Rail) | 4 | - | 5V | 6.6V | 16V | 12A (100ns) | - | Yes | Ethernet, HDMI | 1pF @ 1MHz | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-6 |
|
AOZ8234DI-05TVS DIODE 5VWM 15VC 6DFN |
8,434 |
|
Datasheet |
6-UFDFN | - | Tape & Reel (TR) | Obsolete | Zener | 4 | 2 | 5V (Max) | 6V | 15V | 25A | - | No | General Purpose | 13.5pF @ 1MHz | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 6-DFN (1.45x1.0) |
|
|
AOZ8244DI-05TVS DIODE 5VWM 20VC 3DFN |
9,994 |
|
Datasheet |
3-UFDFN | - | Tape & Reel (TR) | Obsolete | Zener | - | 4 | 5V (Max) | - | 20V | 15A | - | No | General Purpose | - | - | - | - | Surface Mount | 3-DFN (1.0 x 0.60) |
|
|
ESDSBLC24VT2BHE3-TPESD,24V,SOT-23 |
6,667 |
|
- |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Zener | - | 2 | 24V (Max) | 105V | 27V | 2.5A (8/20µs) | - | No | - | 2pF @ 1MHz | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-23 |
|
|
P4SMA36AHE3_A/ITVS DIODE 30.8VWM 49.9VC DO214AC |
9,354 |
|
Datasheet |
DO-214AC, SMA | P4SMA, TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 30.8V | 34.2V | 49.9V | 8A | 400W | No | - | - | -65°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AC (SMA) |
|
P6SMB8-2CATVS DIODE 7.02VWM 12.1VC SMB |
8,769 |
|
Datasheet |
DO-214AA, SMB | P6SMB | Tape & Reel (TR) | Active | Zener | - | 1 | 7.02V | 7.79V | 12.1V | 5.4A | 600W | No | Telecom | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
|
P6SMB24CATVS DIODE 20.5VWM 33.2VC SMB |
5,786 |
|
Datasheet |
DO-214AA, SMB | P6SMB | Tape & Reel (TR) | Active | Zener | - | 1 | 20.5V | 22.8V | 33.2V | 18.4A | 600W | No | Telecom | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
|
P6SMB13CATVS DIODE 11.1VWM 18.2VC SMB |
8,623 |
|
Datasheet |
DO-214AA, SMB | P6SMB | Tape & Reel (TR) | Active | Zener | - | 1 | 11.1V | 12.4V | 18.2V | 33.5A | 600W | No | Telecom | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
|
|
P6SMB22CATVS DIODE 18.8VWM 30.6VC SMB |
7,758 |
|
Datasheet |
DO-214AA, SMB | P6SMB | Tape & Reel (TR) | Active | Zener | - | 1 | 18.8V | 20.9V | 30.6V | 19.7A | 600W | No | Telecom | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
|
|
P6SMB51CATVS DIODE 43.6VWM 70.1VC SMB |
2,920 |
|
Datasheet |
DO-214AA, SMB | P6SMB | Tape & Reel (TR) | Active | Zener | - | 1 | 43.6V | 48.5V | 70.1V | 8.7A | 600W | No | Telecom | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
|
|
P4SMA130CAHE3_A/HTVS DIODE 111VWM 179VC DO214AC |
5,325 |
|
Datasheet |
DO-214AC, SMA | P4SMA, TransZorb® | Tape & Reel (TR) | Active | Zener | - | 1 | 111V | 124V | 179V | 1.7A | 300W | No | - | - | -65°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AC (SMA) |
|
|
SMA6J14A-QTVS DIODE 14VWM 23.2VC DO214AC |
7,868 |
|
Datasheet |
DO-214AC, SMA | SMA6J-Q | Tape & Reel (TR) | Active | Zener | 1 | - | 14V | 15.6V | 23.2V | 25.9A | 600W | No | Telecom | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AC (SMA) |
|
|
SMA6J9.0A-QTVS DIODE 9VWM 15.4VC DO214AC |
5,366 |
|
Datasheet |
DO-214AC, SMA | SMA6J-Q | Tape & Reel (TR) | Active | Zener | 1 | - | 9V | 10V | 15.4V | 39A | 600W | No | Telecom | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AC (SMA) |
|
|
SMA6J11A-QTVS DIODE 11VWM 18.2VC DO214AC |
9,227 |
|
Datasheet |
DO-214AC, SMA | SMA6J-Q | Tape & Reel (TR) | Active | Zener | 1 | - | 11V | 12.2V | 18.2V | 33A | 600W | No | Telecom | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AC (SMA) |
|
|
SMA6J7.5A-QTVS DIODE 7.5VWM 12.9VC DO214AC |
4,038 |
|
Datasheet |
DO-214AC, SMA | SMA6J-Q | Tape & Reel (TR) | Active | Zener | 1 | - | 7.5V | 8.33V | 12.9V | 46.6A | 600W | No | Telecom | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AC (SMA) |
|
|
SMA6J6.5A-QTVS DIODE 6.5VWM 11.2VC DO214AC |
6,507 |
|
Datasheet |
DO-214AC, SMA | SMA6J-Q | Tape & Reel (TR) | Active | Zener | 1 | - | 6.5V | 7.22V | 11.2V | 53.6A | 600W | No | Telecom | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AC (SMA) |
|
|
SMA6J17A-QTVS DIODE 17VWM 27.6VC DO214AC |
2,422 |
|
Datasheet |
DO-214AC, SMA | SMA6J-Q | Tape & Reel (TR) | Active | Zener | 1 | - | 17V | 18.9V | 27.6V | 21.8A | 600W | No | Telecom | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AC (SMA) |
