TVS Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SMAJ75A-M3/61TVS DIODE 75VWM 121VC DO214AC |
4,760 |
|
Datasheet |
DO-214AC, SMA | TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 75V | 83.3V | 121V | 3.3A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
|
SMAJ78A-M3/61TVS DIODE 78VWM 126VC DO214AC |
6,195 |
|
Datasheet |
DO-214AC, SMA | TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 78V | 86.7V | 126V | 3.2A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
|
SMAJ8.0A-M3/61TVS DIODE 8VWM 13.6VC DO214AC |
6,693 |
|
Datasheet |
DO-214AC, SMA | TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 8V | 8.89V | 13.6V | 29.4A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
|
SMAJ8.5A-M3/61TVS DIODE 8.5VWM 14.4VC DO214AC |
4,880 |
|
Datasheet |
DO-214AC, SMA | TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 8.5V | 9.44V | 14.4V | 27.8A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
|
SMAJ85A-M3/61TVS DIODE 85VWM 137VC DO214AC |
2,323 |
|
Datasheet |
DO-214AC, SMA | TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 85V | 94.4V | 137V | 2.2A | 300W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
|
SMAJ9.0A-M3/61TVS DIODE 9VWM 15.4VC DO214AC |
2,976 |
|
Datasheet |
DO-214AC, SMA | TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 9V | 10V | 15.4V | 26A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
|
SMAJ90A-M3/61TVS DIODE 90VWM 146VC DO214AC |
5,911 |
|
Datasheet |
DO-214AC, SMA | TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 90V | 100V | 146V | 2.1A | 300W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
D20V0S1U2LP20-7TVS DIODE 20VWM 37VC U-DFN2020-2 |
2,627 |
|
Datasheet |
2-UDFN | - | Tape & Reel (TR) | Active | Zener | 1 | - | 20V (Max) | 22V | 37V | 120A (8/20µs) | 4400W (4.4kW) | No | General Purpose | 880pF @ 1MHz | -65°C ~ 150°C (TJ) | - | - | Surface Mount | U-DFN2020-2 |
|
|
D22V0S1U2LP20-7TVS DIODE 22VWM 40VC U-DFN2020-2 |
9,402 |
|
Datasheet |
2-UDFN | - | Tape & Reel (TR) | Active | Zener | 1 | - | 22V (Max) | 24V | 40V | 100A (8/20µs) | 4000W (4kW) | No | General Purpose | 690pF @ 1MHz | -65°C ~ 150°C (TJ) | - | - | Surface Mount | U-DFN2020-2 |
|
RCLAMP01012ZC.FTVS |
5,129 |
|
- |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
SMAJ170CAQ-13-FTVS DIODE 170VWM 275VC SMA |
3,438 |
|
Datasheet |
DO-214AC, SMA | - | Tape & Reel (TR) | Active | Zener | - | 1 | 170V | 189V | 275V | 1.4A | 400W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SMA |
|
MMQA13VT1GTVS DIODE 9.8VWM 18.6VC SC74 |
7,806 |
|
Datasheet |
SC-74, SOT-457 | MMQA | Tape & Reel (TR) | Obsolete | Zener | 4 | - | 9.8V (Max) | 12.4V | 18.6V | 1.29A (8/20µs) | 150W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SC-74 |
|
|
MMQA30VT1GTVS DIODE 30VWM 43.3VC SC74 |
2,715 |
|
Datasheet |
SC-74, SOT-457 | MMQA | Tape & Reel (TR) | Obsolete | Zener | 4 | - | 30V | 28.5V | 43.3V | 554mA (8/20µs) | 150W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SC-74 |
|
|
ESD3V3D3B-TPInterface |
4,158 |
|
Datasheet |
SC-76, SOD-323 | - | Bulk | Active | Zener | - | 1 | 3.3V (Max) | 4.2V | 17V | 30A (8/20µs) | 500W | No | General Purpose | 200pF @ 1MHz (Max) | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SOD-323 |
|
|
SM15B-TPInterface |
2,646 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Bulk | Active | Zener | - | 2 | 15V (Max) | 17V | 35V | 8A (8/20µs) | 300W | No | General Purpose | 25pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23 |
|
TGL200CU06TVS DIODE 162VWM 287VC DO-213AB |
6,755 |
|
Datasheet |
DO-213AB, MELF | - | Bulk | Active | Zener | - | 1 | 162V | 180V | 287V | 1A | 300W | No | General Purpose | - | -50°C ~ 150°C (TJ) | - | - | Surface Mount | DO-213AB (MELF) |
|
|
TGL200CU10TVS DIODE 162VWM 287VC DO-213AB |
7,839 |
|
Datasheet |
DO-213AB, MELF | - | Bulk | Active | Zener | - | 1 | 162V | 180V | 287V | 1A | 300W | No | General Purpose | - | -50°C ~ 150°C (TJ) | - | - | Surface Mount | DO-213AB (MELF) |
|

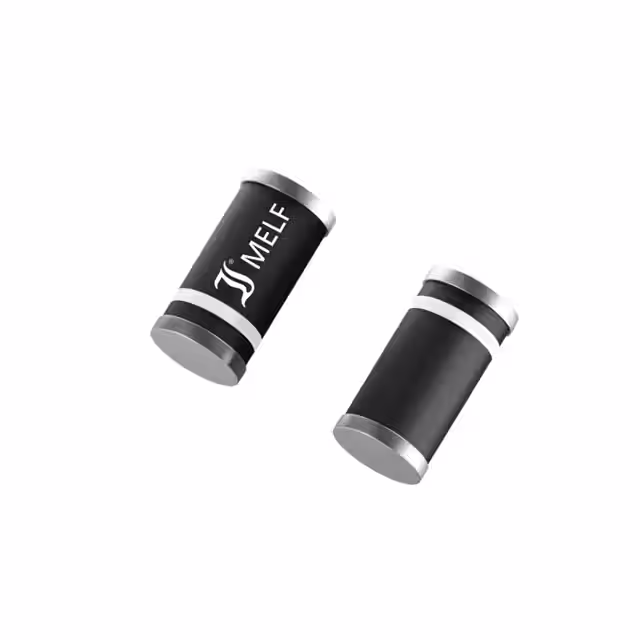

TGL200CU08TVS DIODE 162VWM 287VC DO-213AB |
8,931 |
|
Datasheet |
DO-213AB, MELF | - | Bulk | Active | Zener | - | 1 | 162V | 180V | 287V | 1A | 300W | No | General Purpose | - | -50°C ~ 150°C (TJ) | - | - | Surface Mount | DO-213AB (MELF) |
|
|
TGL200CF06TVS DIODE 162VWM 287VC DO-213AB |
3,137 |
|
Datasheet |
DO-213AB, MELF | - | Bulk | Active | Zener | - | 1 | 162V | 180V | 287V | 1A | 300W | No | General Purpose | - | -50°C ~ 150°C (TJ) | - | - | Surface Mount | DO-213AB (MELF) |
|
|
TGL200CF08TVS DIODE 162VWM 287VC DO-213AB |
2,895 |
|
Datasheet |
DO-213AB, MELF | - | Bulk | Active | Zener | - | 1 | 162V | 180V | 287V | 1A | 300W | No | General Purpose | - | -50°C ~ 150°C (TJ) | - | - | Surface Mount | DO-213AB (MELF) |
