TVS Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SMAJ160AHE3_A/ITVS DIODE 160VWM 259VC DO214AC |
8,079 |
|
Datasheet |
DO-214AC, SMA | TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 160V | 178V | 259V | 1.2A | 300W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AC (SMA) |
|
|
SMAJ6.5AHE3_A/ITVS DIODE 6.5VWM 11.2VC DO214AC |
2,585 |
|
Datasheet |
DO-214AC, SMA | TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 6.5V | 7.22V | 11.2V | 35.7A | 400W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AC (SMA) |
|
|
SMAJ78AHE3_A/ITVS DIODE 78VWM 126VC DO214AC |
2,690 |
|
Datasheet |
DO-214AC, SMA | TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 78V | 86.7V | 126V | 3.2A | 400W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AC (SMA) |
|

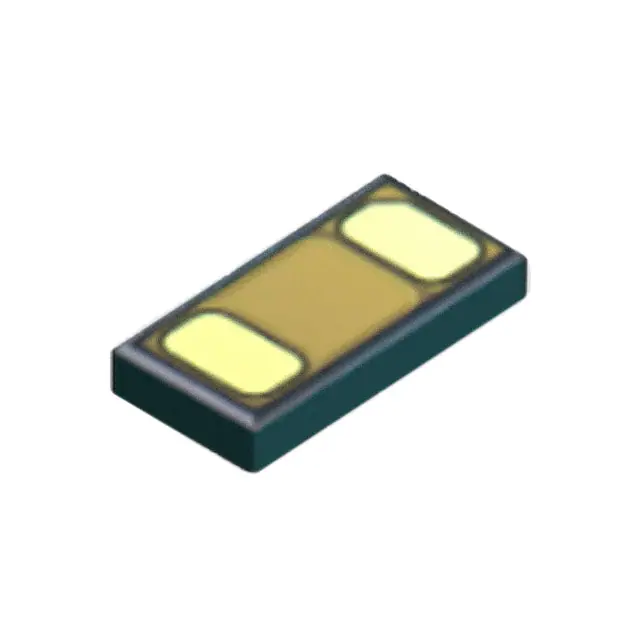

DY2L3A0C0L1TVS DIODE 3VWM 10VC 0201 |
3,694 |
|
Datasheet |
0201 (0603 Metric) | - | Tape & Reel (TR) | Discontinued at Digi-Key | Zener | - | 1 | 3V (Max) | 5.39V | 10V | 2.6A (8/20µs) | 23W | No | General Purpose | 8.5pF @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 0201 (0603 Metric) |
|
P6KE200A-BPInterface |
8,400 |
|
Datasheet |
DO-204AC, DO-15, Axial | - | Bulk | Active | Zener | 1 | - | 171V | 190V | 274V | 2.2A | 600W | No | Telecom | - | -55°C ~ 175°C (TJ) | Automotive | - | Through Hole | DO-15 |
|
|
P6KE220A-BPInterface |
4,917 |
|
Datasheet |
DO-204AC, DO-15, Axial | - | Bulk | Active | Zener | 1 | - | 185V | 209V | 328V | 1.9A | 600W | No | Telecom | - | -55°C ~ 175°C (TJ) | Automotive | - | Through Hole | DO-15 |
|
SMFE48CALHTVS DIODE 48VWM BI |
5,389 |
|
Datasheet |
SOD-123F | SMFExxLH | Tape & Reel (TR) | Active | Zener | - | 1 | 48V | 53.3V | 77.4V | 5.2A | 400W | No | Telecom | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-123FL |
|
|
SMFE18CALHTVS DIODE 18VWM BI |
2,192 |
|
Datasheet |
SOD-123F | SMFExxLH | Tape & Reel (TR) | Active | Zener | - | 1 | 18V | 20V | 29.2V | 13.7A | 400W | No | Telecom | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-123FL |
|
|
SMFE45ALHTVS DIODE 45VWM 80VC UNI |
8,795 |
|
Datasheet |
SOD-123F | SMFExxLH | Tape & Reel (TR) | Active | Zener | 1 | - | 45V | 50V | 72.7V | 5.5A | 400W | No | Telecom | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-123FL |
|
|
SMFE13CALHTVS DIODE 13VWM BI |
3,399 |
|
Datasheet |
SOD-123F | SMFExxLH | Tape & Reel (TR) | Active | Zener | - | 1 | 13V | 14.4V | 21.5V | 18.6A | 400W | No | Telecom | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-123FL |
|
|
SMFE15CALHTVS DIODE 15VWM BI |
4,612 |
|
Datasheet |
SOD-123F | SMFExxLH | Tape & Reel (TR) | Active | Zener | - | 1 | 15V | 16.7V | 24.4V | 16.4A | 400W | No | Telecom | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-123FL |
|
|
SMFE40CALHTVS DIODE 40VWM BI |
2,860 |
|
Datasheet |
SOD-123F | SMFExxLH | Tape & Reel (TR) | Active | Zener | - | 1 | 40V | 44.4V | 64.5V | 6.2A | 400W | No | Telecom | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-123FL |
|
|
SMFE11CALHTVS DIODE 11VWM BI |
6,468 |
|
Datasheet |
SOD-123F | SMFExxLH | Tape & Reel (TR) | Active | Zener | - | 1 | 11V | 12.2V | 18.2V | 22A | 400W | No | Telecom | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-123FL |
|
|
SMFE33CALHTVS DIODE 33VWM BI |
5,760 |
|
Datasheet |
SOD-123F | SMFExxLH | Tape & Reel (TR) | Active | Zener | - | 1 | 33V | 36.7V | 53.3V | 7.5A | 400W | No | Telecom | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-123FL |
|
|
SMFE14ALHTVS DIODE 14VWM 25VC UNI |
7,396 |
|
Datasheet |
SOD-123F | SMFExxLH | Tape & Reel (TR) | Active | Zener | 1 | - | 14V | 15.6V | 23.2V | 17.2A | 400W | No | Telecom | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-123FL |
|
|
SMFE45CALHTVS DIODE 45VWM BI |
9,699 |
|
Datasheet |
SOD-123F | SMFExxLH | Tape & Reel (TR) | Active | Zener | - | 1 | 45V | 50V | 72.7V | 5.5A | 400W | No | Telecom | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-123FL |
|
|
SMFE18ALHTVS DIODE 18VWM UNI |
8,309 |
|
Datasheet |
SOD-123F | SMFExxLH | Tape & Reel (TR) | Active | Zener | 1 | - | 18V | 20V | 29.2V | 13.7A | 400W | No | Telecom | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-123FL |
|
|
SMFE43CALHTVS DIODE 43VWM BI |
2,450 |
|
Datasheet |
SOD-123F | SMFExxLH | Tape & Reel (TR) | Active | Zener | - | 1 | 43V | 47.8V | 69.4V | 5.8A | 400W | No | Telecom | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-123FL |
|
|
SMFE36CALHTVS DIODE 36VWM BI |
9,323 |
|
Datasheet |
SOD-123F | SMFExxLH | Tape & Reel (TR) | Active | Zener | - | 1 | 36V | 40V | 58.1V | 6.9A | 400W | No | Telecom | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-123FL |
|
|
SMFE22CALHTVS DIODE 22VWM BI |
5,263 |
|
Datasheet |
SOD-123F | SMFExxLH | Tape & Reel (TR) | Active | Zener | - | 1 | 22V | 24.4V | 35.5V | 11.3A | 400W | No | Telecom | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-123FL |
