TVS Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SMBJ85600W, 104.7V, 10%, UNIDIRECTIONA |
7,653 |
|
Datasheet |
DO-214AA, SMB | SMBJ | Tape & Reel (TR) | Active | Zener | 1 | - | 85V | 94.4V | 151V | 4.1A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMB) |
|
P6SMB7.5600W, 7.5V, 10%, UNIDIRECTIONAL, |
3,519 |
|
Datasheet |
DO-214AA, SMB | P6SMB | Tape & Reel (TR) | Active | Zener | 1 | - | 6.05V | 6.75V | 11.7V | 53A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMB) |
|
|
P6SMB43600W, 43V, 10%, UNIDIRECTIONAL, |
8,637 |
|
Datasheet |
DO-214AA, SMB | P6SMB | Tape & Reel (TR) | Active | Zener | 1 | - | 34.8V | 38.7V | 61.9V | 10A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMB) |
|
|
SMBJ36600W, 44.5V, 10%, UNIDIRECTIONAL |
6,630 |
|
Datasheet |
DO-214AA, SMB | SMBJ | Tape & Reel (TR) | Active | Zener | 1 | - | 36V | 40V | 64.3V | 9.8A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMB) |
|
|
P6SMB15600W, 15V, 10%, UNIDIRECTIONAL, |
5,239 |
|
Datasheet |
DO-214AA, SMB | P6SMB | Tape & Reel (TR) | Active | Zener | 1 | - | 12.1V | 13.5V | 22V | 28A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMB) |
|
|
P6SMB150600W, 150V, 10%, UNIDIRECTIONAL, |
4,305 |
|
Datasheet |
DO-214AA, SMB | P6SMB | Tape & Reel (TR) | Active | Zener | 1 | - | 121V | 135V | 215V | 2.9A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMB) |
|
|
SMBJ13600W, 16V, 10%, UNIDIRECTIONAL, |
3,811 |
|
Datasheet |
DO-214AA, SMB | SMBJ | Tape & Reel (TR) | Active | Zener | 1 | - | 13V | 14.4V | 23.8V | 26A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMB) |
|
|
SMBJ17600W, 21V, 10%, UNIDIRECTIONAL, |
4,138 |
|
Datasheet |
DO-214AA, SMB | SMBJ | Tape & Reel (TR) | Active | Zener | 1 | - | 17V | 18.9V | 30.5V | 20A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMB) |
|
|
SMBJ130600W, 160V, 5%, UNIDIRECTIONAL, |
7,259 |
|
Datasheet |
DO-214AA, SMB | SMBJ | Tape & Reel (TR) | Active | Zener | 1 | - | 130V | 144V | 231V | 2.7A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMB) |
|
|
SMBJ40600W, 49.4V, 10%, UNIDIRECTIONAL |
5,882 |
|
Datasheet |
DO-214AA, SMB | SMBJ | Tape & Reel (TR) | Active | Zener | 1 | - | 40V | 44.4V | 71.4V | 8.8A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMB) |
|
|
SMBJ7.0600W, 8.6V, 10%, UNIDIRECTIONAL, |
5,632 |
|
Datasheet |
DO-214AA, SMB | SMBJ | Tape & Reel (TR) | Active | Zener | 1 | - | 7V | 7.78V | 13.3V | 47A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMB) |
|
|
P6SMB9.1600W, 9.1V, 10%, UNIDIRECTIONAL, |
8,513 |
|
Datasheet |
DO-214AA, SMB | P6SMB | Tape & Reel (TR) | Active | Zener | 1 | - | 7.37V | 8.19V | 13.8V | 45A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMB) |
|
|
SMBJ48600W, 59.2V, 10%, UNIDIRECTIONAL |
7,671 |
|
Datasheet |
DO-214AA, SMB | SMBJ | Tape & Reel (TR) | Active | Zener | 1 | - | 48V | 53.3V | 85.5V | 7.3A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMB) |
|
|
SMBJ10600W, 12.4V, 10%, UNIDIRECTIONAL |
2,815 |
|
Datasheet |
DO-214AA, SMB | SMBJ | Tape & Reel (TR) | Active | Zener | 1 | - | 10V | 11.1V | 18.8V | 33A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMB) |
|
|
P6SMB11600W, 11V, 10%, UNIDIRECTIONAL, |
5,064 |
|
Datasheet |
DO-214AA, SMB | P6SMB | Tape & Reel (TR) | Active | Zener | 1 | - | 8.92V | 9.9V | 16.2V | 38A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMB) |
|
PESD5V0U1BB-QXPESD5V0U1BB-Q/SOD523/SC-79 |
6,873 |
|
Datasheet |
SC-79, SOD-523 | - | Tape & Reel (TR) | Active | Zener | - | 1 | 5V (Max) | 5.5V | - | - | - | No | Ethernet, Telecom | 2.9pF @ 1MHz | -55°C ~ 150°C (TA) | Automotive | AEC-Q101 | Surface Mount | SOD-523 |
.JPG)
|
SJPZ-E20VDIODE ZENER 20V 1W SJP |
9,175 |
|
Datasheet |
2-SMD, J-Lead | - | Tape & Reel (TR) | Active | Zener | 1 | - | - | 25V | - | - | 50W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SJP |
|
|
SJPZ-E20DIODE ZENER 20V 1W SJP |
7,257 |
|
Datasheet |
2-SMD, J-Lead | - | Tape & Reel (TR) | Not For New Designs | Zener | 1 | - | - | 25V | - | - | 50W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SJP |
|
|
CPDTR055V0C-HFTVS DIODE 5VWM SOT23F |
6,760 |
|
Datasheet |
6-SMD (5 Leads), No Lead | - | Tape & Reel (TR) | Obsolete | Zener | - | 4 | 5V | 6.1V | - | - | - | No | General Purpose | - | - | - | - | Surface Mount | SOT-23F-5P |
|

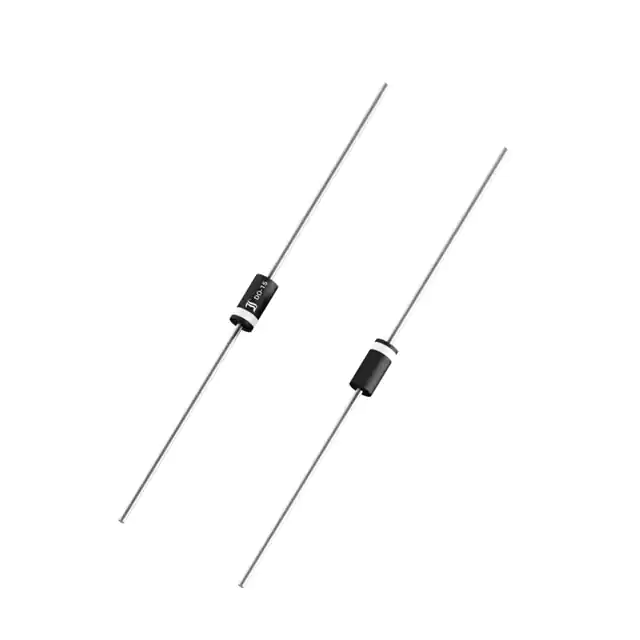

BZW06-20B-AQTVS DIODE 20.5VWM 33.2VC DO204AC |
2,032 |
|
Datasheet |
DO-204AC, DO-15, Axial | - | Bulk | Active | Zener | - | 1 | 20.5V | 22.8V | 33.2V | 18A | 600W | No | - | - | -50°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Through Hole | DO-204AC (DO-15) |
