TVS Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
P4KE7.5CATVS DIODE 6.4VWM 11.3VC DO-204AC |
6,865 |
|
Datasheet |
DO-204AC, DO-15, Axial | - | Bulk | Active | Zener | - | 1 | 6.4V | 7.13V | 11.3V | 37A | 400W | No | General Purpose | - | -50°C ~ 175°C (TJ) | - | - | Through Hole | DO-204AC (DO-15) |
|
BZW04-8V5BTVS DIODE 8.55VWM 14.5VC DO204AC |
7,785 |
|
Datasheet |
DO-204AC, DO-15, Axial | - | Bulk | Active | Zener | - | 1 | 8.55V | 9.5V | 14.5V | 27.6A | 400W | No | General Purpose | - | -50°C ~ 175°C (TJ) | - | - | Through Hole | DO-204AC (DO-15) |
;;2.jpg)
|
P6KE6.8CATVS DIODE 5.8VWM 10.5VC DO-204AC |
8,330 |
|
Datasheet |
DO-204AC, DO-15, Axial | - | Bulk | Active | Zener | - | 1 | 5.8V | 6.45V | 10.5V | 60A | 600W | No | General Purpose | - | -50°C ~ 175°C (TJ) | - | - | Through Hole | DO-204AC (DO-15) |
|
|
BZW04-7V0BTVS DIODE 7.02VWM 12.1VC DO204AC |
8,294 |
|
Datasheet |
DO-204AC, DO-15, Axial | - | Bulk | Active | Zener | - | 1 | 7.02V | 7.79V | 12.1V | 33A | 400W | No | General Purpose | - | -50°C ~ 175°C (TJ) | - | - | Through Hole | DO-204AC (DO-15) |
|
SMBJE90AHTVS DIODE 90VWM 146VC UNI |
6,482 |
|
Datasheet |
DO-214AA, SMB | SMBJExxH | Tape & Reel (TR) | Active | Zener | 1 | - | 90V | 100V | 146V | 4.1A | 600W | No | Telecom | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AA (SMBJ) |
.jpg)
|

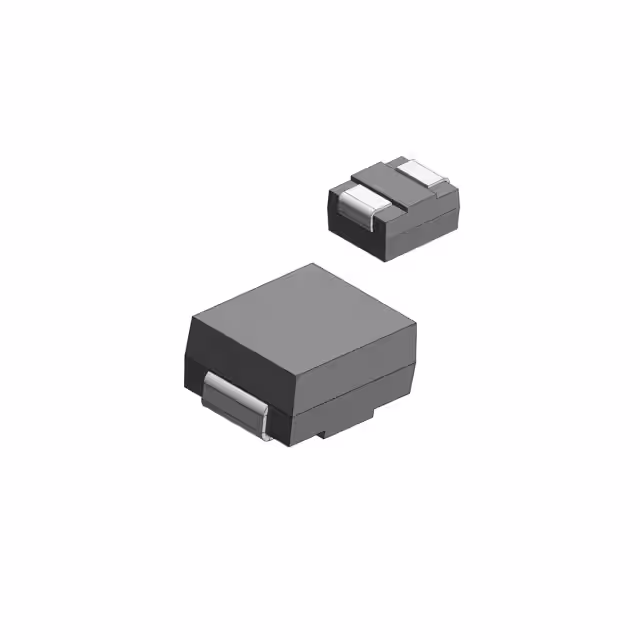

SMBJE6-5CAHTVS DIODE 6.5VWM 11.2VC BI |
5,527 |
|
Datasheet |
DO-214AA, SMB | SMBJExxH | Tape & Reel (TR) | Active | Zener | 1 | 1 | 6.5V | 7.22V | 11.2V | 53.6A | 600W | No | Telecom | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AA (SMBJ) |
|
|
SMBJE160CAHTVS DIODE 160VWM 259VC BI |
6,192 |
|
Datasheet |
DO-214AA, SMB | SMBJExxH | Tape & Reel (TR) | Active | Zener | - | 1 | 160V | 178V | 259V | 2.3A | 600W | No | Telecom | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AA (SMBJ) |
|
|
SMBJE60CAHTVS DIODE 60VWM 96.8VC BI |
4,379 |
|
Datasheet |
DO-214AA, SMB | SMBJExxH | Tape & Reel (TR) | Active | Zener | - | 1 | 60V | 66.7V | 96.8V | 6.2A | 600W | No | Telecom | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AA (SMBJ) |
|
|
SMBJE130AHTVS DIODE 130VWM 209VC UNI |
9,318 |
|
Datasheet |
DO-214AA, SMB | SMBJExxH | Tape & Reel (TR) | Active | Zener | 1 | - | 130V | 144V | 209V | 2.9A | 600W | No | Telecom | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AA (SMBJ) |
|
|
SMBJE75AHTVS DIODE 75VWM 121VC UNI |
7,455 |
|
Datasheet |
DO-214AA, SMB | SMBJExxH | Tape & Reel (TR) | Active | Zener | 1 | - | 75V | 83.3V | 121V | 5A | 600W | No | Telecom | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AA (SMBJ) |
|
|
SMBJE170CAHTVS DIODE 170VWM 275VC BI |
7,320 |
|
Datasheet |
DO-214AA, SMB | SMBJExxH | Tape & Reel (TR) | Active | Zener | - | 1 | 170V | 189V | 275V | 2.2A | 600W | No | Telecom | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AA (SMBJ) |
|
|
SMBJE9-0AHTVS DIODE 9VWM 15.4VC UNI |
4,235 |
|
Datasheet |
DO-214AA, SMB | SMBJExxH | Tape & Reel (TR) | Active | Zener | 1 | 1 | 9V | 10V | 15.4V | 39A | 600W | No | Telecom | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AA (SMBJ) |
|
|
SMBJE11CAHTVS DIODE 11VWM 18.2VC BI |
5,215 |
|
Datasheet |
DO-214AA, SMB | SMBJExxH | Tape & Reel (TR) | Active | Zener | - | 1 | 11V | 12.2V | 18.2V | 33A | 600W | No | Telecom | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AA (SMBJ) |
|
|
SMBJE85CAHTVS DIODE 85VWM 137VC BI |
3,371 |
|
Datasheet |
DO-214AA, SMB | SMBJExxH | Tape & Reel (TR) | Active | Zener | 1 | 1 | 85V | 94.4V | 137V | 4.4A | 600W | No | Telecom | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AA (SMBJ) |
|
|
SMBJE150AHTVS DIODE 150VWM 243VC UNI |
7,212 |
|
Datasheet |
DO-214AA, SMB | SMBJExxH | Tape & Reel (TR) | Active | Zener | 1 | - | 150V | 167V | 243V | 2.5A | 600W | No | Telecom | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AA (SMBJ) |
|
|
SMBJE7-0CAHTVS DIODE 7VWM 12VC BI |
7,948 |
|
Datasheet |
DO-214AA, SMB | SMBJExxH | Tape & Reel (TR) | Active | Zener | 1 | 1 | 7V | 7.78V | 12V | 50A | 600W | No | Telecom | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AA (SMBJ) |
|
|
SMBJE100CAHTVS DIODE 100VWM 162VC BI |
8,103 |
|
Datasheet |
DO-214AA, SMB | SMBJExxH | Tape & Reel (TR) | Active | Zener | - | 1 | 100V | 111V | 162V | 3.7A | 600W | No | Telecom | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AA (SMBJ) |
|
|
SMBJE160AHTVS DIODE 160VWM 259VC UNI |
6,674 |
|
Datasheet |
DO-214AA, SMB | SMBJExxH | Tape & Reel (TR) | Active | Zener | 1 | - | 160V | 178V | 259V | 2.3A | 600W | No | Telecom | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AA (SMBJ) |
|
|
SMBJE11AHTVS DIODE 11VWM 18.2VC UNI |
7,059 |
|
Datasheet |
DO-214AA, SMB | SMBJExxH | Tape & Reel (TR) | Active | Zener | 1 | - | 11V | 12.2V | 18.2V | 33A | 600W | No | Telecom | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AA (SMBJ) |
|
|
SMBJE8-0AHTVS DIODE 8VWM 13.6VC UNI |
5,276 |
|
Datasheet |
DO-214AA, SMB | SMBJExxH | Tape & Reel (TR) | Active | Zener | 1 | 1 | 8V | 8.89V | 13.6V | 44.1A | 600W | No | Telecom | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AA (SMBJ) |
