TVS Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
P6SMB9.1CA-E3/5BTVS DIODE 7.78VWM 13.4VC DO214AA |
2,565 |
|
Datasheet |
DO-214AA, SMB | P6SMB, TransZorb® | Tape & Reel (TR) | Active | Zener | - | 1 | 7.78V | 8.65V | 13.4V | 44.8A | 600W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMB) |
;;2.jpg)
|
SMBJ100CA-E3/5BTVS DIODE 100VWM 162VC DO214AA |
8,265 |
|
Datasheet |
DO-214AA, SMB | TransZorb® | Tape & Reel (TR) | Active | Zener | - | 1 | 100V | 111V | 162V | 3.7A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
|
|
SMBJ110CA-E3/5BTVS DIODE 110VWM 177VC DO214AA |
7,631 |
|
Datasheet |
DO-214AA, SMB | TransZorb® | Tape & Reel (TR) | Active | Zener | - | 1 | 110V | 122V | 177V | 3.4A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
|
|
SMBJ11CA-E3/5BTVS DIODE 11VWM 18.2VC DO214AA |
3,359 |
|
Datasheet |
DO-214AA, SMB | TransZorb® | Tape & Reel (TR) | Active | Zener | - | 1 | 11V | 12.2V | 18.2V | 33A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
|
|
SMBJ120CA-E3/5BTVS DIODE 120VWM 193VC DO214AA |
7,902 |
|
Datasheet |
DO-214AA, SMB | TransZorb® | Tape & Reel (TR) | Active | Zener | - | 1 | 120V | 133V | 193V | 3.1A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
|
|
SMBJ130CA-E3/5BTVS DIODE 130VWM 209VC DO214AA |
3,435 |
|
Datasheet |
DO-214AA, SMB | TransZorb® | Tape & Reel (TR) | Active | Zener | - | 1 | 130V | 144V | 209V | 2.9A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
|
|
SMBJ150CA-E3/5BTVS DIODE 150VWM 243VC DO214AA |
7,470 |
|
Datasheet |
DO-214AA, SMB | TransZorb® | Tape & Reel (TR) | Active | Zener | - | 1 | 150V | 167V | 243V | 2.5A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
|
|
SMBJ160CA-E3/5BTVS DIODE 160VWM 259VC DO214AA |
9,045 |
|
Datasheet |
DO-214AA, SMB | TransZorb® | Tape & Reel (TR) | Active | Zener | - | 1 | 160V | 178V | 259V | 2.3A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
|
|
SMBJ17CA-E3/5BTVS DIODE 17VWM 27.6VC DO214AA |
4,817 |
|
Datasheet |
DO-214AA, SMB | TransZorb® | Tape & Reel (TR) | Active | Zener | - | 1 | 17V | 18.9V | 27.6V | 21.7A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
|
|
SMBJ45CA-E3/5BTVS DIODE 45VWM 72.7VC DO214AA |
2,950 |
|
Datasheet |
DO-214AA, SMB | TransZorb® | Tape & Reel (TR) | Active | Zener | - | 1 | 45V | 50V | 72.7V | 8.3A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
|
|
SMBJ78CA-E3/5BTVS DIODE 78VWM 126VC DO214AA |
6,299 |
|
Datasheet |
DO-214AA, SMB | TransZorb® | Tape & Reel (TR) | Active | Zener | - | 1 | 78V | 86.7V | 126V | 4.8A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
|
|
SMBJ7.0CA-E3/5BTVS DIODE 7VWM 12VC DO214AA |
4,645 |
|
Datasheet |
DO-214AA, SMB | TransZorb® | Tape & Reel (TR) | Active | Zener | - | 1 | 7V | 7.78V | 12V | 50A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
|
|
SMBJ8.0CA-E3/5BTVS DIODE 8VWM 13.6VC DO214AA |
2,328 |
|
Datasheet |
DO-214AA, SMB | TransZorb® | Tape & Reel (TR) | Active | Zener | - | 1 | 8V | 8.89V | 13.6V | 44.1A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
|
|
SMBJ8.5CA-E3/5BTVS DIODE 8.5VWM 14.4VC DO214AA |
3,705 |
|
Datasheet |
DO-214AA, SMB | TransZorb® | Tape & Reel (TR) | Active | Zener | - | 1 | 8.5V | 9.44V | 14.4V | 41.7A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
|
|
SMBJ90CA-E3/5BTVS DIODE 90VWM 146VC DO214AA |
9,542 |
|
Datasheet |
DO-214AA, SMB | TransZorb® | Tape & Reel (TR) | Active | Zener | - | 1 | 90V | 100V | 146V | 4.1A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
|
ESD11B5.0SBT5GTVS DIODE 5VWM 9.5VC SOT1123 |
2,597 |
|
- |
- | * | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

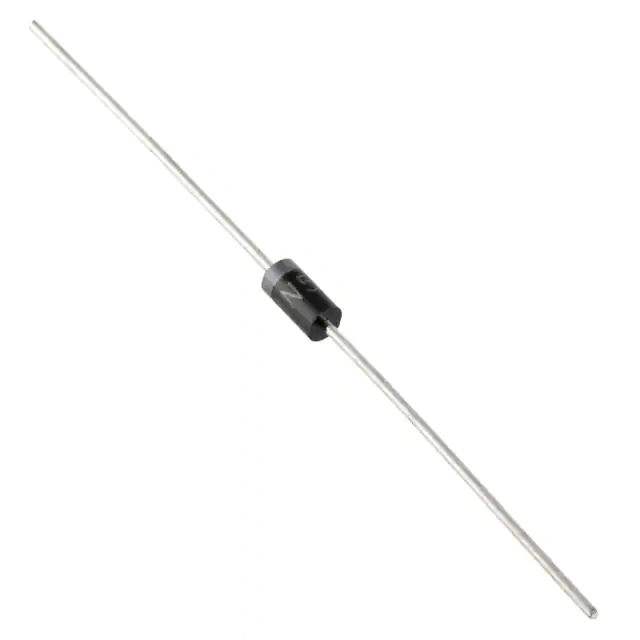

P4KE100A-GTVS DIODE 85.5VWM 137VC DO41 |
6,357 |
|
Datasheet |
DO-204AL, DO-41, Axial | - | Bulk | Active | Zener | 1 | - | 85.5V | 95V | 137V | 2.92A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | DO-41 |
|
|
P4KE100CA-GTVS DIODE 85.5VWM 137VC DO41 |
5,997 |
|
Datasheet |
DO-204AL, DO-41, Axial | - | Bulk | Active | Zener | - | 1 | 85.5V | 95V | 137V | 2.92A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | DO-41 |
|
|
P4KE10A-GTVS DIODE 8.6VWM 14.5VC DO41 |
8,915 |
|
Datasheet |
DO-204AL, DO-41, Axial | - | Bulk | Active | Zener | 1 | - | 8.6V | 9.5V | 14.5V | 27.59A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | DO-41 |
|
|
P4KE10CA-GTVS DIODE 8.6VWM 14.5VC DO41 |
8,585 |
|
Datasheet |
DO-204AL, DO-41, Axial | - | Bulk | Active | Zener | - | 1 | 8.6V | 9.5V | 14.5V | 27.59A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | DO-41 |
