TVS Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SMBT70AQ-13-FLINEAR IC |
4,173 |
|
- |
DO-214AA, SMB | - | Tape & Reel (TR) | Active | Zener | 1 | - | 70V | 77.8V | 100V | 5.3A | 600W | No | - | 290pF @ 1MHz | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SMB |
|
CPDT-36VUB-HFTVS DIODE 36VWM 75VC SOT23 |
2,471 |
|
- |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 36V (Max) | 40V | 75V | 5A | 350W | No | General Purpose | - | -55°C ~ 150°C (TA) | - | - | Surface Mount | SOT-23-3 |
|
1SMB45AT3TVS DIODE 45VWM 72.7VC SMB |
5,838 |
|
Datasheet |
DO-214AA, SMB | - | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 45V | 50V | 72.7V | 8.3A | 600W | No | General Purpose | 385pF @ 1MHz | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
|
|
P6KE56A-TPInterface |
3,775 |
|
Datasheet |
DO-204AC, DO-15, Axial | - | Bulk | Active | Zener | 1 | - | 47.8V | 53.2V | 77V | 7.8A | 600W | No | Telecom | - | -55°C ~ 175°C (TJ) | Automotive | - | Through Hole | DO-15 |
|
|
P6KE91A-TPInterface |
7,363 |
|
Datasheet |
DO-204AC, DO-15, Axial | - | Bulk | Active | Zener | 1 | - | 77.8V | 86.5V | 125V | 4.8A | 600W | No | Telecom | - | -55°C ~ 175°C (TJ) | Automotive | - | Through Hole | DO-15 |
|
|
P6KE47A-TPInterface |
7,490 |
|
Datasheet |
DO-204AC, DO-15, Axial | - | Bulk | Active | Zener | 1 | - | 40.2V | 44.7V | 64.8V | 9.3A | 600W | No | Telecom | - | -55°C ~ 175°C (TJ) | Automotive | - | Through Hole | DO-15 |
|
|
P6KE22A-TPInterface |
5,362 |
|
Datasheet |
DO-204AC, DO-15, Axial | - | Bulk | Active | Zener | 1 | - | 18.8V | 20.9V | 30.6V | 20A | 600W | No | Telecom | - | -55°C ~ 175°C (TJ) | Automotive | - | Through Hole | DO-15 |
|
SMF78CATVS SOD123FL 78V 200W BIDIR |
2,341 |
|
Datasheet |
SOD-123F | SMF | Tape & Reel (TR) | Active | Zener | - | 1 | 78V | 86.7V | 126V | 1.4A | 200W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-123F |
|
|
SMF11CATVS SOD123FL 11V 200W BIDIR |
9,617 |
|
Datasheet |
SOD-123F | SMF | Tape & Reel (TR) | Active | Zener | - | 1 | 11V | 12.2V | 18.2V | 11A | 200W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-123F |
|
|
SMF45CATVS SOD123FL 45V 200W BIDIR |
7,064 |
|
Datasheet |
SOD-123F | SMF | Tape & Reel (TR) | Active | Zener | - | 1 | 45V | 50V | 72.7V | 2.8A | 200W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-123F |
|
|
SMF17CATVS SOD123FL 17V 200W BIDIR |
4,471 |
|
Datasheet |
SOD-123F | SMF | Tape & Reel (TR) | Active | Zener | - | 1 | 17V | 18.9V | 27.6V | 7.2A | 200W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-123F |
|
|
SMF64CATVS SOD123FL 64V 200W BIDIR |
7,163 |
|
Datasheet |
SOD-123F | SMF | Tape & Reel (TR) | Active | Zener | - | 1 | 64V | 71.1V | 103V | 1.7A | 200W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-123F |
|
|
SMF70CATVS SOD123FL 70V 200W BIDIR |
4,400 |
|
Datasheet |
SOD-123F | SMF | Tape & Reel (TR) | Active | Zener | - | 1 | 70V | 77.8V | 113V | 1.5A | 200W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-123F |
|
|
P6KE56CA-TPInterface |
6,514 |
|
Datasheet |
DO-204AC, DO-15, Axial | - | Bulk | Active | Zener | - | 1 | 47.8V | 53.2V | 77V | 7.8A | 600W | No | Telecom | - | -55°C ~ 175°C (TJ) | Automotive | - | Through Hole | DO-15 |
|
D15V0S1U3LP20-7TVS DIODE 15VWM 24.6VC 3DFN |
9,370 |
|
Datasheet |
3-UDFN Exposed Pad | - | Tape & Reel (TR) | Active | Zener | 1 | - | 15V (Max) | 16.7V | 24.6V | 13A | 4000W (4kW) | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | U-DFN2020-3 (Type C) |
|
SMM4F12AVCLTVS DIODE 12VWM 22.9V STMITE FLT |
9,307 |
|
Datasheet |

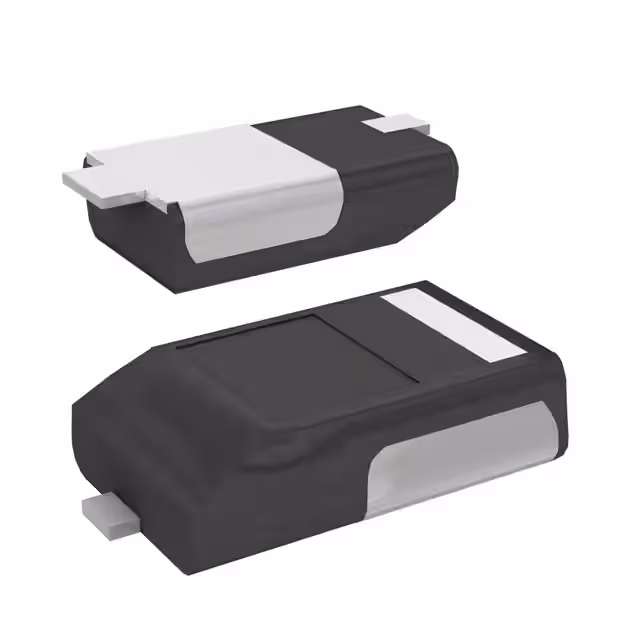

DO-222AA | SMM4F, TRANSIL™ | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 12V | 13V | 22.9V | 100A (8/20µs) | 400W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | STmite Flat |
;;2.jpg)
|
SM6T100A-M3/52TVS DIODE 85.5VWM 137VC DO214AA |
8,425 |
|
Datasheet |
DO-214AA, SMB | SM6T, TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 85.5V | 95V | 137V | 4.4A | 600W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
|
|
SM6T10A-M3/52TVS DIODE 8.55VWM 14.5VC DO214AA |
4,206 |
|
Datasheet |
DO-214AA, SMB | SM6T, TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 8.55V | 9.5V | 14.5V | 41A | 600W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
|
|
SM6T12A-M3/52TVS DIODE 10.2VWM 16.7VC DO214AA |
9,757 |
|
Datasheet |
DO-214AA, SMB | SM6T, TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 10.2V | 11.4V | 16.7V | 36A | 600W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
|
|
SM6T150A-M3/52TVS DIODE 128VWM 207VC DO214AA |
2,167 |
|
Datasheet |
DO-214AA, SMB | SM6T, TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 128V | 143V | 207V | 2.9A | 600W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
