TVS Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

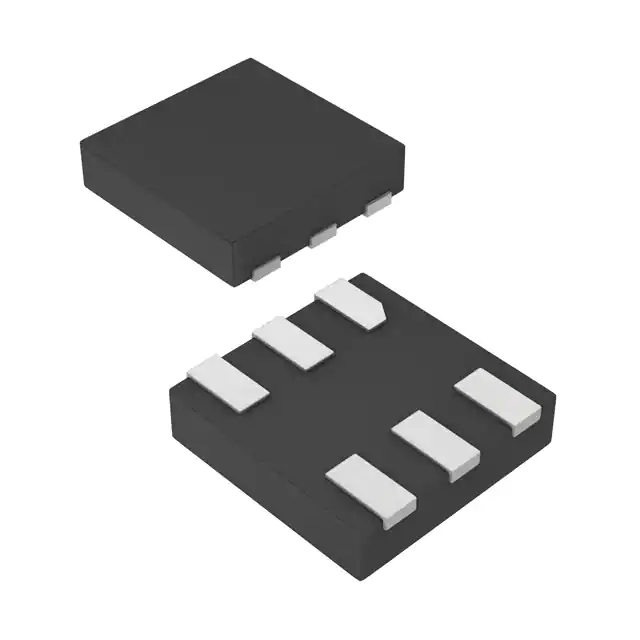

ESDA6V1-5T6TVS DIODE 3VWM 6UDFN |
4,448 |
|
Datasheet |
6-UFDFN | ESDA, TRANSIL™ | Tape & Reel (TR) | Obsolete | Zener | 5 | - | 3V | 6.1V | - | - | 35W | No | General Purpose | - | - | - | - | Surface Mount | 6-MicroDFN (1x1) |
|
MAZT068H0LTVS DIODE 4VWM SSMINI3-F2 |
3,540 |
|
Datasheet |
SC-89, SOT-490 | - | Tape & Reel (TR) | Obsolete | Zener | 2 | - | 4V | 6.4V | - | - | - | No | General Purpose | - | - | - | - | Surface Mount | SSMini3-F2 |
|
SMAJ15AHM3_A/ITVS DIODE 15VWM 24.4VC DO214AC |
2,353 |
|
Datasheet |
DO-214AC, SMA | TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 15V | 16.7V | 24.4V | 16.4A | 400W | No | Telecom | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AC (SMA) |
|
|
SMAJ28AHM3_A/ITVS DIODE 28VWM 45.4VC DO214AC |
7,149 |
|
Datasheet |
DO-214AC, SMA | TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 28V | 31.1V | 45.4V | 8.8A | 400W | No | Telecom | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AC (SMA) |
|
|
SMAJ30AHM3_A/ITVS DIODE 30VWM 48.4VC DO214AC |
2,687 |
|
Datasheet |
DO-214AC, SMA | TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 30V | 33.3V | 48.4V | 8.3A | 400W | No | Telecom | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AC (SMA) |
|
|
SMAJ58AHM3_A/ITVS DIODE 58VWM 93.6VC DO214AC |
5,987 |
|
Datasheet |
DO-214AC, SMA | TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 58V | 64.4V | 93.6V | 4.3A | 400W | No | Telecom | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AC (SMA) |
|
SM24BHE3A-TPInterface |
3,877 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Bulk | Last Time Buy | Zener | - | 2 | 24V (Max) | 27V | 50V | 4A (8/20µs) | 300W | No | - | 20pF @ 1MHz | -55°C ~ 125°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-23 |
|
AOZ8208DI-05TVS DIODE 5VWM 9VC 8-DFN |
7,422 |
|
Datasheet |
8-UFDFN Exposed Pad | - | Tape & Reel (TR) | Obsolete | Zener | 8 | - | 5V (Max) | 6V | 9V | 5A (8/20µs) | - | No | General Purpose | 10pF @ 1MHz | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-DFN (1.8x1.2) |
|
AOZ8302CI-12TVS DIODE 12VWM 19VC SOT23A-3 |
7,480 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Obsolete | Zener | 2 | - | 12V (Max) | 13V | 19V | 24A (8/20µs) | 450W | No | Ethernet, Telecom | 25pF @ 1MHz | -40°C ~ 85°C (TJ) | - | - | Surface Mount | SOT-23A-3 |
|
SMBJ51CAQ-13-FTVS DIODE 51VWM 82.4VC SMB |
5,137 |
|
- |
DO-214AA, SMB | - | Tape & Reel (TR) | Active | Zener | - | 1 | 51V | 56.7V | 82.4V | 7.3A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SMB |
;;2.jpg)
|
SMA4F188ATVS DIODE 188VWM 328VC SMAFLAT |
9,242 |
|
Datasheet |
DO-221AC, SMA Flat Leads | SMA4F, TRANSIL™ | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 188V (Max) | 209V | 328V | 1.4A | 400W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | SMAflat |
|
|
SDT26A24L05TVS ESD SOT23-6L 24V 50VE |
4,801 |
|
Datasheet |
SOT-23-6 | SDT26AXXL05 | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 5 | - | 24V | 26.7V | 50V | 7A (8/20µs) | 350W | No | General Purpose | 50pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23-6L |
|
|
SDT26A15L05TVS ESD SOT23-6L 15V 35VE |
2,280 |
|
Datasheet |
SOT-23-6 | SDT26AXXL05 | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 5 | - | 15V | 16.7V | 35V | 10A (8/20µs) | 350W | No | General Purpose | 70pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23-6L |
|
|
P4SMA36A-M3/5ATVS DIODE 30.8VWM 49.9VC DO214AC |
2,996 |
|
Datasheet |
DO-214AC, SMA | P4SMA, TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 30.8V | 34.2V | 49.9V | 8A | 400W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
|
NUP3105L-AQTVS DIODE 32VWM 70VC SOT-23-3 |
6,143 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Bulk | Active | Zener | - | 2 | 32V | 35.6V | 70V | 7.2A (8/20µs) | 500W | No | CAN | 30pF @ 1MHz | -55°C ~ 125°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-23-3 (TO-236) |
|
|
SMBJ58AHE3-TPInterface |
3,724 |
|
Datasheet |
DO-214AA, SMB | - | Bulk | Active | Zener | 1 | - | 58V | 64.4V | 93.6V | 6.4A | 600W | No | - | - | -55°C ~ 175°C (TJ) | Automotive | - | Surface Mount | DO-214AA (SMB) |
|
|
SMBJ54AHE3-TPInterface |
6,195 |
|
Datasheet |
DO-214AA, SMB | - | Bulk | Active | Zener | 1 | - | 54V | 60V | 87.1V | 6.9A | 600W | No | - | - | -55°C ~ 175°C (TJ) | Automotive | - | Surface Mount | DO-214AA (SMB) |
|
SA8V5ATVS DIODE 8.5VWM 14.4VC DO15 |
9,800 |
|
Datasheet |
DO-204AC, DO-15, Axial | - | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 8.5V | 9.44V | 14.4V | 34.7A | 500W | No | General Purpose | - | - | - | - | Through Hole | DO-15 |
|
P6KE150CA-TPTVS DIODE 128VWM 207VC DO15 |
4,418 |
|
Datasheet |
DO-204AC, DO-15, Axial | - | Tape & Reel (TR) | Active | Zener | - | 1 | 128V | 143V | 207V | 2.9A | 600W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | DO-15 |
|
P6KE110CA-TPTVS DIODE 94VWM 152VC DO15 |
6,692 |
|
Datasheet |
DO-204AC, DO-15, Axial | - | Tape & Reel (TR) | Active | Zener | - | 1 | 94V | 105V | 152V | 4A | 600W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | DO-15 |
