TVS Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SMBJ8.0H600W, 9.9V, UNIDIRECTIONAL, TVS |
7,959 |
|
Datasheet |
DO-214AA, SMB | SMBJH | Tape & Reel (TR) | Active | Zener | 1 | - | 8V | 8.89V | 15V | 42A | 600W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AA (SMB) |
|
|
SMBJ7.5AH600W, 8.8V, UNIDIRECTIONAL, TVS |
7,573 |
|
Datasheet |
DO-214AA, SMB | SMBJH | Tape & Reel (TR) | Active | Zener | 1 | - | 7.5V | 8.33V | 12.9V | 48A | 600W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AA (SMB) |
|
|
SMBJ8.5AH600W, 9.9V, UNIDIRECTIONAL, TVS |
3,987 |
|
Datasheet |
DO-214AA, SMB | SMBJH | Tape & Reel (TR) | Active | Zener | 1 | - | 8.5V | 9.44V | 14.4V | 43A | 600W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AA (SMB) |
|
|
P6SMB9.1AH600W, 9.1V, UNIDIRECTIONAL, TVS |
3,216 |
|
Datasheet |
DO-214AA, SMB | - | Tape & Reel (TR) | Active | Zener | 1 | - | 7.78V | 8.65V | 13.4V | 47A | 600W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AA (SMB) |
|
|
P6SMB7.5AH600W, 7.5V, UNIDIRECTIONAL, TVS |
2,118 |
|
Datasheet |
DO-214AA, SMB | - | Tape & Reel (TR) | Active | Zener | 1 | - | 6.4V | 7.13V | 11.3V | 55A | 600W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AA (SMB) |
|
|
P6SMB6.8H600W, 6.8V, UNIDIRECTIONAL, TVS |
6,946 |
|
Datasheet |
DO-214AA, SMB | - | Tape & Reel (TR) | Active | Zener | 1 | - | 5.5V | 6.12V | 10.8V | 58A | 600W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AA (SMB) |
|
|
SMBJ6.5AH600W, 7.6V, UNIDIRECTIONAL, TVS |
2,376 |
|
Datasheet |
DO-214AA, SMB | SMBJH | Tape & Reel (TR) | Active | Zener | 1 | - | 6.5V | 7.22V | 11.2V | 56A | 600W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AA (SMB) |
|
|
SMBJ9.0AH600W, 10.6V, UNIDIRECTIONAL, TVS |
5,042 |
|
Datasheet |
DO-214AA, SMB | SMBJH | Tape & Reel (TR) | Active | Zener | 1 | - | 9V | 10V | 15.4V | 40A | 600W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AA (SMB) |
|
|
P6SMB6.8AH600W, 6.8V, UNIDIRECTIONAL, TVS |
8,083 |
|
Datasheet |
DO-214AA, SMB | - | Tape & Reel (TR) | Active | Zener | 1 | - | 5.8V | 6.46V | 10.5V | 60A | 600W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AA (SMB) |
|
|
SMBJ6.0AH600W, 7V, UNIDIRECTIONAL, TVS |
7,288 |
|
Datasheet |
DO-214AA, SMB | SMBJH | Tape & Reel (TR) | Active | Zener | 1 | - | 6V | 6.67V | 10.3V | 61A | 600W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AA (SMB) |
|
|
P6SMB8.2AH600W, 8.2V, UNIDIRECTIONAL, TVS |
2,194 |
|
Datasheet |
DO-214AA, SMB | - | Tape & Reel (TR) | Active | Zener | 1 | - | 7.02V | 7.79V | 12.1V | 52A | 600W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AA (SMB) |
|
|
SMBJ7.0AH600W, 8.2V, UNIDIRECTIONAL, TVS |
3,103 |
|
Datasheet |
DO-214AA, SMB | SMBJH | Tape & Reel (TR) | Active | Zener | 1 | - | 7V | 7.78V | 12V | 52A | 600W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AA (SMB) |
|
|
P6SMB8.2H600W, 8.2V, UNIDIRECTIONAL, TVS |
6,937 |
|
Datasheet |
DO-214AA, SMB | - | Tape & Reel (TR) | Active | Zener | 1 | - | 6.63V | 7.38V | 12.5V | 50A | 600W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AA (SMB) |
|
|
P6SMB7.5H600W, 7.5V, UNIDIRECTIONAL, TVS |
7,376 |
|
Datasheet |
DO-214AA, SMB | - | Tape & Reel (TR) | Active | Zener | 1 | - | 6.05V | 6.75V | 11.7V | 53A | 600W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AA (SMB) |
|
|
SMBJ5.0H600W, 6.9V, UNIDIRECTIONAL, TVS |
6,068 |
|
Datasheet |
DO-214AA, SMB | SMBJH | Tape & Reel (TR) | Active | Zener | 1 | - | 5V | 6.4V | 9.6V | 65A | 600W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AA (SMB) |
|
|
SMBJ5.0AH600W, 6.7V, UNIDIRECTIONAL, TVS |
6,215 |
|
Datasheet |
DO-214AA, SMB | SMBJH | Tape & Reel (TR) | Active | Zener | 1 | - | 5V | 6.4V | 9.2V | 68A | 600W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AA (SMB) |
|
|
SMAJ120CAQ-13-FTRANSIENT VOLTAGE SUPPRESSOR PP |
2,871 |
|
Datasheet |
DO-214AC, SMA | - | Tape & Reel (TR) | Active | Zener | - | 1 | 120V | 133V | 193V | 2A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SMA |
|
|
P6SMA240ATVS DIODE 204VWM 330VC DO-214AC |
9,712 |
|
Datasheet |
DO-214AC, SMA | - | Bulk | Active | Zener | 1 | - | 204V | 228V | 330V | 1.5A | 500W | No | - | - | -50°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|

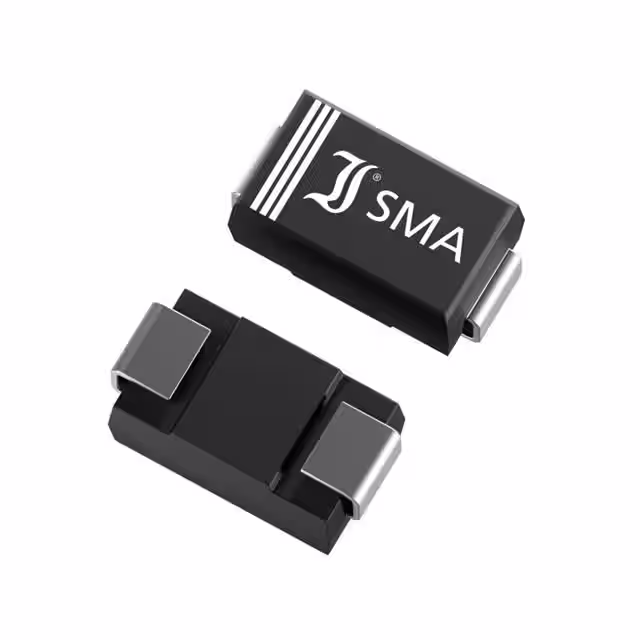

P6SMAJ170ATVS DIODE 170VWM 275VC DO-214AC |
5,944 |
|
Datasheet |
DO-214AC, SMA | - | Bulk | Active | Zener | 1 | - | 170V | 189V | 275V | 2.2A | 600W | No | General Purpose | - | -50°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
|
P6SMA480ATVS DIODE 408VWM 658VC DO-214AC |
6,587 |
|
Datasheet |
DO-214AC, SMA | - | Bulk | Active | Zener | 1 | - | 408V | 456V | 658V | 910mA | 600W | No | General Purpose | - | -50°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
