Single Zener Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Voltage - Zener (Nom) (Vz) | Tolerance | Power - Max | Impedance (Max) (Zzt) | Current - Reverse Leakage @ Vr | Voltage - Forward (Vf) (Max) @ If | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MMSZ5256CT1GDIODE ZENER 30V 500MW SOD123 |
7,188 |
|
Datasheet |
MMSZ52xxxT1G | SOD-123 | Tape & Reel (TR) | Obsolete | 30 V | ±2% | 500 mW | 49 Ohms | 100 nA @ 23 V | 900 mV @ 10 mA | -55°C ~ 150°C | - | - | Surface Mount | SOD-123 |
|

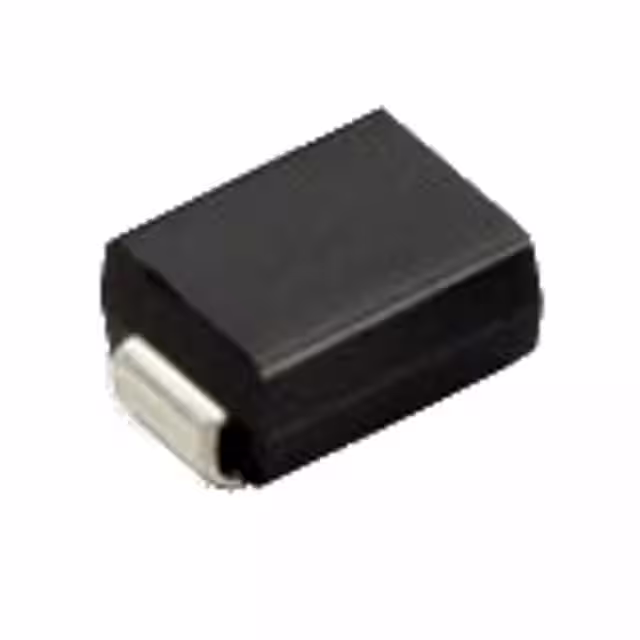

1SMB5947BDIODE ZENER 82V 3W DO214AA |
6,000 |
|
Datasheet |
- | DO-214AA, SMB | Tape & Reel (TR) | Active | 82 V | ±5% | 3 W | 160 Ohms | 1 µA @ 62.2 V | 1.5 V @ 200 mA | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMB) |
|
|
1SMB5953BDIODE ZENER 150V 3W DO214AA |
4,463 |
|
Datasheet |
- | DO-214AA, SMB | Tape & Reel (TR) | Active | 150 V | ±5% | 3 W | 600 Ohms | 1 µA @ 114 V | 1.5 V @ 200 mA | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMB) |
|
2EZ47_R2_00001DIODE ZENER 47V 2W DO15 |
3,786 |
|
Datasheet |
- | DO-204AC, DO-15, Axial | Tape & Reel (TR) | Active | 47 V | ±5% | 2 W | 40 Ohms | 500 nA @ 35.8 V | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | DO-15 |
|
PD3Z284C2V4-7DIODE ZENER 2.4V 500MW PWRDI323 |
2,613 |
|
Datasheet |
- | PowerDI™ 323 | Tape & Reel (TR) | Active | 2.4 V | ±8.33% | 500 mW | 100 Ohms | 50 µA @ 1 V | 1.1 V @ 100 mA | -65°C ~ 150°C (TJ) | - | - | Surface Mount | PowerDI™ 323 |
|
|
PD3Z284C6V8-7DIODE ZENER 6.8V 500MW PWRDI323 |
2,251 |
|
Datasheet |
- | PowerDI™ 323 | Tape & Reel (TR) | Active | 6.8 V | ±6% | 500 mW | 15 Ohms | 2 µA @ 4 V | 1.1 V @ 100 mA | -65°C ~ 150°C | - | - | Surface Mount | PowerDI™ 323 |
|
|
PD3Z284C22-7DIODE ZENER 22V 500MW POWERDI323 |
2,162 |
|
Datasheet |
- | PowerDI™ 323 | Tape & Reel (TR) | Active | 22 V | ±5.68% | 500 mW | 25 Ohms | 100 nA @ 15.4 V | 1.1 V @ 100 mA | -65°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | PowerDI™ 323 |
|
|
PD3Z284C30-7DIODE ZENER 30V 500MW POWERDI323 |
2,066 |
|
Datasheet |
- | PowerDI™ 323 | Tape & Reel (TR) | Active | 30 V | ±6.67% | 500 mW | 40 Ohms | 100 nA @ 21 V | 1.1 V @ 100 mA | -65°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | PowerDI™ 323 |
|
|
1SMA5944_R1_00001DIODE ZENER 62V 1.5W DO214AC |
1,058 |
|
Datasheet |
- | DO-214AC, SMA | Tape & Reel (TR) | Active | 62 V | ±5% | 1.5 W | 100 Ohms | 1 µA @ 47.1 V | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
.jpg)
|

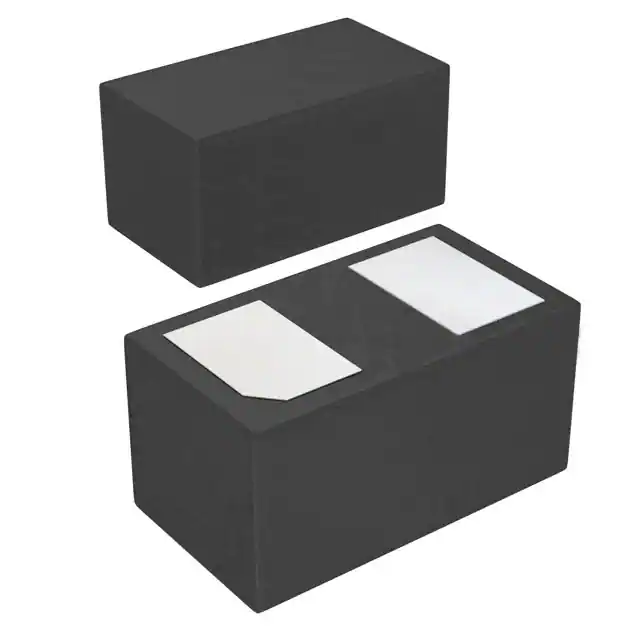

CZRZ5V1B-HFDIODE ZENER 5.1V 100MW 201 |
80,722 |
|
Datasheet |
- | 0201 (0603 Metric) | Tape & Reel (TR) | Obsolete | 5.1 V | ±5.2% | 100 mW | 80 Ohms | 2 µA @ 1.5 V | 900 mV @ 10 mA | -55°C ~ 125°C | - | - | Surface Mount | 0201 (0603 Metric) |
|
HZ27BP-JTKDIODE ZENER |
53,878 |
|
Datasheet |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - |
|

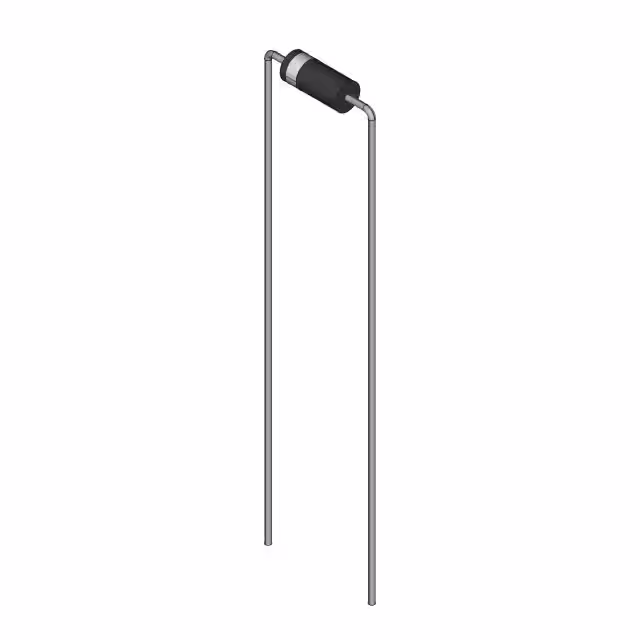

1N5239DRLDIODE ZENER 9.1V 500MW DO204AH |
13,650 |
|
Datasheet |
- | DO-204AH, DO-35, Axial | Bulk | Active | 9.1 V | ±1% | 500 mW | 10 Ohms | 3 µA @ 7 V | - | 200°C (TJ) | - | - | Through Hole | DO-204AH (DO-35) |
|
HZ3.6BP-EDIODE ZENER 3.6V 1W DO41 |
10,400 |
|
Datasheet |
HZ-P | DO-204AL, DO-41, Axial | Bulk | Active | 3.6 V | ±5.56% | 1 W | 15 Ohms | 60 µA @ 1 V | - | 175°C (TJ) | - | - | Through Hole | DO-41 |
|
D3Z27BF-7DIODE ZENER 26.86V 400MW SOD323F |
3,408 |
|
Datasheet |
- | SC-90, SOD-323F | Tape & Reel (TR) | Active | 26.86 V | ±2% | 400 mW | 40 Ohms | 50 nA @ 21 V | 1.1 V @ 100 mA | -65°C ~ 150°C | - | - | Surface Mount | SOD-323F |
|
YDZVFHTR8.2DIODE ZENER 8.2V 500MW TUMD2M |
2,825 |
|
Datasheet |
- | 2-SMD, Flat Leads | Tape & Reel (TR) | Not For New Designs | 8.2 V | ±9.76% | 500 mW | - | 10 µA @ 4.9 V | - | 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | TUMD2M |
|
CMHZ5223B TR PBFREEDIODE ZENER 2.7V 500MW SOD123 |
1,480 |
|
Datasheet |
- | SOD-123 | Tape & Reel (TR) | Active | 2.7 V | ±5% | 500 mW | 30 Ohms | 75 µA @ 1 V | 900 mV @ 10 mA | -65°C ~ 150°C | - | - | Surface Mount | SOD-123 |
|
|
PD3Z284C36-7DIODE ZENER 36V 500MW POWERDI323 |
11,325 |
|
Datasheet |
- | PowerDI™ 323 | Tape & Reel (TR) | Active | 36 V | ±5.56% | 500 mW | 60 Ohms | 100 nA @ 25.2 V | 1.1 V @ 100 mA | -65°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | PowerDI™ 323 |
|
|
PD3Z284C3V9-7DIODE ZENER 3.9V 500MW PWRDI323 |
5,047 |
|
Datasheet |
- | PowerDI™ 323 | Tape & Reel (TR) | Active | 3.9 V | ±5.13% | 500 mW | 90 Ohms | 3 µA @ 1 V | 1.1 V @ 100 mA | -65°C ~ 150°C (TJ) | - | - | Surface Mount | PowerDI™ 323 |
|
|
PD3Z284C9V1-7DIODE ZENER 9.1V 500MW PWRDI323 |
3,737 |
|
Datasheet |
- | PowerDI™ 323 | Tape & Reel (TR) | Active | 9.1 V | ±6.04% | 500 mW | 10 Ohms | 500 nA @ 6 V | 1.1 V @ 100 mA | -65°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | PowerDI™ 323 |
|
1PGSMA4757 R3GDIODE ZENER 51V 1.25W DO214AC |
1,778 |
|
Datasheet |
- | DO-214AC, SMA | Tape & Reel (TR) | Discontinued at Digi-Key | 51 V | ±5% | 1.25 W | 95 Ohms | 1 µA @ 38.8 V | 1.2 V @ 200 mA | -55°C ~ 175°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
