Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B43644F2477M067CAP ALUM 250V POLAR |
0 |
|
Datasheet |
B43644 | Bulk | Active | 470 µF | ±20% | 250 V | 180mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.52 A @ 100 Hz | - | 250 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
381LX332M063J042CAP ALUM 3300UF 20% 63V SNAP TH |
0 |
|
Datasheet |
381LX | Bulk | Obsolete | 3300 µF | ±20% | 63 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.5 A @ 120 Hz | 2.9 A @ 20 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
381LX561M200J032CAP ALUM 560UF 20% 200V SNAP TH |
0 |
|
Datasheet |
381LX | Bulk | Obsolete | 560 µF | ±20% | 200 V | 355mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.5 A @ 120 Hz | 2.1 A @ 20 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
LKS1V822MESZCAP ALUM 8200UF 20% 35V SNAP TH |
0 |
|
Datasheet |
LKS | Bulk | Obsolete | 8200 µF | ±20% | 35 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 2.7 A @ 120 Hz | - | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.772" (45.00mm) | - | Through Hole | |
|
LKS1H472MESYCAP ALUM 4700UF 20% 50V SNAP TH |
0 |
|
Datasheet |
LKS | Bulk | Obsolete | 4700 µF | ±20% | 50 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 2.55 A @ 120 Hz | - | - | 0.394" (10.00mm) | 0.787" Dia (20.00mm) | 1.969" (50.00mm) | - | Through Hole | |
|

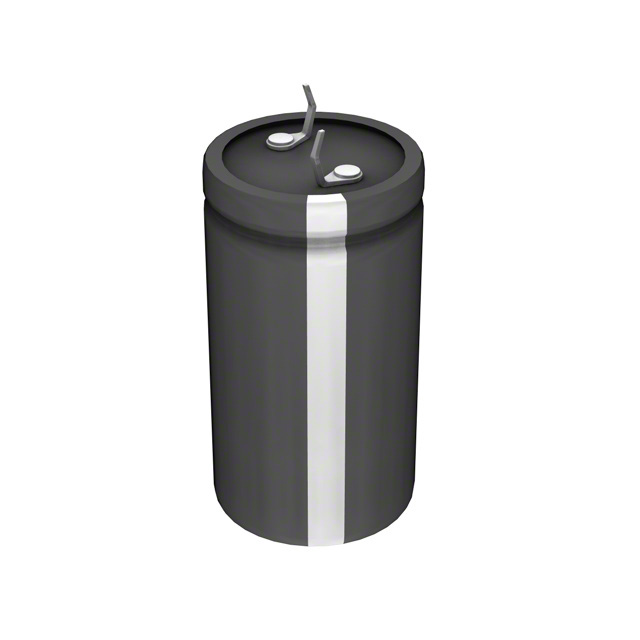

LP182M063A7P3CAP ALUM 1800UF 20% 63V SNAP TH |
0 |
|
Datasheet |
LP | Bulk | Active | 1800 µF | ±20% | 63 V | 138mOhm @ 120Hz | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.34 A @ 120 Hz | 1.608 A @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.575" (40.00mm) | - | Through Hole | |
|
|
AFK108M35P44VT-FCAP ALUM 1000UF 20% 35V SMD |
0 |
|
Datasheet |
AFK_V | Tape & Reel (TR) | Active | 1000 µF | ±20% | 35 V | 35mOhm @ 100kHz | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, Bypass, Decoupling | 1.35 A @ 120 Hz | - | 35 mOhms | - | 0.630" Dia (16.00mm) | 0.681" (17.30mm) | 0.327" L x 0.374" W (8.30mm x 9.50mm) | Surface Mount | |
|
|
AFK158M35P44VT-FCAP ALUM 1500UF 20% 35V SMD |
0 |
|
Datasheet |
AFK_V | Tape & Reel (TR) | Active | 1500 µF | ±20% | 35 V | 35mOhm @ 100kHz | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, Bypass, Decoupling | 1.35 A @ 120 Hz | - | 35 mOhms | - | 0.630" Dia (16.00mm) | 0.681" (17.30mm) | 0.669" L x 0.748" W (17.00mm x 19.00mm) | Surface Mount | |
|
|
AFK338M16P44VT-FCAP ALUM 3300UF 20% 16V SMD |
0 |
|
Datasheet |
AFK_V | Tape & Reel (TR) | Active | 3300 µF | ±20% | 16 V | 35mOhm @ 100kHz | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, Bypass, Decoupling | 1.35 A @ 120 Hz | - | 35 mOhms | - | 0.630" Dia (16.00mm) | 0.681" (17.30mm) | 0.327" L x 0.374" W (8.30mm x 9.50mm) | Surface Mount | |
|
|
AFK478M10P44VT-FCAP ALUM 4700UF 20% 10V SMD |
0 |
|
Datasheet |
AFK_V | Tape & Reel (TR) | Active | 4700 µF | ±20% | 10 V | 35mOhm @ 100kHz | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, Bypass, Decoupling | 1.35 A @ 120 Hz | - | 35 mOhms | - | 0.630" Dia (16.00mm) | 0.681" (17.30mm) | 0.327" L x 0.374" W (8.30mm x 9.50mm) | Surface Mount | |
|
200HXC390MEFCSN25X25CAP ALUM 390UF 20% 200V SNAP TH |
0 |
|
Datasheet |
HXC | Bulk | Active | 390 µF | ±20% | 200 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.99 A @ 120 Hz | 2.985 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
400SXC120MEFCSN30X25CAP ALUM 120UF 20% 400V SNAP TH |
0 |
|
Datasheet |
SXC | Bulk | Active | 120 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 730 mA @ 120 Hz | 839.5 mA @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
B43640A5157M080CAP ALUM 150UF 20% 450V SNAP TH |
0 |
|
Datasheet |
B43640 | Bulk | Active | 150 µF | ±20% | 450 V | 630mOhm @ 100Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 850 mA @ 100 Hz | - | 940 mOhms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
EKMS251VSN391MP35SCAP ALUM 390UF 20% 250V SNAP TH |
0 |
|
Datasheet |
KMS | Bulk | Active | 390 µF | ±20% | 250 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.44 A @ 120 Hz | 2.16 A @ 50 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.476" (37.50mm) | - | Through Hole | |
|
|
35MXC12000MEFC35X30CAP ALUM 12000UF 20% 35V SNAP TH |
0 |
|
Datasheet |
MXC | Bulk | Not For New Designs | 12000 µF | ±20% | 35 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.37 A @ 120 Hz | 3.8755 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
10MXG12000MEFCSN20X35CAP ALUM 12000UF 20% 10V SNAP TH |
0 |
|
Datasheet |
MXG | Bulk | Active | 12000 µF | ±20% | 10 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.18 A @ 120 Hz | 2.507 A @ 10 kHz | - | 0.394" (10.00mm) | 0.787" Dia (20.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
200SXC82MEFC20X20CAP ALUM 82UF 20% 200V SNAP TH |
0 |
|
Datasheet |
SXC | Bulk | Active | 82 µF | ±20% | 200 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 420 mA @ 120 Hz | 495.6 mA @ 10 kHz | - | 0.394" (10.00mm) | 0.787" Dia (20.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
|
400MXC220MEFC22X50CAP ALUM 220UF 20% 400V SNAP TH |
0 |
|
Datasheet |
MXC | Bulk | Not For New Designs | 220 µF | ±20% | 400 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.1 A @ 120 Hz | 1.54 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
450HXG120MEFC25X25CAP ALUM 120UF 20% 450V SNAP TH |
0 |
|
Datasheet |
HXG | Bulk | Active | 120 µF | ±20% | 450 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.29 A @ 120 Hz | 1.806 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
450MXH180MEFC22X40CAP ALUM 180UF 20% 450V SNAP TH |
0 |
|
Datasheet |
MXH | Bulk | Active | 180 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.28 A @ 120 Hz | 1.792 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.654" (42.00mm) | - | Through Hole |
