Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TE1202TCAP ALUM 5UF 25V AXIAL TH |
0 |
|
Datasheet |
TE | Bulk | Active | 5 µF | -10%, +75% | 25 V | - | 2000 Hrs @ 85°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | - | 0.248" Dia x 0.512" L (6.30mm x 13.00mm) | - | - | Through Hole | |
|
|
TE1300TCAP ALUM 1UF 50V AXIAL TH |
0 |
|
Datasheet |
TE | Bulk | Active | 1 µF | -10%, +75% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | - | 0.248" Dia x 0.512" L (6.30mm x 13.00mm) | - | - | Through Hole | |
|
MAL212025152E3CAP ALUM 1500UF 20% 16V AXIAL TH |
0 |
|
Datasheet |
120 ATC | Tape & Reel (TR) | Active | 1500 µF | ±20% | 16 V | 60mOhm | 8000 Hrs @ 125°C | -40°C ~ 125°C | - | AEC-Q200 | Automotive | - | 2.65 A @ 10 kHz | 53 mOhms | - | 0.492" Dia x 1.181" L (12.50mm x 30.00mm) | - | - | Through Hole | |
|
ETXH401VSN271MR40SCAP ALUM 270UF 20% 400V SNAP TH |
0 |
|
Datasheet |
TXH | Bulk | Active | 270 µF | ±20% | 400 V | - | 10000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.15 A @ 120 Hz | 1.6445 A @ 100 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.575" (40.00mm) | - | Through Hole | |
|
LLS2V331MELBCAP ALUM 330UF 20% 350V SNAP TH |
0 |
|
Datasheet |
LLS | Bulk | Active | 330 µF | ±20% | 350 V | - | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.03 A @ 120 Hz | 2.9029 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
ELXM351VSN181MP40SCAP ALUM 180UF 20% 350V SNAP TH |
0 |
|
Datasheet |
LXM | Bulk | Active | 180 µF | ±20% | 350 V | - | 7000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 990 mA @ 120 Hz | 1.4157 A @ 50 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
LSG681M2E---3040SCAP ALUM 250V POLAR |
0 |
|
- |
LSG | Active | 680 µF | ±20% | 250 V | 293mOhm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2 A @ 120 Hz | 3 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | ||
|
100USC2200MEFCSN25X35CAP ALUM 2200UF 20% 100V SNAP TH |
0 |
|
Datasheet |
USC | Bulk | Not For New Designs | 2200 µF | ±20% | 100 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.12 A @ 120 Hz | 3.588 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
UHW2A271MHD6TNCAP ALUM 270UF 20% 100V RADIAL |
0 |
|
Datasheet |
UHW | Cut Tape (CT) | Active | 270 µF | ±20% | 100 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 975 mA @ 120 Hz | 1.95 A @ 100 kHz | 50 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
ESMH350VSN223MA45SCAP ALUM 22000UF 20% 35V SNAP TH |
0 |
|
Datasheet |
SMH | Bulk | Active | 22000 µF | ±20% | 35 V | 19mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 6.04 A @ 120 Hz | 6.5232 A @ 100 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
160MXC680MEFCSN30X25CAP ALUM 680UF 20% 160V SNAP TH |
0 |
|
Datasheet |
MXC | Bulk | Not For New Designs | 680 µF | ±20% | 160 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.74 A @ 120 Hz | 2.61 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
LSM221M2P---3525SCAP ALUM 420V POLAR |
0 |
|
- |
LSM | Active | 220 µF | ±20% | 420 V | 905mOhm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 970 mA @ 120 Hz | 1.358 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.063" (27.00mm) | - | Through Hole | ||
|
381LR821M400J042CAP ALUM 820UF 20% 400V SNAP TH |
0 |
|
Datasheet |
381LR | Bulk | Obsolete | 820 µF | ±20% | 400 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
LSM331M2V---2545SCAP ALUM 350V POLAR |
0 |
|
- |
LSM | Active | 330 µF | ±20% | 350 V | 603mOhm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.24 A @ 120 Hz | 1.736 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.850" (47.00mm) | - | Through Hole | ||
|
LKG1H472MESYAKCAP ALUM 4700UF 20% 50V SNAP TH |
0 |
|
Datasheet |
LKG | Bulk | Obsolete | 4700 µF | ±20% | 50 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 2.75 A @ 120 Hz | - | - | 0.394" (10.00mm) | 0.787" Dia (20.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|

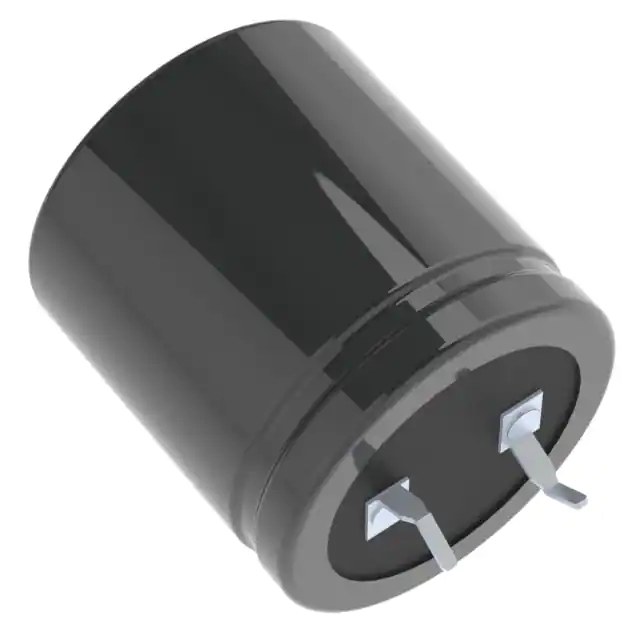

LKS2A102MESACAP ALUM 1000UF 20% 100V SNAP TH |
0 |
|
Datasheet |
LKS | Bulk | Obsolete | 1000 µF | ±20% | 100 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 1.95 A @ 120 Hz | - | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
LKSH2272MESACAP ALUM 2700UF 20% 71V SNAP TH |
0 |
|
Datasheet |
LKS | Bulk | Obsolete | 2700 µF | ±20% | 71 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 2.5 A @ 120 Hz | - | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
LAQ2P181MELZ25CAP ALUM 180UF 20% 220V SNAP TH |
0 |
|
Datasheet |
LAQ | Bulk | Active | 180 µF | ±20% | 220 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 700 mA @ 120 Hz | 840 mA @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
LLS1E223MELCCAP ALUM 22000UF 20% 25V SNAP TH |
0 |
|
Datasheet |
LLS | Bulk | Active | 22000 µF | ±20% | 25 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 5.26 A @ 120 Hz | 6.049 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
ELD108M200AS5AACAP ALUM SNAP-IN 105C |
0 |
|
Datasheet |
ELD | Bulk | Active | 1 mF | ±20% | 200 V | 199mOhm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.32 A @ 120 Hz | 3.248 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.850" (47.00mm) | - | Through Hole |
