Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LAK2D561MELA40CAP ALUM 560UF 20% 200V SNAP TH |
0 |
|
Datasheet |
LAK | Bulk | Active | 560 µF | ±20% | 200 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.5 A @ 120 Hz | 1.8 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|

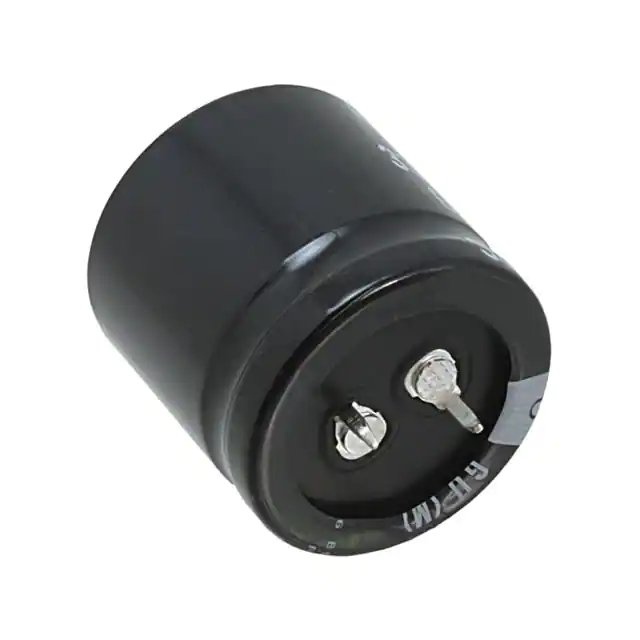

LGU2A152MELBCAP ALUM 1500UF 20% 100V SNAP TH |
0 |
|
Datasheet |
LGU | Bulk | Active | 1500 µF | ±20% | 100 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2 A @ 120 Hz | 2.3 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
MAL213849151E3CAP ALUM 150UF 20% 100V SNAP TH |
0 |
|
Datasheet |
138 AML | Tape & Reel (TR) | Active | 150 µF | ±20% | 100 V | 780mOhm @ 100kHz | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | Automotive | 550 mA @ 100 Hz | - | 460 mOhms | - | 0.591" Dia (15.00mm) | 1.299" (33.00mm) | - | Through Hole | |
|
LHM271M2G---3030SCAP ALUM 400V POLAR |
0 |
|
- |
LHM | Active | 270 µF | ±20% | 400 V | 737mOhm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.22 A @ 120 Hz | 1.708 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | ||
|
380LX152M100K012CAP ALUM 1500UF 20% 100V SNAP TH |
0 |
|
Datasheet |
380LX | Bulk | Obsolete | 1500 µF | ±20% | 100 V | 155mOhm | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.6 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
381LX472M050H452CAP ALUM 4700UF 20% 50V SNAP TH |
0 |
|
Datasheet |
381LX | Bulk | Obsolete | 4700 µF | ±20% | 50 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.5 A @ 120 Hz | 2.9 A @ 20 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
LAK2G101MELC20CAP ALUM 100UF 20% 400V SNAP TH |
0 |
|
Datasheet |
LAK | Bulk | Active | 100 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 550 mA @ 120 Hz | 632.5 mA @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
EMVA250GDA332MMN0SCAP ALUM 3300UF 20% 25V SMD |
0 |
|
Datasheet |
Alchip™- MVA | Tape & Reel (TR) | Obsolete | 3300 µF | ±20% | 25 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.8 A @ 120 Hz | 1.944 A @ 100 kHz | - | - | 0.709" Dia (18.00mm) | 0.846" (21.50mm) | 0.748" L x 0.748" W (19.00mm x 19.00mm) | Surface Mount | |
|
ETXH201VSN681MR35SCAP ALUM 680UF 20% 200V SNAP TH |
0 |
|
Datasheet |
TXH | Bulk | Active | 680 µF | ±20% | 200 V | - | 10000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.7 A @ 120 Hz | 2.55 A @ 100 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
ELG478M050AT1AACAP ALUM SNAP-IN 105C |
0 |
|
Datasheet |
ELG | Bulk | Active | 4.7 mF | ±20% | 50 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.5 A @ 120 Hz | 2.9 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
350USC220MEFCSN30X25CAP ALUM 220UF 20% 350V SNAP TH |
0 |
|
Datasheet |
USC | Bulk | Not For New Designs | 220 µF | ±20% | 350 V | - | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.54 A @ 120 Hz | 2.156 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
LKG1V152MESZCKCAP ALUM 1500UF 20% 35V SNAP TH |
0 |
|
Datasheet |
LKG | Bulk | Obsolete | 1500 µF | ±20% | 35 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 1.55 A @ 120 Hz | - | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
B43509B9157M080CAP ALUM 150UF 20% 400V SNAP TH |
0 |
|
Datasheet |
B43509 | Bulk | Active | 150 µF | ±20% | 400 V | 530mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 880 mA @ 100 Hz | - | 770 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
UVR1J332MRDCAP ALUM 3300UF 20% 63V RADIAL |
0 |
|
Datasheet |
UVR | Bulk | Obsolete | 3300 µF | ±20% | 63 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.7 A @ 120 Hz | 3.105 A @ 10 kHz | - | 0.394" (10.00mm) | 0.787" Dia (20.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
PEH506MCC4330M2CAP ALUM SNAP-IN 85C |
0 |
|
Datasheet |
PEH506 | Box | Active | 3.3 mF | ±20% | 63 V | 76mOhm @ 100Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.3 A @ 100 Hz | 7 A @ 100 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
LLS1C333MELBCAP ALUM 33000UF 20% 16V SNAP TH |
0 |
|
Datasheet |
LLS | Bulk | Active | 33000 µF | ±20% | 16 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 5.6 A @ 120 Hz | 6.44 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
ELXM451VSN121MP45SCAP ALUM 120UF 20% 450V SNAP TH |
0 |
|
Datasheet |
LXM | Bulk | Active | 120 µF | ±20% | 450 V | - | 7000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 830 mA @ 120 Hz | 1.1869 A @ 50 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
|
B41690A8108Q9CAP ALUM 1000UF 63V AXIAL TH |
0 |
|
Datasheet |
B41690 | Tape & Reel (TR) | Obsolete | 1000 µF | -10%, +30% | 63 V | 80mOhm @ 100Hz | 5000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | Automotive | - | 5.1 A @ 10 kHz | 36 mOhms | - | 0.630" Dia x 1.535" L (16.00mm x 39.00mm) | - | - | Through Hole | |
|
EMVA350ARA471MKE0SCAP ALUM 470UF 20% 35V SMD |
0 |
|
Datasheet |
Alchip™- MVA | Tape & Reel (TR) | Obsolete | 470 µF | ±20% | 35 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 600 mA @ 120 Hz | 900 mA @ 100 kHz | - | - | 0.492" Dia (12.50mm) | 0.531" (13.50mm) | 0.512" L x 0.512" W (13.00mm x 13.00mm) | Surface Mount | |
|
UVK1J472MRDCAP ALUM 4700UF 20% 63V RADIAL |
0 |
|
Datasheet |
UVK | Bulk | Obsolete | 4700 µF | ±20% | 63 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.4 A @ 120 Hz | 3.91 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 2.047" (52.00mm) | - | Through Hole |
