Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SLP561M250C4P3CAP ALUM 560UF 20% 250V SNAP TH |
0 |
|
Datasheet |
SLP0712TE (750W) | Bulk | Active | 560 µF | ±20% | 250 V | 355mOhm | 3000 Hrs @ 105°C | -25°C ~ 105°C | - | - | General Purpose | - | - | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.772" (45.00mm) | - | Through Hole | |
|
SLP181M400A4P3CAP ALUM 180UF 20% 400V SNAP TH |
0 |
|
Datasheet |
SLP0712TE (750W) | Bulk | Active | 180 µF | ±20% | 400 V | 1.843Ohm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 980 mA @ 120 Hz | 1.44 A @ 20 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
380LQ103M050J052CAP ALUM 10000UF 20% 50V SNAP TH |
0 |
|
Datasheet |
380LQ | Bulk | Active | 10000 µF | ±20% | 50 V | 50mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.97 A @ 120 Hz | 5.72 A @ 20 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
380LQ333M016K032CAP ALUM 33000UF 20% 16V SNAP TH |
0 |
|
Datasheet |
380LQ | Bulk | Active | 33000 µF | ±20% | 16 V | 25mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 6.84 A @ 120 Hz | 7.87 A @ 20 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
380LX271M315J032CAP ALUM 270UF 20% 315V SNAP TH |
0 |
|
Datasheet |
380LX | Bulk | Active | 270 µF | ±20% | 315 V | 740mOhm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.6 A @ 120 Hz | - | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
500MXH82MEFCSN22X30CAP ALUM 82UF 20% 500V SNAP TH |
0 |
|
Datasheet |
MXH | Bulk | Active | 82 µF | ±20% | 500 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 800 mA @ 120 Hz | 1.12 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
381LQ121M450J022CAP ALUM 120UF 20% 450V SNAP TH |
0 |
|
Datasheet |
381LQ | Bulk | Obsolete | 120 µF | ±20% | 450 V | 1.52Ohm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 720 mA @ 120 Hz | 1.01 A @ 20 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
250MXC470MEFC30X30CAP ALUM 470UF 20% 250V SNAP TH |
0 |
|
Datasheet |
MXC | Bulk | Not For New Designs | 470 µF | ±20% | 250 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.65 A @ 120 Hz | 2.475 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
200SXG270MEFC25X20CAP ALUM 270UF 20% 200V SNAP TH |
0 |
|
Datasheet |
SXG | Bulk | Active | 270 µF | ±20% | 200 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 950 mA @ 120 Hz | 1.33 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
|
250USC470MEFC25X35CAP ALUM 470UF 20% 250V SNAP TH |
0 |
|
Datasheet |
USC | Bulk | Not For New Designs | 470 µF | ±20% | 250 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.15 A @ 120 Hz | 3.225 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
35MXC10000MEFC25X40CAP ALUM 10000UF 20% 35V SNAP TH |
0 |
|
Datasheet |
MXC | Bulk | Not For New Designs | 10000 µF | ±20% | 35 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.05 A @ 120 Hz | 3.5075 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
420VXG150MEFC25X30CAP ALUM 150UF 20% 420V SNAP TH |
0 |
|
Datasheet |
VXG | Bulk | Active | 150 µF | ±20% | 420 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.08 A @ 120 Hz | 1.512 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
450MXC150MEFC25X35CAP ALUM 150UF 20% 450V SNAP TH |
0 |
|
Datasheet |
MXC | Bulk | Not For New Designs | 150 µF | ±20% | 450 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 880 mA @ 120 Hz | 1.232 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
500MXH82MEFC22X30CAP ALUM 82UF 20% 500V SNAP TH |
0 |
|
Datasheet |
MXH | Bulk | Active | 82 µF | ±20% | 500 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 800 mA @ 120 Hz | 1.12 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
MAL204272109E3CAP ALUM 10UF 450V AXIAL TH |
0 |
|
Datasheet |
042 AHH-ELB | Tape & Box (TB) | Active | 10 µF | -10%, +50% | 450 V | 5.9Ohm @ 100Hz | 10000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 126.9 mA @ 100 Hz | - | 3.3 Ohms | - | 0.492" Dia x 1.181" L (12.50mm x 30.00mm) | - | - | Through Hole | |
|
|
MAL204271109E3CAP ALUM 10UF 450V AXIAL TH |
0 |
|
Datasheet |
042 AHH-ELB | Tape & Box (TB) | Active | 10 µF | -10%, +50% | 450 V | 5.9Ohm @ 100Hz | 10000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 126.9 mA @ 100 Hz | - | 3.3 Ohms | - | 0.492" Dia x 1.181" L (12.50mm x 30.00mm) | - | - | Through Hole | |
|

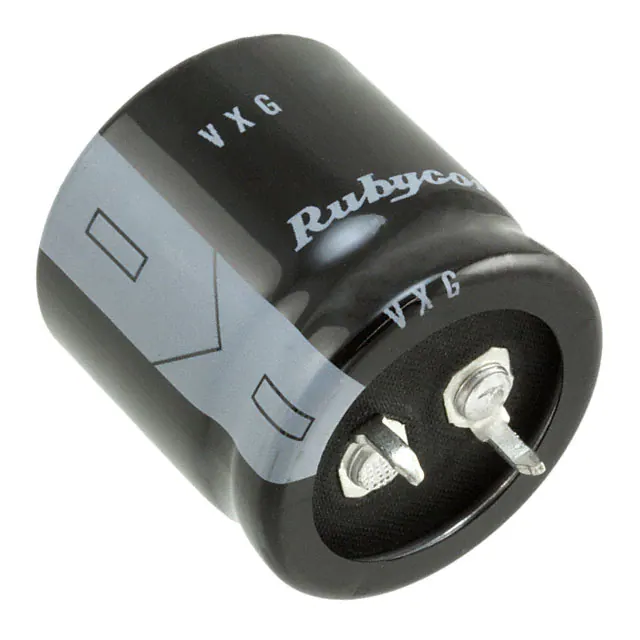

220VXG390MEFCSN25X25CAP ALUM 390UF 20% 220V SNAP TH |
0 |
|
Datasheet |
VXG | Bulk | Active | 390 µF | ±20% | 220 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.49 A @ 120 Hz | 2.235 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
ETXH401VSN271MA30SCAP ALUM 270UF 20% 400V SNAP TH |
0 |
|
Datasheet |
TXH | Bulk | Active | 270 µF | ±20% | 400 V | - | 10000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.13 A @ 120 Hz | 1.6159 A @ 100 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.181" (30.00mm) | - | Through Hole | |
|
381LX182M100J452CAP ALUM 1800UF 20% 100V SNAP TH |
0 |
|
Datasheet |
381LX | Bulk | Obsolete | 1800 µF | ±20% | 100 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.3 A @ 120 Hz | 3.45 A @ 20 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
B43630A9227M082CAP ALUM 220UF 20% 400V SNAP TH |
0 |
|
Datasheet |
B43630 | Bulk | Active | 220 µF | ±20% | 400 V | 470mOhm @ 100Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.44 A @ 100 Hz | - | 690 mOhms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.465" (37.20mm) | - | Through Hole |
