Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
400MXK180MEFCSN22X30CAP ALUM 180UF 20% 400V SNAP TH |
0 |
|
Datasheet |
MXK | Tray | Active | 180 µF | ±20% | 400 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.19 A @ 120 Hz | 1.666 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
MAL202145472E3CAP ALUM 4700UF 20% 16V SNAP TH |
0 |
|
Datasheet |
021 ASM | Bulk | Active | 4700 µF | ±20% | 16 V | 87mOhm @ 100Hz | 8000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.56 A @ 100 Hz | - | 65 mOhms | 0.768" (19.50mm) | 0.709" Dia (18.00mm) | 1.181" (30.00mm) | - | Through Hole | |
|
F110E607MFKCAP ALUM 600UF 20% 2.5V SMD |
0 |
|
Datasheet |
F11 | Tape & Reel (TR) | Obsolete | 600 µF | ±20% | 2.5 V | 5mOhm @ 100kHz | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | - | 6.3 A @ 100 kHz | - | - | 0.658" L x 0.477" W (16.70mm x 12.10mm) | 0.098" (2.50mm) | 0.657" L x 0.476" W (16.70mm x 12.10mm) | Surface Mount | |
|

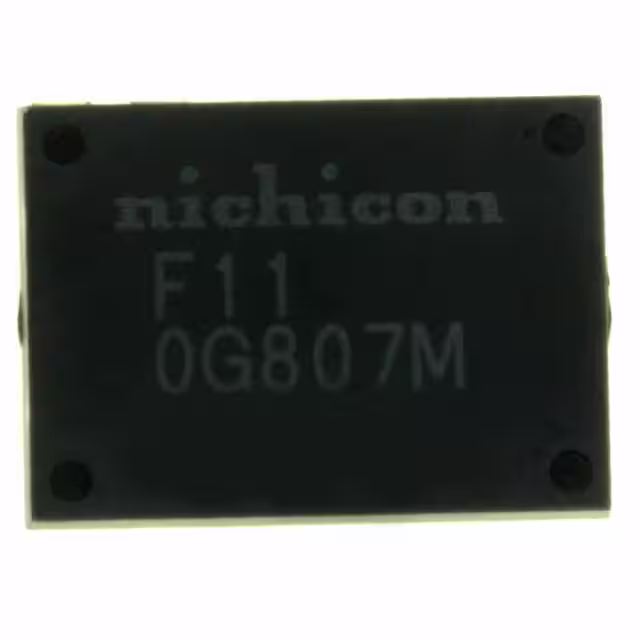

F110G807MFKCAP ALUM 800UF 20% 4V SMD |
0 |
|
Datasheet |
F11 | Tape & Reel (TR) | Obsolete | 800 µF | ±20% | 4 V | 5mOhm @ 100kHz | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | - | 6.3 A @ 100 kHz | - | - | 0.658" L x 0.477" W (16.70mm x 12.10mm) | 0.098" (2.50mm) | 0.657" L x 0.476" W (16.70mm x 12.10mm) | Surface Mount | |
|

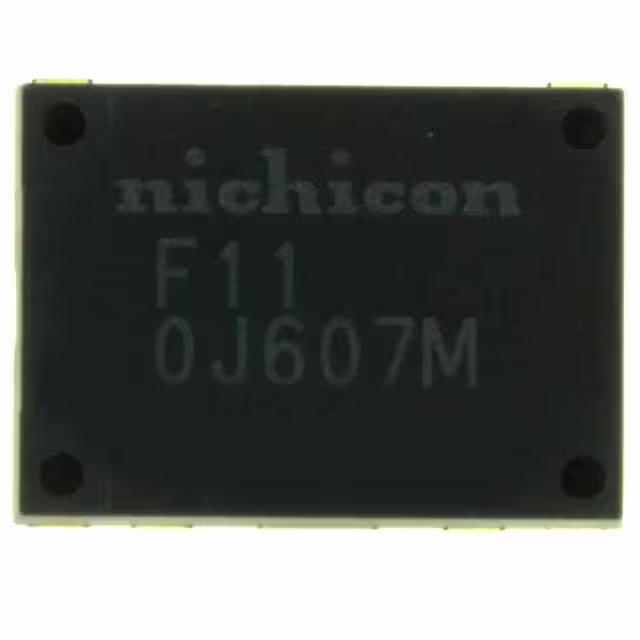

F110J607MFKCAP ALUM 600UF 20% 6.3V SMD |
0 |
|
Datasheet |
F11 | Tape & Reel (TR) | Obsolete | 600 µF | ±20% | 6.3 V | 5mOhm @ 100kHz | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | - | 6.3 A @ 100 kHz | - | - | 0.658" L x 0.477" W (16.70mm x 12.10mm) | 0.098" (2.50mm) | 0.657" L x 0.476" W (16.70mm x 12.10mm) | Surface Mount | |
|
B41693B9477Q001CAP ALUM 470UF 100V AXIAL TH |
0 |
|
Datasheet |
B41693 | Bulk | Active | 470 µF | -10%, +30% | 100 V | 175mOhm @ 100Hz | 5000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | Automotive | - | 3.2 A @ 10 kHz | 76 mOhms | - | 0.787" Dia x 1.142" L (20.00mm x 29.00mm) | - | - | Through Hole | |
|
315USC390MEFCSN22X45CAP ALUM 390UF 20% 315V SNAP TH |
0 |
|
Datasheet |
USC | Bulk | Not For New Designs | 390 µF | ±20% | 315 V | - | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.07 A @ 120 Hz | 2.898 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
|
MAL213245681E3CAP ALUM 680UF 16V SNAP TH |
0 |
|
Datasheet |
132 ALL-DIN | Bulk | Active | 680 µF | -10%, +50% | 16 V | 140mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 550 mA @ 100 Hz | - | - | - | 0.591" Dia (15.00mm) | 1.299" (33.00mm) | - | Through Hole | |
|
380LX331M250A202CAP ALUM 330UF 20% 250V SNAP TH |
0 |
|
Datasheet |
380LX | Bulk | Obsolete | 330 µF | ±20% | 250 V | 550mOhm | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.1 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
LGU1E183MELBCAP ALUM 18000UF 20% 25V SNAP TH |
0 |
|
Datasheet |
LGU | Bulk | Active | 18000 µF | ±20% | 25 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.56 A @ 120 Hz | 4.094 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
ALC70A361BB200CAP ALUM 360UF 20% 200V SNAP TH |
0 |
|
Datasheet |
ALC70 | Bulk | Active | 360 µF | ±20% | 200 V | 613mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.33 A @ 100 Hz | 2.61 A @ 10 kHz | 382 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
ALC70D361BB200CAP ALUM 360UF 20% 200V SNAP TH |
0 |
|
Datasheet |
ALC70 | Bulk | Active | 360 µF | ±20% | 200 V | 613mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.33 A @ 100 Hz | 2.61 A @ 10 kHz | 382 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
ALC70F361BB200CAP ALUM 360UF 20% 200V SNAP TH |
0 |
|
Datasheet |
ALC70 | Bulk | Active | 360 µF | ±20% | 200 V | 613mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.33 A @ 100 Hz | 2.61 A @ 10 kHz | 382 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
MAL202144682E3CAP ALUM 6800UF 20% 10V SNAP TH |
0 |
|
Datasheet |
021 ASM | Bulk | Active | 6800 µF | ±20% | 10 V | 79mOhm @ 100Hz | 8000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.59 A @ 100 Hz | - | 65 mOhms | 0.768" (19.50mm) | 0.709" Dia (18.00mm) | 1.181" (30.00mm) | - | Through Hole | |
|
100USC3300MEFCSN30X40CAP ALUM 3300UF 20% 100V SNAP TH |
0 |
|
Datasheet |
USC | Bulk | Not For New Designs | 3300 µF | ±20% | 100 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
ALC70D122BB100CAP ALUM 1200UF 20% 100V SNAP TH |
0 |
|
Datasheet |
ALC70 | Bulk | Active | 1200 µF | ±20% | 100 V | 221mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.39 A @ 100 Hz | 3.28 A @ 10 kHz | 175 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
ALC70F122BB100CAP ALUM 1200UF 20% 100V SNAP TH |
0 |
|
Datasheet |
ALC70 | Bulk | Active | 1200 µF | ±20% | 100 V | 221mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.39 A @ 100 Hz | 3.28 A @ 10 kHz | 175 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
PEH536JCD4680M2CAP ALUM SNAP-IN 105C |
0 |
|
Datasheet |
PEH536 | Box | Active | 6.8 mF | ±20% | 35 V | 42mOhm @ 100Hz | 4600 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.9 A @ 100 Hz | 9.4 A @ 20 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
LKG1E272MESZCKCAP ALUM 2700UF 20% 25V SNAP TH |
0 |
|
Datasheet |
LKG | Bulk | Obsolete | 2700 µF | ±20% | 25 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 2.2 A @ 120 Hz | - | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
|
LKG1C153MESABKCAP ALUM 15000UF 20% 16V SNAP TH |
0 |
|
Datasheet |
LKG | Bulk | Obsolete | 15000 µF | ±20% | 16 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 3.1 A @ 120 Hz | - | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.850" (47.00mm) | - | Through Hole |
