Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ELXQ351VSN471MA35SCAP ALUM 470UF 20% 350V SNAP TH |
0 |
|
Datasheet |
LXQ | Bulk | Active | 470 µF | ±20% | 350 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.83 A @ 120 Hz | 2.6169 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|

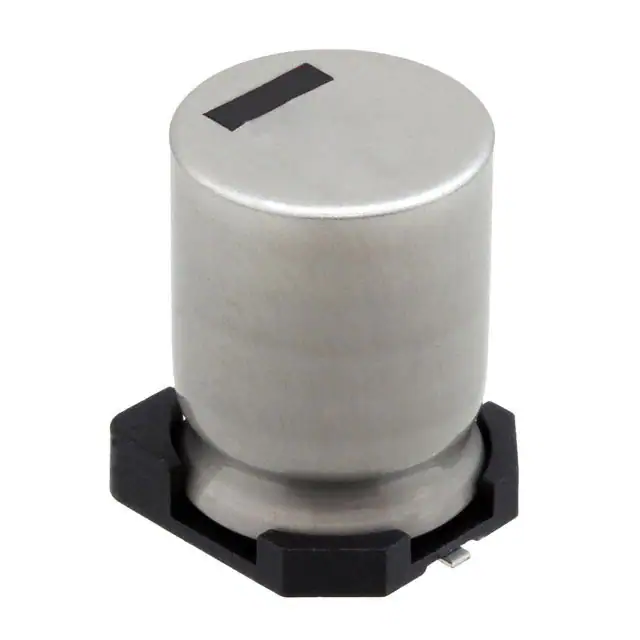

16TLV4700M16X21.5CAP ALUM 4700UF 20% 16V SMD |
0 |
|
Datasheet |
TLV | Tape & Reel (TR) | Active | 4700 µF | ±20% | 16 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.398 A @ 120 Hz | 2.33 A @ 100 kHz | 29 mOhms | - | 0.630" Dia (16.00mm) | 0.866" (22.00mm) | 0.669" L x 0.669" W (17.00mm x 17.00mm) | Surface Mount | |
|
400SAW68MEFC18X25CAP ALUM 68UF 20% 400V RADIAL TH |
0 |
|
Datasheet |
SAW | Bulk | Discontinued at Digi-Key | 68 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 330 mA @ 120 Hz | 379.5 mA @ 10 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.043" (26.50mm) | - | Through Hole | |
|
|
UCM1V182MNJ1MSCAP ALUM 1800UF 20% 35V SMD |
0 |
|
Datasheet |
UCM | Tape & Reel (TR) | Active | 1800 µF | ±20% | 35 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 955 mA @ 120 Hz | 1.91 A @ 100 kHz | 47 mOhms | - | 0.630" Dia (16.00mm) | 0.689" (17.50mm) | 0.673" L x 0.673" W (17.10mm x 17.10mm) | Surface Mount | |
|
|
LGU1V103MESACAPACITOR |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
B43642A5157M000CAP ALUM 150UF 20% 450V SNAP TH |
0 |
|
Datasheet |
B43642 | Bulk | Active | 150 µF | ±20% | 450 V | 550mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 920 mA @ 100 Hz | - | 790 mOhms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
PEH532MAD4220M2CAP ALUM SNAP-IN 105C |
0 |
|
Datasheet |
PEH532 | Box | Active | 2.2 mF | ±20% | 63 V | 88mOhm @ 100Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2 A @ 100 Hz | 5.5 A @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
LKG1H472MESABKCAP ALUM 4700UF 20% 50V SNAP TH |
0 |
|
Datasheet |
LKG | Bulk | Obsolete | 4700 µF | ±20% | 50 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 3.4 A @ 120 Hz | - | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.969" (50.00mm) | - | Through Hole | |
|
|
ELG157M450AR4AACAP ALUM SNAP-IN 105C |
0 |
|
Datasheet |
ELG | Bulk | Active | 150 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 800 mA @ 120 Hz | 1.16 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
511D566M040BB4DCAP ALUM 56UF 20% 40V RADIAL TH |
0 |
|
Datasheet |
511D | Bulk | Active | 56 µF | ±20% | 40 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole | |
|
35MXC10000MEFCSN25X40CAP ALUM 10000UF 20% 35V SNAP TH |
0 |
|
Datasheet |
MXC | Bulk | Not For New Designs | 10000 µF | ±20% | 35 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.05 A @ 120 Hz | 3.5075 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
ELG827M250AT3AVCAP ALUM SNAP-IN 105C |
0 |
|
Datasheet |
ELG | Bulk | Active | 820 µF | ±20% | 250 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.1 A @ 120 Hz | 3.15 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
ELG827M250AT3AACAP ALUM SNAP-IN 105C |
0 |
|
Datasheet |
ELG | Bulk | Active | 820 µF | ±20% | 250 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.1 A @ 120 Hz | 3.15 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
LSK391M2F---2550SCAP ALUM 315V POLAR |
0 |
|
- |
LSK | Active | 390 µF | ±20% | 315 V | 510mOhm @ 120Hz | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.34 A @ 120 Hz | 1.876 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 2.047" (52.00mm) | - | Through Hole | ||
|
MAL216066152E3CAP ALUM 1500UF 20% 25V RADIAL |
0 |
|
Datasheet |
160 RLA | Bulk | Active | 1500 µF | ±20% | 25 V | - | 2000 Hrs @ 150°C | -55°C ~ 150°C | Polar | AEC-Q200 | Automotive | - | - | 25 mOhms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.319" (33.50mm) | - | Through Hole | |
|
250VXG390MEFCSN22X40CAP ALUM 390UF 20% 250V SNAP TH |
0 |
|
Datasheet |
VXG | Bulk | Active | 390 µF | ±20% | 250 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.84 A @ 120 Hz | 2.76 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
LKX2D561MESY50CAP ALUM 560UF 20% 200V SNAP TH |
0 |
|
Datasheet |
LKX | Bulk | Active | 560 µF | ±20% | 200 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | Audio | 1.6 A @ 120 Hz | 2.4 A @ 50 kHz | - | 0.394" (10.00mm) | 0.787" Dia (20.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
LKX2D561MESZ40CAP ALUM 560UF 20% 200V SNAP TH |
0 |
|
Datasheet |
LKX | Bulk | Active | 560 µF | ±20% | 200 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | Audio | 1.6 A @ 120 Hz | 2.4 A @ 50 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
LKX2E331MESA25CAP ALUM 330UF 20% 250V SNAP TH |
0 |
|
Datasheet |
LKX | Bulk | Active | 330 µF | ±20% | 250 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | Audio | 1.2 A @ 120 Hz | 1.8 A @ 50 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
LQS2W101MELAGCAPACITOR |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
