Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
100MXC1500MEFCSN30X25CAP ALUM 1500UF 20% 100V SNAP TH |
0 |
|
Datasheet |
MXC | Bulk | Not For New Designs | 1500 µF | ±20% | 100 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.98 A @ 120 Hz | 2.277 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
B43541A8826M060CAP ALUM SNAP |
0 |
|
Datasheet |
* | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
UVY2V221MRDCAP ALUM 220UF 20% 350V RADIAL |
0 |
|
Datasheet |
UVY | Bulk | Obsolete | 220 µF | ±20% | 350 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 540 mA @ 120 Hz | 621 mA @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
MAL213219221E3CAP ALUM 220UF 100V AXIAL TH |
0 |
|
Datasheet |
132 ALL-DIN | Bulk | Active | 220 µF | -10%, +50% | 100 V | 430mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 660 mA @ 100 Hz | - | - | - | 0.709" Dia x 1.496" L (18.00mm x 38.00mm) | - | - | Through Hole | |
|
ELXM401VSN181MR30SCAP ALUM 180UF 20% 400V SNAP TH |
0 |
|
Datasheet |
LXM | Bulk | Active | 180 µF | ±20% | 400 V | - | 7000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.01 A @ 120 Hz | 1.4443 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
PEH536JAE4470M3CAP ALUM SNAP-IN 105C |
0 |
|
Datasheet |
PEH536 | Box | Active | 4.7 mF | ±20% | 35 V | 45mOhm @ 100Hz | 4600 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.8 A @ 100 Hz | 200 mA @ 20 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
LLG2Z152MELB35CAP ALUM 1500UF 20% 180V SNAP TH |
0 |
|
Datasheet |
LLG | Bulk | Active | 1500 µF | ±20% | 180 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.3 A @ 120 Hz | 4.95 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
100MXC1800MEFCSN30X30CAP ALUM 1800UF 20% 100V SNAP TH |
0 |
|
Datasheet |
MXC | Bulk | Not For New Designs | 1800 µF | ±20% | 100 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.23 A @ 120 Hz | 2.5645 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
ELXM421VSN151MR30SCAP ALUM 150UF 20% 420V SNAP TH |
0 |
|
Datasheet |
LXM | Bulk | Active | 150 µF | ±20% | 420 V | - | 7000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 920 mA @ 120 Hz | 1.3156 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
ETXH401VSN331MR45SCAP ALUM 330UF 20% 400V SNAP TH |
0 |
|
Datasheet |
TXH | Bulk | Active | 330 µF | ±20% | 400 V | - | 10000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.29 A @ 120 Hz | 1.8447 A @ 100 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.772" (45.00mm) | - | Through Hole | |
|
UPZW6101MHDCAP ALUM 100UF 20% 420V RADIAL |
10 |
|
Datasheet |
UPZ | Bulk | Active | 100 µF | ±20% | 420 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 610 mA @ 120 Hz | 915 mA @ 10 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|

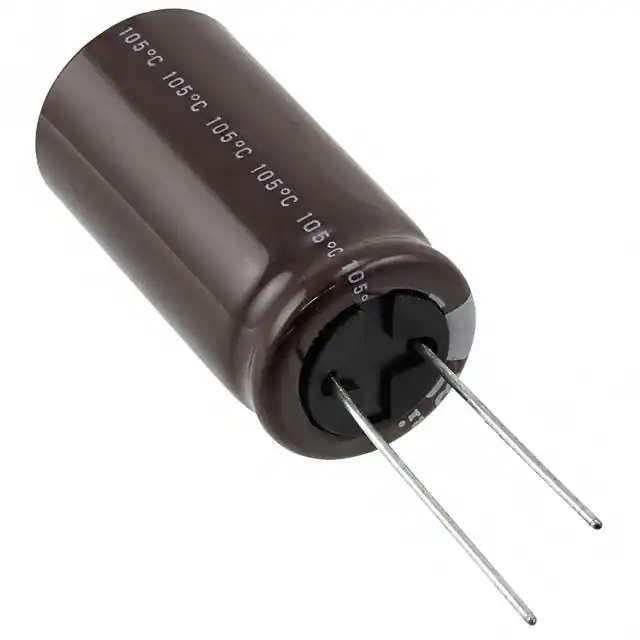

UPX1C222MHDCAP ALUM 2200UF 20% 16V RADIAL |
0 |
|
Datasheet |
UPX | Bulk | Obsolete | 2200 µF | ±20% | 16 V | - | 20000 Hrs @ 105°C | -55°C ~ 105°C | - | - | General Purpose | 1.512 A @ 120 Hz | 2.016 A @ 100 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
16SEV4700M18X21.5CAP ALUM 4700UF 20% 16V SMD |
0 |
|
Datasheet |
SEV | Tape & Reel (TR) | Active | 4700 µF | ±20% | 16 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive | 1.75 A @ 120 Hz | 2.0125 A @ 10 kHz | - | - | 0.709" Dia (18.00mm) | 0.866" (22.00mm) | 0.748" L x 0.748" W (19.00mm x 19.00mm) | Surface Mount | |
|
25MXC22000MEFCSN25X50CAP ALUM 22000UF 20% 25V SNAP TH |
0 |
|
Datasheet |
MXC | Bulk | Not For New Designs | 22000 µF | ±20% | 25 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 4.04 A @ 120 Hz | 4.646 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
MAL214661222E3CAP ALUM 2200UF 20% 50V RADIAL |
0 |
|
Datasheet |
146 RTI | Bulk | Active | 2200 µF | ±20% | 50 V | - | 6000 Hrs @ 125°C | -55°C ~ 125°C | Polar | AEC-Q200 | Automotive | 1.5 A @ 100 Hz | - | 22 mOhms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
MAL214666562E3CAP ALUM 5600UF 20% 25V RADIAL |
0 |
|
Datasheet |
146 RTI | Bulk | Active | 5600 µF | ±20% | 25 V | - | 6000 Hrs @ 125°C | -55°C ~ 125°C | Polar | AEC-Q200 | Automotive | 2.17 A @ 100 Hz | - | 19 mOhms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
MAL214668122E3CAP ALUM 1200UF 20% 63V RADIAL |
0 |
|
Datasheet |
146 RTI | Bulk | Active | 1200 µF | ±20% | 63 V | - | 6000 Hrs @ 125°C | -55°C ~ 125°C | Polar | AEC-Q200 | Automotive | 1.3 A @ 100 Hz | - | 29 mOhms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
400VXG180MEFCSN30X25CAP ALUM 180UF 20% 400V SNAP TH |
0 |
|
Datasheet |
VXG | Bulk | Active | 180 µF | ±20% | 400 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.16 A @ 120 Hz | 1.624 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
ALA8AD121BC500CAP ALUM 500V POLAR |
0 |
|
Datasheet |
ALA8A | Bulk | Active | 120 µF | ±20% | 500 V | 1.73Ohm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.1 A @ 100 Hz | 2.5 A @ 10 kHz | 1.272 Ohms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
ALA8AF121BC500CAP ALUM 500V POLAR |
0 |
|
Datasheet |
ALA8A | Bulk | Active | 120 µF | ±20% | 500 V | 1.73Ohm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.1 A @ 100 Hz | 2.5 A @ 10 kHz | 1.272 Ohms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.457" (37.00mm) | - | Through Hole |
