Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MAL225753391E3CAP ALUM 390UF 20% 250V SNAP TH |
0 |
|
- |
257 PRM-SI | Box | Active | 390 µF | ±20% | 250 V | 310mOhm @ 100Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.9 A @ 100 Hz | 2.66 A @ 10 kHz | 200 mOhms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
ELD337M400AT3AACAP ALUM SNAP-IN 105C |
0 |
|
Datasheet |
ELD | Bulk | Active | 330 µF | ±20% | 400 V | 603mOhm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.5 A @ 120 Hz | 2.1 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
478TMA035MELECTROLYTIC/IC |
0 |
|
Datasheet |
TMA | Bulk | Active | 4.7 mF | ±20% | 35 V | 78mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.74 A @ 120 Hz | 2.001 mA @ 50 kHz | - | - | 0.866" Dia x 1.614" L (22.00mm x 41.00mm) | - | - | Through Hole | |
|
MAL214251016E3CAP ALUM 100UF 20% 400V RADIAL |
0 |
|
Datasheet |
142 RHS | Bulk | Active | 100 µF | ±20% | 400 V | - | 2500 Hrs @ 105°C | -40°C ~ 105°C | - | - | General Purpose | - | 715.5 mA @ 10 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
SLP103M050E9P3CAP ALUM 10000UF 20% 50V SNAP TH |
0 |
|
Datasheet |
SLP0712TE (750W) | Bulk | Active | 10000 µF | ±20% | 50 V | 46mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 4.51 A @ 120 Hz | 5.64 A @ 20 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.969" (50.00mm) | - | Through Hole | |
|
|
381LQ331M315J042CAP ALUM 330UF 20% 315V SNAP TH |
0 |
|
Datasheet |
381LQ | Bulk | Active | 330 µF | ±20% | 315 V | 600mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.2 A @ 120 Hz | 1.68 A @ 20 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|

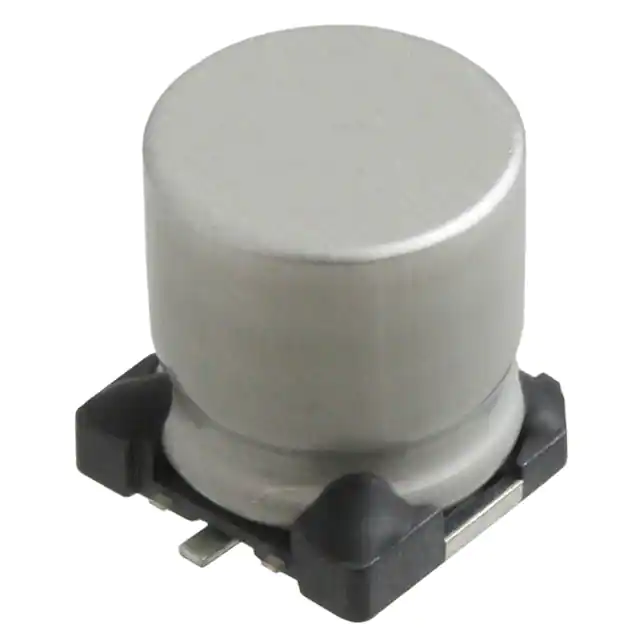

MAL215099117E3CAP ALUM 1500UF 20% 50V SMD |
0 |
|
Datasheet |
150 CRZ | Tape & Reel (TR) | Active | 1500 µF | ±20% | 50 V | - | 10000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 882 mA @ 100 Hz | - | 80 mOhms | - | 0.709" Dia (18.00mm) | 0.866" (22.00mm) | 0.709" L x 0.709" W (18.00mm x 18.00mm) | Surface Mount | |
|
|
PEH536VAG3150M2CAP ALUM SNAP-IN 105C |
0 |
|
Datasheet |
PEH536 | Box | Active | 150 µF | ±20% | 400 V | 580mOhm @ 100Hz | 4600 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 800 mA @ 100 Hz | 6.1 A @ 20 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
400MXG180MEFCSN30X25CAP ALUM 180UF 20% 400V SNAP TH |
0 |
|
Datasheet |
MXG | Bulk | Active | 180 µF | ±20% | 400 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.18 A @ 120 Hz | 1.652 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
LHM471M2V---2550SCAP ALUM 350V POLAR |
0 |
|
- |
LHM | Active | 470 µF | ±20% | 350 V | 423mOhm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.4 A @ 120 Hz | 1.96 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 2.047" (52.00mm) | - | Through Hole | ||
|
|
LSG331M2G---3040SCAP ALUM 400V POLAR |
0 |
|
- |
LSG | Active | 330 µF | ±20% | 400 V | 603mOhm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.36 A @ 120 Hz | 1.9448 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | ||
|
|
LSM271M2P---3040SCAP ALUM 420V POLAR |
0 |
|
- |
LSM | Active | 270 µF | ±20% | 420 V | 737mOhm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.22 A @ 120 Hz | 1.708 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | ||
|
380LX471M250H452CAP ALUM 470UF 20% 250V SNAP TH |
0 |
|
Datasheet |
380LX | Bulk | Obsolete | 470 µF | ±20% | 250 V | 390mOhm | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.1 A @ 120 Hz | - | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
ELBK250ELL752AM25SCAP ALUM 7500UF 25V RADIAL TH |
16 |
|
Datasheet |
LBK | Bulk | Obsolete | 7500 µF | 0%, +30% | 25 V | 22mOhm @ 100kHz | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 2.38 A @ 120 Hz | 2.8 A @ 100 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|

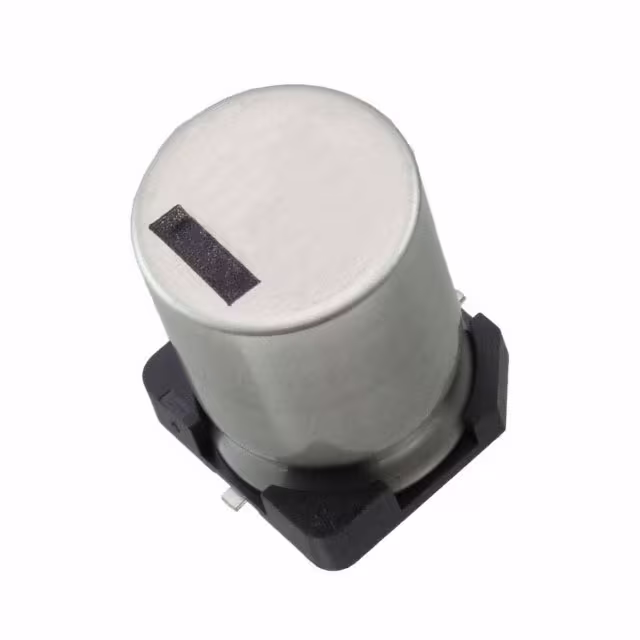

35TGV1500M16X21.5CAP ALUM 1500UF 20% 35V SMD |
0 |
|
Datasheet |
TGV | Tape & Reel (TR) | Active | 1500 µF | ±20% | 35 V | 41mOhm @ 100kHz | 5000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 990 mA @ 120 Hz | 1.65 A @ 100 kHz | - | - | 0.630" Dia (16.00mm) | 0.866" (22.00mm) | 0.669" L x 0.669" W (17.00mm x 17.00mm) | Surface Mount | |
|
MAL215299703E3CAP ALUM 5.6UF 20% 450V SMD |
0 |
|
Datasheet |
152 CME | Tape & Reel (TR) | Active | 5.6 µF | ±20% | 450 V | - | 4000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 65 mA @ 100 Hz | 162.5 mA @ 30 kHz | 5.2 Ohms | - | 0.492" Dia (12.50mm) | 0.650" (16.50mm) | 0.508" L x 0.508" W (12.90mm x 12.90mm) | Surface Mount | |
|
MAL219299603E3CAP ALUM 5.6UF 20% 400V SMD |
0 |
|
Datasheet |
192 CTX | Tape & Reel (TR) | Active | 5.6 µF | ±20% | 400 V | - | 1500 Hrs @ 105°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 65 mA @ 100 Hz | 162.5 mA @ 30 kHz | 5.2 Ohms | - | 0.492" Dia (12.50mm) | 0.650" (16.50mm) | 0.508" L x 0.508" W (12.90mm x 12.90mm) | Surface Mount | |
|
|
227LBA450M2CFCAP ALUM 220UF 20% 450V SNAP TH |
0 |
|
Datasheet |
LBA | Bulk | Active | 220 µF | ±20% | 450 V | 1.50715Ohm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.59 A @ 120 Hz | 2.3373 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
80MXC3300MEFCSN30X35CAP ALUM 3300UF 20% 80V SNAP TH |
0 |
|
Datasheet |
MXC | Bulk | Not For New Designs | 3300 µF | ±20% | 80 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.64 A @ 120 Hz | 3.036 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
B43544E5227M000CAP ALUM 220UF 20% 450V SNAP TH |
0 |
|
- |
B43544 | Bulk | Active | 220 µF | ±20% | 450 V | 460mOhm @ 100Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.53 A @ 100 Hz | - | 710 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.850" (47.00mm) | - | Through Hole |
