Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MAL219367829E3CAP ALUM 82UF 20% 450V SNAP TH |
0 |
|
- |
193 PUR-SI | Box | Active | 82 µF | ±20% | 450 V | 890mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 800 mA @ 100 Hz | 1.2 A @ 10 kHz | 490 mOhms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
MAL219317829E3CAP ALUM 82UF 20% 450V SNAP TH |
0 |
|
- |
193 PUR-SI | Box | Active | 82 µF | ±20% | 450 V | 910mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 800 mA @ 100 Hz | 1.2 A @ 10 kHz | 500 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
B43642C5157M000CAP ALUM 150UF 20% 450V SNAP TH |
0 |
|
Datasheet |
B43642 | Bulk | Active | 150 µF | ±20% | 450 V | 570mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 970 mA @ 100 Hz | - | 820 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
ELXM181VSN681MR30SCAP ALUM 680UF 20% 180V SNAP TH |
0 |
|
Datasheet |
LXM | Bulk | Active | 680 µF | ±20% | 180 V | - | 7000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.79 A @ 120 Hz | 2.685 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
B41231C8688M067CAP ALUM 63V POLAR |
0 |
|
Datasheet |
B41231 | Bulk | Active | 6.8 mF | ±20% | 63 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 5.04 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
63USC6800MEFCSN30X40CAP ALUM 6800UF 20% 63V SNAP TH |
0 |
|
Datasheet |
USC | Bulk | Not For New Designs | 6800 µF | ±20% | 63 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.41 A @ 120 Hz | 5.0715 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
400MXH220MEFCSN25X30CAP ALUM 220UF 20% 400V SNAP TH |
0 |
|
Datasheet |
MXH | Bulk | Active | 220 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.3 A @ 120 Hz | 1.82 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
180RX30330MDLC18X45CAP ALUM 330UF 20% 180V RADIAL |
0 |
|
Datasheet |
RX30 | Bulk | Active | 330 µF | ±20% | 180 V | - | 2000 Hrs @ 130°C | -25°C ~ 130°C | Polar | AEC-Q200 | Automotive | - | - | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
|
10MXC12000MEFC20X35CAP ALUM 12000UF 20% 10V SNAP TH |
0 |
|
Datasheet |
MXC | Bulk | Not For New Designs | 12000 µF | ±20% | 10 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.18 A @ 120 Hz | 2.507 A @ 10 kHz | - | 0.394" (10.00mm) | 0.787" Dia (20.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
315MXC120MEFC20X30CAP ALUM 120UF 20% 315V SNAP TH |
0 |
|
Datasheet |
MXC | Bulk | Not For New Designs | 120 µF | ±20% | 315 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 750 mA @ 120 Hz | 1.05 A @ 10 kHz | - | 0.394" (10.00mm) | 0.787" Dia (20.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
350VXS330MEFC35X30CAP ALUM 330UF 20% 350V SNAP TH |
0 |
|
Datasheet |
VXS | Bulk | Not For New Designs | 330 µF | ±20% | 350 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.75 A @ 120 Hz | 2.45 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
80USC4700MEFC25X45CAP ALUM 4700UF 20% 80V SNAP TH |
0 |
|
Datasheet |
USC | Bulk | Not For New Designs | 4700 µF | ±20% | 80 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.28 A @ 120 Hz | 4.922 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
MAL204246229E3CAP ALUM 22UF 400V AXIAL TH |
0 |
|
Datasheet |
042 ASH | Tape & Box (TB) | Active | 22 µF | -10%, +50% | 400 V | 3.5Ohm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 290 mA @ 100 Hz | - | 2.1 Ohms | 0.768" (19.50mm) | 0.709" Dia (18.00mm) | 1.299" (33.00mm) | - | Through Hole | |
|
UVY2E471MRDCAP ALUM 470UF 20% 250V RADIAL |
0 |
|
Datasheet |
UVY | Bulk | Obsolete | 470 µF | ±20% | 250 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1 A @ 120 Hz | 1.15 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
400SXC180MEFCSN25X40CAP ALUM 180UF 20% 400V SNAP TH |
0 |
|
Datasheet |
SXC | Bulk | Active | 180 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 940 mA @ 120 Hz | 1.081 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
AFK477M80R44VT-FCAP ALUM 470UF 20% 80V SMD |
0 |
|
Datasheet |
AFK_V | Tape & Reel (TR) | Active | 470 µF | ±20% | 80 V | 150mOhm @ 100kHz | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, Bypass, Decoupling | 687.75 mA @ 120 Hz | - | 150 mOhms | - | 0.709" Dia (18.00mm) | 0.681" (17.30mm) | 0.748" L x 0.827" W (19.00mm x 21.00mm) | Surface Mount | |
|
25PK10000MGC18X35.5CAP ALUM 10000UF 20% 25V RADIAL |
0 |
|
Datasheet |
PK | Tape & Reel (TR) | Obsolete | 10000 µF | ±20% | 25 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.9 A @ 120 Hz | 3.335 A @ 10 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
B43501A9686M000CAP ALUM 68UF 20% 400V SNAP TH |
0 |
|
Datasheet |
B43501 | Bulk | Not For New Designs | 68 µF | ±20% | 400 V | 980mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 610 mA @ 100 Hz | - | 1.56 Ohms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|

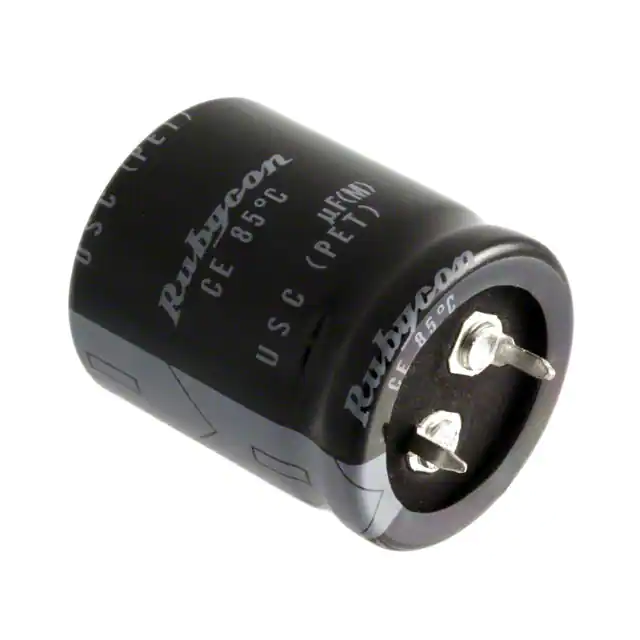

35USC4700MEFCSN25X25CAP ALUM 4700UF 20% 35V SNAP TH |
0 |
|
Datasheet |
USC | Bulk | Not For New Designs | 4700 µF | ±20% | 35 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.063" (27.00mm) | - | Through Hole | |
.JPG)
|
10TRV4700M18X16.5CAP ALUM 4700UF 20% 10V SMD |
0 |
|
Datasheet |
TRV | Tape & Reel (TR) | Active | 4700 µF | ±20% | 10 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 930 mA @ 120 Hz | 1.55 A @ 100 kHz | 64 mOhms | - | 0.709" Dia (18.00mm) | 0.669" (17.00mm) | 0.748" L x 0.748" W (19.00mm x 19.00mm) | Surface Mount |
