Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
400HXC180MEFC25X40CAP ALUM 180UF 20% 400V SNAP TH |
0 |
|
Datasheet |
HXC | Bulk | Active | 180 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.61 A @ 120 Hz | 2.254 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
TVAN1112CAP ALUM 8UF 10V AXIAL TH |
0 |
|
Datasheet |
TVA ATOM® | Bulk | Active | 8 µF | - | 10 V | - | - | - | Bi-Polar | - | Audio | - | - | - | - | - | - | - | Through Hole | |
|
|
TVAN1150CAP ALUM 4UF 15V AXIAL TH |
0 |
|
Datasheet |
TVA ATOM® | Bulk | Active | 4 µF | - | 15 V | - | - | - | Bi-Polar | - | Audio | - | - | - | - | - | - | - | Through Hole | |
|
|
TVAN1203.1CAP ALUM 5UF 25V AXIAL TH |
0 |
|
Datasheet |
TVA ATOM® | Bulk | Active | 5 µF | - | 25 V | - | - | - | Bi-Polar | - | Audio | - | - | - | - | - | - | - | Through Hole | |
|
380LQ471M315K022CAP ALUM 470UF 20% 315V SNAP TH |
0 |
|
Datasheet |
380LQ | Bulk | Active | 470 µF | ±20% | 315 V | 423mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.27 A @ 120 Hz | 3.18 A @ 20 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
380LX122M160K032CAP ALUM 1200UF 20% 160V SNAP TH |
0 |
|
Datasheet |
380LX | Bulk | Active | 1200 µF | ±20% | 160 V | 210mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.25 A @ 120 Hz | 4.55 A @ 20 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
PEH532VAG3220M2CAP ALUM SNAP-IN 105C |
0 |
|
Datasheet |
PEH532 | Box | Active | 220 µF | ±20% | 400 V | 510mOhm @ 100Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1 A @ 100 Hz | 2.7 A @ 20 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|

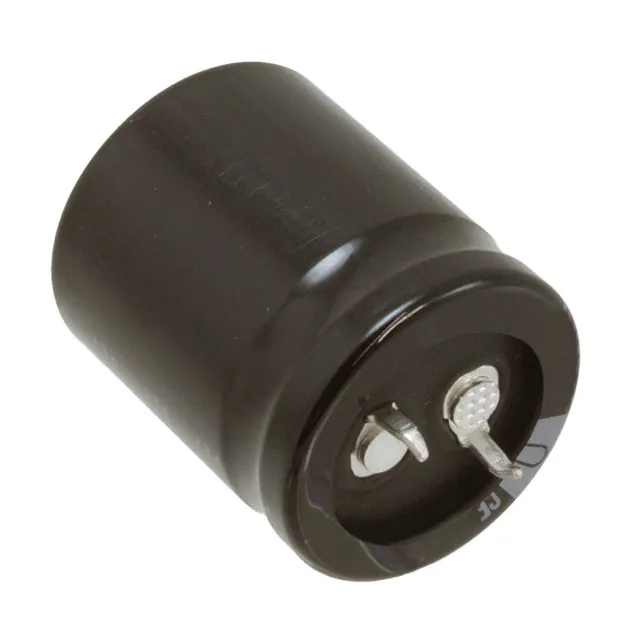

LAQ2G121MELA30CAP ALUM 120UF 20% 400V SNAP TH |
0 |
|
Datasheet |
LAQ | Bulk | Active | 120 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 760 mA @ 120 Hz | 874 mA @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
LAQ2D561MELA35CAP ALUM 560UF 20% 200V SNAP TH |
0 |
|
Datasheet |
LAQ | Bulk | Active | 560 µF | ±20% | 200 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.6 A @ 120 Hz | 1.92 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
LAQ2P391MELA35CAP ALUM 390UF 20% 220V SNAP TH |
0 |
|
Datasheet |
LAQ | Bulk | Active | 390 µF | ±20% | 220 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.35 A @ 120 Hz | 1.62 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
B43630B9227M000CAP ALUM 220UF 20% 400V SNAP TH |
0 |
|
Datasheet |
B43630 | Bulk | Active | 220 µF | ±20% | 400 V | 470mOhm @ 100Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.41 A @ 100 Hz | - | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
50MXC8200MEFCSN35X30CAP ALUM 8200UF 20% 50V SNAP TH |
0 |
|
Datasheet |
MXC | Bulk | Not For New Designs | 8200 µF | ±20% | 50 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.6 A @ 120 Hz | 4.14 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
SLP182M160H7P3CAP ALUM 1800UF 20% 160V SNAP TH |
0 |
|
Datasheet |
SLP0712TE (750W) | Bulk | Active | 1800 µF | ±20% | 160 V | 111mOhm | 3000 Hrs @ 105°C | -25°C ~ 105°C | - | - | General Purpose | - | - | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.575" (40.00mm) | - | Through Hole | |
|
|
380LX271M420J452CAP ALUM 270UF 20% 420V SNAP TH |
0 |
|
Datasheet |
380LX | Bulk | Active | 270 µF | ±20% | 420 V | 740mOhm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.7 A @ 120 Hz | - | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
LAK2G221MELA45CAP ALUM 220UF 20% 400V SNAP TH |
0 |
|
Datasheet |
LAK | Bulk | Active | 220 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 900 mA @ 120 Hz | 1.035 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
ALC70D181BD450CAP ALUM 180UF 20% 450V SNAP TH |
0 |
|
Datasheet |
ALC70 | Bulk | Active | 180 µF | ±20% | 450 V | 778mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.22 A @ 100 Hz | 2.94 A @ 10 kHz | 437 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
ALC70F181BD450CAP ALUM 180UF 20% 450V SNAP TH |
0 |
|
Datasheet |
ALC70 | Bulk | Active | 180 µF | ±20% | 450 V | 778mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.22 A @ 100 Hz | 2.94 A @ 10 kHz | 437 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
ESMQ630ELL472MP50SCAP ALUM 4700UF 20% 63V RADIAL |
0 |
|
Datasheet |
SMQ | Bulk | Active | 4700 µF | ±20% | 63 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
MAL209456151E3CAP ALUM 150UF 20% 400V SNAP TH |
0 |
|
Datasheet |
094 PME-SI | Tape & Box (TB) | Active | 150 µF | ±20% | 400 V | 920mOhm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 920 mA @ 120 Hz | - | 690 mOhms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
ALC70D221BD400CAP ALUM 220UF 20% 400V SNAP TH |
0 |
|
Datasheet |
ALC70 | Bulk | Active | 220 µF | ±20% | 400 V | 624mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.31 A @ 100 Hz | 3.2 A @ 10 kHz | 328 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole |
