Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ALC70F221BD400CAP ALUM 220UF 20% 400V SNAP TH |
0 |
|
Datasheet |
ALC70 | Bulk | Active | 220 µF | ±20% | 400 V | 624mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.31 A @ 100 Hz | 3.2 A @ 10 kHz | 328 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|

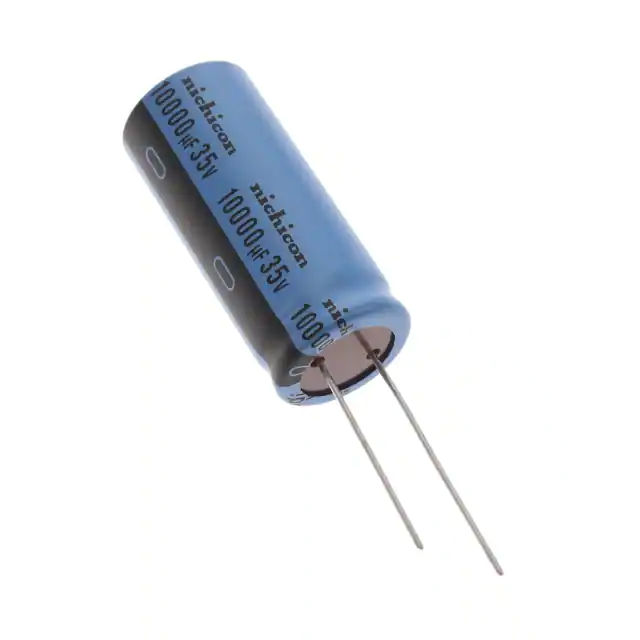

UKT1V103MRDCAP ALUM 10000UF 20% 35V RADIAL |
0 |
|
Datasheet |
UKT | Bulk | Obsolete | 10000 µF | ±20% | 35 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | Audio | 2.65 A @ 120 Hz | 3.048 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 2.028" (51.50mm) | - | Through Hole | |
|
160USG1200MEFCSN25X35CAP ALUM 1200UF 20% 160V SNAP TH |
0 |
|
Datasheet |
USG | Bulk | Active | 1200 µF | ±20% | 160 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.25 A @ 120 Hz | 4.875 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
LKG1H222MESBCKCAP ALUM 2200UF 20% 50V SNAP TH |
0 |
|
Datasheet |
LKG | Bulk | Obsolete | 2200 µF | ±20% | 50 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 2.6 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
ELXS161VSN182MQ50SCAP ALUM 1800UF 20% 160V SNAP TH |
0 |
|
Datasheet |
LXS | Bulk | Active | 1800 µF | ±20% | 160 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 3.4 A @ 120 Hz | 5.1 A @ 50 kHz | - | 0.394" (10.00mm) | 1.000" Dia (25.40mm) | 2.067" (52.50mm) | - | Through Hole | |
|
B43642A9277M000CAP ALUM 270UF 20% 400V SNAP TH |
0 |
|
- |
B43642 | Bulk | Active | 270 µF | ±20% | 400 V | 370mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.25 A @ 100 Hz | - | 550 mOhms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
|
630D107G030DD2ACAP ALUM 100UF 30V AXIAL TH |
0 |
|
Datasheet |
630D | Bulk | Active | 100 µF | - | 30 V | - | - | -55°C ~ 125°C | Polar | - | General Purpose | - | - | - | - | 0.374" Dia x 0.945" L (9.50mm x 24.00mm) | - | - | Through Hole | |
|
PL2W221VND2245RCAP ALUM 220UF 450V SNAP TH |
9 |
|
Datasheet |
PL | Bulk | Active | 220 µF | -10%, +20% | 450 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | - | 3.25 A @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
EEV-EB2G100SMCAP ALUM 10UF 20% 400V SMD |
0 |
|
Datasheet |
EB | Tape & Reel (TR) | Obsolete | 10 µF | ±20% | 400 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 125 mA @ 120 Hz | 250 mA @ 100 kHz | - | - | 0.630" Dia (16.00mm) | 0.669" (17.00mm) | 0.669" L x 0.669" W (17.00mm x 17.00mm) | Surface Mount | |
|
|
EKHS501VSN820MQ25SCAP ALUM 82UF 20% 500V SNAP TH |
0 |
|
- |
KHS | Bulk | Active | 82 µF | ±20% | 500 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 720 mA @ 120 Hz | 1.0296 A @ 50 kHz | - | 0.394" (10.00mm) | 1.000" Dia (25.40mm) | 0.984" (25.00mm) | - | Through Hole | |
|
8-1879295-7CAP ALUM 10000UF 20% 50V AXIAL |
0 |
|
Datasheet |
TYAV, Neohm | Bulk | Obsolete | 10000 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | - | - | General Purpose | - | - | - | - | 0.984" Dia x 2.047" L (25.00mm x 52.00mm) | - | - | Through Hole | |
|
|
1879296-9CAP ALUM 6800UF 20% 63V AXIAL TH |
0 |
|
Datasheet |
TYAV, Neohm | Bulk | Obsolete | 6800 µF | ±20% | 63 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | - | - | General Purpose | - | - | - | - | 0.984" Dia x 2.047" L (25.00mm x 52.00mm) | - | - | Through Hole | |
|
LKG1C472MESBCKCAP ALUM 4700UF 20% 16V SNAP TH |
0 |
|
Datasheet |
LKG | Bulk | Obsolete | 4700 µF | ±20% | 16 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 2.7 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
LSM272M2A---3535SCAP ALUM 100V POLAR |
0 |
|
- |
LSM | Active | 2.7 mF | ±20% | 100 V | 98mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.82 A @ 120 Hz | 3.948 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | ||
|
|
ALC40A820BD500CAP ALUM SNAP-IN 105C |
0 |
|
Datasheet |
ALC40 | Box | Active | 82 µF | ±20% | 500 V | 2.69Ohm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 970 mA @ 100 Hz | 2.05 A @ 10 kHz | 2.17 Ohms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
380LX151M400A202CAP ALUM 150UF 20% 400V SNAP TH |
0 |
|
Datasheet |
380LX | Bulk | Obsolete | 150 µF | ±20% | 400 V | 1.33Ohm | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 600 mA @ 120 Hz | - | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
380LQ331M450K032CAP ALUM 330UF 20% 450V SNAP TH |
0 |
|
Datasheet |
380LQ | Bulk | Active | 330 µF | ±20% | 450 V | 603mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.9 A @ 120 Hz | 2.6 A @ 20 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
LKG1E332MESACKCAP ALUM 3300UF 20% 25V SNAP TH |
0 |
|
Datasheet |
LKG | Bulk | Obsolete | 3300 µF | ±20% | 25 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 2.45 A @ 120 Hz | - | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
B43508B2477M000CAP ALUM 470UF 20% 200V SNAP TH |
0 |
|
Datasheet |
B43508 | Bulk | Active | 470 µF | ±20% | 200 V | 250mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.35 A @ 100 Hz | - | 340 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
PEH526MCB418AM3CAP ALUM SNAP-IN HIGH RIPPLE |
0 |
|
Datasheet |
PEH526 | Box | Active | 1.8 mF | ±20% | 63 V | 76mOhm @ 100Hz | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 1.8 A @ 100 Hz | 7.7 A @ 5 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.063" (27.00mm) | - | Through Hole |
