Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MAL225756181E3CAP ALUM 180UF 20% 400V SNAP TH |
0 |
|
- |
257 PRM-SI | Box | Active | 180 µF | ±20% | 400 V | 990mOhm @ 100Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.31 A @ 100 Hz | 1.834 A @ 10 kHz | 810 mOhms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
MAL225786181E3CAP ALUM 180UF 20% 400V SNAP TH |
0 |
|
- |
257 PRM-SI | Box | Active | 180 µF | ±20% | 400 V | 1.03Ohm @ 100Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.27 A @ 100 Hz | 1.778 A @ 10 kHz | 860 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
MAL225746181E3CAP ALUM 180UF 20% 400V SNAP TH |
0 |
|
- |
257 PRM-SI | Box | Active | 180 µF | ±20% | 400 V | 1Ohm @ 100Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.23 A @ 100 Hz | 1.722 A @ 10 kHz | 820 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
MAL225766181E3CAP ALUM 180UF 20% 400V SNAP TH |
0 |
|
- |
257 PRM-SI | Box | Active | 180 µF | ±20% | 400 V | 990mOhm @ 100Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.31 A @ 100 Hz | 1.834 A @ 10 kHz | 810 mOhms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
MAL225736181E3CAP ALUM 180UF 20% 400V SNAP TH |
0 |
|
- |
257 PRM-SI | Box | Active | 180 µF | ±20% | 400 V | 1.03Ohm @ 100Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.27 A @ 100 Hz | 1.778 A @ 10 kHz | 860 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
MAL212614103E3CAP ALUM 10000UF 20% 10V AXIAL |
0 |
|
- |
126 ALX | Box | Active | 10000 µF | ±20% | 10 V | 53mOhm @ 100Hz | 8000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | Automotive | 1.88 A @ 100 Hz | 2.256 A @ 10 kHz | 29 mOhms | - | 0.709" Dia x 1.496" L (18.00mm x 38.00mm) | - | - | Through Hole | |
|
50MXC6800MEFCSN30X35CAP ALUM 6800UF 20% 50V SNAP TH |
0 |
|
Datasheet |
MXC | Bulk | Not For New Designs | 6800 µF | ±20% | 50 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.3 A @ 120 Hz | 3.795 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
PEG124KJ422AQE4CAP ALUM AXL 125C |
0 |
|
Datasheet |
PEG124 | Tray | Active | 2.2 mF | -10%, +30% | 40 V | 60mOhm @ 100Hz | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | General Purpose | 1.9 A @ 100 Hz | 3.5 A @ 5 kHz | - | - | 0.787" Dia x 1.457" L (20.00mm x 37.00mm) | - | - | Through Hole | |
|

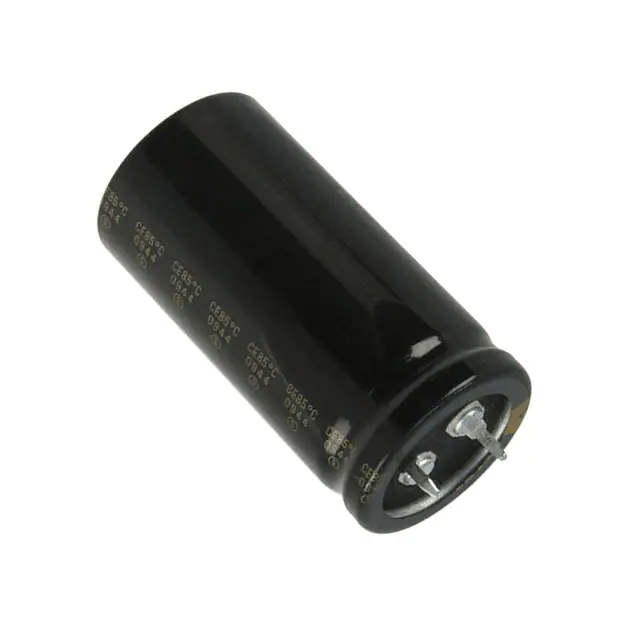

LAO-25V103MS37PX#BCAP ALUM 10000UF 20% 25V SNAP TH |
0 |
|
Datasheet |
LAO, TONEREX | Bulk | Active | 10000 µF | ±20% | 25 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 3 A @ 120 Hz | - | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.969" (50.00mm) | - | Through Hole | |
|
|
400NXG470MEFC30X50CAP ALUM 470UF 20% 400V SNAP TH |
0 |
|
Datasheet |
NXG | Bulk | Active | 470 µF | ±20% | 400 V | - | 10000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.26 A @ 120 Hz | 3.164 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
|
400SXC180MEFC25X40CAP ALUM 180UF 20% 400V SNAP TH |
0 |
|
Datasheet |
SXC | Bulk | Active | 180 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 940 mA @ 120 Hz | 1.081 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
450USG270MEFC22X50CAP ALUM 270UF 20% 450V SNAP TH |
0 |
|
Datasheet |
USG | Bulk | Active | 270 µF | ±20% | 450 V | - | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.81 A @ 120 Hz | 2.534 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
450VXG180MEFC30X30CAP ALUM 180UF 20% 450V SNAP TH |
0 |
|
Datasheet |
VXG | Bulk | Active | 180 µF | ±20% | 450 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.24 A @ 120 Hz | 1.736 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
ELXM451VSN181MR35SCAP ALUM 180UF 20% 450V SNAP TH |
0 |
|
Datasheet |
LXM | Bulk | Active | 180 µF | ±20% | 450 V | - | 7000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.05 A @ 120 Hz | 1.5015 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
LGG2E821MELB35CAP ALUM 820UF 20% 250V SNAP TH |
0 |
|
Datasheet |
LGG | Bulk | Active | 820 µF | ±20% | 250 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2 A @ 120 Hz | 3 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.378" (35.00mm) | - | Through Hole | |
|
|
510DX227M050DG2DCAP ALUM 220UF 20% 50V RADIAL TH |
0 |
|
Datasheet |
510DX | Bulk | Active | 220 µF | ±20% | 50 V | 543mOhm @ 120Hz | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | General Purpose | 597 mA @ 120 Hz | 892 mA @ 40 kHz | 218 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.906" (23.00mm) | - | Through Hole | |
|
|
25MXC22000MEFCSN30X35CAP ALUM 22000UF 20% 25V SNAP TH |
0 |
|
Datasheet |
MXC | Bulk | Not For New Designs | 22000 µF | ±20% | 25 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 4.04 A @ 120 Hz | 4.646 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
ERLA181LIN132KR45MCAP ALUM 1300UF 10% 180V SNAP TH |
0 |
|
Datasheet |
RLA | Bulk | Active | 1300 µF | ±10% | 180 V | - | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 5.64 A @ 120 Hz | 8.46 A @ 50 kHz | - | 0.559" (14.20mm) | 1.181" Dia (30.00mm) | 1.870" (47.50mm) | - | Through Hole | |
|
ESMR421VSN471MQ50SCAP ALUM 470UF 20% 420V SNAP TH |
0 |
|
Datasheet |
SMR | Bulk | Active | 470 µF | ±20% | 420 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.77 A @ 120 Hz | 3.9611 A @ 50 kHz | - | 0.394" (10.00mm) | 1.000" Dia (25.40mm) | 2.067" (52.50mm) | - | Through Hole | |
|
|
B43644E5187M060CAP ALUM 450V POLAR |
0 |
|
Datasheet |
B43644 | Bulk | Active | 180 µF | ±20% | 450 V | 590mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1 A @ 100 Hz | - | 890 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.063" (27.00mm) | - | Through Hole |
