Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ALC40D182CD100CAP ALUM SNAP-IN 105C |
0 |
|
Datasheet |
ALC40 | Box | Active | 1.8 mF | ±20% | 100 V | 162mOhm @ 100Hz | 7000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.18 A @ 100 Hz | 2.8 A @ 10 kHz | 125 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
385MXC270MEFCSN30X35CAP ALUM 270UF 20% 385V SNAP TH |
0 |
|
Datasheet |
MXC | Bulk | Not For New Designs | 270 µF | ±20% | 385 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.15 A @ 120 Hz | 1.61 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
ELXS201VSN102MA25SCAP ALUM 1000UF 20% 200V SNAP TH |
0 |
|
Datasheet |
LXS | Bulk | Active | 1000 µF | ±20% | 200 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.66 A @ 120 Hz | 3.99 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.083" (27.50mm) | - | Through Hole | |
|
|
16MXC33000MEFCSN35X30CAP ALUM 33000UF 20% 16V SNAP TH |
0 |
|
Datasheet |
MXC | Bulk | Not For New Designs | 33000 µF | ±20% | 16 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 4.3 A @ 120 Hz | 4.945 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
PEG124EL4330QE4CAP ALUM 10V POLAR |
0 |
|
Datasheet |
PEG124 | Tray | Active | 3.3 mF | -10%, +30% | 10 V | 70mOhm @ 100Hz | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | General Purpose | 2.088 A @ 100 Hz | 3.2 A @ 5 kHz | - | - | 0.787" Dia x 1.811" L (20.00mm x 46.00mm) | - | - | Through Hole | |
|
B43547F2477M080CAP ALUM 470UF 20% 250V SNAP TH |
0 |
|
Datasheet |
B43547 | Tray | Active | 470 µF | ±20% | 250 V | 150mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.96 A @ 100 Hz | - | 200 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.268" (32.20mm) | - | Through Hole | |
|

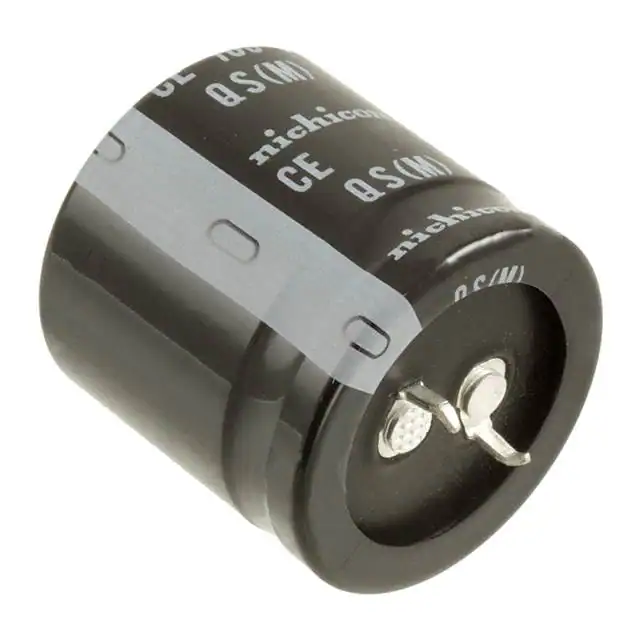

LQS2W221MELB30CAP ALUM 220UF 20% 450V SNAP TH |
0 |
|
Datasheet |
LQS | Bulk | Active | 220 µF | ±20% | 450 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.05 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
REA2550681M200BCAP ALUM 200V POLAR |
0 |
|
Datasheet |
REA | Bulk | Active | 680 µF | ±20% | 200 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.55 A @ 120 Hz | 2.17 A @ 10 kHz | - | 0.492" (12.50mm) | 0.984" Dia (25.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
ELXS161VSN182MR40SCAP ALUM 1800UF 20% 160V SNAP TH |
0 |
|
Datasheet |
LXS | Bulk | Active | 1800 µF | ±20% | 160 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 3.57 A @ 120 Hz | 5.355 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.673" (42.50mm) | - | Through Hole | |
|
EKMM451VNN471MA50WCAP ALUM 470UF 20% 450V SNAP TH |
0 |
|
Datasheet |
KMM | Bulk | Active | 470 µF | ±20% | 450 V | 705mOhm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.85 A @ 120 Hz | 2.6455 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
|
PEH506PBG4220M2SCAP ALUM SNAP-IN 85C |
0 |
|
Datasheet |
PEH506 | Box | Active | 2.2 mF | ±20% | 100 V | 100mOhm @ 100Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.6 A @ 100 Hz | 8.5 A @ 100 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
|
PEH536JBG5100M2CAP ALUM SNAP-IN 105C |
0 |
|
Datasheet |
PEH536 | Box | Active | 10 mF | ±20% | 35 V | 27mOhm @ 100Hz | 4600 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.7 A @ 100 Hz | 12.3 A @ 20 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
|
160USC1200MEFC30X30CAP ALUM 1200UF 20% 160V SNAP TH |
0 |
|
Datasheet |
USC | Bulk | Not For New Designs | 1200 µF | ±20% | 160 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.41 A @ 120 Hz | 5.115 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
200SXG560MEFC25X30CAP ALUM 560UF 20% 200V SNAP TH |
0 |
|
Datasheet |
SXG | Bulk | Active | 560 µF | ±20% | 200 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.6 A @ 120 Hz | 2.24 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
420HXG150MEFC25X30CAP ALUM 150UF 20% 420V SNAP TH |
0 |
|
Datasheet |
HXG | Bulk | Active | 150 µF | ±20% | 420 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.51 A @ 120 Hz | 2.114 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
LSG472M2A---3540SCAP ALUM 100V POLAR |
0 |
|
- |
LSG | Active | 4.7 mF | ±20% | 100 V | 56mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.3 A @ 120 Hz | 3.96 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole | ||
|
ALC80D561CB200CAP ALUM 560UF 20% 200V SNAP TH |
0 |
|
Datasheet |
ALC80 | Bulk | Active | 560 µF | ±20% | 200 V | 376mOhm @ 100Hz | 7000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.94 A @ 100 Hz | 4.41 A @ 10 kHz | 225 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
ALC80F561CB200CAP ALUM 560UF 20% 200V SNAP TH |
0 |
|
Datasheet |
ALC80 | Bulk | Active | 560 µF | ±20% | 200 V | 376mOhm @ 100Hz | 7000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.94 A @ 100 Hz | 4.41 A @ 10 kHz | 225 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
LGG2W181MELEZSCAPACITOR |
0 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
B41689L8917Q001CAP ALUM 63V POLAR |
0 |
|
Datasheet |
B41689 | Tray | Active | 910 µF | -10%, +30% | 63 V | 69mOhm @ 100Hz | 10000 Hrs @ 125°C | -55°C ~ 125°C | Polar | AEC-Q200 | Automotive | - | 6.7 A @ 10 kHz | 22 mOhms | - | 0.709" Dia x 1.535" L (18.00mm x 39.00mm) | - | - | Through Hole |
