Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SKA471M050CAP ALUM 470UF 20% 50V AXIAL TH |
0 |
|
Datasheet |
SKA | Bulk | Obsolete | 470 µF | ±20% | 50 V | 310mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 650 mA @ 120 Hz | 747.5 mA @ 1 kHz | - | - | 0.512" Dia x 0.630" L (13.00mm x 16.00mm) | - | - | Through Hole | |
|

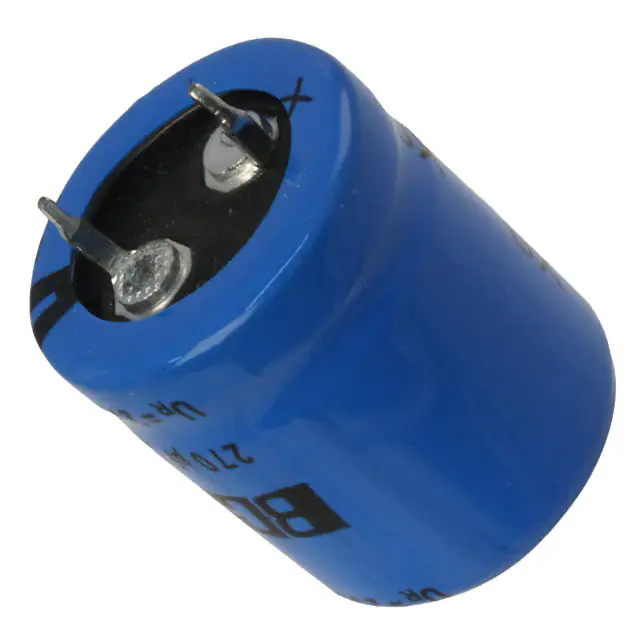

MAL215752271E3CAP ALUM 270UF 20% 200V SNAP TH |
0 |
|
Datasheet |
157 PUM-SI | Bulk | Active | 270 µF | ±20% | 200 V | 550mOhm | 5000 Hrs @ 85°C | -25°C ~ 85°C | - | - | General Purpose | - | 1.61 A @ 10 kHz | 700 mOhms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
MAL215772271E3CAP ALUM 270UF 20% 200V SNAP TH |
0 |
|
Datasheet |
157 PUM-SI | Bulk | Active | 270 µF | ±20% | 200 V | 880mOhm @ 100Hz | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.15 A @ 120 Hz | - | 700 mOhms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
MAL212648102E3CAP ALUM 1000UF 20% 63V AXIAL TH |
0 |
|
Datasheet |
126 ALX | Box | Active | 1000 µF | ±20% | 63 V | 105mOhm @ 100Hz | 8000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | Automotive | 1.46 A @ 100 Hz | 1.898 A @ 10 kHz | 49 mOhms | - | 0.709" Dia x 1.496" L (18.00mm x 38.00mm) | - | - | Through Hole | |
|
MAL212644103E3CAP ALUM 10000UF 20% 10V AXIAL |
0 |
|
Datasheet |
126 ALX | Box | Active | 10000 µF | ±20% | 10 V | 53mOhm @ 100Hz | 8000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | Automotive | 1.88 A @ 100 Hz | 2.256 A @ 10 kHz | 29 mOhms | - | 0.709" Dia x 1.496" L (18.00mm x 38.00mm) | - | - | Through Hole | |
|
|
MAL212647182E3CAP ALUM 1800UF 20% 40V AXIAL TH |
0 |
|
Datasheet |
126 ALX | Box | Active | 1800 µF | ±20% | 40 V | 76mOhm @ 100Hz | 8000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | Automotive | 1.64 A @ 100 Hz | 2.132 A @ 10 kHz | 43 mOhms | - | 0.709" Dia x 1.496" L (18.00mm x 38.00mm) | - | - | Through Hole | |
|
|
MAL212646392E3CAP ALUM 3900UF 20% 25V AXIAL TH |
0 |
|
- |
126 ALX | Box | Active | 3900 µF | ±20% | 25 V | 70mOhm @ 100Hz | 8000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | Automotive | 1.84 A @ 100 Hz | 2.208 A @ 10 kHz | 36 mOhms | - | 0.709" Dia x 1.496" L (18.00mm x 38.00mm) | - | - | Through Hole | |
|
|
MAL212645682E3CAP ALUM 6800UF 20% 16V AXIAL TH |
0 |
|
Datasheet |
126 ALX | Box | Active | 6800 µF | ±20% | 16 V | 49mOhm @ 100Hz | 8000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | Automotive | 1.93 A @ 100 Hz | 2.316 A @ 10 kHz | 35 mOhms | - | 0.709" Dia x 1.496" L (18.00mm x 38.00mm) | - | - | Through Hole | |
|
|
ALH82A910CC600CAP ALUM 91UF 20% 600V SNAP TH |
0 |
|
Datasheet |
ALH82 | Tray | Active | 91 µF | ±20% | 600 V | 1.536Ohm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.1 A @ 100 Hz | 3.12 A @ 10 kHz | 1.036 Ohms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|

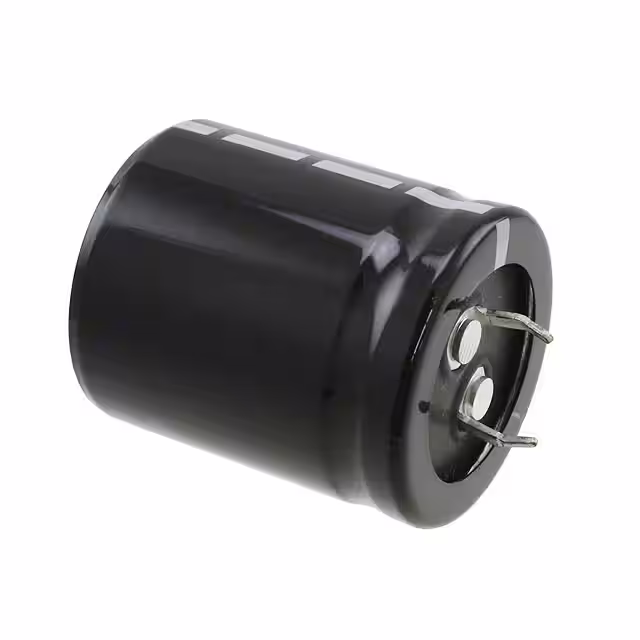

PEH536VCD3180M2CAP ALUM 180UF 20% 400V SNAP TH |
0 |
|
Datasheet |
PEH536 | Bulk | Active | 180 µF | ±20% | 400 V | 480mOhm @ 100Hz | 4600 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1 A @ 100 Hz | - | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
ALC40A680BD450CAP ALUM SNAP-IN 105C |
0 |
|
Datasheet |
ALC40 | Box | Active | 68 µF | ±20% | 450 V | 1.391Ohm @ 100Hz | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 880 mA @ 100 Hz | 2.34 A @ 10 kHz | 963 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
EKMS421VSN271MQ45SCAP ALUM 270UF 20% 420V SNAP TH |
0 |
|
Datasheet |
KMS | Bulk | Active | 270 µF | ±20% | 420 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.36 A @ 120 Hz | 1.9448 A @ 50 kHz | - | 0.394" (10.00mm) | 1.000" Dia (25.40mm) | 1.870" (47.50mm) | - | Through Hole | |
|
|
ELH337M450AS4AACAP ALUM SNAP-IN 85C |
0 |
|
Datasheet |
ELH | Bulk | Active | 330 µF | ±20% | 450 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.75 A @ 120 Hz | 2.5375 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
400HXC150MEFCSN22X45CAP ALUM 150UF 20% 400V SNAP TH |
0 |
|
Datasheet |
HXC | Bulk | Active | 150 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.43 A @ 120 Hz | 2.002 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
MAL209444151E3CAP ALUM 150UF 20% 420V SNAP TH |
0 |
|
Datasheet |
094 PME-SI | Tape & Box (TB) | Active | 150 µF | ±20% | 420 V | 860mOhm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 930 mA @ 120 Hz | - | 640 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
MAL209454151E3CAP ALUM 150UF 20% 420V SNAP TH |
0 |
|
Datasheet |
094 PME-SI | Tape & Box (TB) | Active | 150 µF | ±20% | 420 V | 910mOhm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 920 mA @ 120 Hz | - | 690 mOhms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
MAL211848331E3CAP ALUM 330UF 20% 63V TH |
0 |
|
Datasheet |
118 AHT | Tape & Reel (TR) | Active | 330 µF | ±20% | 63 V | 630mOhm @ 100Hz | 8000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | Automotive | 730 mA @ 100 Hz | - | 560 mOhms | - | 0.591" Dia (15.00mm) | 1.299" (33.00mm) | - | Through Hole | |
|
MAL225773561E3CAP ALUM 560UF 20% 250V SNAP TH |
0 |
|
- |
257 PRM-SI | Box | Active | 560 µF | ±20% | 250 V | 230mOhm @ 100Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.25 A @ 100 Hz | 3.15 A @ 10 kHz | 160 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
MAL225743561E3CAP ALUM 560UF 20% 250V SNAP TH |
0 |
|
- |
257 PRM-SI | Box | Active | 560 µF | ±20% | 250 V | 230mOhm @ 100Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.25 A @ 100 Hz | 3.15 A @ 10 kHz | 160 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
MAL225783561E3CAP ALUM 560UF 20% 250V SNAP TH |
0 |
|
- |
257 PRM-SI | Box | Active | 560 µF | ±20% | 250 V | 240mOhm @ 100Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.25 A @ 100 Hz | 3.15 A @ 10 kHz | 170 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole |
