Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
500D157G050EH2ACAP ALUM 150UF 50V AXIAL TH |
0 |
|
Datasheet |
500D | Bulk | Active | 150 µF | - | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | - | - | General Purpose | - | - | - | - | 0.433" Dia x 1.496" L (11.00mm x 38.00mm) | - | - | Through Hole | |
|
|
500D158M016EH2CAP ALUM 1500UF 20% 16V AXIAL TH |
0 |
|
Datasheet |
500D | Bulk | Active | 1500 µF | ±20% | 16 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | - | - | General Purpose | - | - | - | - | 0.433" Dia x 1.496" L (11.00mm x 38.00mm) | - | - | Through Hole | |
|
|
500D228M010EH2CAP ALUM 2200UF 20% 10V AXIAL TH |
0 |
|
Datasheet |
500D | Bulk | Active | 2200 µF | ±20% | 10 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | - | - | General Purpose | - | - | - | - | 0.433" Dia x 1.496" L (11.00mm x 38.00mm) | - | - | Through Hole | |
|
|
500D477M063EH2ACAP ALUM 470UF 20% 63V AXIAL TH |
0 |
|
Datasheet |
500D | Bulk | Active | 470 µF | ±20% | 63 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | - | - | General Purpose | - | - | - | - | 0.433" Dia x 1.496" L (11.00mm x 38.00mm) | - | - | Through Hole | |
|
|
500D567M050EH2ACAP ALUM 560UF 20% 50V AXIAL TH |
0 |
|
Datasheet |
500D | Bulk | Active | 560 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | - | - | General Purpose | - | - | - | - | 0.433" Dia x 1.496" L (11.00mm x 38.00mm) | - | - | Through Hole | |
|
|
500D687M050EH2ACAP ALUM 680UF 20% 50V AXIAL TH |
0 |
|
Datasheet |
500D | Bulk | Active | 680 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | - | - | General Purpose | - | - | - | - | 0.433" Dia x 1.496" L (11.00mm x 38.00mm) | - | - | Through Hole | |
|
TVA1164CAP ALUM 1200UF 16V AXIAL TH |
0 |
|
Datasheet |
TVA ATOM® | Bulk | Active | 1200 µF | - | 16 V | - | - | -40°C ~ 85°C | Polar | - | Audio | - | - | - | - | 0.438" Dia x 1.500" L (11.12mm x 38.10mm) | - | - | Through Hole | |
|
|
TVA1312.2CAP ALUM 350UF 50V AXIAL TH |
0 |
|
Datasheet |
TVA ATOM® | Bulk | Active | 350 µF | - | 50 V | - | - | - | Polar | - | Audio | - | - | - | - | - | - | - | Through Hole | |
|
|
TVA1319CAP ALUM 250UF 60V AXIAL TH |
0 |
|
Datasheet |
TVA ATOM® | Bulk | Active | 250 µF | - | 60 V | - | - | - | Polar | - | Audio | - | - | - | - | - | - | - | Through Hole | |
|

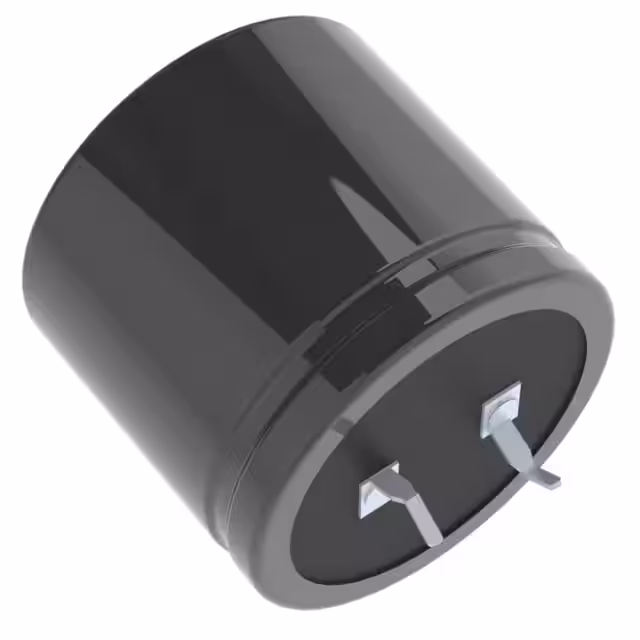

LKS1K272MESBCAP ALUM 2700UF 20% 80V SNAP TH |
0 |
|
Datasheet |
LKS | Bulk | Obsolete | 2700 µF | ±20% | 80 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 2.7 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
LKSH2392MESBCAP ALUM 3900UF 20% 71V SNAP TH |
0 |
|
Datasheet |
LKS | Bulk | Obsolete | 3900 µF | ±20% | 71 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 3.05 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
PEH532VCD3270M2CAP ALUM SNAP-IN 105C |
0 |
|
Datasheet |
PEH532 | Box | Active | 270 µF | ±20% | 400 V | 410mOhm @ 100Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.1 A @ 100 Hz | 3.1 A @ 20 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
LKG1J332MESCBKCAP ALUM 3300UF 20% 63V SNAP TH |
0 |
|
Datasheet |
LKG | Bulk | Obsolete | 3300 µF | ±20% | 63 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 3.15 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.181" (30.00mm) | - | Through Hole | |
|
LKG1K222MESBBKCAP ALUM 2200UF 20% 80V SNAP TH |
0 |
|
Datasheet |
LKG | Bulk | Obsolete | 2200 µF | ±20% | 80 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 3.15 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.575" (40.00mm) | - | Through Hole | |
|
LKG1C223MESBAKCAP ALUM 22000UF 20% 16V SNAP TH |
0 |
|
Datasheet |
LKG | Bulk | Obsolete | 22000 µF | ±20% | 16 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 2.9 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
LKG1E153MESCBKCAP ALUM 15000UF 20% 25V SNAP TH |
0 |
|
Datasheet |
LKG | Bulk | Obsolete | 15000 µF | ±20% | 25 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 4 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
LKG1H562MESCBKCAP ALUM 5600UF 20% 50V SNAP TH |
0 |
|
Datasheet |
LKG | Bulk | Obsolete | 5600 µF | ±20% | 50 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 3.6 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
LKG1J392MESBBKCAP ALUM 3900UF 20% 63V SNAP TH |
0 |
|
Datasheet |
LKG | Bulk | Obsolete | 3900 µF | ±20% | 63 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 3.35 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
LKG1K182MESCBKCAP ALUM 1800UF 20% 80V SNAP TH |
0 |
|
Datasheet |
LKG | Bulk | Obsolete | 1800 µF | ±20% | 80 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 3 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
LKG1V123MESAAKCAP ALUM 12000UF 20% 35V SNAP TH |
0 |
|
Datasheet |
LKG | Bulk | Obsolete | 12000 µF | ±20% | 35 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 3.45 A @ 120 Hz | - | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 2.047" (52.00mm) | - | Through Hole |
