Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
381LQ821M250J452CAP ALUM 820UF 20% 250V SNAP TH |
0 |
|
Datasheet |
381LQ | Bulk | Active | 820 µF | ±20% | 250 V | 202mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2 A @ 120 Hz | 2.8 A @ 20 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
180USG560MEFC22X30CAP ALUM 560UF 20% 180V SNAP TH |
0 |
|
Datasheet |
USG | Bulk | Active | 560 µF | ±20% | 180 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.25 A @ 120 Hz | 3.375 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
400VXG330MEFC25X50CAP ALUM 330UF 20% 400V SNAP TH |
0 |
|
Datasheet |
VXG | Bulk | Active | 330 µF | ±20% | 400 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.8 A @ 120 Hz | 2.52 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
380LX271M400K032CAP ALUM 270UF 20% 400V SNAP TH |
0 |
|
Datasheet |
380LX | Bulk | Active | 270 µF | ±20% | 400 V | 680mOhm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.7 A @ 120 Hz | 2.3 A @ 20 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
LGN2P122MELB40CAP ALUM 1200UF 20% 220V SNAP TH |
0 |
|
Datasheet |
LGN | Bulk | Active | 1200 µF | ±20% | 220 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.5 A @ 120 Hz | 3.75 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
400VXG270MEFCSN25X45CAP ALUM 270UF 20% 400V SNAP TH |
0 |
|
Datasheet |
VXG | Bulk | Active | 270 µF | ±20% | 400 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.61 A @ 120 Hz | 2.254 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
B43630A5277M087CAP ALUM 270UF 20% 450V SNAP TH |
0 |
|
Datasheet |
B43630 | Bulk | Active | 270 µF | ±20% | 450 V | 430mOhm @ 100Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.81 A @ 100 Hz | - | 660 mOhms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
100VXG2200MEFCSN30X40CAP ALUM 2200UF 20% 100V SNAP TH |
0 |
|
Datasheet |
VXG | Bulk | Active | 2200 µF | ±20% | 100 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.52 A @ 120 Hz | 2.898 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|

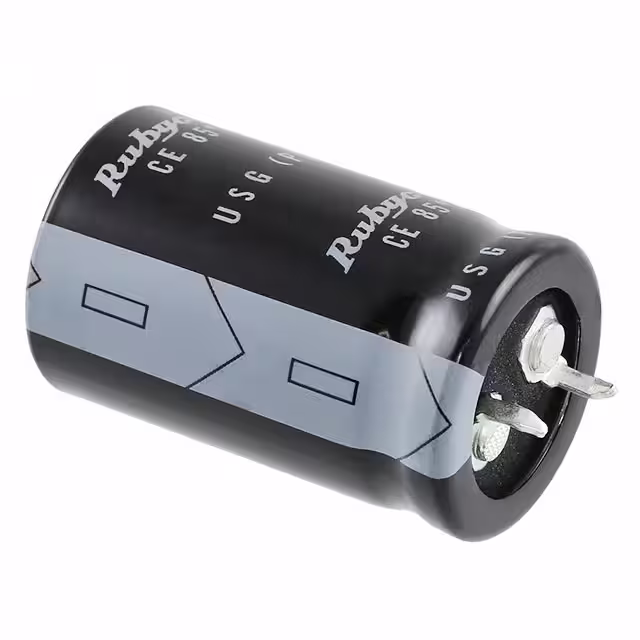

400USC150MEFCSN22X35CAP ALUM 150UF 20% 400V SNAP TH |
0 |
|
Datasheet |
USC | Bulk | Not For New Designs | 150 µF | ±20% | 400 V | - | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.24 A @ 120 Hz | 1.736 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
385USC150MEFCSN22X35CAP ALUM 150UF 20% 385V SNAP TH |
0 |
|
Datasheet |
USC | Bulk | Not For New Designs | 150 µF | ±20% | 385 V | - | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.12 A @ 120 Hz | 1.568 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
80MXC4700MEFCSN30X40CAP ALUM 4700UF 20% 80V SNAP TH |
0 |
|
Datasheet |
MXC | Bulk | Not For New Designs | 4700 µF | ±20% | 80 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.38 A @ 120 Hz | 3.887 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
B41605E5908M9CAP ALUM 9000UF 20% 25V RADIAL |
0 |
|
- |
B41605 | Bulk | Active | 9000 µF | ±20% | 25 V | 18mOhm @ 100Hz | 5000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | Automotive | - | 7.1 A @ 10 kHz | - | 0.331" (8.40mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
ELG828M063AT5AACAP ALUM SNAP-IN 105C |
0 |
|
Datasheet |
ELG | Bulk | Active | 8.2 mF | ±20% | 63 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.9 A @ 120 Hz | 4.524 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
PEG226KF3800QE4CAP ALUM 800UF 40V AXIAL TH |
0 |
|
Datasheet |
PEG226 | Bulk | Active | 800 µF | -10%, +30% | 40 V | 100mOhm @ 100Hz | 1500 Hrs @ 150°C | -40°C ~ 150°C | Polar | AEC-Q200 | Automotive | 5.67 A @ 100 Hz | 16.2 A @ 5 kHz | - | - | 0.638" Dia x 1.051" L (16.20mm x 26.70mm) | - | - | Through Hole | |
|
ELXM351VSN331MA30SCAP ALUM 330UF 20% 350V SNAP TH |
0 |
|
Datasheet |
LXM | Bulk | Active | 330 µF | ±20% | 350 V | - | 7000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.45 A @ 120 Hz | 2.0735 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
PEG124PL347VQE4CAP ALUM 470UF 100V AXIAL TH |
0 |
|
Datasheet |
PEG124 | Bulk | Active | 470 µF | -10%, +30% | 100 V | 210mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 904 mA @ 100 Hz | 1.9 A @ 5 kHz | - | - | 0.787" Dia x 1.811" L (20.00mm x 46.00mm) | - | - | Through Hole | |
|
|
ELD397M400AS6AACAP ALUM SNAP-IN 105C |
0 |
|
Datasheet |
ELD | Bulk | Active | 390 µF | ±20% | 400 V | 510mOhm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.7 A @ 120 Hz | 2.38 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
|
PK2E102MND3040RB2ALUMINUM ELECTROLYTIC CAPACITORS |
0 |
|
- |
- | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | ||
|
B43544B9227M080CAP ALUM 220UF 20% 400V SNAP TH |
0 |
|
Datasheet |
B43544 | Tray | Active | 220 µF | ±20% | 400 V | 270mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.36 A @ 100 Hz | - | 380 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.268" (32.20mm) | - | Through Hole | |
|
ALC80A752DC063CAP ALUM 7500UF 20% 63V SNAP TH |
0 |
|
Datasheet |
ALC80 | Bulk | Active | 7500 µF | ±20% | 63 V | 53mOhm @ 100Hz | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 5.9 A @ 100 Hz | 7.97 A @ 10 kHz | 41 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole |
