Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MAL215299705E3CAP ALUM 15UF 20% 450V SMD |
10 |
|
Datasheet |
152 CME | Tape & Reel (TR) | Active | 15 µF | ±20% | 450 V | - | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 110 mA @ 100 Hz | 275 mA @ 30 kHz | 2.1 Ohms | - | 0.630" Dia (16.00mm) | 0.866" (22.00mm) | 0.654" L x 0.654" W (16.60mm x 16.60mm) | Surface Mount | |
|
UVR2W470MRD6CAP ALUM 47UF 20% 450V RADIAL TH |
0 |
|
Datasheet |
UVR | Bulk | Obsolete | 47 µF | ±20% | 450 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 290 mA @ 120 Hz | 464 mA @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
250MXC1000MEFC30X45CAP ALUM 1000UF 20% 250V SNAP TH |
0 |
|
Datasheet |
MXC | Bulk | Not For New Designs | 1000 µF | ±20% | 250 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.4 A @ 120 Hz | 3.6 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
|
250USG1200MEFC35X35CAP ALUM 1200UF 20% 250V SNAP TH |
0 |
|
Datasheet |
USG | Bulk | Active | 1200 µF | ±20% | 250 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.84 A @ 120 Hz | 5.76 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
350MXC390MEFC25X50CAP ALUM 390UF 20% 350V SNAP TH |
0 |
|
Datasheet |
MXC | Bulk | Not For New Designs | 390 µF | ±20% | 350 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.45 A @ 120 Hz | 2.03 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
|
385USC100MEFC20X30CAP ALUM 100UF 20% 385V SNAP TH |
0 |
|
Datasheet |
USC | Bulk | Not For New Designs | 100 µF | ±20% | 385 V | - | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 860 mA @ 120 Hz | 1.204 A @ 10 kHz | - | 0.394" (10.00mm) | 0.787" Dia (20.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
400MXH390M30X30CAP ALUM 390UF 20% 400V SNAP TH |
0 |
|
Datasheet |
MXH | Bulk | Active | 390 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
400MXK330MEFC25X35CAP ALUM 330UF 20% 400V SNAP TH |
0 |
|
Datasheet |
MXK | Bulk | Active | 330 µF | ±20% | 400 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.65 A @ 120 Hz | 2.31 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
420USC180MEFC25X35CAP ALUM 180UF 20% 420V SNAP TH |
0 |
|
Datasheet |
USC | Bulk | Not For New Designs | 180 µF | ±20% | 420 V | - | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.42 A @ 120 Hz | 1.988 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
450MXK270MEFC25X35CAP ALUM 270UF 20% 450V SNAP TH |
0 |
|
Datasheet |
MXK | Bulk | Active | 270 µF | ±20% | 450 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.54 A @ 120 Hz | 2.156 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
80USC6800MEFC30X45CAP ALUM 6800UF 20% 80V SNAP TH |
0 |
|
Datasheet |
USC | Bulk | Not For New Designs | 6800 µF | ±20% | 80 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 5.83 A @ 120 Hz | 6.7045 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
MAL205655472E3CAP ALUM 4700UF 20% 16V SNAP TH |
0 |
|
Datasheet |
056 PSM-SI | Tape & Box (TB) | Active | 4700 µF | ±20% | 16 V | 79mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 2.01 A @ 100 Hz | - | 62 mOhms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
MAL205675472E3CAP ALUM 4700UF 20% 16V SNAP TH |
0 |
|
Datasheet |
056 PSM-SI | Tape & Box (TB) | Active | 4700 µF | ±20% | 16 V | 79mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 2.01 A @ 100 Hz | - | 62 mOhms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
MAL205972101E3CAP ALUM 100UF 20% 200V SNAP TH |
0 |
|
Datasheet |
059 PLL-SI | Tape & Box (TB) | Active | 100 µF | ±20% | 200 V | 1.28Ohm @ 100Hz | 10000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 530 mA @ 100 Hz | - | 730 mOhms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
B41252A568MCAP ALUM 5600UF 20% 80V SNAP TH |
0 |
|
Datasheet |
B41252 | Bulk | Active | 5600 µF | ±20% | 80 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
450HXC120MEFCSN25X35CAP ALUM 120UF 20% 450V SNAP TH |
0 |
|
Datasheet |
HXC | Bulk | Active | 120 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.19 A @ 120 Hz | 1.666 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|

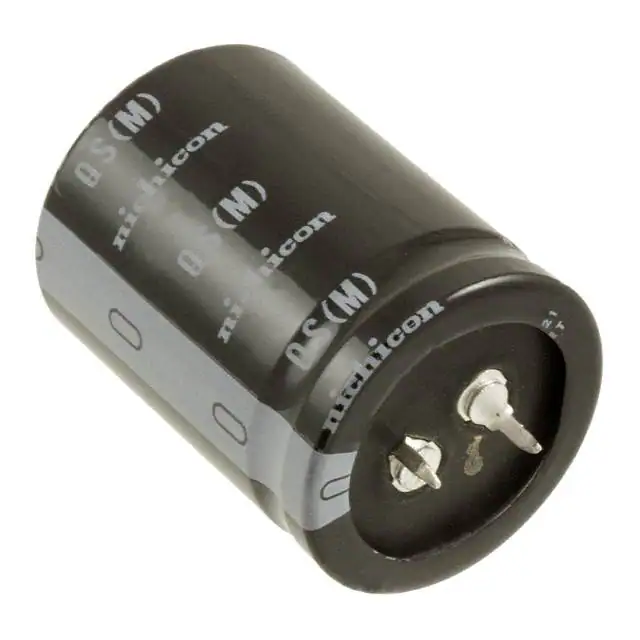

LQS2V471MELB40CAP ALUM 470UF 20% 350V SNAP TH |
0 |
|
Datasheet |
LQS | Bulk | Active | 470 µF | ±20% | 350 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.4 A @ 120 Hz | 2.002 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
LSR471M2G---3050SCAP ALUM 400V POLAR |
0 |
|
- |
LSR | Active | 470 µF | ±20% | 400 V | 254mOhm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.85 A @ 120 Hz | 3.99 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 2.047" (52.00mm) | - | Through Hole | ||
|
|
380LX471M420A452CAP ALUM 470UF 20% 420V SNAP TH |
0 |
|
Datasheet |
380LX | Bulk | Active | 470 µF | ±20% | 420 V | 420mOhm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.4 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
|
ALC40A471BD200CAP ALUM SNAP-IN 105C |
0 |
|
Datasheet |
ALC40 | Box | Active | 470 µF | ±20% | 200 V | 320mOhm @ 100Hz | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.45 A @ 100 Hz | 2.19 A @ 10 kHz | 224 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole |
