Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SLPX271M450E5P3CAP ALUM 270UF 20% 450V SNAP TH |
0 |
|
Datasheet |
SLPX | Bulk | Active | 270 µF | ±20% | 450 V | 983mOhm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.89 A @ 120 Hz | 2.78 A @ 20 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
ALA7AF391CE450CAP ALUM SNAP-IN 85C |
0 |
|
Datasheet |
ALA7A | Box | Active | 390 µF | ±20% | 450 V | 386mOhm @ 100Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive | 2.1 A @ 100 Hz | 4.9 A @ 10 kHz | 306 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
|
ALA8AF391CE400CAP ALUM 400V POLAR |
0 |
|
Datasheet |
ALA8A | Bulk | Active | 390 µF | ±20% | 400 V | 386mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 2.2 A @ 100 Hz | 5.9 A @ 10 kHz | 228 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
|
ALA8AD391CE400CAP ALUM 400V POLAR |
0 |
|
Datasheet |
ALA8A | Bulk | Active | 390 µF | ±20% | 400 V | 386mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 2.2 A @ 100 Hz | 5.9 A @ 10 kHz | 228 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
UFW1J682MRDCAP ALUM 6800UF 20% 63V RADIAL |
0 |
|
Datasheet |
UFW | Bulk | Obsolete | 6800 µF | ±20% | 63 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 3.5 A @ 120 Hz | 4.025 A @ 10 kHz | - | 0.492" (12.50mm) | 0.984" Dia (25.00mm) | 1.969" (50.00mm) | - | Through Hole | |
|
ELXM181VSN122MA35SCAP ALUM 1200UF 20% 180V SNAP TH |
0 |
|
Datasheet |
LXM | Bulk | Active | 1200 µF | ±20% | 180 V | - | 7000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.58 A @ 120 Hz | 3.87 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|

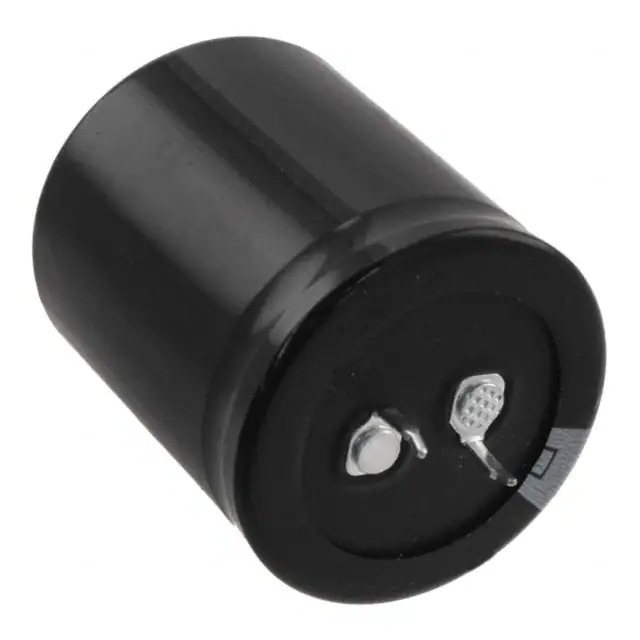

ELH477M400AS5AACAP ALUM 470UF 20% 400V SNAP TH |
0 |
|
Datasheet |
ELH | Bulk | Active | 470 µF | ±20% | 400 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.2 A @ 120 Hz | 3.19 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
|
B43644C9277M082CAP ALUM 270UF 20% 400V SNAP TH |
0 |
|
Datasheet |
B43644 | Bulk | Active | 270 µF | ±20% | 400 V | 340mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.28 A @ 100 Hz | - | 500 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.268" (32.20mm) | - | Through Hole | |
|
381LX151M450A022CAP ALUM 150UF 20% 450V SNAP TH |
0 |
|
Datasheet |
381LX | Bulk | Obsolete | 150 µF | ±20% | 450 V | 1.768Ohm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 800 mA @ 120 Hz | 1.1 A @ 20 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
ALC70A221BD400CAP ALUM 220UF 20% 400V SNAP TH |
0 |
|
Datasheet |
ALC70 | Bulk | Active | 220 µF | ±20% | 400 V | 623.6mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.31 A @ 100 Hz | 3.2 A @ 10 kHz | 328 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
MAL215956689E3CAP ALUM 68UF 20% 400V SNAP TH |
0 |
|
Datasheet |
159 PUL-SI | Bulk | Active | 68 µF | ±20% | 400 V | 1.6Ohm | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | - | 714 mA @ 10 kHz | 1.95 Ohms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
MAL215976689E3CAP ALUM 68UF 20% 400V SNAP TH |
0 |
|
Datasheet |
159 PUL-SI | Bulk | Active | 68 µF | ±20% | 400 V | 3.2Ohm @ 100Hz | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 510 mA @ 120 Hz | - | 1.95 Ohms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
PEG227HLL4430QE4CAP ALUM 4300UF 25V AXIAL TH |
0 |
|
Datasheet |
PEG227 | Tray | Active | 4300 µF | -10%, +30% | 25 V | 37mOhm @ 100Hz | 2000 Hrs @ 150°C | -40°C ~ 150°C | Polar | AEC-Q200 | Automotive | 2.45 A @ 100 Hz | 7 A @ 5 kHz | - | - | 0.717" Dia x 1.051" L (18.20mm x 26.70mm) | - | - | Through Hole | |
|
200MXG1200MEFCSN30X35CAP ALUM 1200UF 20% 200V SNAP TH |
0 |
|
Datasheet |
MXG | Bulk | Active | 1200 µF | ±20% | 200 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.65 A @ 120 Hz | 3.975 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
ALC80D103CD040CAP ALUM 10000UF 20% 40V SNAP TH |
0 |
|
Datasheet |
ALC80 | Bulk | Active | 10000 µF | ±20% | 40 V | 51mOhm @ 100Hz | 7000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 6.51 A @ 100 Hz | 9.23 A @ 10 kHz | 41 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
ALC80F103CD040CAP ALUM 10000UF 20% 40V SNAP TH |
0 |
|
Datasheet |
ALC80 | Bulk | Active | 10000 µF | ±20% | 40 V | 51mOhm @ 100Hz | 7000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 6.51 A @ 100 Hz | 9.23 A @ 10 kHz | 41 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
PEG124VE2100QT1CAP ALUM AXL GEN PUR 105C |
0 |
|
Datasheet |
PEG124 | Tape & Reel (TR) | Active | 10 µF | -10%, +30% | 400 V | 5.9Ohm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 116 mA @ 100 Hz | 260 mA @ 5 kHz | - | - | 0.512" Dia x 1.457" L (13.00mm x 37.00mm) | - | - | Through Hole | |
|
|
PEH534MCC4330M2CAP ALUM SNAP-IN HIGH RIPPLE |
0 |
|
Datasheet |
PEH534 | Box | Active | 3.3 mF | ±20% | 63 V | 56mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.7 A @ 100 Hz | 10.6 A @ 20 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
MAL204343101E3CAP ALUM 100UF 250V AXIAL TH |
0 |
|
Datasheet |
043 ASH | Tape & Box (TB) | Active | 100 µF | -10%, +50% | 250 V | 1.5Ohm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 650 mA @ 100 Hz | - | 1.1 Ohms | 0.886" (22.50mm) | 0.827" Dia (21.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
475MXH180MEFCSN22X50CAP ALUM 180UF 20% 475V SNAP TH |
0 |
|
Datasheet |
MXH | Bulk | Active | 180 µF | ±20% | 475 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.27 A @ 120 Hz | 1.778 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 2.047" (52.00mm) | - | Through Hole |
