Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
315MXC680MEFC35X40CAP ALUM 680UF 20% 315V SNAP TH |
0 |
|
Datasheet |
MXC | Bulk | Not For New Designs | 680 µF | ±20% | 315 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.17 A @ 120 Hz | 3.038 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
400USG680MEFC35X40CAP ALUM 680UF 20% 400V SNAP TH |
0 |
|
Datasheet |
USG | Bulk | Active | 680 µF | ±20% | 400 V | - | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.96 A @ 120 Hz | 4.144 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
400USH390MEFC22X50CAP ALUM 390UF 20% 400V RADIAL |
0 |
|
Datasheet |
USH | Bulk | Active | 390 µF | ±20% | 400 V | - | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.54 A @ 120 Hz | 3.556 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
|
ALC40D331CF400CAP ALUM SNAP-IN 105C |
0 |
|
Datasheet |
ALC40 | Box | Active | 330 µF | ±20% | 400 V | 383mOhm @ 100Hz | 7000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.98 A @ 100 Hz | 4.02 A @ 10 kHz | 258 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|

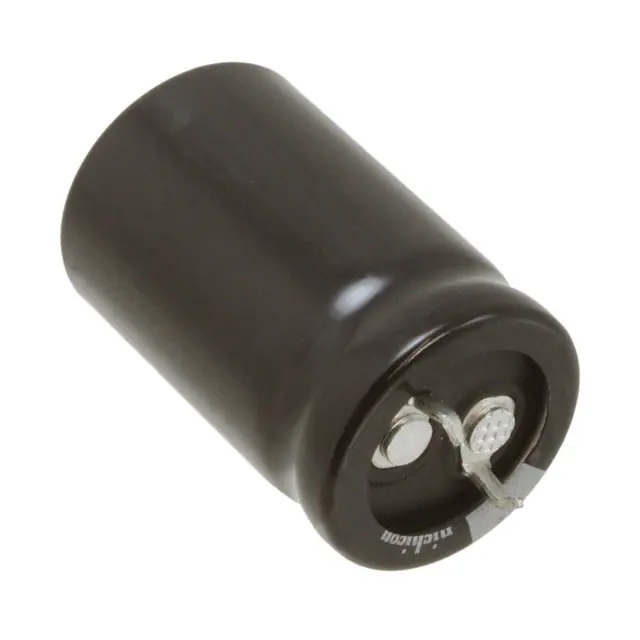

LGG2Z681MELZ35CAP ALUM 680UF 20% 180V SNAP TH |
9 |
|
Datasheet |
LGG | Bulk | Active | 680 µF | ±20% | 180 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.7 A @ 120 Hz | 2.55 A @ 50 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
450NXG220MEFCSN30X35CAP ALUM 220UF 20% 450V SNAP TH |
0 |
|
Datasheet |
NXG | Bulk | Active | 220 µF | ±20% | 450 V | - | 10000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.49 A @ 120 Hz | 2.086 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
ALC80A243CD025CAP ALUM 24000UF 20% 25V SNAP TH |
0 |
|
Datasheet |
ALC80 | Bulk | Active | 24000 µF | ±20% | 25 V | 48mOhm @ 100Hz | 7000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 7.23 A @ 100 Hz | 9.26 A @ 10 kHz | 42 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
ALC80D243CD025CAP ALUM 24000UF 20% 25V SNAP TH |
0 |
|
Datasheet |
ALC80 | Bulk | Active | 24000 µF | ±20% | 25 V | 48mOhm @ 100Hz | 7000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 7.23 A @ 100 Hz | 9.26 A @ 10 kHz | 42 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
ALC80F243CD025CAP ALUM 24000UF 20% 25V SNAP TH |
0 |
|
Datasheet |
ALC80 | Bulk | Active | 24000 µF | ±20% | 25 V | 48mOhm @ 100Hz | 7000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 7.23 A @ 100 Hz | 9.26 A @ 10 kHz | 42 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|

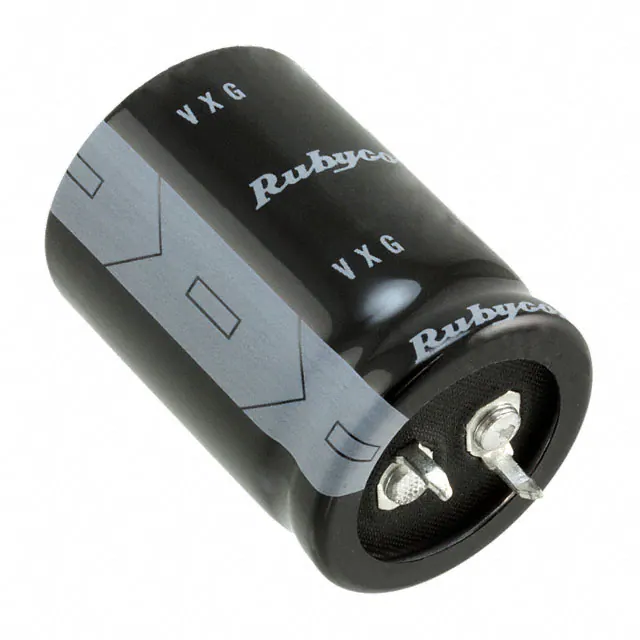

400SXG270MEFCSN25X40CAP ALUM 270UF 20% 400V SNAP TH |
0 |
|
Datasheet |
SXG | Bulk | Active | 270 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.22 A @ 120 Hz | 1.708 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
LKS1K392MESACAP ALUM 3900UF 20% 80V SNAP TH |
0 |
|
Datasheet |
LKS | Bulk | Obsolete | 3900 µF | ±20% | 80 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 3.3 A @ 120 Hz | - | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|

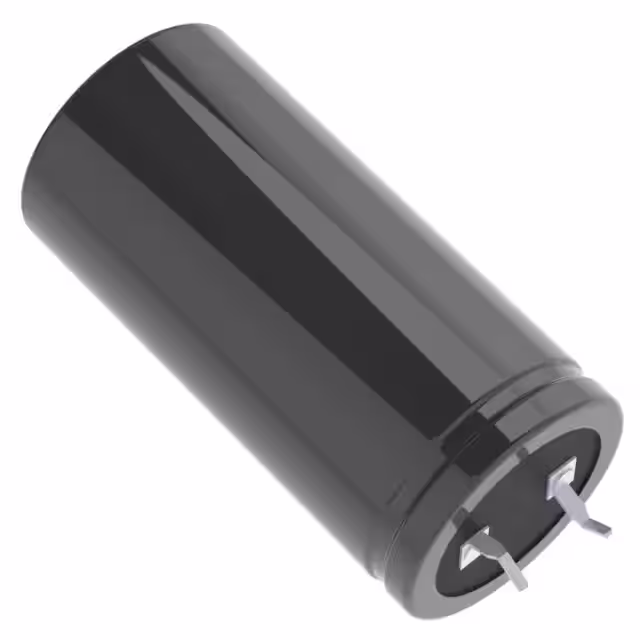

LKS2A272MESACAP ALUM 2700UF 20% 100V SNAP TH |
0 |
|
Datasheet |
LKS | Bulk | Obsolete | 2700 µF | ±20% | 100 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 3.2 A @ 120 Hz | - | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
EKMS251VSN102MQ50SCAP ALUM 1000UF 20% 250V SNAP TH |
0 |
|
Datasheet |
KMS | Bulk | Active | 1000 µF | ±20% | 250 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.53 A @ 120 Hz | 3.795 A @ 50 kHz | - | 0.394" (10.00mm) | 1.000" Dia (25.40mm) | 2.067" (52.50mm) | - | Through Hole | |
|
381LQ123M050K452CAP ALUM 12000UF 20% 50V SNAP TH |
0 |
|
Datasheet |
381LQ | Bulk | Active | 12000 µF | ±20% | 50 V | 35mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 4.5 A @ 120 Hz | 5.18 A @ 20 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
400VXR270MEFCSN35X35CAP ALUM 270UF 20% 400V SNAP TH |
0 |
|
Datasheet |
VXR | Bulk | Not For New Designs | 270 µF | ±20% | 400 V | - | 7000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.1 A @ 120 Hz | 1.54 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
B43624A5686M000CAP ALUM 68UF 20% 450V SNAP TH |
0 |
|
Datasheet |
B43624 | Bulk | Active | 68 µF | ±20% | 450 V | 1.6Ohm @ 100Hz | 8000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 680 mA @ 100 Hz | - | 2.4 Ohms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
478LBB100M2EFCAP ALUM 4700UF 20% 100V SNAP TH |
0 |
|
Datasheet |
LBB | Bulk | Active | 4700 µF | ±20% | 100 V | 52.91mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 5.11 A @ 120 Hz | 6.3875 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
LAR2E122MELC40CAP ALUM 1200UF 20% 250V SNAP TH |
0 |
|
Datasheet |
LAR | Bulk | Active | 1200 µF | ±20% | 250 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.3 A @ 120 Hz | 3.45 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.575" (40.00mm) | - | Through Hole | |
|
|
LSM122M2E---3545SCAP ALUM 250V POLAR |
0 |
|
- |
LSM | Active | 1.2 mF | ±20% | 250 V | 166mOhm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 3.14 A @ 120 Hz | 4.396 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.850" (47.00mm) | - | Through Hole | ||
|
PEG226MH3470QE4CAP ALUM 470UF 63V AXIAL TH |
0 |
|
Datasheet |
PEG226 | Bulk | Active | 470 µF | -10%, +30% | 63 V | 125mOhm @ 100Hz | 2000 Hrs @ 150°C | -40°C ~ 150°C | Polar | AEC-Q200 | Automotive | 6.055 A @ 100 Hz | 17.3 A @ 5 kHz | - | - | 0.795" Dia x 1.051" L (20.20mm x 26.70mm) | - | - | Through Hole |
