Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MAL211945102E3CAP ALUM 1000UF 16V AXIAL TH |
0 |
|
Datasheet |
119 AHT-DIN | Tape & Reel (TR) | Active | 1000 µF | -10%, +50% | 16 V | 300mOhm @ 100Hz | 8000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | General Purpose | 850 mA @ 100 Hz | - | 240 mOhms | - | 0.591" Dia (15.00mm) | 1.299" (33.00mm) | - | Through Hole | |
|
B43634A9337M000CAP ALUM 330UF 20% 400V SNAP TH |
0 |
|
Datasheet |
B43634 | Bulk | Active | 330 µF | ±20% | 400 V | 330mOhm @ 100Hz | 8000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.02 A @ 100 Hz | - | 500 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
ERLA181LIN172KR55MCAP ALUM 1700UF 10% 180V SNAP TH |
0 |
|
Datasheet |
RLA | Bulk | Active | 1700 µF | ±10% | 180 V | - | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 6.63 A @ 120 Hz | 9.945 A @ 50 kHz | - | 0.559" (14.20mm) | 1.181" Dia (30.00mm) | 2.264" (57.50mm) | - | Through Hole | |
|
PEG227KMP4420QE4CAP ALUM 4200UF 40V AXIAL TH |
0 |
|
Datasheet |
PEG227 | Tray | Active | 4200 µF | -10%, +30% | 40 V | 27mOhm @ 100Hz | 2000 Hrs @ 150°C | -40°C ~ 150°C | Polar | AEC-Q200 | Automotive | 3.15 A @ 100 Hz | 9 A @ 5 kHz | - | - | 0.795" Dia x 1.366" L (20.20mm x 34.70mm) | - | - | Through Hole | |
|
|
ALC40A181CF500CAP ALUM SNAP-IN 105C |
0 |
|
Datasheet |
ALC40 | Box | Active | 180 µF | ±20% | 500 V | 1.23Ohm @ 100Hz | 7000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.67 A @ 100 Hz | 3.34 A @ 10 kHz | 1 Ohms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
5396ELECTROLYTIC CAPACITOR ROUGH |
0 |
|
- |
- | Retail Package | Active | 470 µF | ±10% | 63 V | - | - | - | Bi-Polar | - | General Purpose | - | - | - | - | 0.984" Dia x 1.437" L (25.00mm x 36.50mm) | - | - | Through Hole | |
|
|
PEG228KML4220QE4CAP ALUM 2200UF 40V AXIAL TH |
0 |
|
Datasheet |
PEG228 | Tray | Active | 2200 µF | -10%, +30% | 40 V | 44mOhm @ 100Hz | 2000 Hrs @ 150°C | -40°C ~ 150°C | Polar | AEC-Q200 | Automotive | 2.59 A @ 100 Hz | 7.4 A @ 5 kHz | - | - | 0.795" Dia x 1.051" L (20.20mm x 26.70mm) | - | - | Through Hole | |
|
63MXC8200MEFCSN35X40CAP ALUM 8200UF 20% 63V SNAP TH |
0 |
|
Datasheet |
MXC | Bulk | Not For New Designs | 8200 µF | ±20% | 63 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 4.04 A @ 120 Hz | 4.646 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
LGN2Z182MELB45CAP ALUM 1800UF 20% 180V SNAP TH |
0 |
|
Datasheet |
LGN | Bulk | Active | 1800 µF | ±20% | 180 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.7 A @ 120 Hz | 4.05 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
|
PEH225MF3470QE1CAP ALUM RAD 125C |
0 |
|
Datasheet |
PEH | Box | Active | 470 µF | -10%, +30% | 63 V | 156mOhm @ 100Hz | 1500 Hrs @ 150°C | -40°C ~ 150°C | Polar | AEC-Q200 | Automotive | 4.235 A @ 100 Hz | 12.584 A @ 100 kHz | - | 0.600" (15.24mm) | 0.630" Dia (16.00mm) | 1.130" (28.70mm) | - | Through Hole | |
|
|
LHM471M2G---3535SCAP ALUM 400V POLAR |
0 |
|
- |
LHM | Active | 470 µF | ±20% | 400 V | 423mOhm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.68 A @ 120 Hz | 2.352 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | ||
|
|
ALC40A332BC063CAP ALUM SNAP-IN 105C |
0 |
|
Datasheet |
ALC40 | Box | Active | 3.3 mF | ±20% | 63 V | 165mOhm @ 100Hz | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.01 A @ 100 Hz | 2.35 A @ 10 kHz | 133 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
LGG2C152MELC30CAP ALUM 1500UF 20% 160V SNAP TH |
0 |
|
Datasheet |
LGG | Bulk | Active | 1500 µF | ±20% | 160 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.5 A @ 120 Hz | 3.75 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
LGG2C182MELB40CAP ALUM 1800UF 20% 160V SNAP TH |
0 |
|
Datasheet |
LGG | Bulk | Active | 1800 µF | ±20% | 160 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.7 A @ 120 Hz | 4.05 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
LKG1V332MESBCKCAP ALUM 3300UF 20% 35V SNAP TH |
0 |
|
Datasheet |
LKG | Bulk | Obsolete | 3300 µF | ±20% | 35 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 2.7 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
GM2W471MND3045B2ALUMINUM ELECTROLYTIC CAPACITORS |
0 |
|
- |
- | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | ||
|
80MXG4700MEFCSN35X30CAP ALUM 4700UF 20% 80V SNAP TH |
0 |
|
Datasheet |
MXG | Bulk | Active | 4700 µF | ±20% | 80 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.38 A @ 120 Hz | 3.887 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
100MXC2700VEFC35X30CAP ALUM 2700UF 20% 100V SNAP TH |
0 |
|
Datasheet |
MXC | Bulk | Not For New Designs | 2700 µF | ±20% | 100 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.89 A @ 120 Hz | 3.3235 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
250USG1800MEFC35X45CAP ALUM 1800UF 20% 250V SNAP TH |
0 |
|
Datasheet |
USG | Bulk | Active | 1800 µF | ±20% | 250 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.55 A @ 120 Hz | 6.825 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|

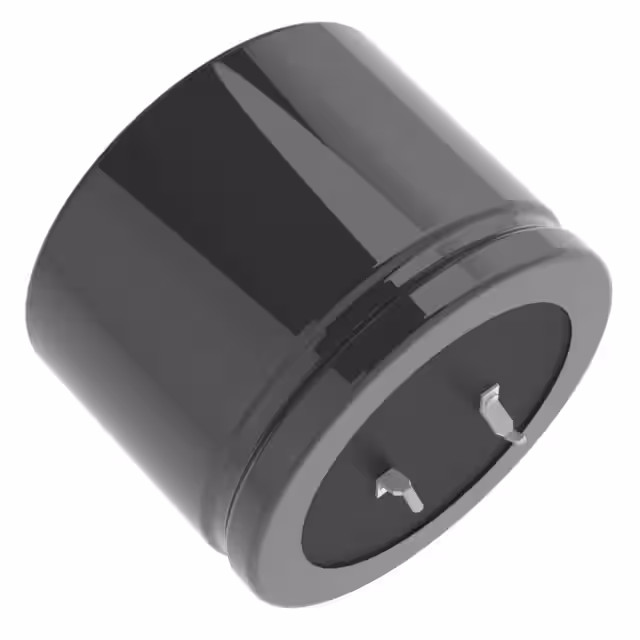

400USH390MEFC35X25CAP ALUM 390UF 20% 400V RADIAL |
0 |
|
Datasheet |
USH | Bulk | Active | 390 µF | ±20% | 400 V | - | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.13 A @ 120 Hz | 2.982 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.063" (27.00mm) | - | Through Hole |
