Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MAL225922821E3CAP ALUM 820UF 20% 200V SNAP TH |
0 |
|
- |
259 PHM-SI | Box | Active | 820 µF | ±20% | 200 V | 240mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.23 A @ 100 Hz | 3.345 A @ 10 kHz | 170 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
MAL225962821E3CAP ALUM 820UF 20% 200V SNAP TH |
0 |
|
- |
259 PHM-SI | Box | Active | 820 µF | ±20% | 200 V | 240mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.23 A @ 100 Hz | 3.345 A @ 10 kHz | 170 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
ALC40A682CC040CAP ALUM SNAP-IN 105C |
0 |
|
Datasheet |
ALC40 | Box | Active | 6.8 mF | ±20% | 40 V | 145mOhm @ 100Hz | 7000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.55 A @ 100 Hz | 2.84 A @ 10 kHz | 120 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
ALF40C222DC100CAP ALUM 2200UF 20% 100V PRESS |
0 |
|
Datasheet |
ALF40 | Bulk | Active | 2200 µF | ±20% | 100 V | 177mOhm @ 100Hz | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.1 A @ 100 Hz | 2.67 A @ 10 kHz | 142 mOhms | 0.886" (22.50mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole, Press-Fit | |
|
|
LSK221M2H---2550SCAP ALUM 500V POLAR |
0 |
|
- |
LSK | Active | 220 µF | ±20% | 500 V | 905mOhm @ 120Hz | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 950 mA @ 120 Hz | 1.33 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 2.047" (52.00mm) | - | Through Hole | ||
|
MAL205976479E3CAP ALUM 47UF 20% 400V SNAP TH |
0 |
|
Datasheet |
059 PLL-SI | Tape & Box (TB) | Active | 47 µF | ±20% | 400 V | 4.26Ohm @ 100Hz | 10000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 300 mA @ 100 Hz | - | 3.49 Ohms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
MAL215611222E3CAP ALUM 2200UF 20% 50V SNAP TH |
0 |
|
Datasheet |
156 PUM-SI | Bulk | Active | 2200 µF | ±20% | 50 V | 107mOhm @ 100Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.34 A @ 100 Hz | - | 62 mOhms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
MAL215651222E3CAP ALUM 2200UF 20% 50V SNAP TH |
0 |
|
Datasheet |
156 PUM-SI | Bulk | Active | 2200 µF | ±20% | 50 V | 107mOhm @ 100Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.34 A @ 100 Hz | - | 62 mOhms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
MAL215299608E3CAP ALUM 33UF 20% 400V SMD |
11 |
|
Datasheet |

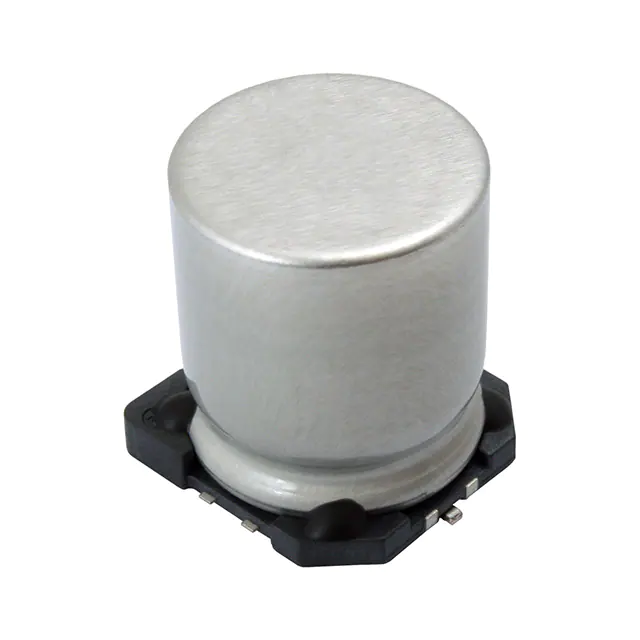

152 CME | Tape & Reel (TR) | Active | 33 µF | ±20% | 400 V | - | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 190 mA @ 100 Hz | 475 mA @ 30 kHz | 1.1 Ohms | - | 0.709" Dia (18.00mm) | 0.866" (22.00mm) | 0.748" L x 0.748" W (19.00mm x 19.00mm) | Surface Mount | |
|
35USC15000MEFCSN25X50CAP ALUM 15000UF 20% 35V SNAP TH |
0 |
|
Datasheet |
USC | Bulk | Not For New Designs | 15000 µF | ±20% | 35 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
|
ALC40C331DD400CAP ALUM SNAP-IN 105C |
0 |
|
Datasheet |
ALC40 | Box | Active | 330 µF | ±20% | 400 V | 386mOhm @ 100Hz | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.98 A @ 100 Hz | 3.64 A @ 10 kHz | 266 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
MAL202149102E3CAP ALUM 1000UF 20% 100V SNAP TH |
0 |
|
Datasheet |
021 ASM | Bulk | Active | 1000 µF | ±20% | 100 V | 160mOhm @ 100Hz | 8000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.47 A @ 100 Hz | - | 150 mOhms | 0.886" (22.50mm) | 0.827" Dia (21.00mm) | 1.496" (38.00mm) | - | Through Hole | |
|
|
EKHS4H1VSN151MP40SCAP ALUM 150UF 20% 475V SNAP TH |
0 |
|
- |
KHS | Bulk | Active | 150 µF | ±20% | 475 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 990 mA @ 120 Hz | 1.4157 A @ 50 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.575" (40.00mm) | - | Through Hole | |
|
MAL204318689E3CAP ALUM 68UF 385V AXIAL TH |
0 |
|
Datasheet |
043 ASH | Tape & Box (TB) | Active | 68 µF | -10%, +50% | 385 V | 2.2Ohm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 570 mA @ 100 Hz | - | 1.4 Ohms | - | 0.827" Dia x 1.496" L (21.00mm x 38.00mm) | - | - | Through Hole | |
|
|
400USC560MEFC30X50CAP ALUM 560UF 20% 400V SNAP TH |
0 |
|
Datasheet |
USC | Bulk | Not For New Designs | 560 µF | ±20% | 400 V | - | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.85 A @ 120 Hz | 3.99 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
|
LSM222M2C---3550SCAP ALUM 160V POLAR |
0 |
|
- |
LSM | Active | 2.2 mF | ±20% | 160 V | 90mOhm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 3.51 A @ 120 Hz | 4.914 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.047" (52.00mm) | - | Through Hole | ||
|
SLP102M250E9P3CAP ALUM 1000UF 20% 250V SNAP TH |
0 |
|
Datasheet |
SLP0712TE (750W) | Bulk | Active | 1000 µF | ±20% | 250 V | 199mOhm | 3000 Hrs @ 105°C | -25°C ~ 105°C | - | - | General Purpose | - | - | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.969" (50.00mm) | - | Through Hole | |
|
SLP122M220H7P3CAP ALUM 1200UF 20% 220V SNAP TH |
0 |
|
Datasheet |
SLP0712TE (750W) | Bulk | Active | 1200 µF | ±20% | 220 V | 166mOhm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.79 A @ 120 Hz | 4.1 A @ 20 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.575" (40.00mm) | - | Through Hole | |
|
SLP332M100E4P3CAP ALUM 3300UF 20% 100V SNAP TH |
0 |
|
Datasheet |
SLP0712TE (750W) | Bulk | Active | 3300 µF | ±20% | 100 V | 80mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.3 A @ 120 Hz | 4.13 A @ 20 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.772" (45.00mm) | - | Through Hole | |
|
420USC390MEFCSN30X40CAP ALUM 390UF 20% 420V SNAP TH |
0 |
|
Datasheet |
USC | Bulk | Not For New Designs | 390 µF | ±20% | 420 V | - | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.22 A @ 120 Hz | 3.108 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole |
