Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

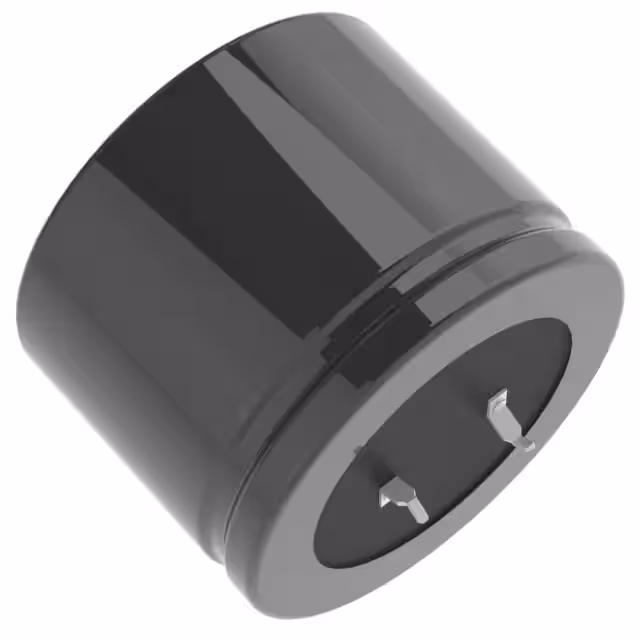

LKG2A182MESCAKCAP ALUM 1800UF 20% 100V SNAP TH |
0 |
|
Datasheet |
LKG | Bulk | Obsolete | 1800 µF | ±20% | 100 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 2.75 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
35MXC22000MEFC30X50CAP ALUM 22000UF 20% 35V SNAP TH |
0 |
|
Datasheet |
MXC | Bulk | Not For New Designs | 22000 µF | ±20% | 35 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 4.92 A @ 120 Hz | 5.658 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|

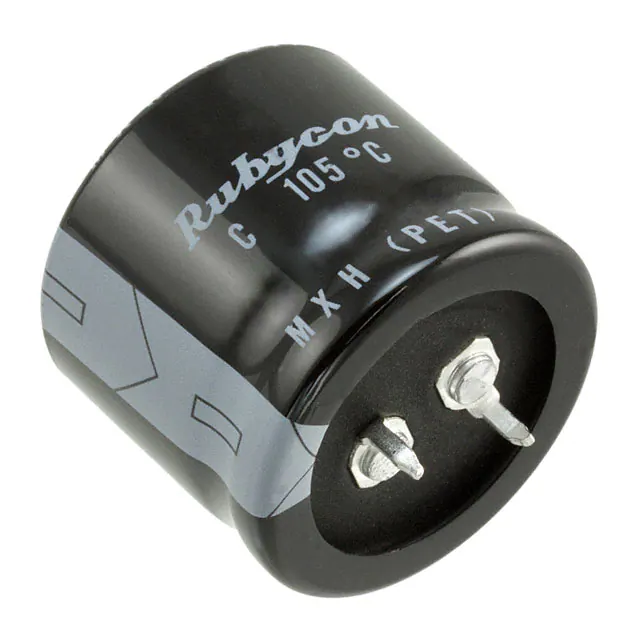

450VXG270MEFC30X35CAP ALUM 270UF 20% 450V SNAP TH |
0 |
|
Datasheet |
VXG | Bulk | Active | 270 µF | ±20% | 450 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.51 A @ 120 Hz | 2.114 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
220VXH810MEFC25X40CAP ALUM 810UF 20% 220V SNAP TH |
0 |
|
Datasheet |
VXH | Bulk | Active | 810 µF | ±20% | 220 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
EKMR401VSN681MA40TCAP ALUM 680UF 20% 400V SNAP TH |
0 |
|
- |
KMR | Bulk | Active | 680 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.03 A @ 120 Hz | 2.9029 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.575" (40.00mm) | - | Through Hole | |
|
MAL225976221E3CAP ALUM 220UF 20% 400V SNAP TH |
0 |
|
Datasheet |
259 PHM-SI | Bulk | Active | 220 µF | ±20% | 400 V | 620mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.38 A @ 100 Hz | 2.07 A @ 10 kHz | 460 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
MAL225956221E3CAP ALUM 220UF 20% 400V SNAP TH |
0 |
|
- |
259 PHM-SI | Box | Active | 220 µF | ±20% | 400 V | 590mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.41 A @ 100 Hz | 2.115 A @ 10 kHz | 430 mOhms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
|
MAL225936221E3CAP ALUM 220UF 20% 400V SNAP TH |
0 |
|
- |
259 PHM-SI | Box | Active | 220 µF | ±20% | 400 V | 620mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.38 A @ 100 Hz | 2.07 A @ 10 kHz | 460 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
MAL225916221E3CAP ALUM 220UF 20% 400V SNAP TH |
0 |
|
- |
259 PHM-SI | Box | Active | 220 µF | ±20% | 400 V | 590mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.41 A @ 100 Hz | 2.115 A @ 10 kHz | 430 mOhms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
|
MAL225926221E3CAP ALUM 220UF 20% 400V SNAP TH |
0 |
|
- |
259 PHM-SI | Box | Active | 220 µF | ±20% | 400 V | 600mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.34 A @ 100 Hz | 2.01 A @ 10 kHz | 440 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
B43642A9397M000CAP ALUM 390UF 20% 400V SNAP TH |
0 |
|
Datasheet |
B43642 | Bulk | Active | 390 µF | ±20% | 400 V | 260mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.59 A @ 100 Hz | - | 390 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
|
B43642B5187M080CAP ALUM 180UF 20% 450V SNAP TH |
0 |
|
Datasheet |
B43642 | Bulk | Active | 180 µF | ±20% | 450 V | 460mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.04 A @ 100 Hz | - | 660 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
228LBA160M2EFCAP ALUM 2200UF 20% 160V SNAP TH |
0 |
|
Datasheet |
LBA | Bulk | Active | 2200 µF | ±20% | 160 V | 113.04mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.96 A @ 120 Hz | 7.2912 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
ALC80A133CF040CAP ALUM 13000UF 20% 40V SNAP TH |
0 |
|
Datasheet |
ALC80 | Bulk | Active | 13000 µF | ±20% | 40 V | 40mOhm @ 100Hz | 7000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 7.67 A @ 100 Hz | 10.68 A @ 10 kHz | 32 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
|
ALC80D133CF040CAP ALUM 13000UF 20% 40V SNAP TH |
0 |
|
Datasheet |
ALC80 | Bulk | Active | 13000 µF | ±20% | 40 V | 40mOhm @ 100Hz | 7000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 7.67 A @ 100 Hz | 10.68 A @ 10 kHz | 32 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
ALC80F133CF040CAP ALUM 13000UF 20% 40V SNAP TH |
0 |
|
Datasheet |
ALC80 | Bulk | Active | 13000 µF | ±20% | 40 V | 40mOhm @ 100Hz | 7000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 7.67 A @ 100 Hz | 10.68 A @ 10 kHz | 32 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
|
ALC80A752EB063CAP ALUM 7500UF 20% 63V SNAP TH |
0 |
|
Datasheet |
ALC80 | Bulk | Active | 7500 µF | ±20% | 63 V | 60mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 5.52 A @ 100 Hz | 6.95 A @ 10 kHz | 48 mOhms | 0.394" (10.00mm) | 1.575" Dia (40.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
ALC80C752EB063CAP ALUM 7500UF 20% 63V SNAP TH |
0 |
|
Datasheet |
ALC80 | Bulk | Active | 7500 µF | ±20% | 63 V | 60mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 5.52 A @ 100 Hz | 6.95 A @ 10 kHz | 48 mOhms | 0.886" (22.50mm) | 1.575" Dia (40.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
ALC80D752EB063CAP ALUM 7500UF 20% 63V SNAP TH |
0 |
|
Datasheet |
ALC80 | Bulk | Active | 7500 µF | ±20% | 63 V | 60mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 5.52 A @ 100 Hz | 6.95 A @ 10 kHz | 48 mOhms | 0.394" (10.00mm) | 1.575" Dia (40.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
ALC80E752EB063CAP ALUM 7500UF 20% 63V SNAP TH |
0 |
|
Datasheet |
ALC80 | Bulk | Active | 7500 µF | ±20% | 63 V | 60mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 5.52 A @ 100 Hz | 6.95 A @ 10 kHz | 48 mOhms | 0.886" (22.50mm) | 1.575" Dia (40.00mm) | 1.260" (32.00mm) | - | Through Hole |
