Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ALC70E362EB100CAP ALUM 3600UF 20% 100V SNAP TH |
0 |
|
Datasheet |
ALC70 | Bulk | Active | 3600 µF | ±20% | 100 V | 89mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.68 A @ 100 Hz | 5.73 A @ 10 kHz | 73 mOhms | 0.886" (22.50mm) | 1.575" Dia (40.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
ALC70F362EB100CAP ALUM 3600UF 20% 100V SNAP TH |
0 |
|
Datasheet |
ALC70 | Bulk | Active | 3600 µF | ±20% | 100 V | 89mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.68 A @ 100 Hz | 5.73 A @ 10 kHz | 73 mOhms | 0.394" (10.00mm) | 1.575" Dia (40.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
MAL211916222E3CAP ALUM 2200UF 25V AXIAL TH |
0 |
|
Datasheet |
119 AHT-DIN | Tape & Reel (TR) | Active | 2200 µF | -10%, +50% | 25 V | 110mOhm @ 100Hz | 8000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | General Purpose | 1.55 A @ 100 Hz | - | 90 mOhms | - | 0.827" Dia x 1.496" L (21.00mm x 38.00mm) | - | - | Through Hole | |
|
MAL213844103E3CAP ALUM 10000UF 20% 10V SNAP TH |
0 |
|
Datasheet |
138 AML | Tape & Reel (TR) | Active | 10000 µF | ±20% | 10 V | 70mOhm @ 100kHz | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | Automotive | 1.98 A @ 100 Hz | - | 100 mOhms | - | 0.709" Dia (18.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
420MXC330MEFCSN35X35CAP ALUM 330UF 20% 420V SNAP TH |
0 |
|
Datasheet |
MXC | Bulk | Not For New Designs | 330 µF | ±20% | 420 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.44 A @ 120 Hz | 2.016 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
B43644B9337M080CAP ALUM 330UF 20% 400V SNAP TH |
0 |
|
Datasheet |
B43644 | Bulk | Active | 330 µF | ±20% | 400 V | 280mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.49 A @ 100 Hz | - | 410 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|

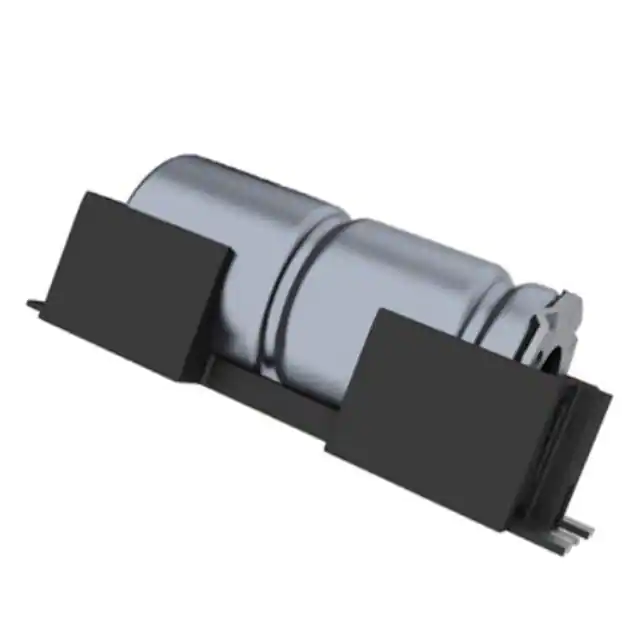

PES227HKP4460ME4CAP ALUM 4600UF 20% 25V SMD |
0 |
|
Datasheet |
PES227 | Tray | Active | 4600 µF | ±20% | 25 V | 35mOhm @ 100Hz | 6300 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 6.755 A @ 100 Hz | 20.072 A @ 100 kHz | - | - | 1.693" L x 0.709" W (43.00mm x 18.00mm) | 0.697" (17.70mm) | 1.994" L x 0.610" W (50.65mm x 15.50mm) | Surface Mount | |
|
UPT2E561MRDCAP ALUM 560UF 20% 250V RADIAL |
0 |
|
Datasheet |
UPT | Bulk | Obsolete | 560 µF | ±20% | 250 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | - | - | General Purpose | 1.55 A @ 120 Hz | 2.48 A @ 10 kHz | - | 0.492" (12.50mm) | 0.984" Dia (25.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
ELH189M050AT6AACAP ALUM SNAP-IN 85C |
0 |
|
Datasheet |
ELH | Bulk | Active | 18 mF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 6.7 A @ 120 Hz | 7.772 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
ELXM221VSN102MA40SCAP ALUM 1000UF 20% 220V SNAP TH |
0 |
|
Datasheet |
LXM | Bulk | Active | 1000 µF | ±20% | 220 V | - | 7000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.46 A @ 120 Hz | 3.69 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
160USG1800MEFCSN30X35CAP ALUM 1800UF 20% 160V SNAP TH |
0 |
|
Datasheet |
USG | Bulk | Active | 1800 µF | ±20% | 160 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.2 A @ 120 Hz | 6.3 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
LKX2G271MESB35CAP ALUM 270UF 20% 400V SNAP TH |
0 |
|
Datasheet |
LKX | Bulk | Active | 270 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | Audio | 1.22 A @ 120 Hz | 1.7446 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
LKX2G271MESB50CAP ALUM 270UF 20% 400V SNAP TH |
0 |
|
Datasheet |
LKX | Bulk | Active | 270 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | Audio | - | - | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
MAL209334221E3CAP ALUM 220UF 20% 420V SNAP TH |
0 |
|
Datasheet |
093 PMG-SI | Tape & Box (TB) | Active | 220 µF | ±20% | 420 V | 690mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.44 A @ 120 Hz | - | 520 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
MAL209344221E3CAP ALUM 220UF 20% 420V SNAP TH |
0 |
|
Datasheet |
093 PMG-SI | Tape & Box (TB) | Active | 220 µF | ±20% | 420 V | 670mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.47 A @ 120 Hz | - | 500 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
LSG561M2G---3055SCAP ALUM 400V POLAR |
0 |
|
- |
LSG | Active | 560 µF | ±20% | 400 V | 355mOhm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.95 A @ 120 Hz | 2.7885 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 2.244" (57.00mm) | - | Through Hole | ||
|
UVZ2A332MRDCAP ALUM 3300UF 20% 100V RADIAL |
0 |
|
Datasheet |
UVZ | Bulk | Obsolete | 3300 µF | ±20% | 100 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 2.07 A @ 120 Hz | 2.3805 A @ 10 kHz | - | 0.492" (12.50mm) | 0.984" Dia (25.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
MAL205854472E3CAP ALUM 4700UF 20% 10V SNAP TH |
0 |
|
Datasheet |
058 PLL-SI | Tape & Box (TB) | Active | 4700 µF | ±20% | 10 V | 82mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.95 A @ 100 Hz | - | 57 mOhms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
16VXG6800MEFC22X30CAP ALUM 6800UF 20% 16V SNAP TH |
0 |
|
Datasheet |
VXG | Bulk | Active | 6800 µF | ±20% | 16 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.66 A @ 120 Hz | 1.909 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
250VXH330MEFC25X25CAP ALUM 330UF 20% 250V SNAP TH |
0 |
|
Datasheet |
VXH | Bulk | Active | 330 µF | ±20% | 250 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.45 A @ 120 Hz | 2.175 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.063" (27.00mm) | - | Through Hole |
