Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ALC70F112EB200CAP ALUM 1100UF 20% 200V SNAP TH |
0 |
|
Datasheet |
ALC70 | Bulk | Active | 1100 µF | ±20% | 200 V | 216mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.96 A @ 100 Hz | 5.07 A @ 10 kHz | 139 mOhms | 0.394" (10.00mm) | 1.575" Dia (40.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
380LX152M200K052CAP ALUM 1500UF 20% 200V SNAP TH |
0 |
|
Datasheet |
380LX | Bulk | Obsolete | 1500 µF | ±20% | 200 V | 133mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.9 A @ 120 Hz | 5.4 A @ 20 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
381LX221M400K042CAP ALUM 220UF 20% 400V SNAP TH |
0 |
|
Datasheet |
381LX | Bulk | Obsolete | 220 µF | ±20% | 400 V | 904mOhm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1 A @ 120 Hz | 1.4 A @ 20 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
B43642A9337M000CAP ALUM 330UF 20% 400V SNAP TH |
0 |
|
Datasheet |
B43642 | Bulk | Active | 330 µF | ±20% | 400 V | 300mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.47 A @ 100 Hz | - | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
109LBB063M2EFCAP ALUM 10000UF 20% 63V SNAP TH |
0 |
|
Datasheet |
LBB | Bulk | Active | 10000 µF | ±20% | 63 V | 24.87mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 5.47 A @ 120 Hz | 6.8375 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
B43642G2827M000CAP ALUM 820UF 20% 250V SNAP TH |
0 |
|
Datasheet |
B43642 | Bulk | Active | 820 µF | ±20% | 250 V | 100mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.62 A @ 100 Hz | - | 150 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
LAKW6271MELB45CAP ALUM 270UF 20% 420V SNAP TH |
0 |
|
Datasheet |
LAK | Bulk | Active | 270 µF | ±20% | 420 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.1 A @ 120 Hz | 1.265 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
EKMM3J1VSN741MA50SCAP ALUM 740UF 20% SNAP TH |
0 |
|
Datasheet |
KMM | Bulk | Active | 740 µF | ±20% | - | - | - | -25°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
ALC80A133DD040CAP ALUM 13000UF 20% 40V SNAP TH |
0 |
|
Datasheet |
ALC80 | Bulk | Active | 13000 µF | ±20% | 40 V | 43mOhm @ 100Hz | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 7.44 A @ 100 Hz | 9.76 A @ 10 kHz | 35 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
ALC80C133DD040CAP ALUM 13000UF 20% 40V SNAP TH |
0 |
|
Datasheet |
ALC80 | Bulk | Active | 13000 µF | ±20% | 40 V | 43mOhm @ 100Hz | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 7.44 A @ 100 Hz | 9.76 A @ 10 kHz | 35 mOhms | 0.886" (22.50mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
ALC80D133DD040CAP ALUM 13000UF 20% 40V SNAP TH |
0 |
|
Datasheet |
ALC80 | Bulk | Active | 13000 µF | ±20% | 40 V | 43mOhm @ 100Hz | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 7.44 A @ 100 Hz | 9.76 A @ 10 kHz | 35 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
ALC80E133DD040CAP ALUM 13000UF 20% 40V SNAP TH |
0 |
|
Datasheet |
ALC80 | Bulk | Active | 13000 µF | ±20% | 40 V | 43mOhm @ 100Hz | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 7.44 A @ 100 Hz | 9.76 A @ 10 kHz | 35 mOhms | 0.886" (22.50mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
ALC80F133DD040CAP ALUM 13000UF 20% 40V SNAP TH |
0 |
|
Datasheet |
ALC80 | Bulk | Active | 13000 µF | ±20% | 40 V | 43mOhm @ 100Hz | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 7.44 A @ 100 Hz | 9.76 A @ 10 kHz | 35 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|

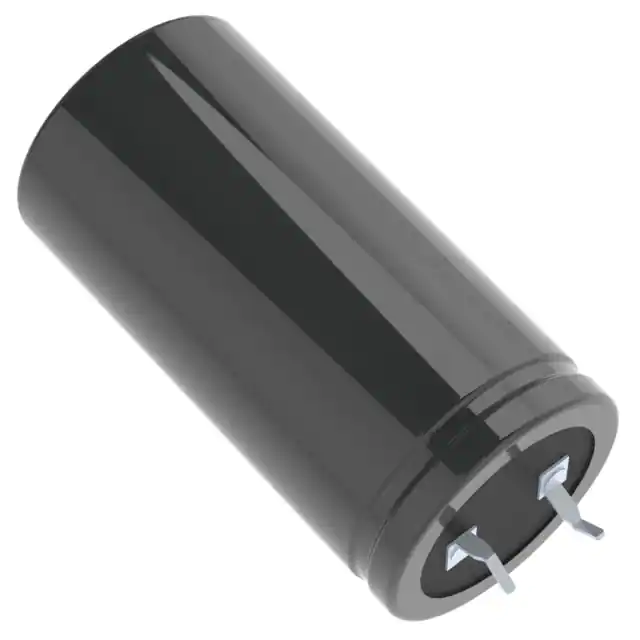

LKS1K472MESACAP ALUM 4700UF 20% 80V SNAP TH |
0 |
|
Datasheet |
LKS | Bulk | Obsolete | 4700 µF | ±20% | 80 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 3.6 A @ 120 Hz | - | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.969" (50.00mm) | - | Through Hole | |
|
|
568LMB063M2EECAP ALUM 5600UF 20% 63V SNAP TH |
0 |
|
Datasheet |
LMB | Bulk | Active | 5600 µF | ±20% | 63 V | 88.8141mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.3 A @ 120 Hz | 4.125 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
UPT2P681MRDCAP ALUM 680UF 20% 220V RADIAL |
0 |
|
Datasheet |
UPT | Bulk | Obsolete | 680 µF | ±20% | 220 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | - | - | General Purpose | 1.6 A @ 120 Hz | 2.56 A @ 10 kHz | - | 0.492" (12.50mm) | 0.984" Dia (25.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
LGM2W181MELA25CAP ALUM 180UF 20% 450V SNAP TH |
0 |
|
Datasheet |
LGM | Bulk | Active | 180 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 470 mA @ 120 Hz | - | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.083" (27.50mm) | - | Through Hole | |
|
380LX391M400K452CAP ALUM 390UF 20% 400V SNAP TH |
0 |
|
Datasheet |
380LX | Bulk | Active | 390 µF | ±20% | 400 V | 470mOhm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.1 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
381LX391M315A032CAP ALUM 390UF 20% 315V SNAP TH |
0 |
|
Datasheet |
381LX | Bulk | Active | 390 µF | ±20% | 315 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.3 A @ 120 Hz | 1.8 A @ 20 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
380LQ561M420A042CAP ALUM 560UF 20% 420V SNAP TH |
0 |
|
Datasheet |
380LQ | Bulk | Active | 560 µF | ±20% | 420 V | 355mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.75 A @ 120 Hz | 3.85 A @ 20 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole |
