Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

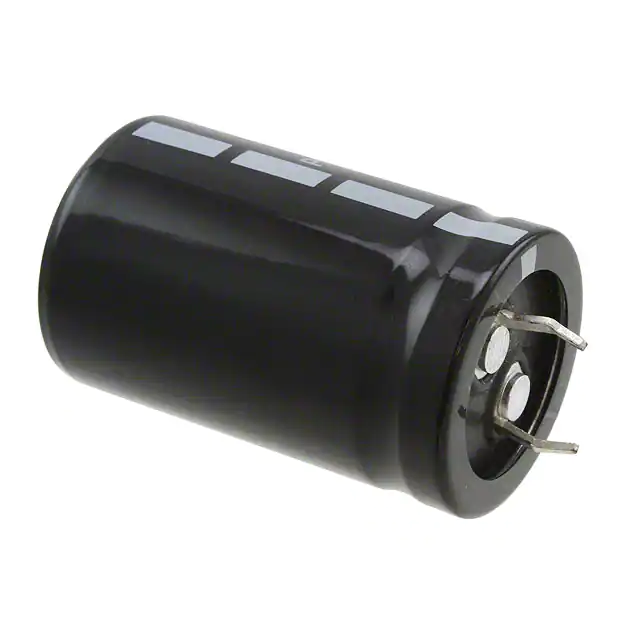

PEH534SBE3390M2CAP ALUM 390UF 20% 250V SNAP TH |
0 |
|
Datasheet |
PEH534 | Bulk | Active | 390 µF | ±20% | 250 V | 290mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.1 A @ 100 Hz | - | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
MAL205857152E3CAP ALUM 1500UF 20% 40V SNAP TH |
0 |
|
Datasheet |
058 PLL-SI | Tape & Box (TB) | Active | 1500 µF | ±20% | 40 V | 114mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.65 A @ 100 Hz | - | 65 mOhms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
MAL205877152E3CAP ALUM 1500UF 20% 40V SNAP TH |
0 |
|
Datasheet |
058 PLL-SI | Tape & Box (TB) | Active | 1500 µF | ±20% | 40 V | 114mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.65 A @ 100 Hz | - | 65 mOhms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
PEH228MKL3520QE4CAP ALUM 520UF 63V SOLDER LUG TH |
0 |
|
Datasheet |
PEH228 | Tray | Active | 520 µF | -10%, +30% | 63 V | 133mOhm @ 100Hz | 1500 Hrs @ 150°C | -40°C ~ 150°C | Polar | AEC-Q200 | Automotive | 1.61 A @ 100 Hz | 4.6 A @ 5 kHz | - | 0.600" (15.24mm) | 0.638" Dia (16.20mm) | 1.130" (28.70mm) | - | Through Hole | |
|
|
ELG477M400AT4AACAP ALUM SNAP-IN 105C |
0 |
|
Datasheet |
ELG | Bulk | Active | 470 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.65 A @ 120 Hz | 2.3925 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
SLPX561M350E7P3CAP ALUM 560UF 20% 350V SNAP TH |
0 |
|
Datasheet |
SLPX | Bulk | Active | 560 µF | ±20% | 350 V | 355mOhm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.73 A @ 120 Hz | 4.01 A @ 20 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
350USC470MEFCSN30X35CAP ALUM 470UF 20% 350V SNAP TH |
0 |
|
Datasheet |
USC | Bulk | Not For New Designs | 470 µF | ±20% | 350 V | - | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.53 A @ 120 Hz | 3.542 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
420MXK390MEFCSN22X55CAP ALUM 390UF 20% 420V SNAP TH |
0 |
|
Datasheet |
MXK | Bulk | Active | 390 µF | ±20% | 420 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2 A @ 120 Hz | 2.8 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 2.244" (57.00mm) | - | Through Hole | |
|
|
LHM561M2G---3540SCAP ALUM 400V POLAR |
0 |
|
- |
LHM | Active | 560 µF | ±20% | 400 V | 355mOhm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.9 A @ 120 Hz | 2.66 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole | ||
|
16MXG10000MEFCSN22X30CAP ALUM 10000UF 20% 16V SNAP TH |
0 |
|
Datasheet |
MXG | Bulk | Active | 10000 µF | ±20% | 16 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.15 A @ 120 Hz | 2.4725 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
200USC1800MEFC35X40CAP ALUM 1800UF 20% 200V SNAP TH |
0 |
|
Datasheet |
USC | Bulk | Not For New Designs | 1800 µF | ±20% | 200 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.59 A @ 120 Hz | 6.885 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
220MXC180MEFC20X25CAP ALUM 180UF 20% 220V SNAP TH |
0 |
|
Datasheet |
MXC | Bulk | Not For New Designs | 180 µF | ±20% | 220 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 860 mA @ 120 Hz | 1.29 A @ 10 kHz | - | 0.394" (10.00mm) | 0.787" Dia (20.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
220VXG680MEFC22X50CAP ALUM 680UF 20% 220V SNAP TH |
0 |
|
Datasheet |
VXG | Bulk | Active | 680 µF | ±20% | 220 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.43 A @ 120 Hz | 3.645 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
|
400VXS390MEFC30X40CAP ALUM 390UF 20% 400V SNAP TH |
0 |
|
Datasheet |
VXS | Bulk | Not For New Designs | 390 µF | ±20% | 400 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.97 A @ 120 Hz | 2.758 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
420KXF68MEFC22X20CAP ALUM 68UF 20% 420V SNAP TH |
0 |
|
Datasheet |
KXF | Bulk | Active | 68 µF | ±20% | 420 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 480 mA @ 120 Hz | 672 mA @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
|
50MXG12000MEFCSN35X35CAP ALUM 12000UF 20% 50V SNAP TH |
0 |
|
Datasheet |
MXG | Bulk | Active | 12000 µF | ±20% | 50 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 4.56 A @ 120 Hz | 5.244 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
400HXC220MEFCSN25X45CAP ALUM 220UF 20% 400V SNAP TH |
0 |
|
Datasheet |
HXC | Bulk | Active | 220 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.83 A @ 120 Hz | 2.562 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
ALC80A391EB350CAP ALUM 390UF 20% 350V SNAP TH |
0 |
|
Datasheet |
ALC80 | Bulk | Active | 390 µF | ±20% | 350 V | 364mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.16 A @ 100 Hz | 5.17 A @ 10 kHz | 195 mOhms | 0.394" (10.00mm) | 1.575" Dia (40.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
ALC80C391EB350CAP ALUM 390UF 20% 350V SNAP TH |
0 |
|
Datasheet |
ALC80 | Bulk | Active | 390 µF | ±20% | 350 V | 364mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.16 A @ 100 Hz | 5.17 A @ 10 kHz | 195 mOhms | 0.886" (22.50mm) | 1.575" Dia (40.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
ALC80D391EB350CAP ALUM 390UF 20% 350V SNAP TH |
0 |
|
Datasheet |
ALC80 | Bulk | Active | 390 µF | ±20% | 350 V | 364mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.16 A @ 100 Hz | 5.17 A @ 10 kHz | 195 mOhms | 0.394" (10.00mm) | 1.575" Dia (40.00mm) | 1.260" (32.00mm) | - | Through Hole |
